Press Trimming Seoul SSC-160

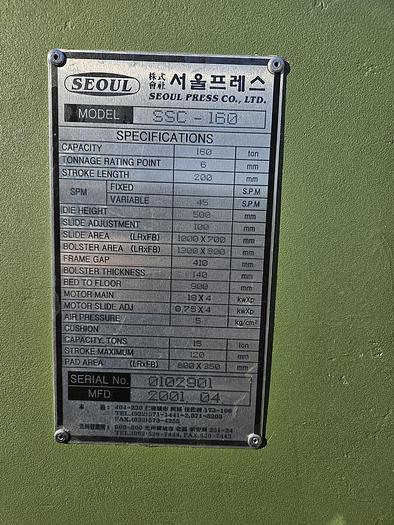

Specifications
| Manufacturer | Seoul |
| Model | SSC-160 |
| Year | 2001 |
| Condition | Used |
| Stock Number | MA2629 |
| Item condition | Good condition |
| Capacity tons | 160 |
Description
Capacity : 160 tons,
Tons rating point : 6 mm,
Ram stroke : 200 mm,
Slider strokes per minutes : 45 spm,
Die height : 500 mm,
Slide adjustment : 100 mm,
Slide area (LR x FB) : 1000 x 700 mm,
Bolster area (LR x FB) : 1300 x 800 mm,
Thickness : 140 mm,
Bed to floor : 900 mm,
Frame gap : 410 mm,
Main Motor : 19x4 KWxP,
Slide adjustment motor : 0.75x4 KWxP,
Air Pressure used : 5 kg/cm2,
Cushion
Capacity : 15 tons,
Max. Stroke : 120 mm,
Pad area (LR x FB) : 600 x 350 mm.
