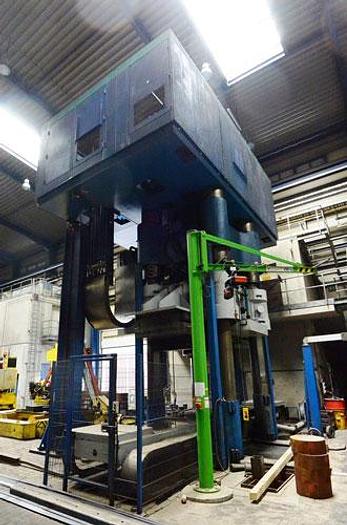

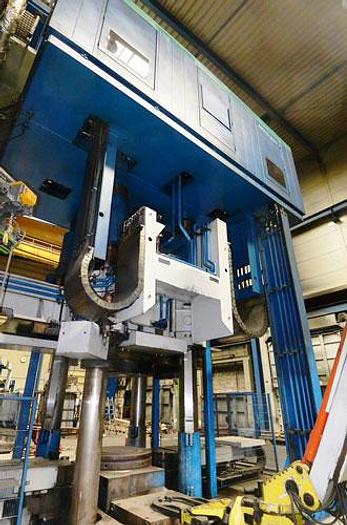

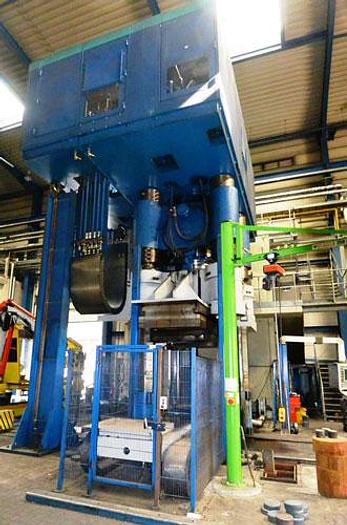

3500 tons Press Forging Hydraulic Presstec RPH-S 3500-1800/1500
or
Call +919920651051
Specifications
| Manufacturer | Presstec |
| Model | RPH-S 3500-1800/1500 |
| Condition | Used |
| Stock Number | MA2643 |
| Item condition | Good condition, new and stored |
| Capacity tons | 3500 |
Description
Ring Blanking Press
Capacity : 3500 tons,
Stroke : 1500 mm,
Daylight : 2200 mm,
Approach speed : 400 mm/sec,
Return force : 270 tons,
Daylight between the columns (left to right) : 1800 mm,
Daylight between the columns (front to back) : 1500 mm,
Working pressure : 320 bars,
Height of machine above floor : 9000 mm,
Height of machine below floor : 2100 mm,
Total weight : 320 tons.
How it works : hydraulic,
Table shifting with 3 stations,
Workpiece centering device for Ø 220-1500 mm.
