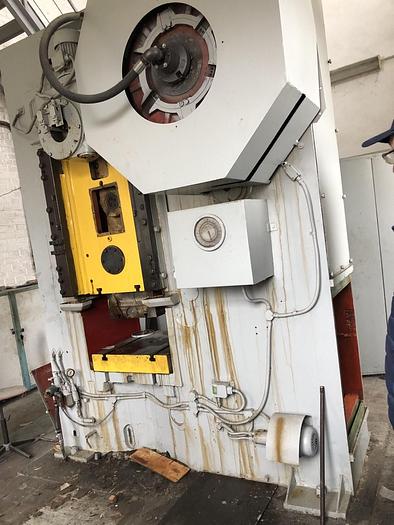

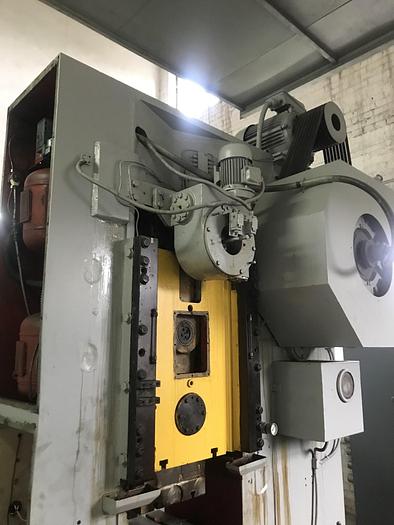

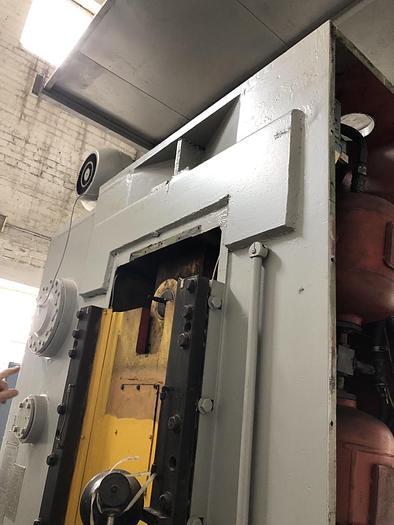

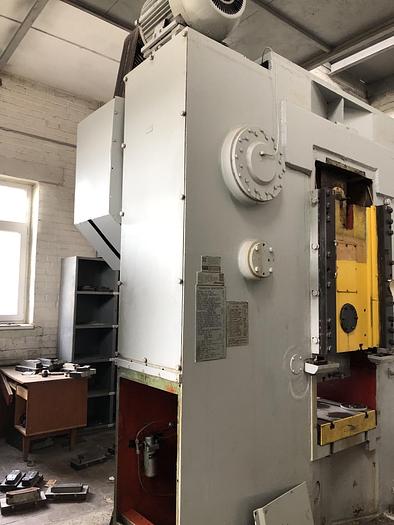

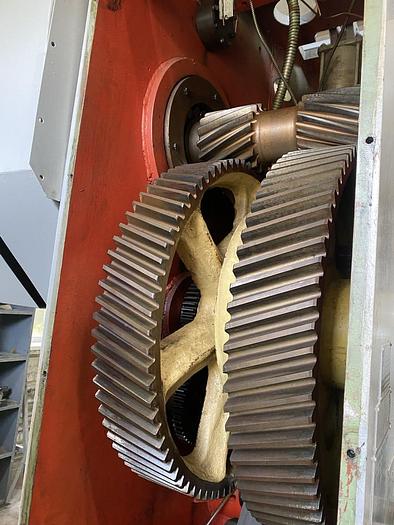

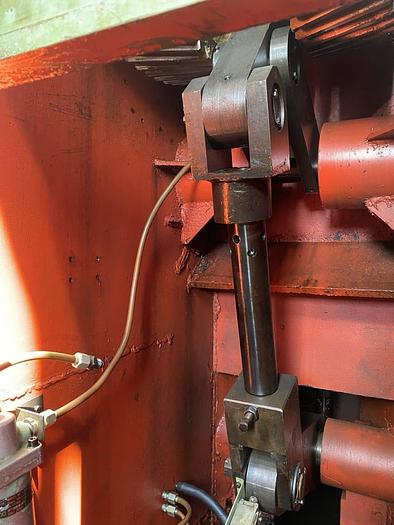

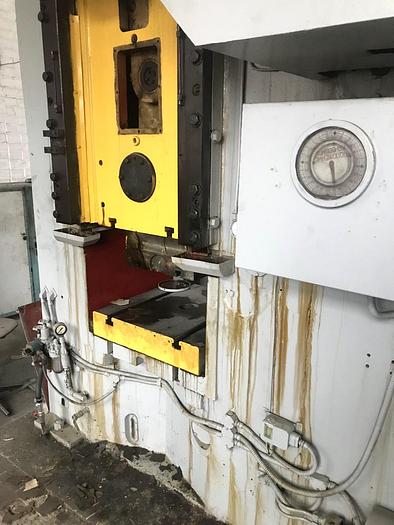

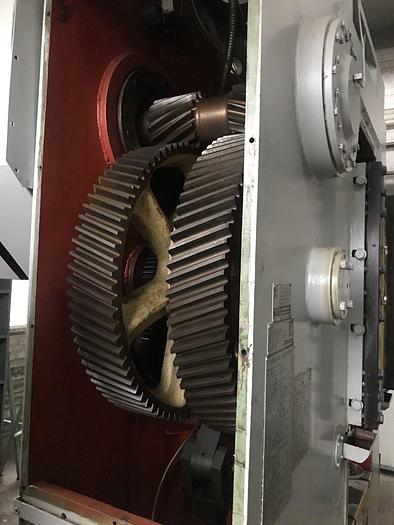

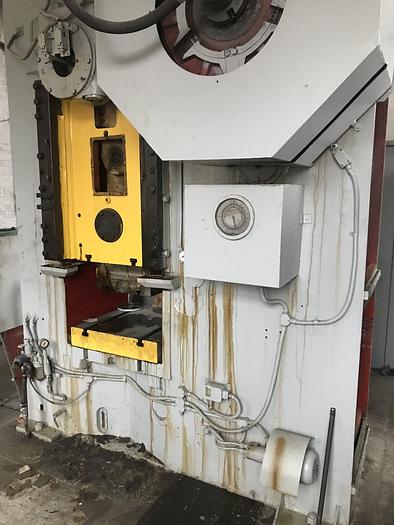

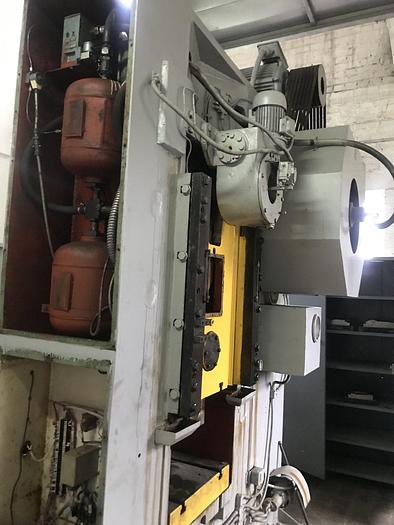

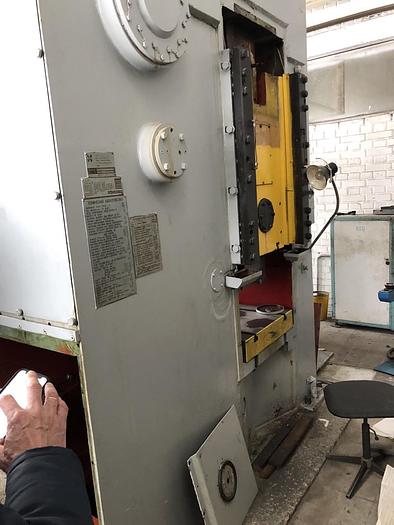

160 tons Press Cold Extrusion Kuzlitmash KB0032

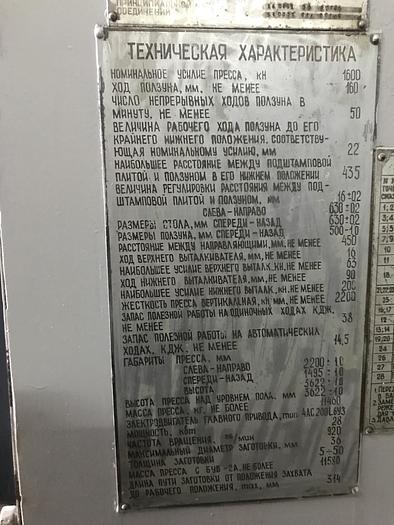

Capacity : 160 tons,

Ram Stroke : 160 mm,

Strokes per minute : 50,

Frequency of the continuous strokes of the slide : 50/1 min,

Max single-stroke engagements : 20/1 min,

Bolster plate to ram adjustment : 16 mm,

Shut height : 435 mm,

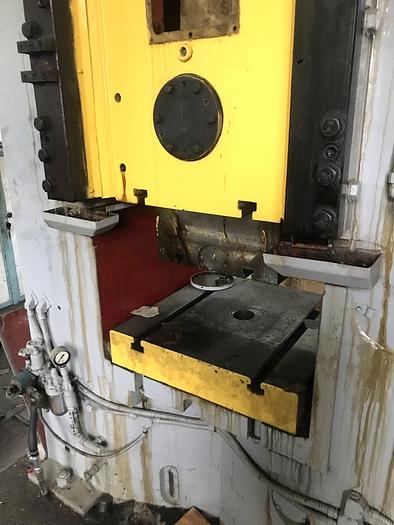

Dimensions of the bolster plate :

-Left-to-right : 630 mm,

-Front-to-back : 630 mm,

Overall dimensions : 3622 x 2220 x 3622 mm,

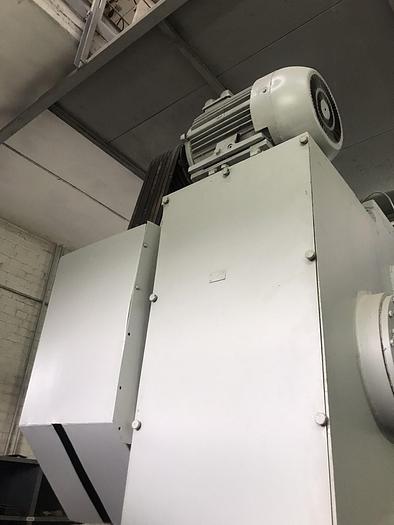

Main drive motor power : 33.5 kW,

Total weight : 12 tons.
