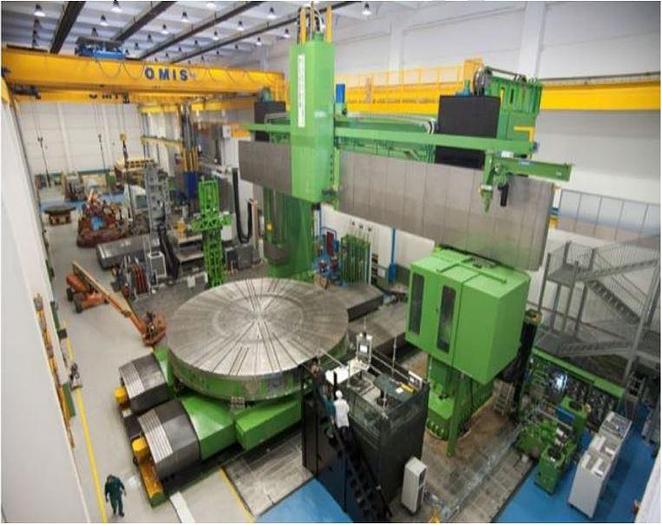

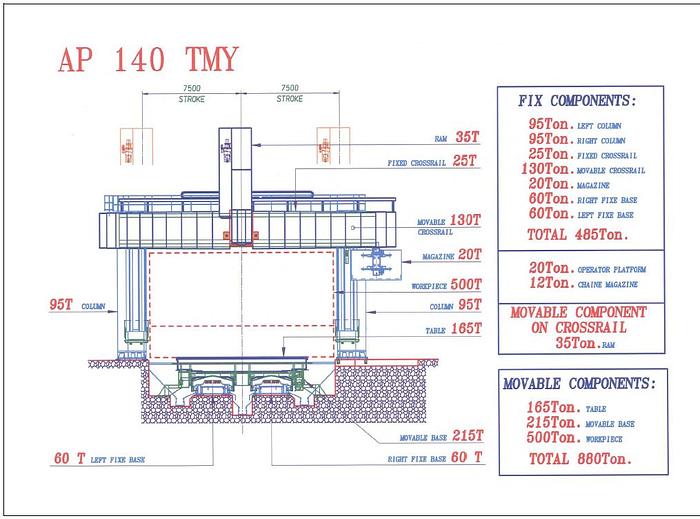

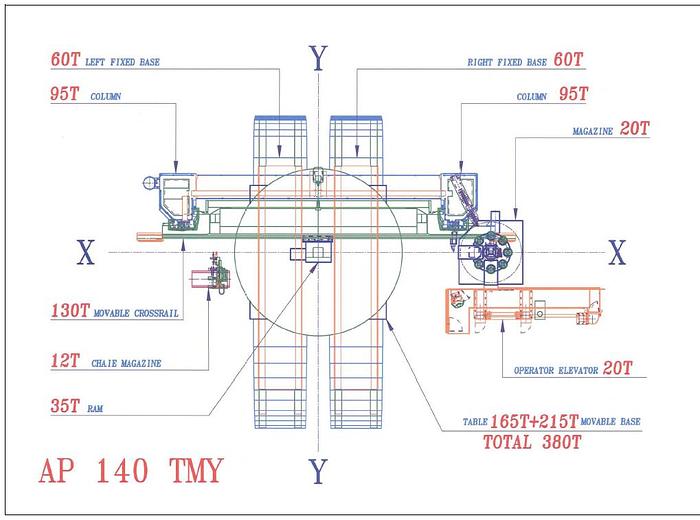

Lathe Vertical Turning CNC Pietro Carnaghi AP140TMY

CNC Double Column Turn Mill Centre

Max. turning dia. : 14,000 mm,

Table dia. : 10,000 mm,

Standard weight on table : 350 tons,

Max. allowable weight : 500 tons,

Standard RPM : 35 RPM,

Turning power : 300 kW,

Turning height fixed crossrail : 1500,

Turning height movable crossrail : 8900,

Ram section : 600 x 600 m,

Ram stroke Z-axis : 4000 mm,

Milling power : 100 kW,

Max. RPM : 3000 RPM,

Rapid feeds X-Z-axes : 10000 (mm/min),

Rapid feeds Y-axes : 10000 (mm/min)

Machine Weight : approx. 1100 tons.

C axis, Live Tooling, ATC. Siemens CNC controls with the existed accessories.

Technical manuals available.

Model AP is designed for machining large parts and can withstand the most extreme cutting conditions;

Crosshead sized to support massive lathe carriages and high force.

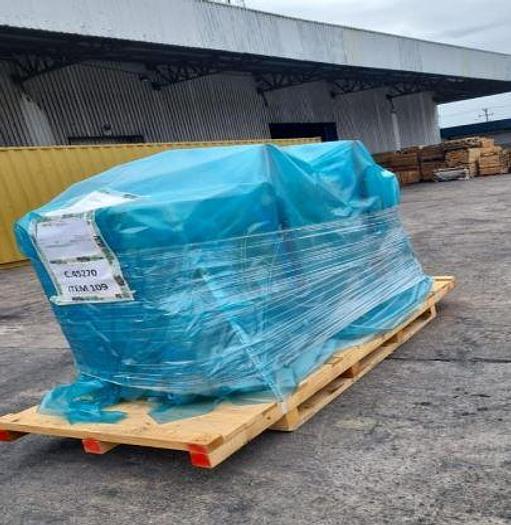

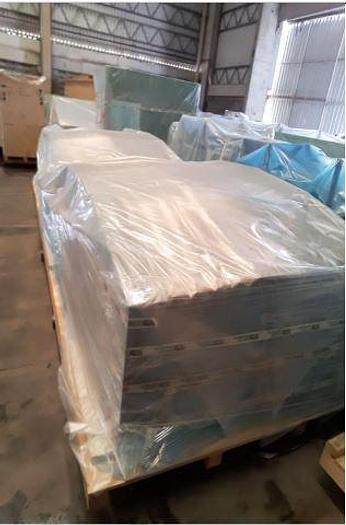

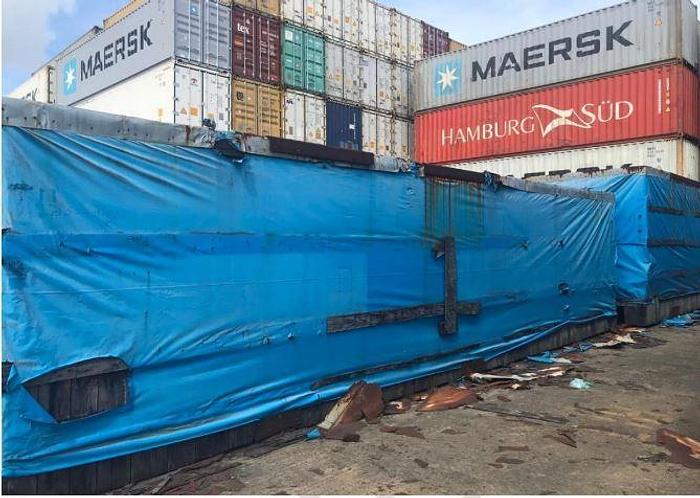

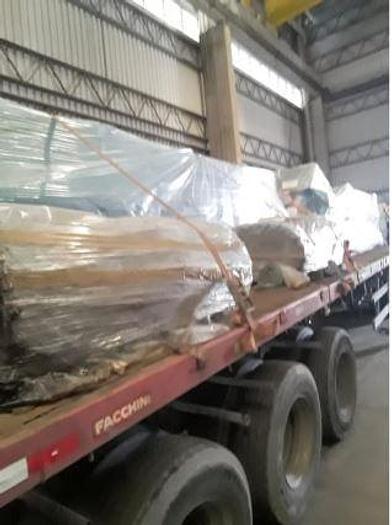

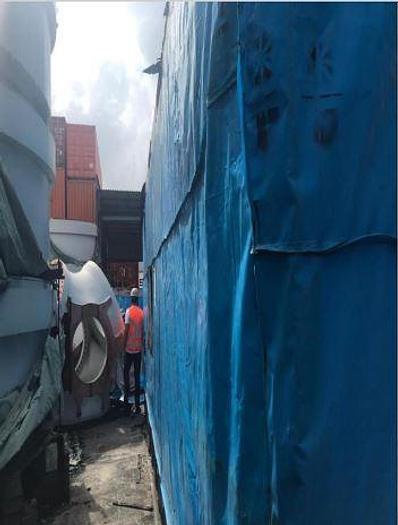

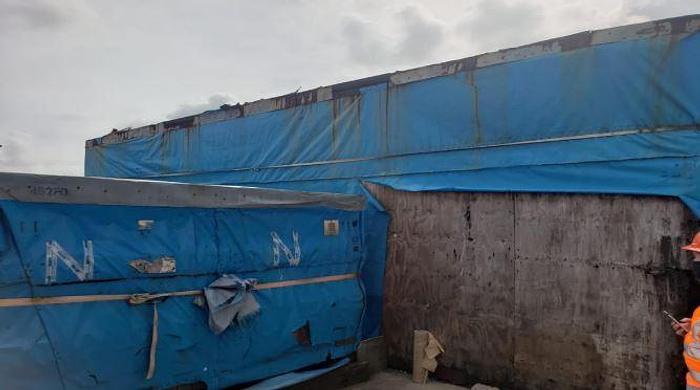

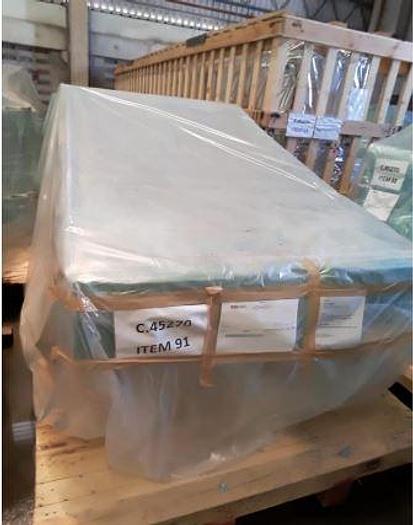

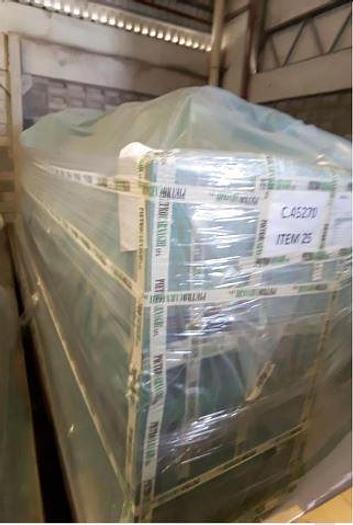

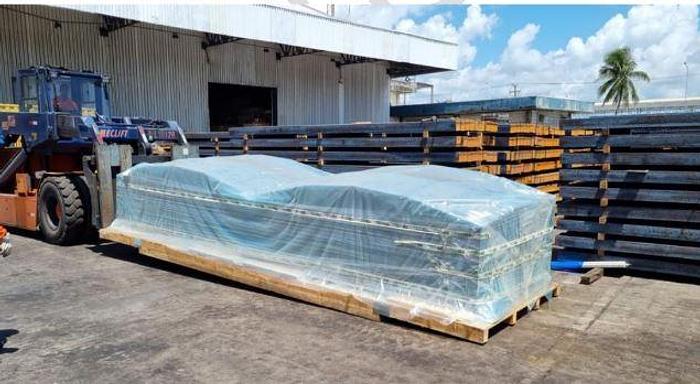

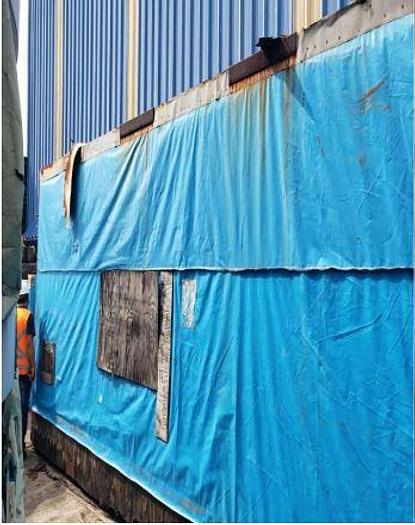

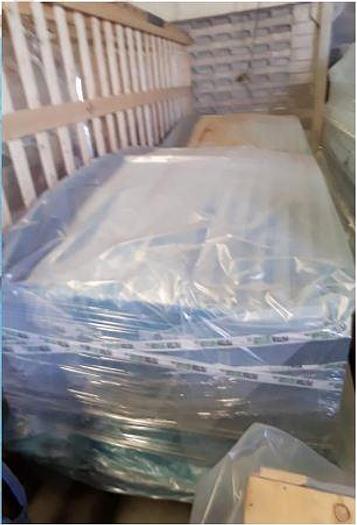

Stored & ready for shipment
