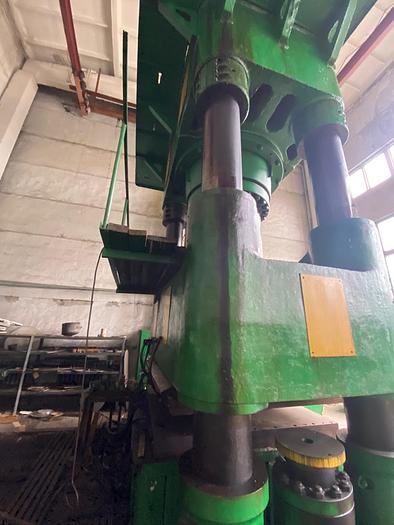

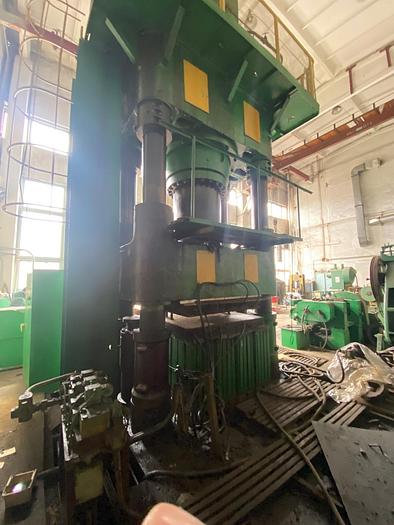

2000 tons Press Forging Hydraulic Dnepropress D2243

Isothermal Hydraulic Press

Capacity : 2000 tons,

Slider stroke : 1400 mm,

The greatest distance between the table and the slider : 2400 mm,

Table length : 2000 mm,

Table width : 1650 mm,

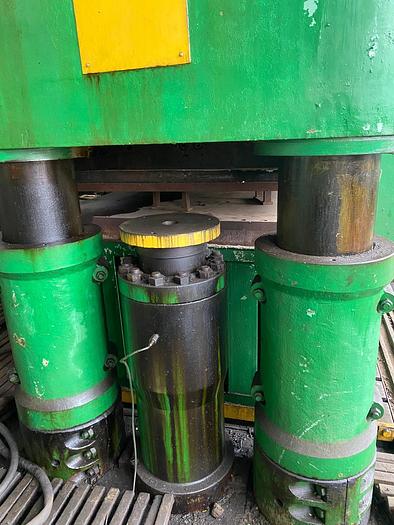

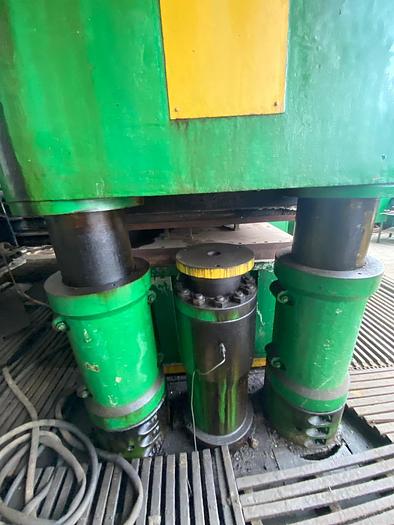

Stroke of the central ejector (above the table) : 250 mm,

Side ejector height (above table) : 350 mm,

Moving table stroke : 1500 mm,

Working pressure : 300 kgf/cm2,

Lifting cylinder force : 400 tons,

Ejector force:

– Working stroke (up) : 300 tons,

– Return stroke (down) : 150 tons,

Side ejector force : 25 tons,

Fore of the table movement cylinder : 25 tons,

Slider speed at idle stroke downwards, not less : 100* mm/s.

Slider speed at downward working stroke, not less : 1-4* mm/s.

Slider speed at return stroke, not less : 60* mm/s.

Overall dimensions of the press :

From left to right : 7000 mm,

Front - back : 5750 mm,

Height above floor level : 11750 mm,

Press height above floor : 7900 mm,

Press weight : 144.5 tons.

The press has an extendable table.

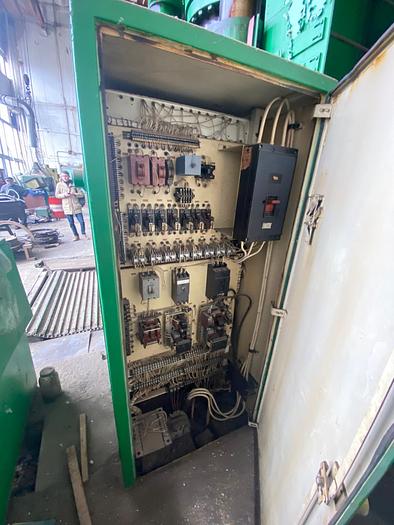

Installed electric motor power : 54.4 kW

Mechanically complete and in good working order.
