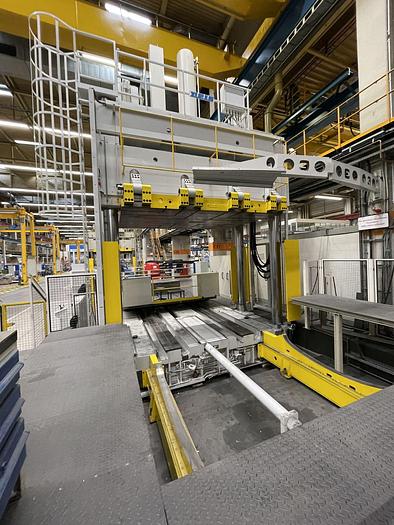

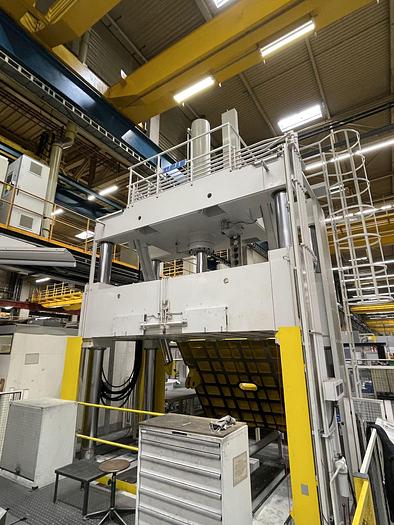

250 tons Press Die Spotting Hydraulic Reis TUS 400-250

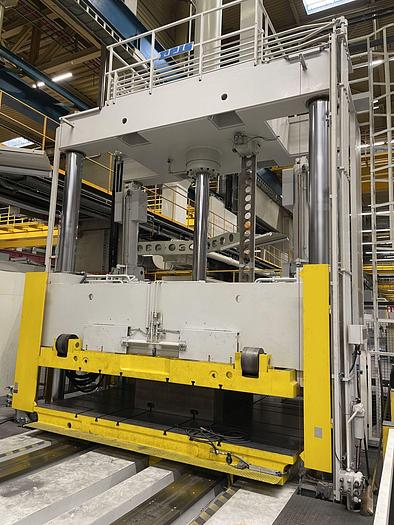

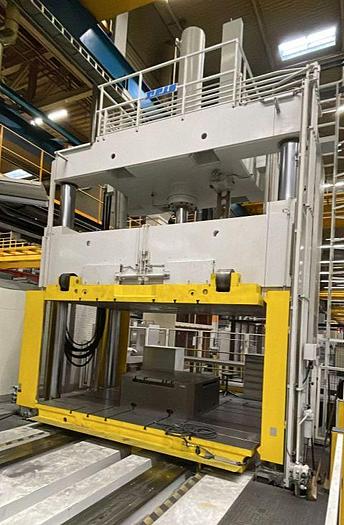

Press Design frame design 4 column with moving bolster

Capacity : 250 tons,

Clamping surface : 4000 x 3000 mm,

Daylight : 2750 mm,

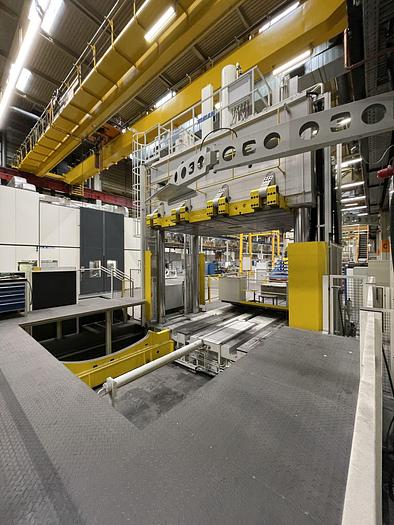

Sliding table with max capacity of 100 tons,

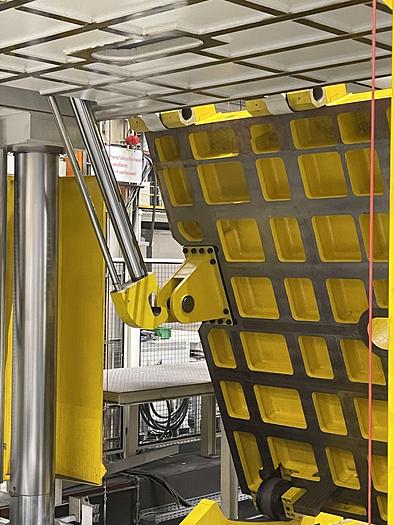

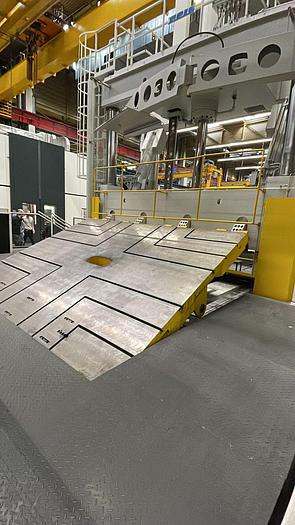

and a swivel plate capacity of 50 tons,

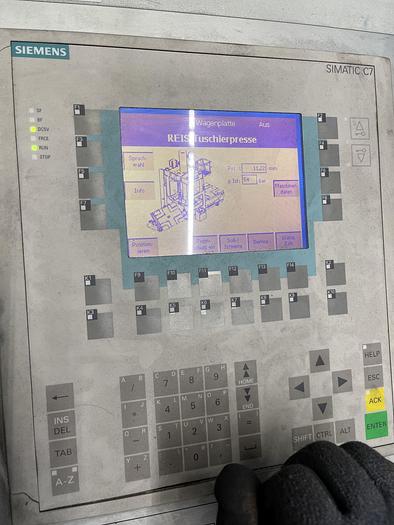

Siemens S7 control

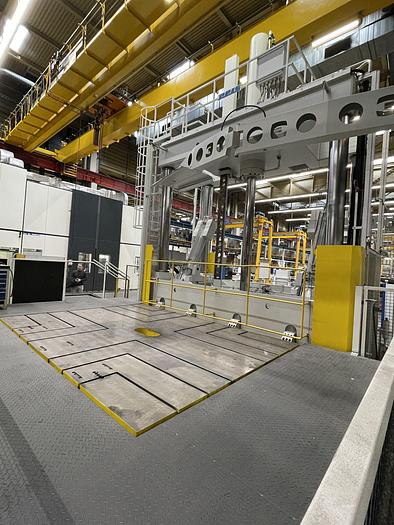

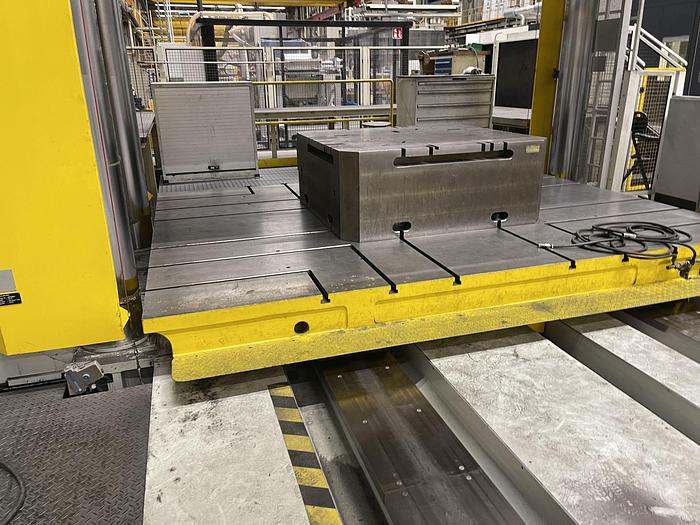

Press Table :

Clamping surface (left-right) : 4000 mm,

Clamping surface (front-back) : 3000 mm,

Tool weight max. : 100 tons,

Number of T-slots : 12,

Distance between T-slots : 375 mm,

Height above floor level : 390 mm

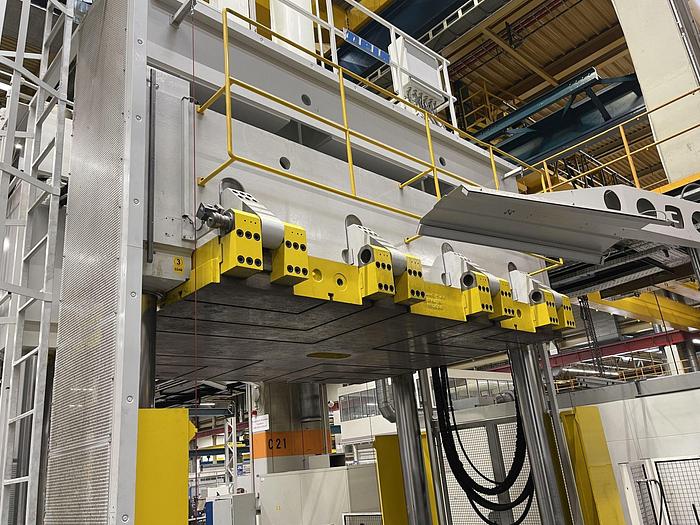

Ram :

Clamping surface (left-right) : 4000 mm,

Clamping surface (front-back) : 3000 mm,

Number of T-slots :12,

Distance between T-slots : 375 mm,

Stroke : 2900 mm

Tool weight max. : 50 tons

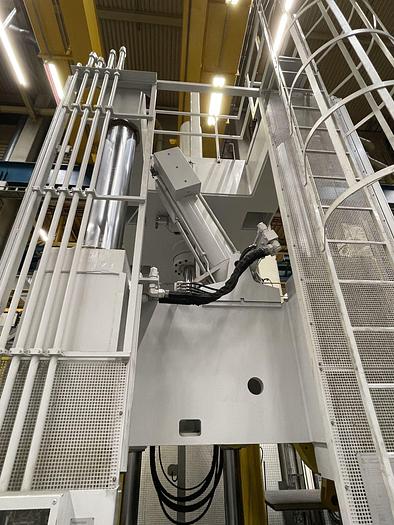

Ram (hydr. press) :

Number of main-cylinders : 1,

Approximation velocity max. : 180 mm/s,

Working velocity max. : 50 mm/s,

Restoring force of ram : 95 tons

Tool Assembly Dimensions :

Distance table - ram max. : 2750 mm,

Distance between columns (H-frame) : 4100 mm,

Free passage between side columns (width) : 1500 mm

Electrical specifications :

Total power consumption : 62 kW,

Mains voltage : 400 V,

Mains frequency : 50 Hz,

Dimensions / weights :

Space requirements length : 10200 mm,

Space requirements width : 6900 mm,

Total height : 8850 mm,

Height above floor level : 7930 mm,

Height under floor level : 920 mm,

Total weight approx. : 120 tons.
