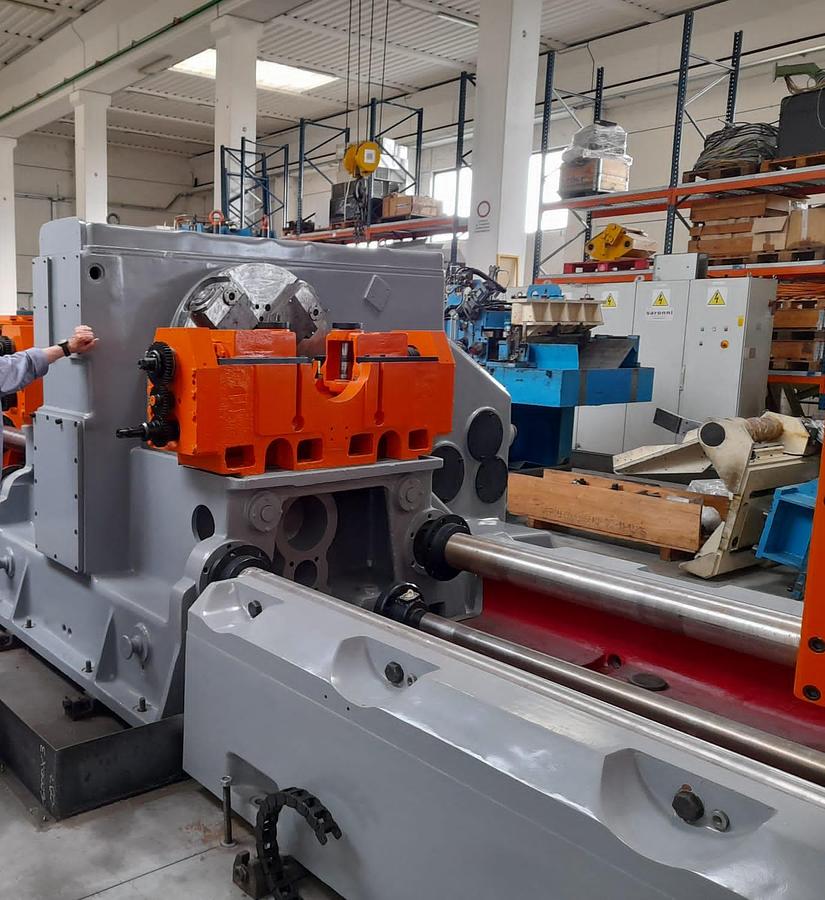

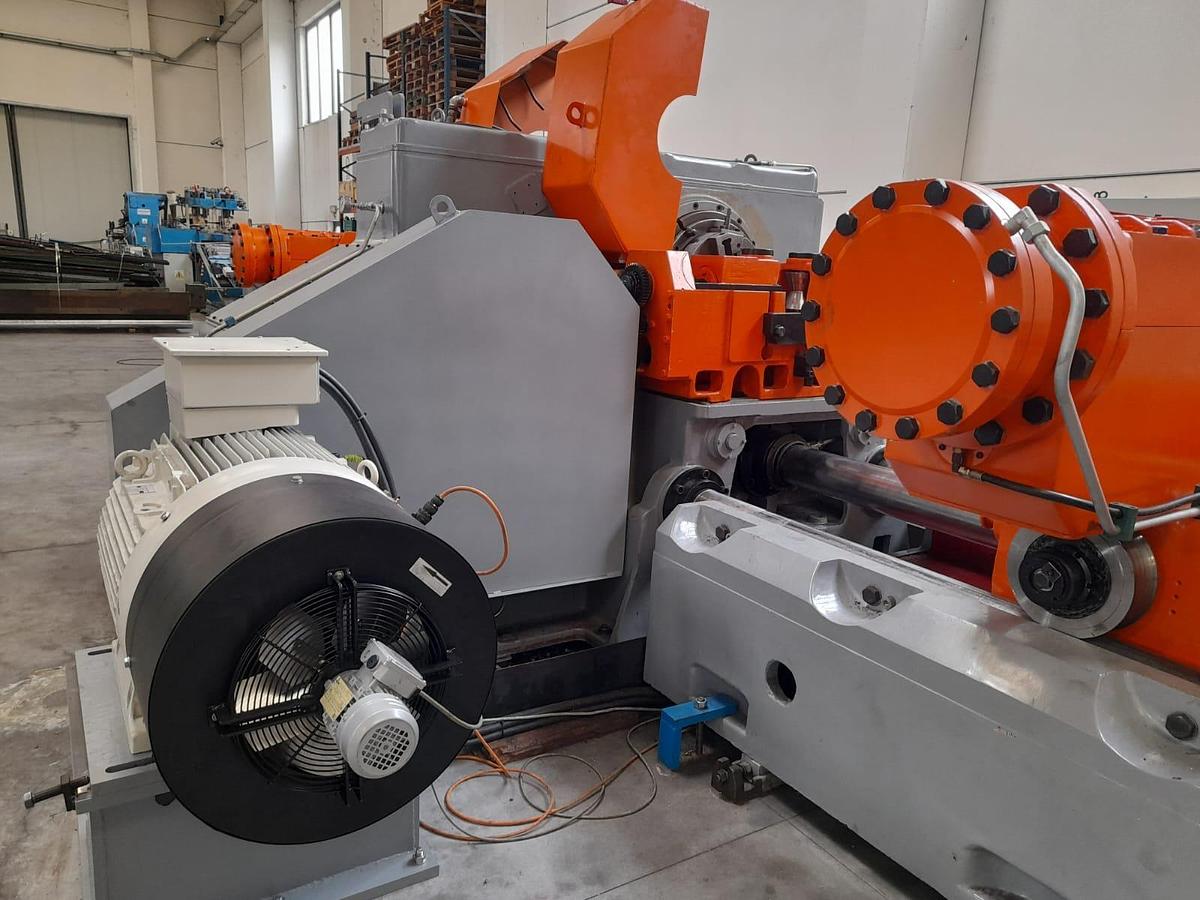

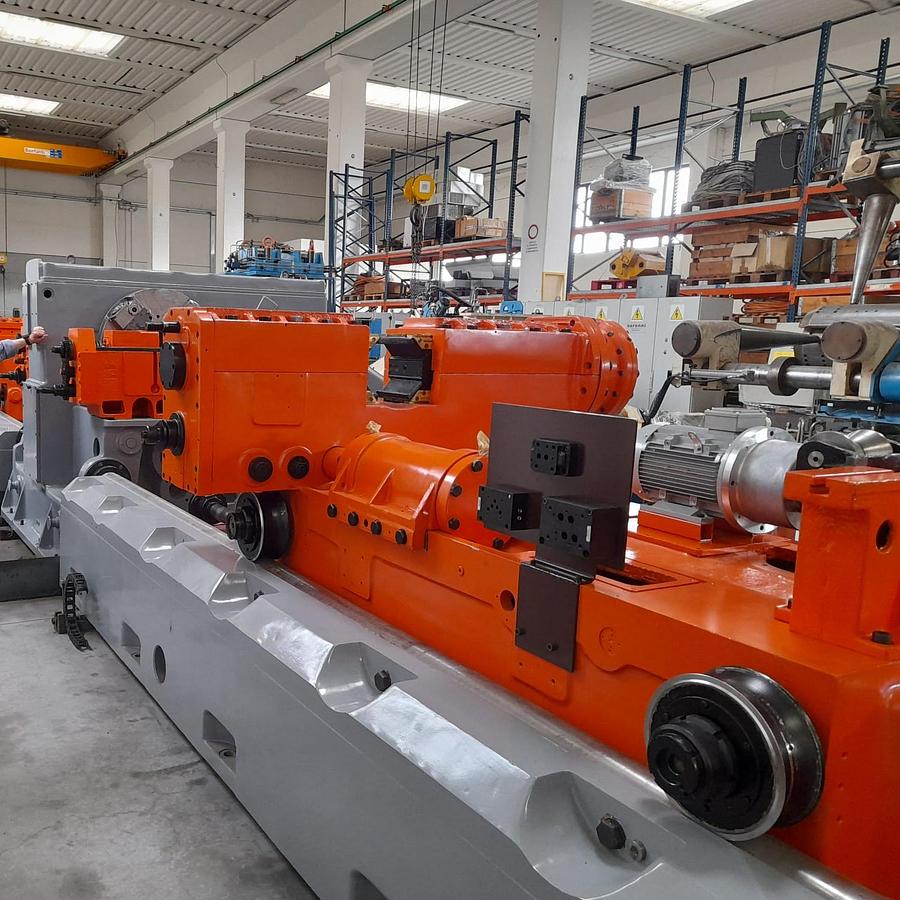

Bar Peeling Machine KZTS

Manufacture : KZTS (KIESERLING system with 2 carriages)

Raw material dia. min. : 150 mm,

Raw material dia. max. : 280 mm,

Number of cutting head : 1 (one),

Number of tool holders : 4 (quattro),

Stroke max of tool holders : 50 mm,

Spindle RPM : 0 - 600,

The cutting head is manual with the possibility to adjust the position of each tool holder

The Feeding Clamping Force is 76 Ton (60 bars)

Maximum depth of cut radial in one pass:

-  4 mm radial

-  8 mm on diameter

Feeding speed (mm/min) : min. 0,1 meter  / min.

max 2 meter  / min.

The peeler production speed depend of many factors : the kind of material, the straightness of the bars, the dia. of the bars ect.

Minimum peeler bar length : 3000 mm,

Weight of the machine : approx. 80 tons,

Force of spindle main motor : 200 Kw,

Production capacity : 70 / 76 Tons/ hour (approx. material dia. 200 / 280 mm)

The peeling test is possible with your material in our work shop in Italy

The machine is practically “brand new” because we have use only the iron casting parts of the “original” machine

Main brand new parts installed during the fully reconditioning :

- cutting head

- transmission pulley belt

- wheels and gears in the gearbox

- bearings

- carriage wheels , bronze slides , springs

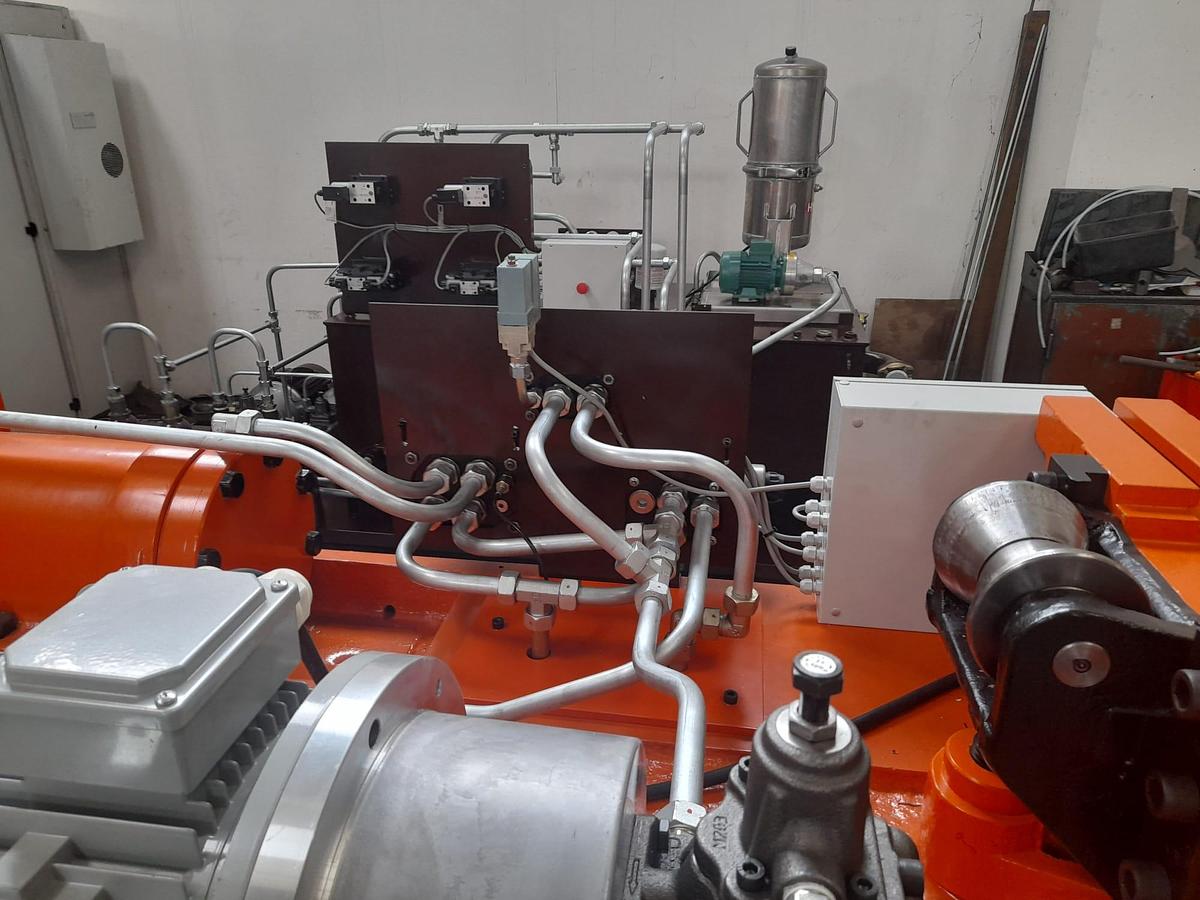

- fully hydraulic parts

- fully  lubrication parts

- fully electrical parts
