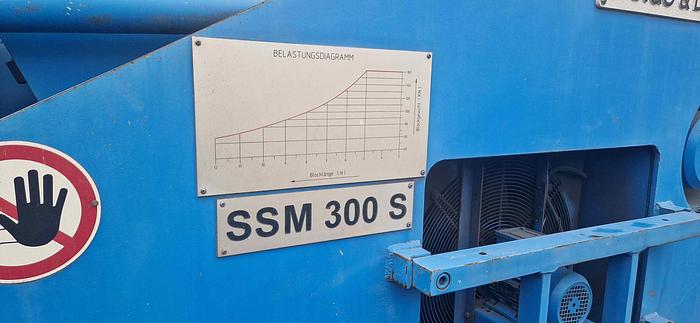

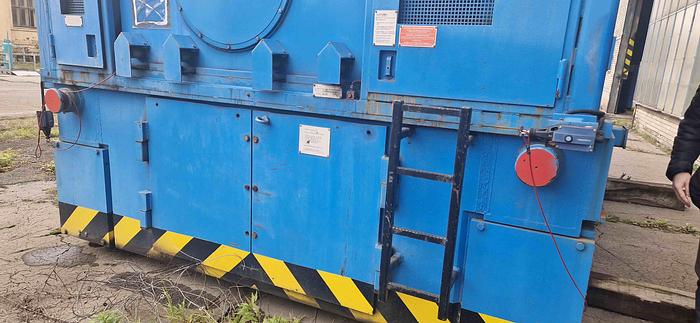

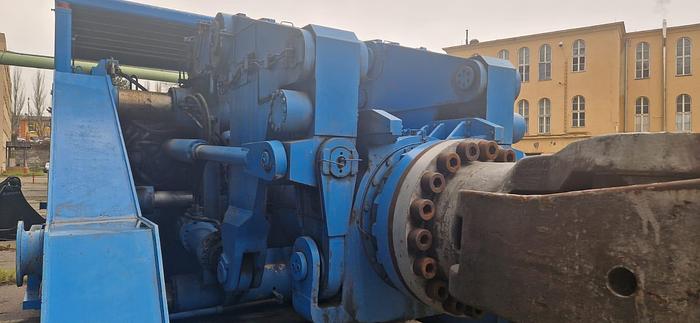

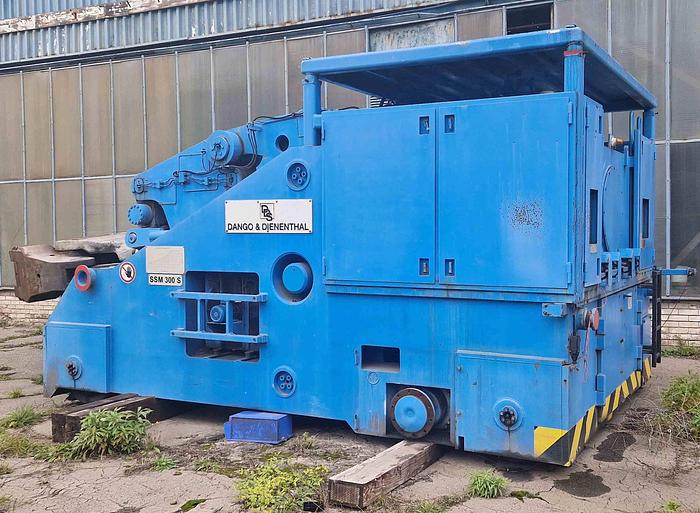

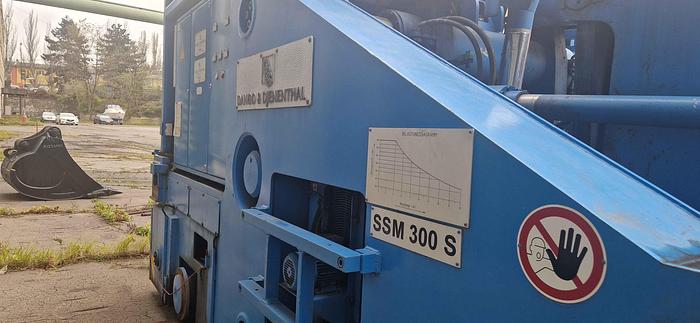

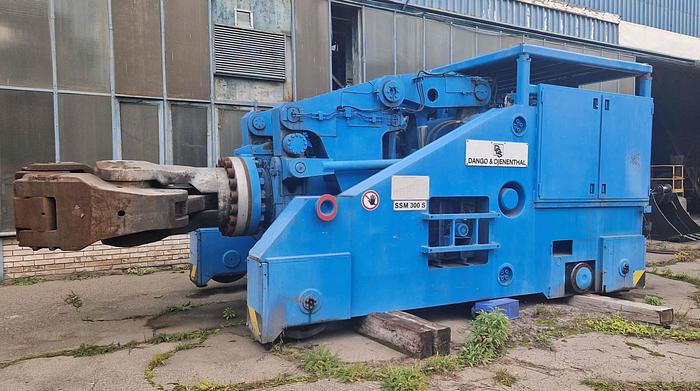

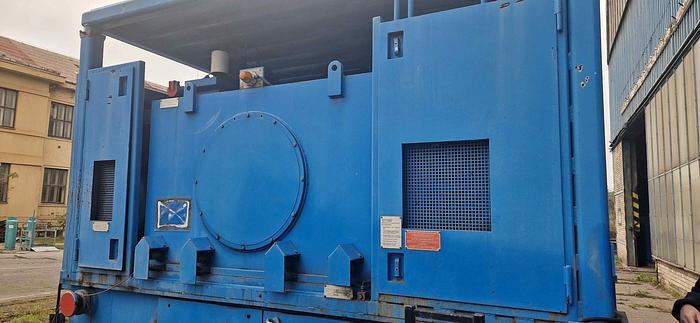

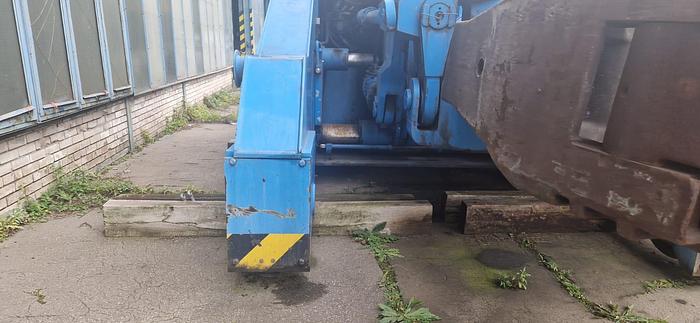

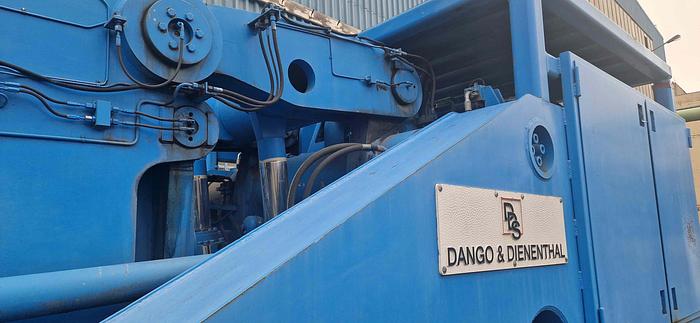

16 tons Manipulator Dango & Dienenthal SSM300S

Rail Bound Manipulator

16 Ton nominal capacity (18 ton real)

Capacity : 16 tons,

Maximum load capacity : 180 kN,

Load moment (relative to the pliers head plate) maximum : 400 kNm,

Tipping moment (relative to center of front wheel) maximum : 634 kNm,

Test block (Last) : 171 kN,

Lastabstand : 1,88 m,

Load torque (called) : 320 kNm,

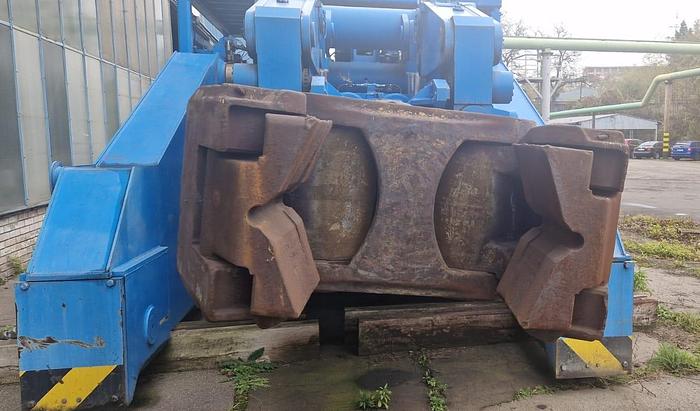

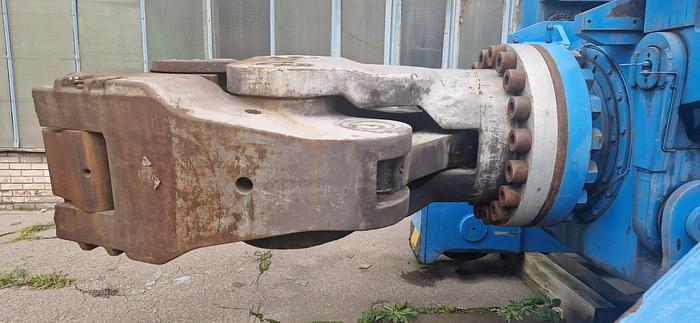

Gripping range block pliers pliers opening maximum

for round material : 1160 mm,

for square material : 955 mm,

Minimum pliers opening for round and square material : 200 mm,

Total length (pliers open) : 7026 mm,

Total width (without drive arm) : 3480 mm,

Total height : 3100 mm

Lowest horizontal position of the clamp above ground : 750 mm,

Parallel stroke of the pliers without stroke suspension : 1200 mm,

Stroke suspension : 150 mm,

Tilt the pliers upwards : 7.0,

Tilt the pliers downwards : 7.5,

Move page to the left : 200 mm,

Move page to the right : 200 mm.

Dimension (W x L x H) : 3600 x 7030 x 3200 mm,

Performance

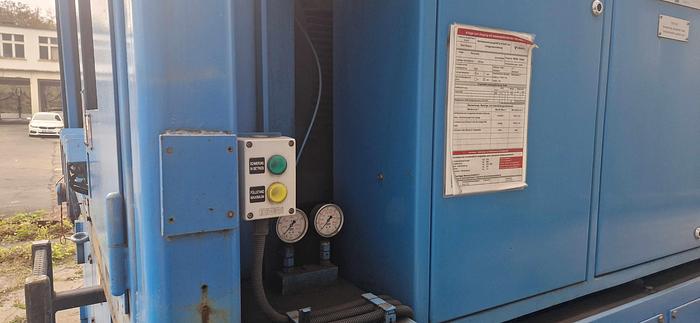

Main pumps

Electric motor power : 2 x 75 kW

Capacity : 2 x 150 l/min

Speed : 1485 revs/min (rpm)

Max operating pressure : 200 bar

Pump for tightening of clamp

Electric motor power : 4 kW

Speed : 1450 revs/min (rpm)

Capacity : 12 l/min

Operating pressure (max) : 250 bar,

Total weight : 62 tons.

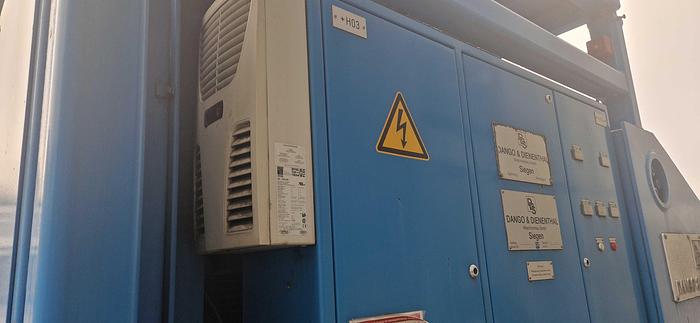

Complete of electrical cabinet and operator control desk but of course the electrical part must be reconditioned/ modernized

Manual and DRW : not available
