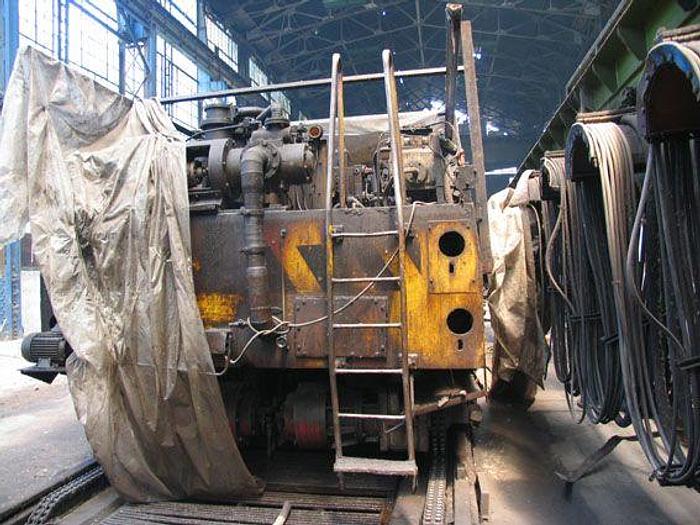

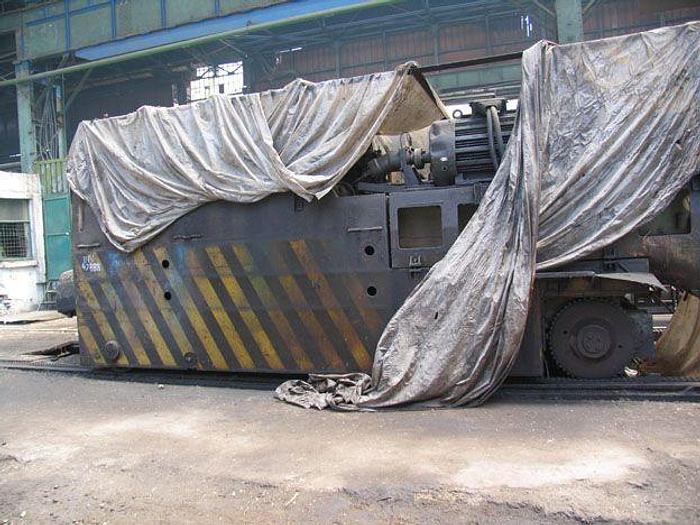

12.5 tons Manipulator Romania

Rail Bound Forging manipulator : Manufacturer Romania (based on SACK SSM 12.5/25 license)

Capacity : 12.5 tons,

Rail move

Weight of heaviest lift : 12 tons,

Momentum : 25 tons,

Max. tong opening : 850 mm,

Max. diameter of tong rotation circle : 1800 mm,

Speed on the rail : 1.5 to 30 m/min,

Jaw height over rail : 800 – 1600 mm,

Vertical movement of the jaw : 800 mm,

Horizontal movement of the jaw : 200 mm left; 200 mm right,

Rotation of jaw : 2-15 rot/min,

Angle of vertical inclination : +- 5 deg.,

Angle of horizontal inclination : +- 5 deg.,

Total weight of manipulator : 70 tons,

Overall dimensions :

Length : 8630 mm,

Width : 3220 mm,

Height : 2800 mm,

Installed power : 220 KW.

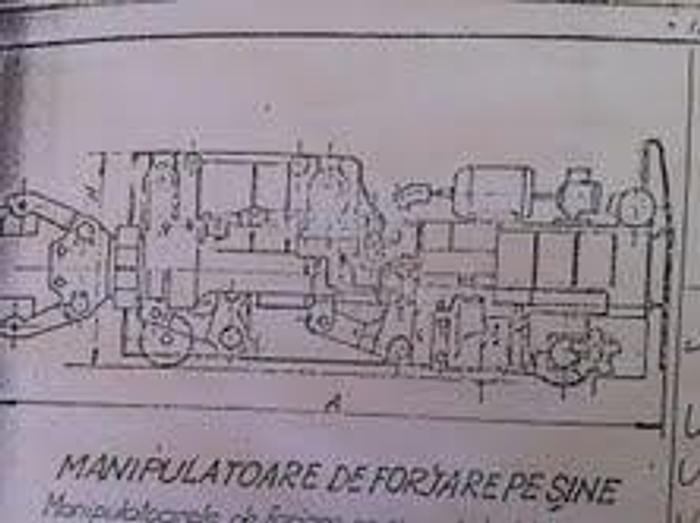

All the drawings are available.
