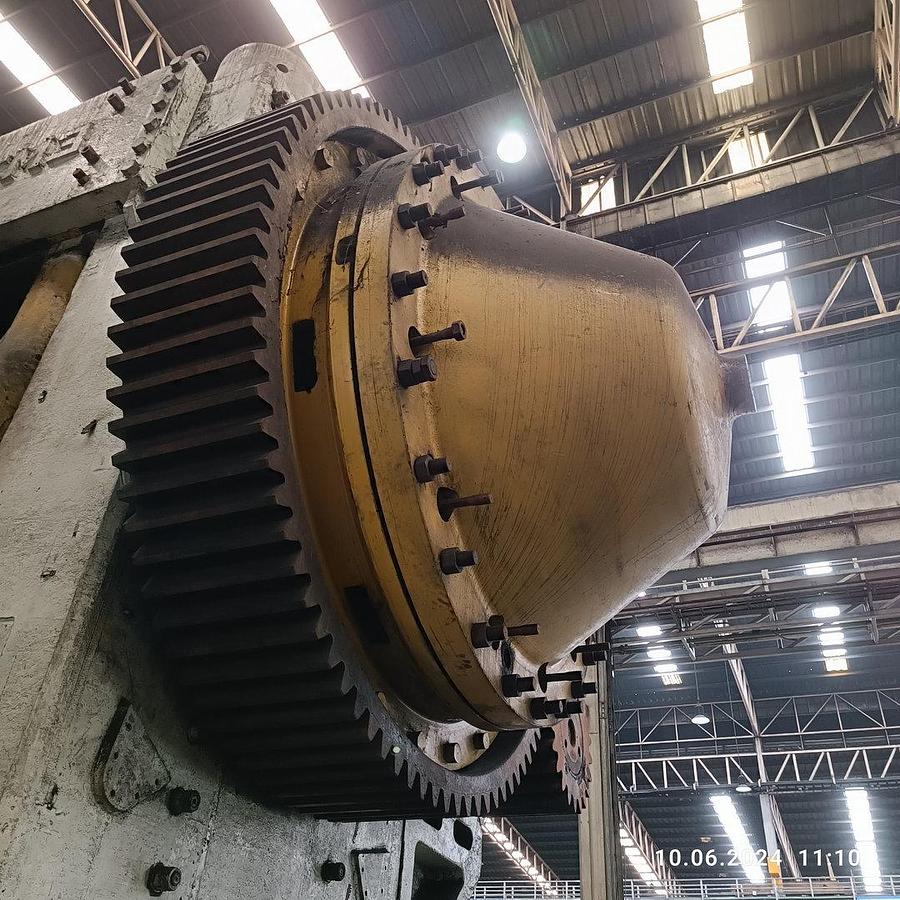

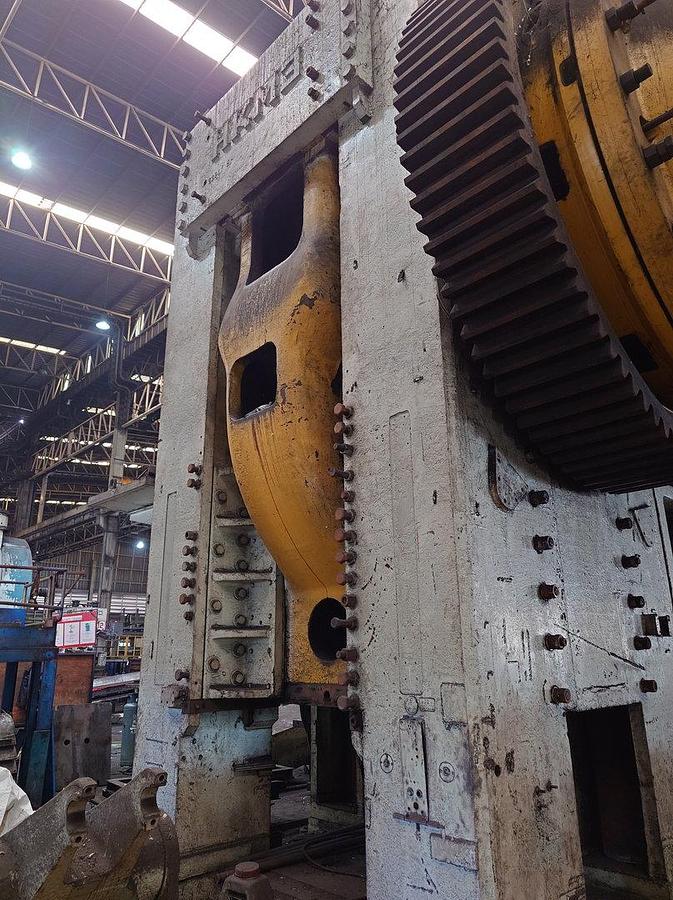

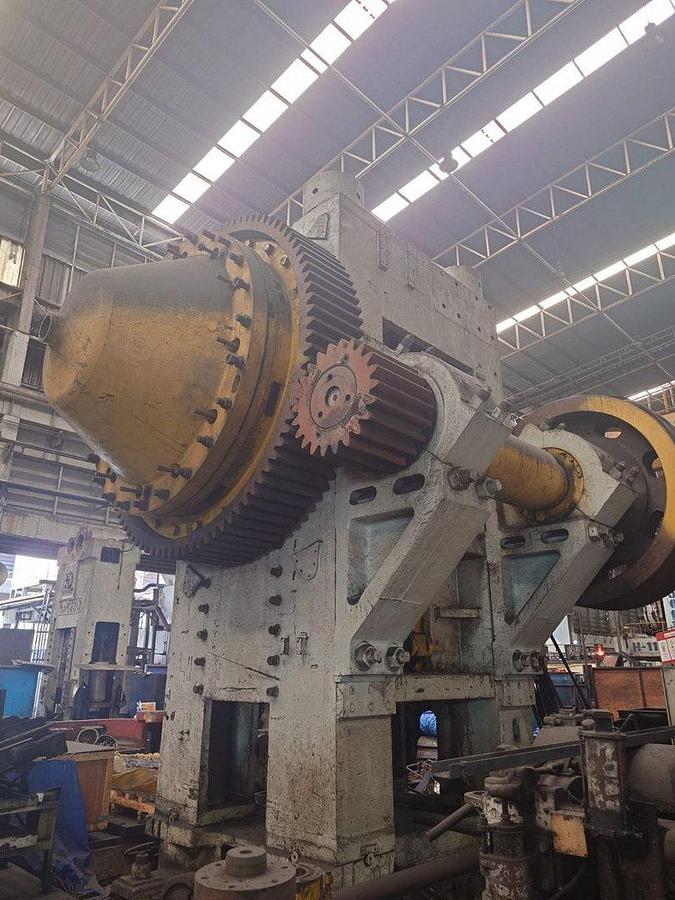

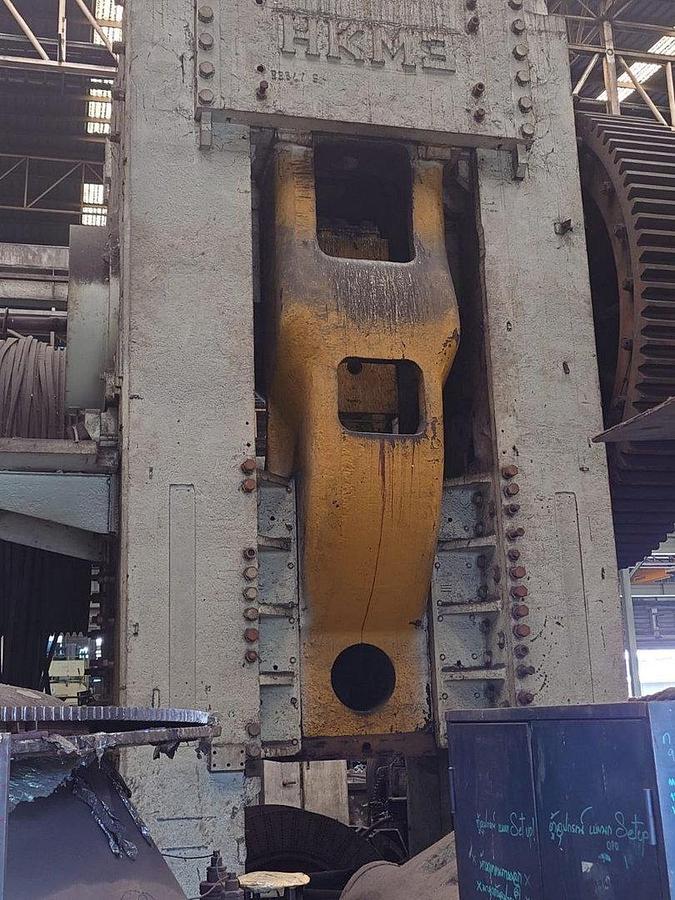

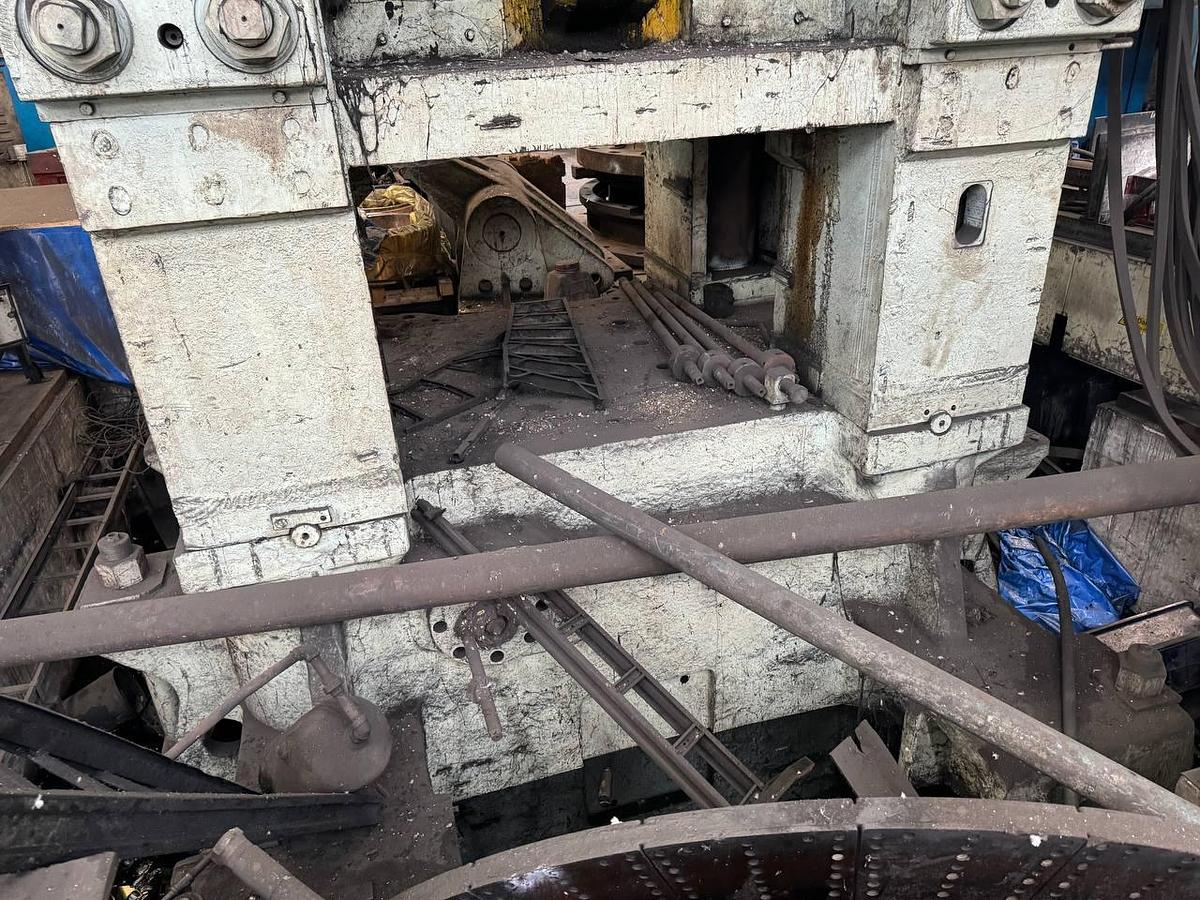

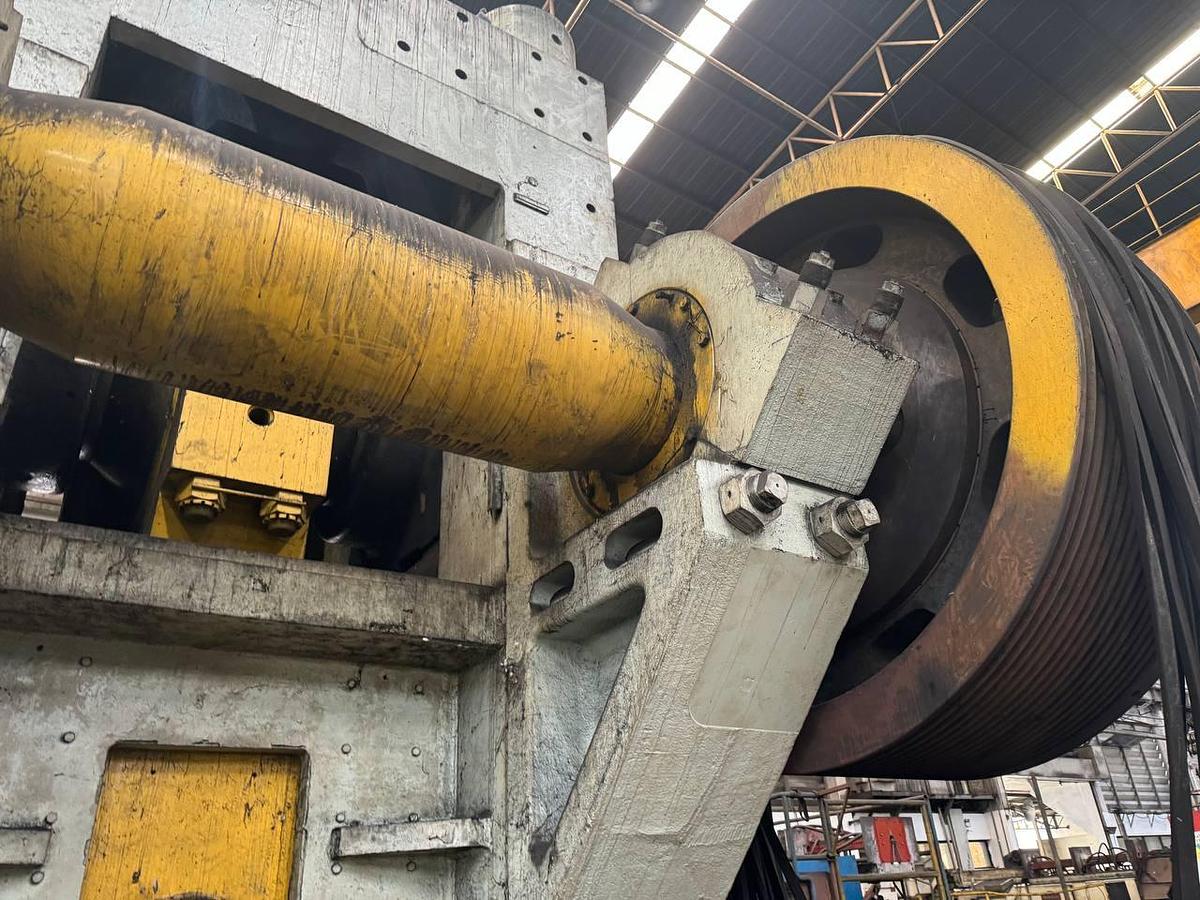

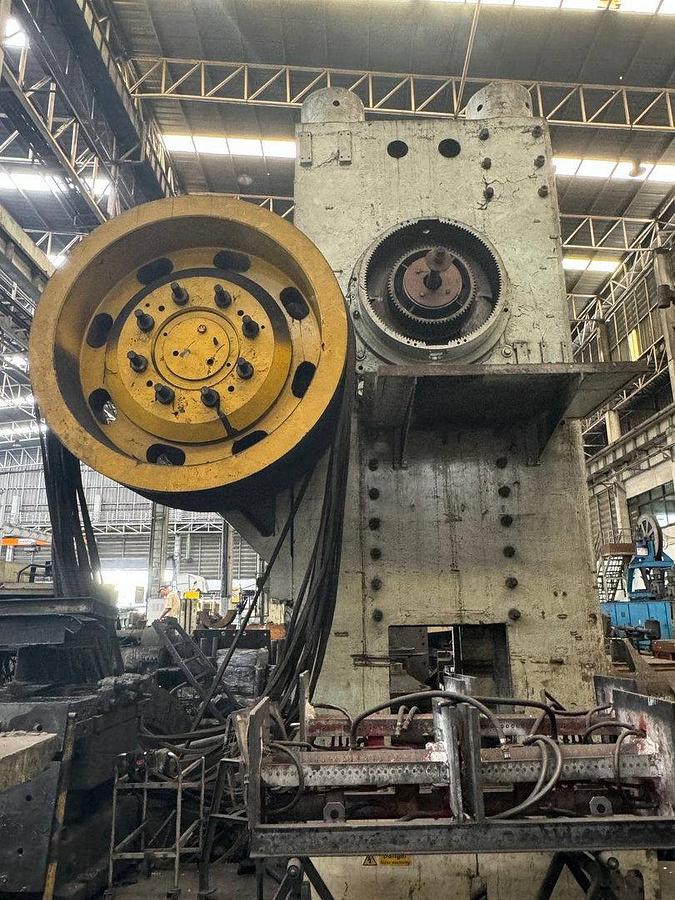

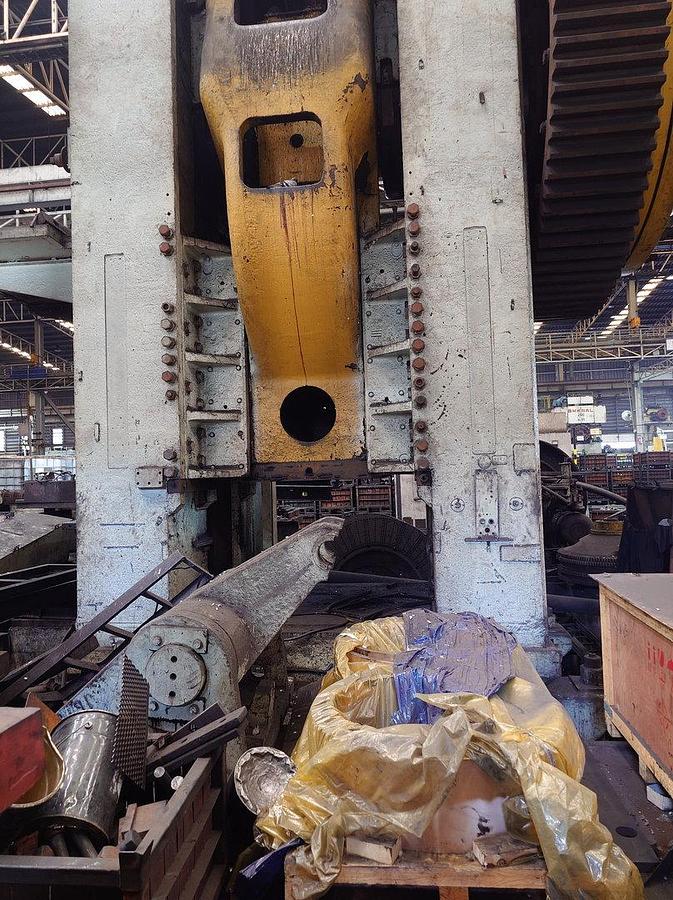

6300 tons Press Hot Forging Kramatorsk
Specifications
| Manufacturer | Kramatorsk |
| Condition | Used |
| Stock Number | MA2884 |
| Item condition | Good condition |
| Capacity tons | 6300 |
Description
Capacity : 6300 tons,
Slider stroke length : 460 mm,
Number of courses of a slider per minute : 40,
Shut height : 1150 mm,
Adjustment of a table on height : 15 mm,
Table overall dimensions :
Depth : 1950 mm,
Width : 1900 mm,
The size of a slider, mm:
Depth : 1680 mm,
Width : 1680 mm,
Force of the top ejector : 10 tons,
Force of the bottom ejector : 16 tons,
Main electric motor power : 400 kW,
Number of turns of the electric motor : 590 rpm,
Machine overall dimensions
Length : 8600 mm,
Width : 5900 mm,
Height : 12700 mm,
Press weight : 634 tons.
The press will be mechanically complete with installed brand new modern pneumatic and hydraulic systems.
The press will contain a completely brand new electrical system with PLC, safety system, operator protection system, overload protection, main motor speed control, counter for ram press position, HMI.
System based on the DELTA (Tawian) components.
Warranty: 12 months.
