6 tons Hammer Forging Pneumatic Line Huta Zygmunt MPM16000B

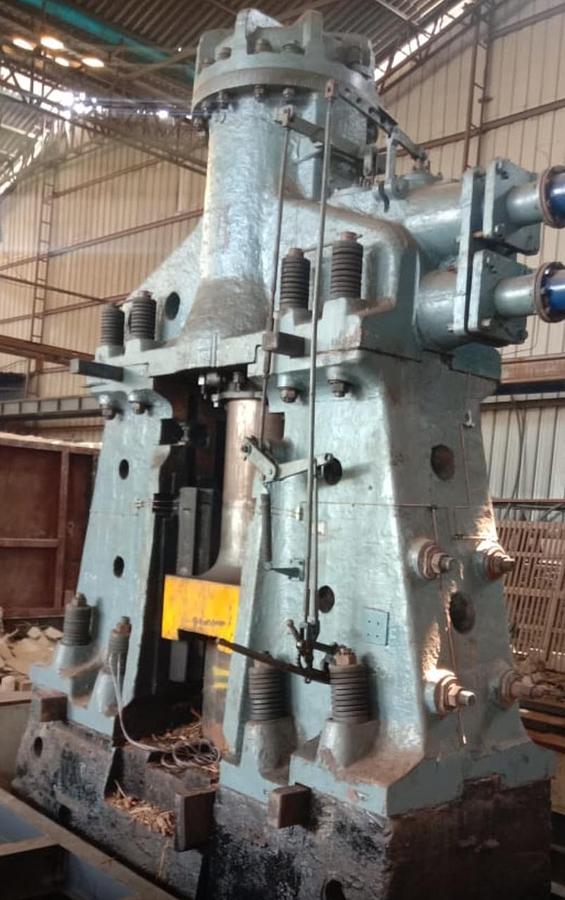

1) Forging Hammer

(Brand new imported piston installed in December 2024)

Make : Huta Zygmunt, Polish

Model : MPM16000B

Capacity : 6 tons,

Energy of blow : 175 kJ,

Max. Stroke : 1000 mm,

Stroke per min : 80

Min. die thickness : 400 mm,

Ram weight : 6.3 tons,

Length of die seat in the ram : 900 mm,

Length of die seat in the die holder : 1250 mm,

Upper die max. weight : 1.8 tons,

Cylinder bore : 850 mm,

Anvil weight : 120 tons,

Total weight with anvil : 168 tons,

Width : 4080 mm,

Height : 7580 mm,

Depth : 2400 mm,

Light between guides : 850 mm.

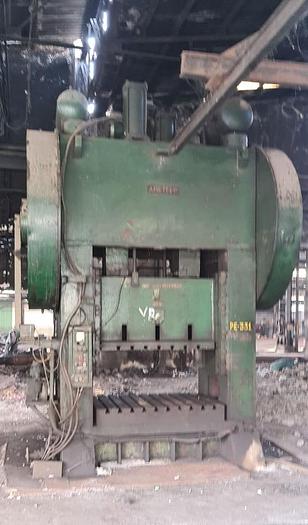

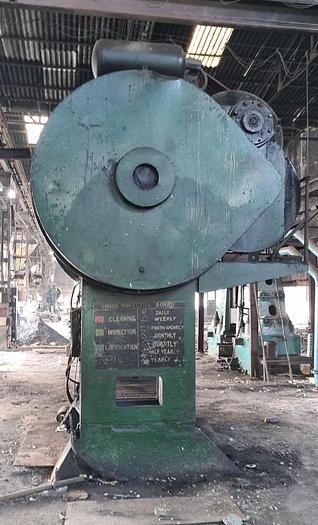

2. Trimming press 500 ton

Double crank (4*3 foot bed)

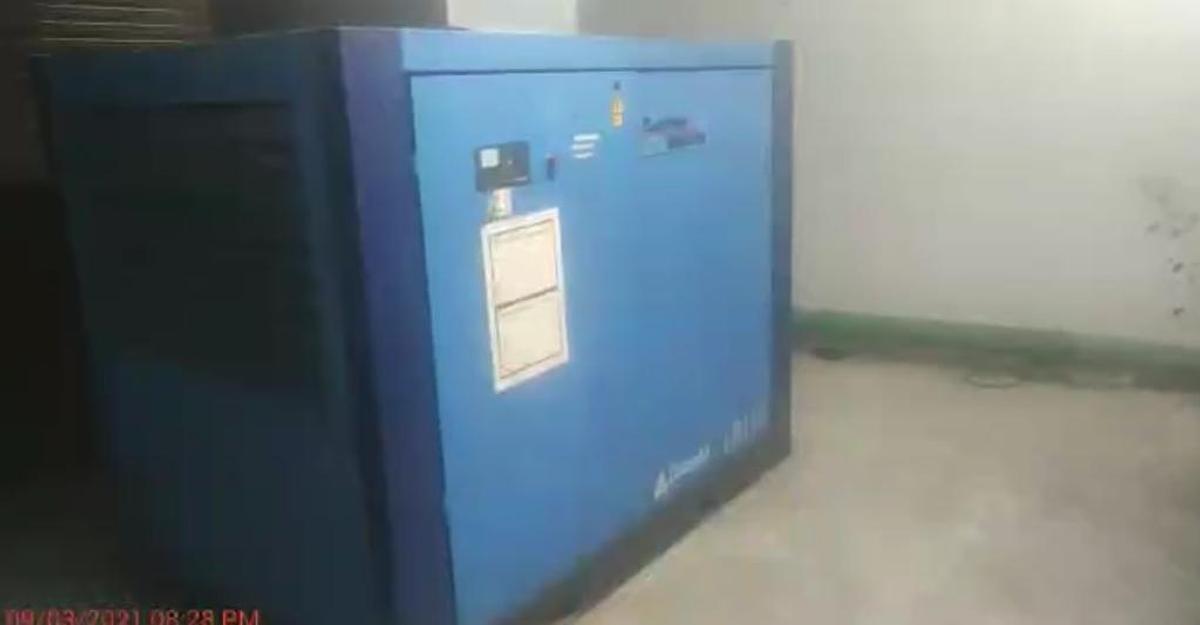

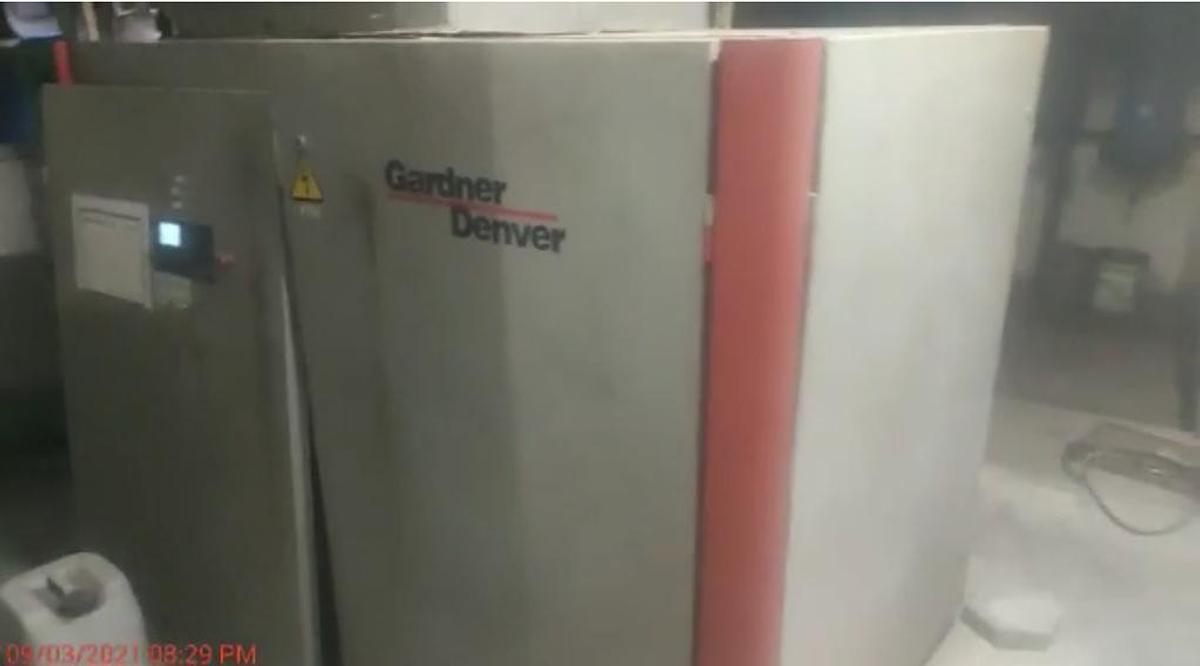

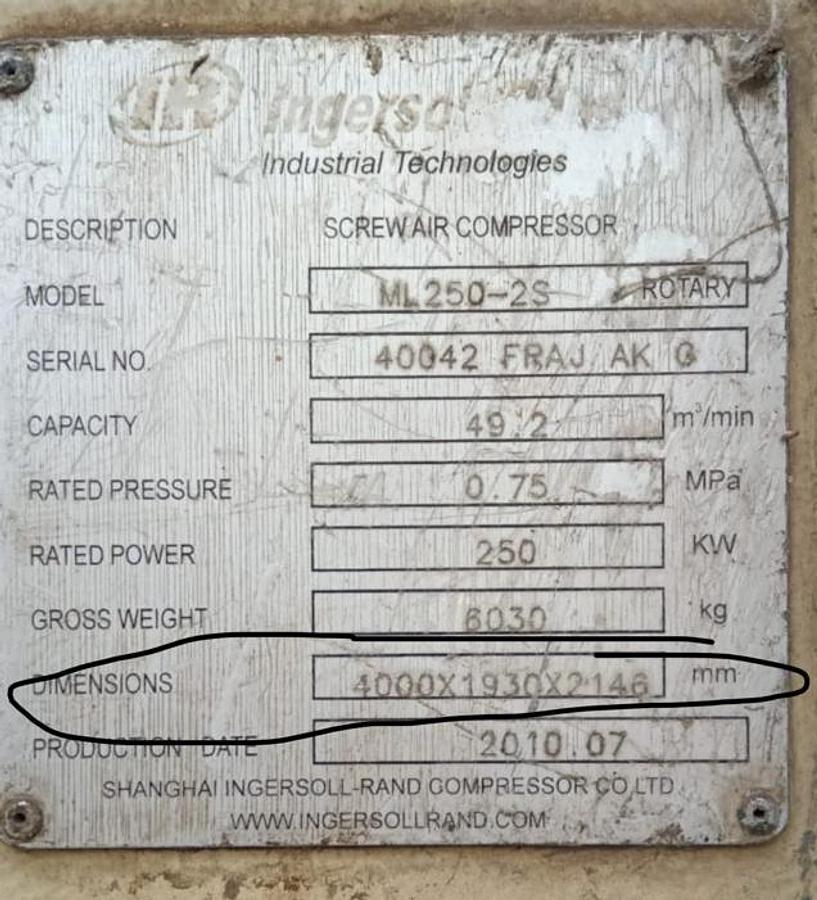

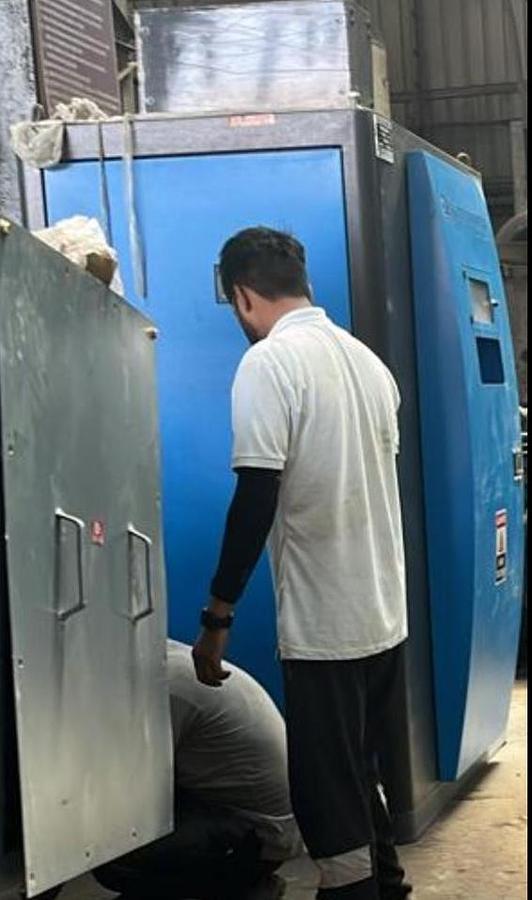

3. Compressor 250 KW

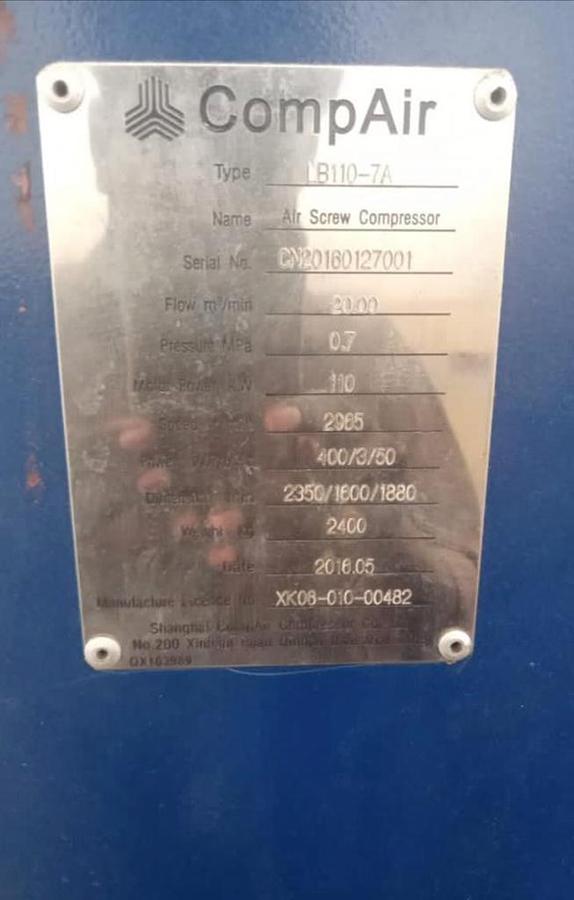

4. ⁠Compressor 110 KW

5. ⁠Compressor 75 KW

6. ⁠Tank 26000 litres + 15000 litres + 15000 litres

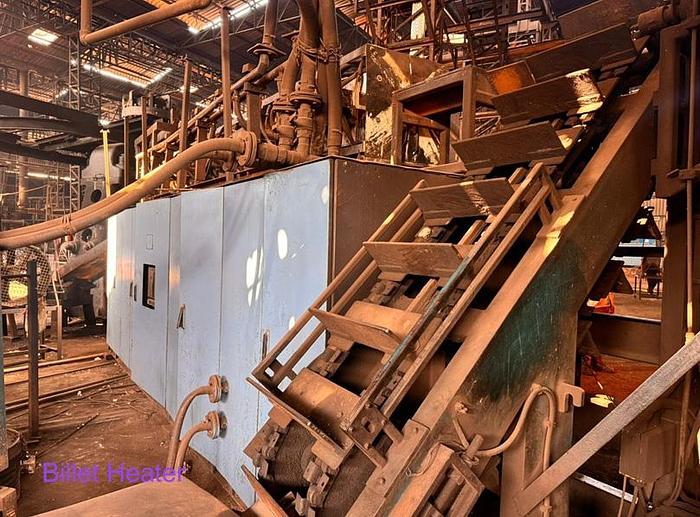

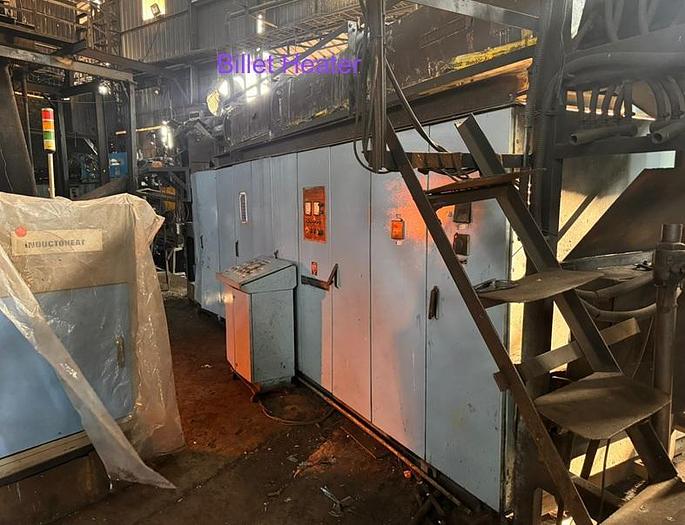

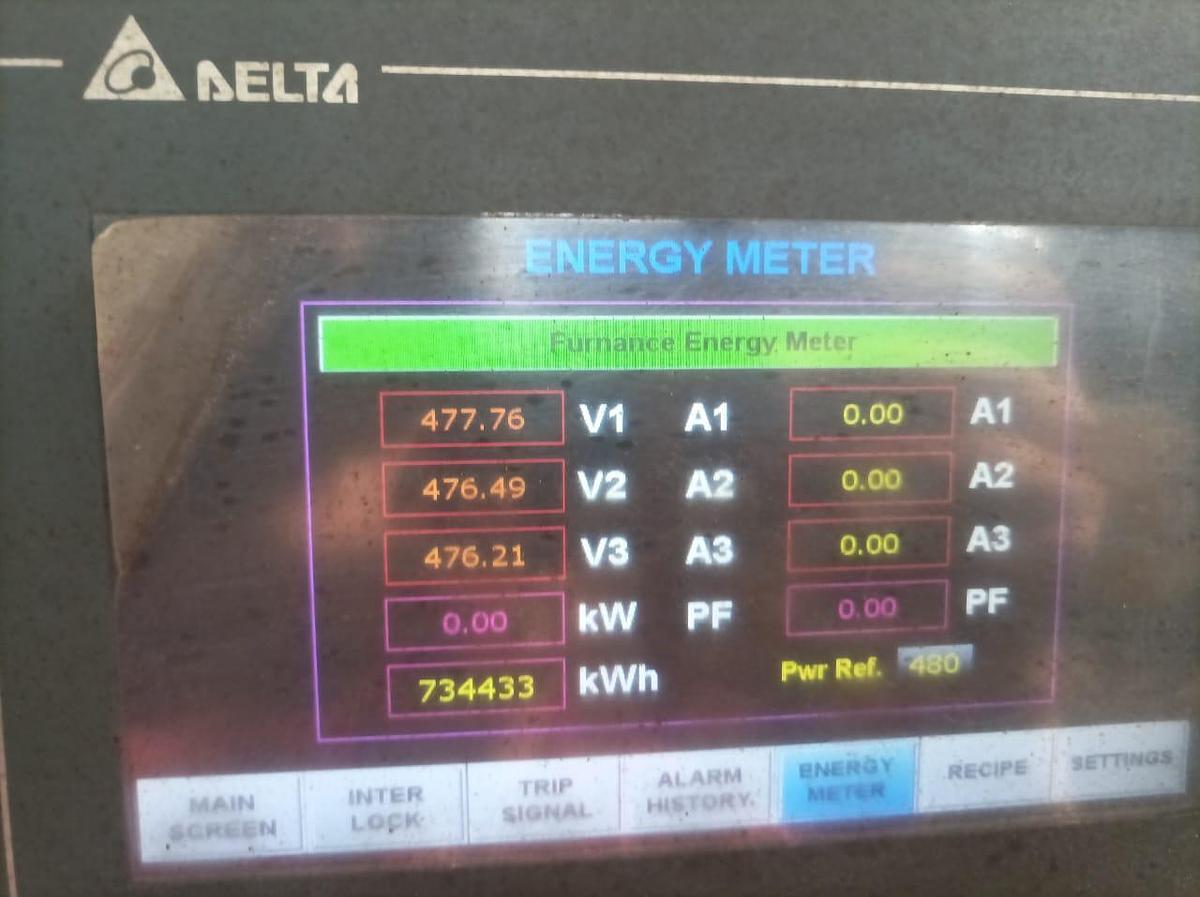

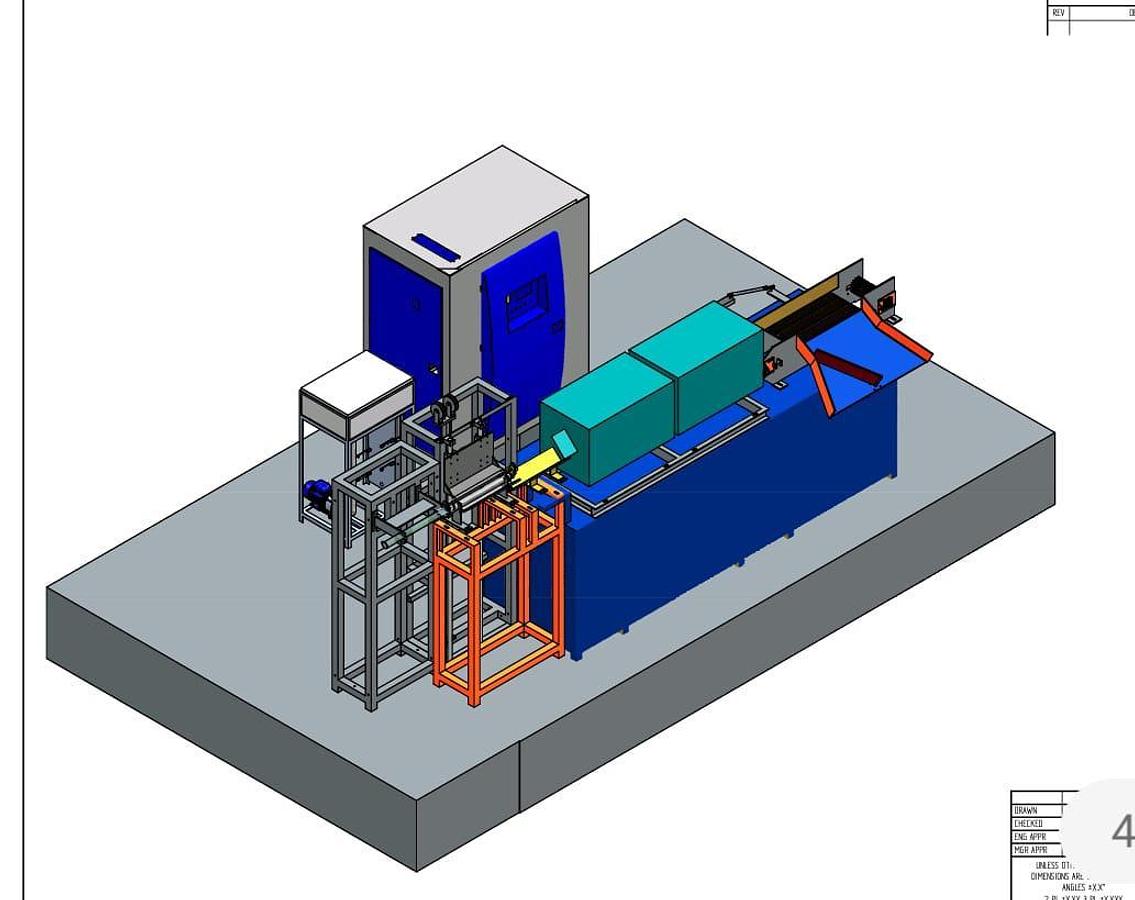

7. IBH 800 Kw 2023 model (with 3 coil set 125 rcs , 160 rcs, 200 rcs )

8. Transformer with inbuilt servo 1000 kva

9. Vcb panel
