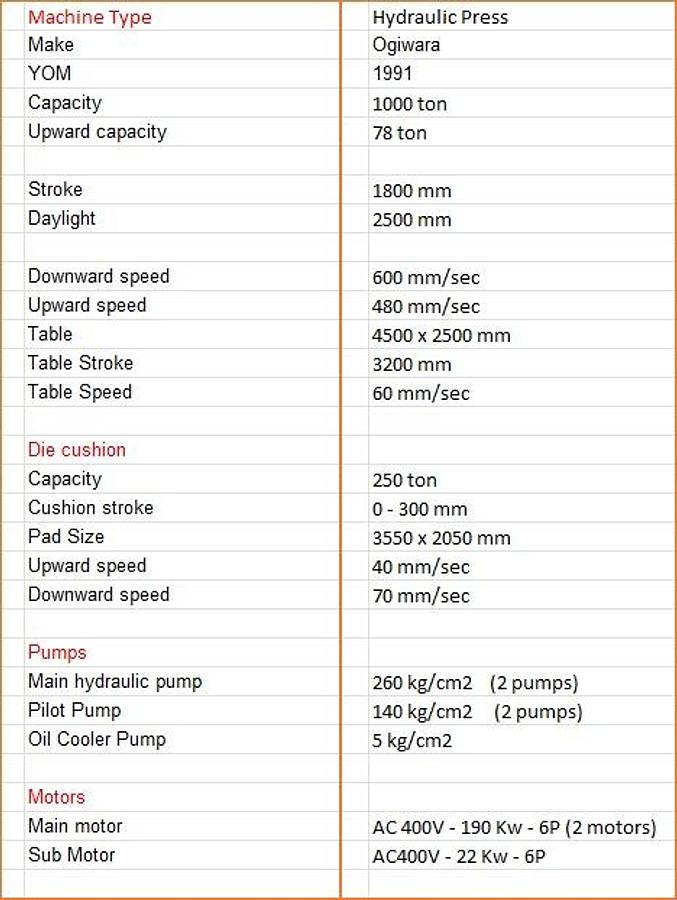

1000 tons Press Die Spotting Hydraulic Ogiwara

Capacity : 1000 tons,

Upward capacity : 78 tons,

Stroke : 1800 mm,

Daylight : 2500 mm,

Downward speed : 600 mm/sec,

Upward speed : 480 mm/sec,

Table : 4500 x 2500 mm,

Table stroke : 3200 mm,

Table speed : 60 mm/sec,

Die cushion

Capacity : 250 tons,

Cushion stroke : 0 - 300 mm,

Pad Size : 3550 x 2050 mm,

Upward speed : 40 mm/sec,

Downward speed : 70 mm/sec,

Pumps

Main hydraulic pump : 260 kg/cm2,

Pilot pump : 140 kg/cm2,

Oil cooler pump : 5 kg/cm2,

Motors

Main motor :AC 400V - 190 Kw - 6P (2motors),

Sub motor : AC400V - 22 Kw - 6P,
