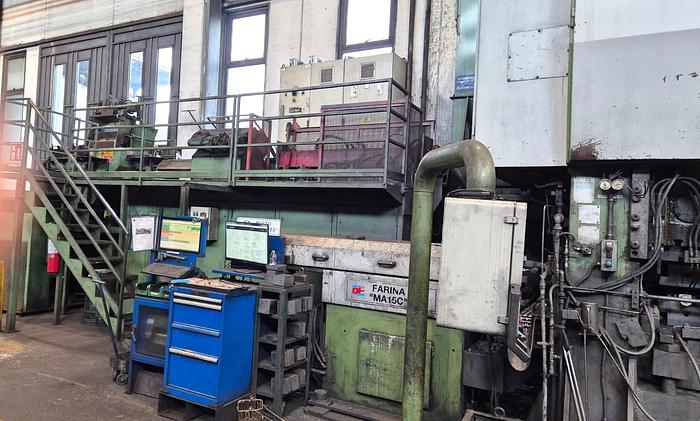

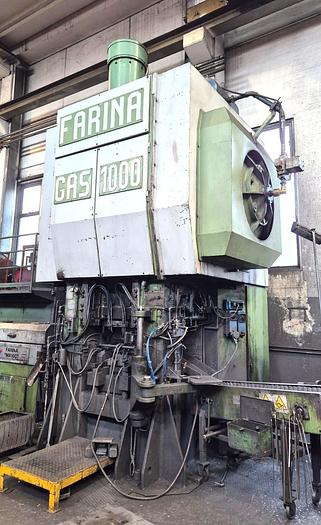

1000 tons Hot Forging Line Farina GAS1000
or
Call +919920651051
Specifications
| Manufacturer | Farina |
| Model | GAS1000 |
| Condition | Used |
| Stock Number | MA2895 |
| Item condition | Good condition |
| Capacity tons | 1000 |
Description
Capacity : 1000 tons,
Slide stroke : 200 mm,
Connecting rod : 1 N°,
Continuous stroke per minute : 80 N°,
Die space : 613 mm,
Die space adjustment : 10 mm,
Table dimension :
L to R : 800 mm,
F to B : 1020 mm,
Ram dimension :
L to R : 650 mm,
F to B : 1000 mm,
Uprights opening dimensions
Width : 475 mm,
Upper knockout :
Power : 6 tons,
Stroke : 20 mm,
Pushers : 2 N°,
Lower knockout :
Power : 8 tons,
Stroke : 35 mm,
Pushers : 2 N°,
Main motor power : 55 Kw,
Overall dimension :
L to R : 650 mm,
F to B : 1000 mm,
Heigh above floor level : 5000 mm,
Total weight : 58 tons.

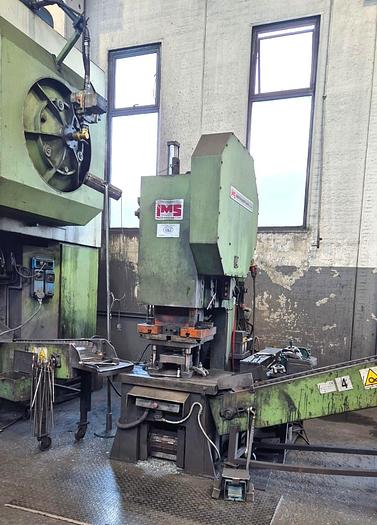

With 100 tons C frame Trimming Press
600 KW induction heater ELIND
Loading arm
Bolster
