Lathe Vertical Turning Tos SKJ20A

Displayedwith positioner,

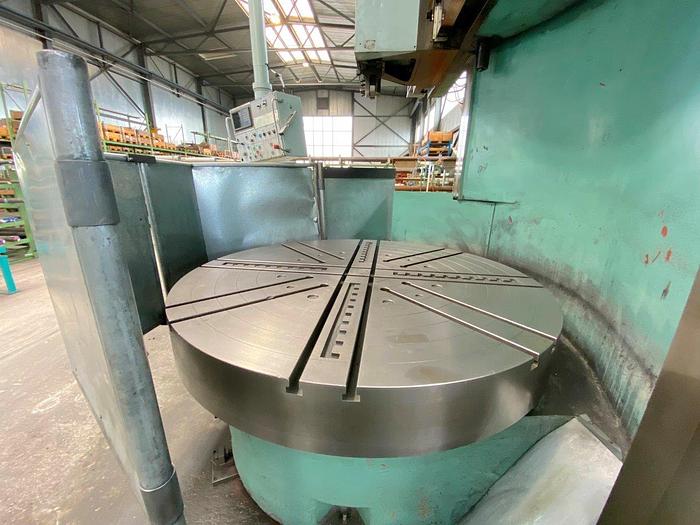

Spindle table diameter: 2000 mm,

Allowed payload on table: 15.000 kg,

Swing over the bed: 2300 mm,

Max height vertical carriage: stroke 1500 mm (daylight 1700 mm),

Motor power: 70 kW,

Ball circulat. screws,

Spindle speed: 1,5/1600 rpm on 4 automatic range,

Moving cross-rail,

Moving cross-rail stroke: 1000 mm (vert.) - 1250 mm (transv.),

Number of carriage: 2

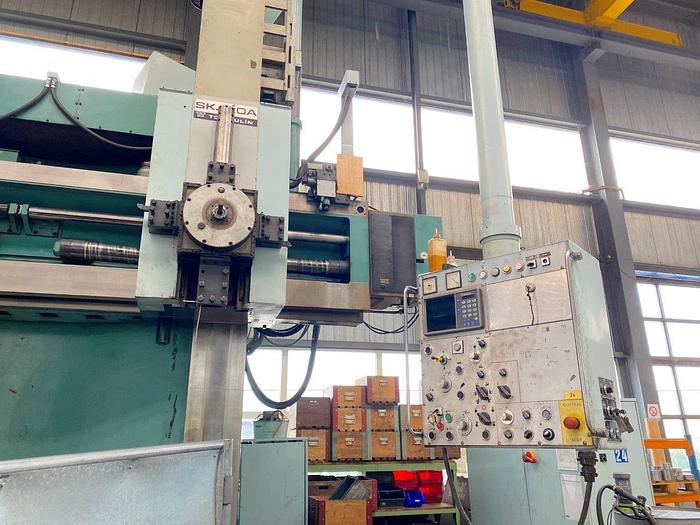

Vert.carr. with turret: 4 positions stroke 850 mm,

RAM ▪ RAM stroke: 1000 mm,

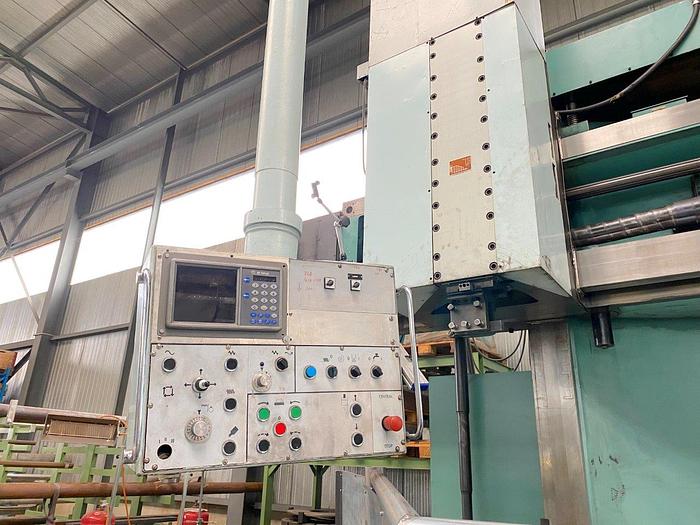

Control keyboard,

Platform: 2000 mm,

Chip conveyor,

Weight: 40 tons.
