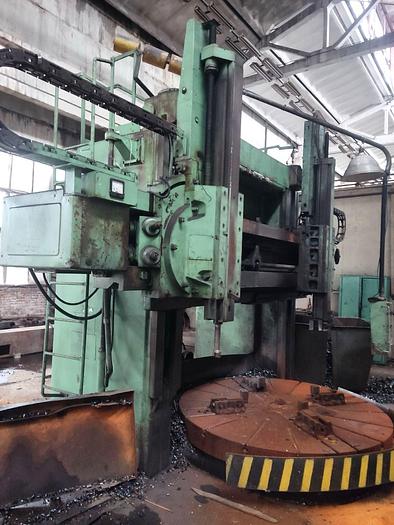

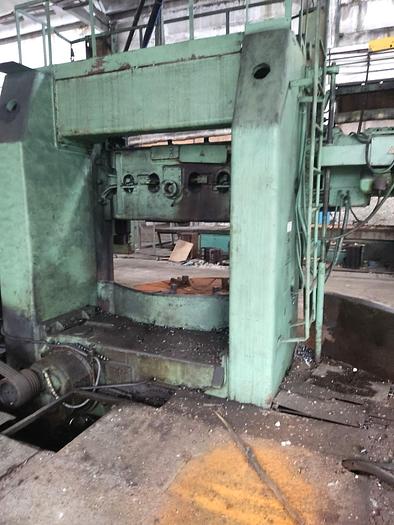

Lathe Vertical Turning Stanko 1525

Max diameter of detail : 2500 mm,

Max height of details : 1600 mm,

Max weight of detail : 16000 mm,

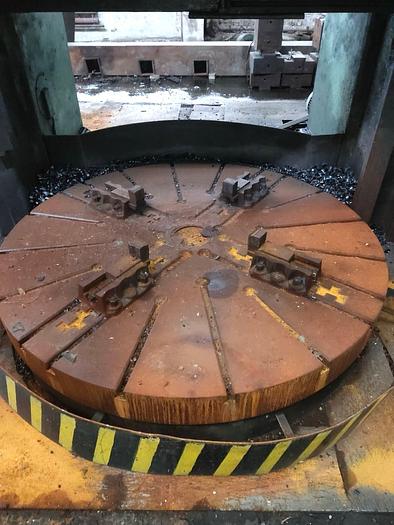

Faceplate diameter : 2250 mm,

Maximum ram slide stroke :

Vertical : 1200 mm,

Horizontal : 1390 mm,

Rotational angle of ram slide : 30,

Max. traverse motion stroke : 1240 mm,

Speed of traverse motion : 360 mm/min,

Speed of ram slide and tool head rapid travel : 5 - 1800 mm/min,

Overall dimensions of the machine :

Length : 5070 mm,

Width : 6340 mm,

Height : 5100 mm,

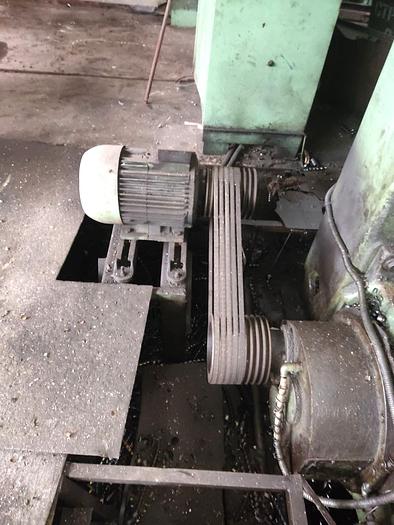

Main drive : 45 kW,

Weight of the machines : 33.5 tons.
