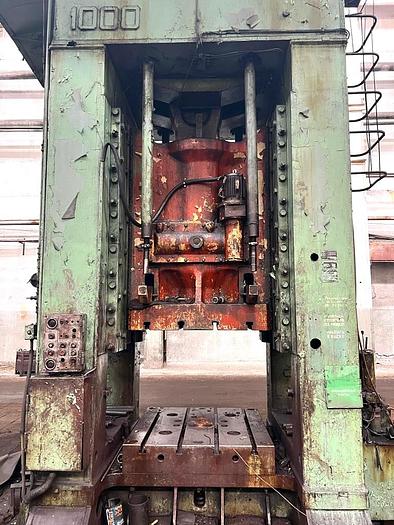

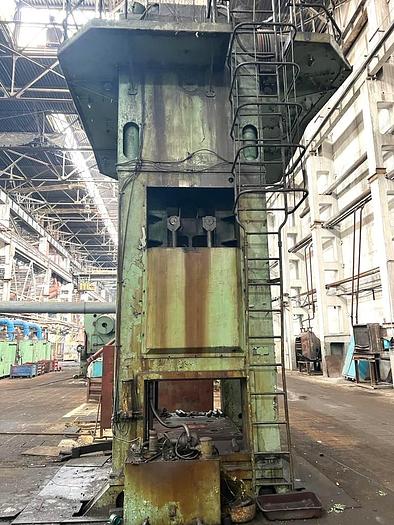

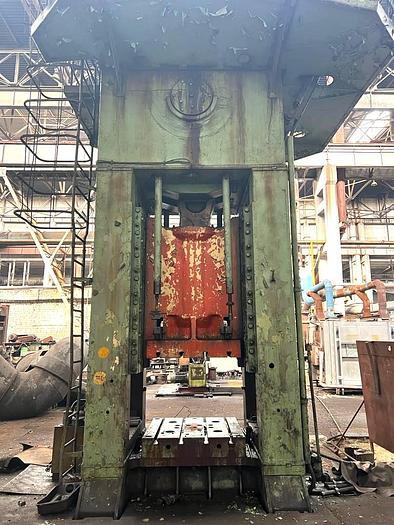

1000 tons Press Trimming TMP Voronezh K2540

Capacity : 1000 tons,

Ram stroke : 400 mm,

Number of strokes per minute : 16,

Shut height : 950 mm,

Ram adjustment stroke : 200 mm,

Table size : 1500 x 1500 mm,

Ram size : 1250 x 1250 mm,

Window dimensions : 1000 x 1000 mm,

The dimension of diameter : 75 mm,

The dimension of depth : 90 mm,

Window sizes :

Width : 1150 mm,

Height : 750 mm,

Hydropneumatic cushion in the table :

Working stroke : 200 mm,

Force : 230 tons,

Greatest pushing force : 14 tons,

Height above table level : 200 mm,

Bolster plate thickness : 220 mm,

Motor drive speed : 1400 rpm,

Main motor power : 77 KW,

Overall dimensions : 4180 x 3800 mm,

Height above floor level : 6950 mm,

Total press height : 8600 mm,

Press weight:

Without hydraulic cushion : 79 tons.

With hydraulic cushion : 84 tons.
