100 tons Press Sheet Stamping Hydraulic Neagari

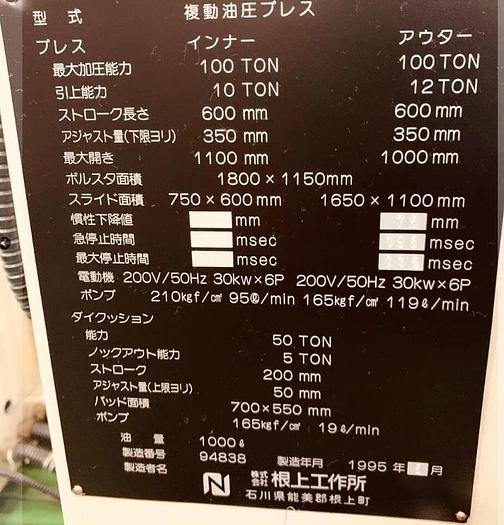

Double Action Hydraulic Press

Capacity : 100 tons,

Lead ability : inner 10 ton & outer 12 tons,

Stroke : 600 mm,

Adjustment amount (front lower limit) : 350 mm,

Max. opening : inner 1100 mm & outer 1000 mm,

Bolster area : 1800 x 1150 mm,

Slide area inner : 750 x 600 mm,

Slide area outer : 1650 x 1100 mm,

Motor : 200V/50Hz 30Kwx6P 200V/50Hz 30Kwx6P,

Die cushion

Capacity : 50 tons,

Knockout ability : 5 tons,

Stroke : 200 mm,

Adjustment amount (from upper limit) : 50 mm,

Pad area : 700 x 550 mm,

Pump : 165kgf/cm2 19 min
