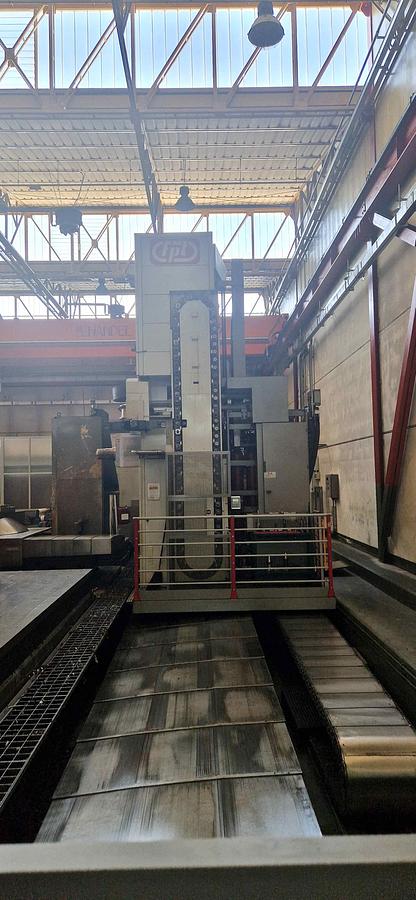

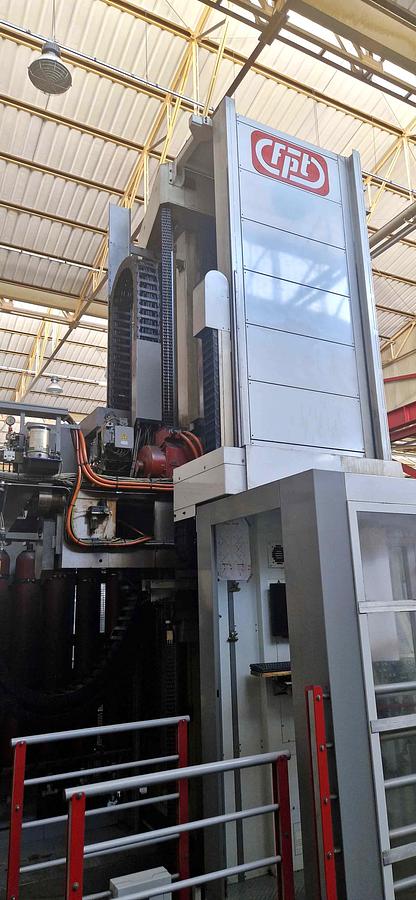

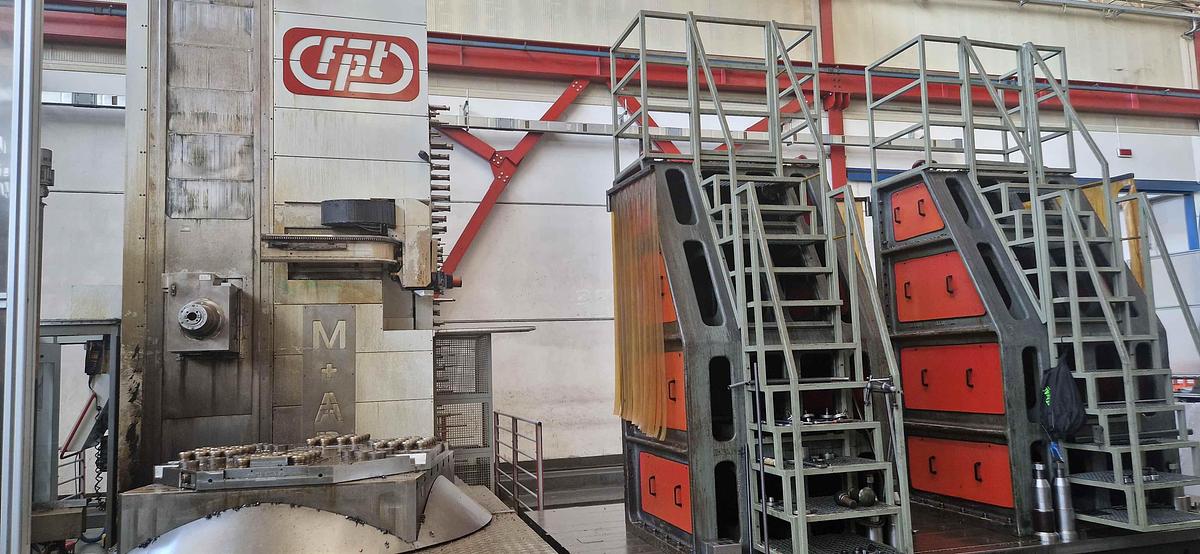

Borer Horizontal Floor Type CNC FPT Industrie SPA M-ARX

Spindle diameter : 160 mm,

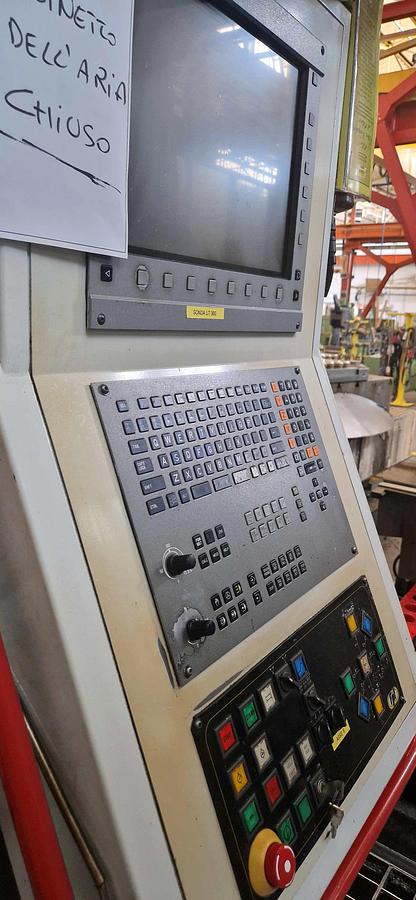

Control system Heidenhain : TNC 530

diameter of the spindle : 160 mm,

AXIS :

X  : 10000 mm,

Y  : 4000  mm,

W  ( RAM) : 1500 mm,

Dimension ram :  700 x  490 mm,

Spindle revolutions/min  : 0 – 4000

Rapid : 15000 mm / min.,

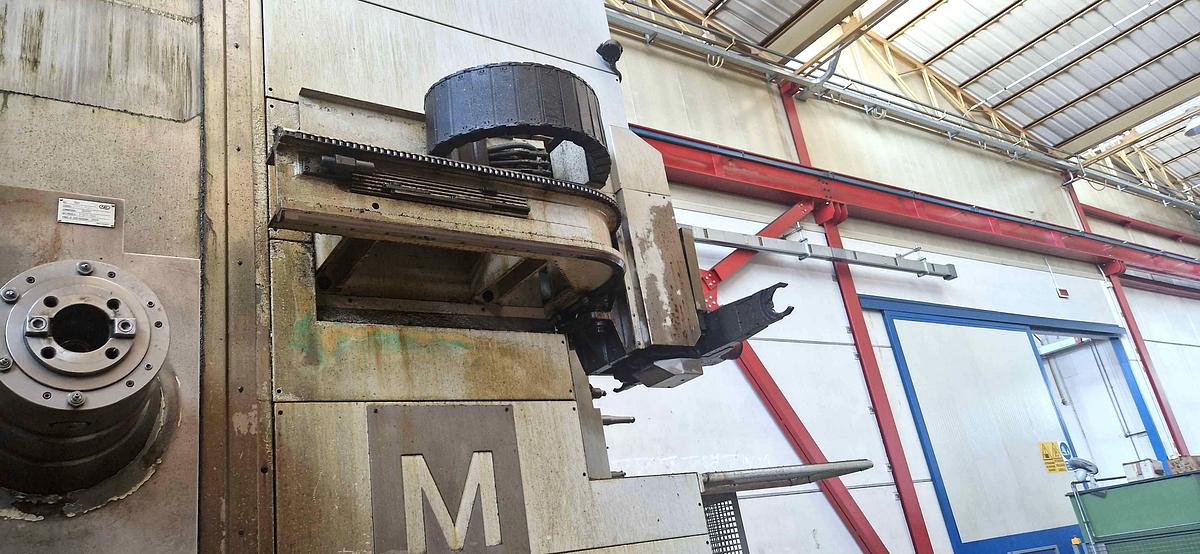

Tool magazine : YES

Number of positions : 80,

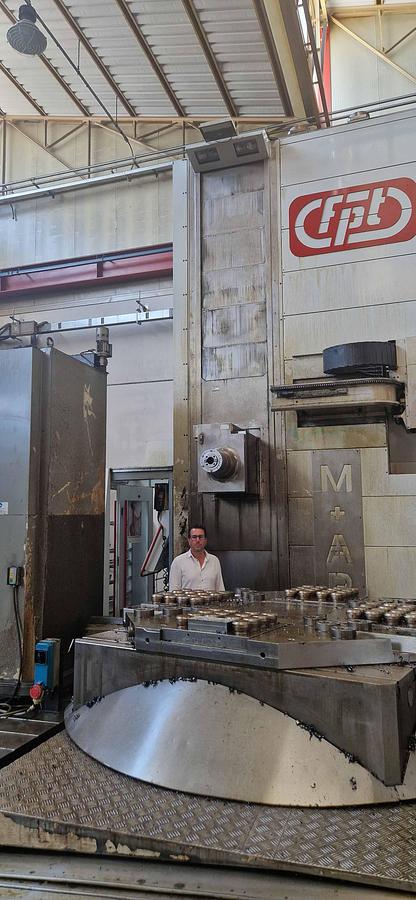

Rotary table :

Loading capacity : 30000 Kg,

Table dimension :1200 x 1200 mm MAGNETIC TYPE

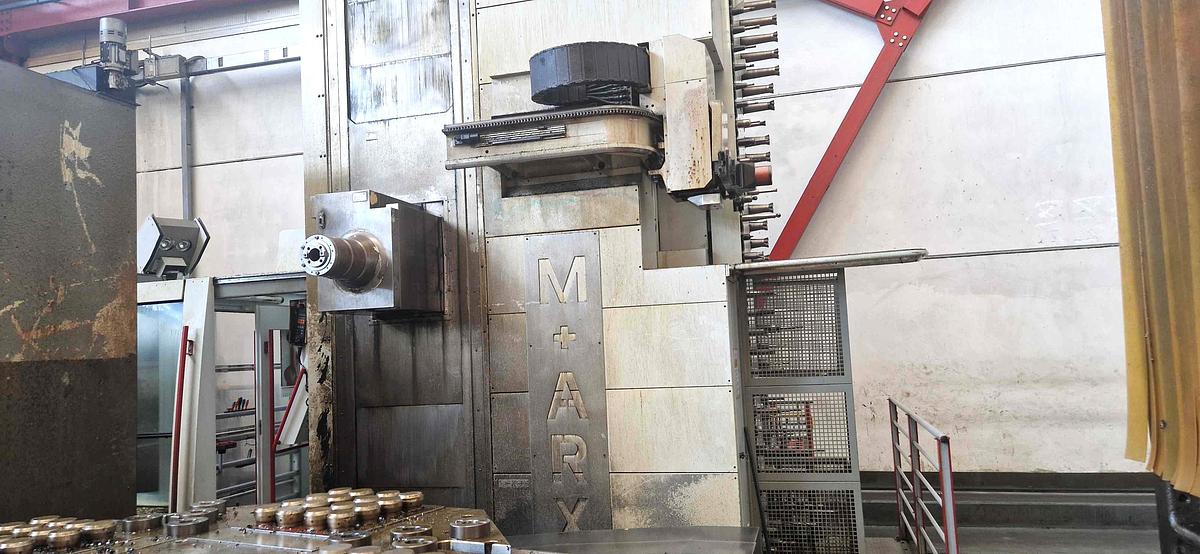

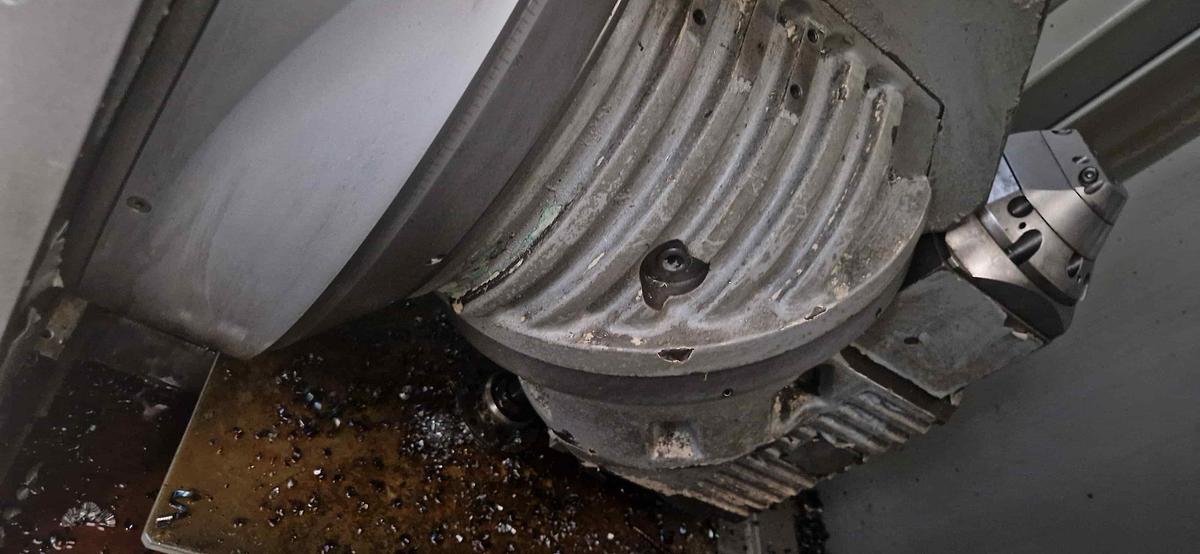

Milling heads :

   n.1  ( one )  CNC BI – ROTATIVE AUTOMATIC

   n.2  ( two )  long support for spindle

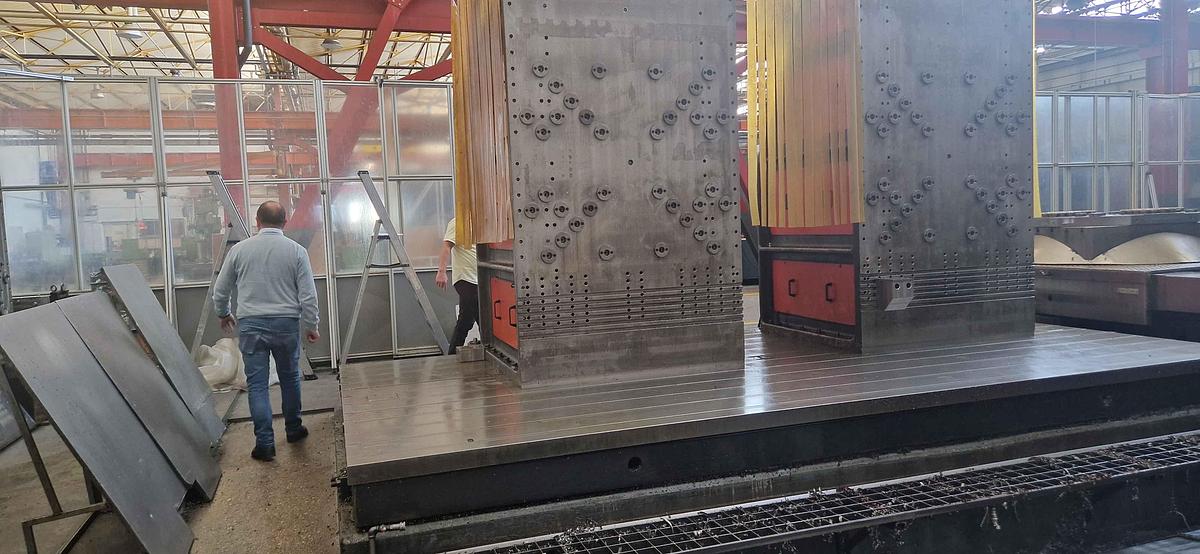

Floor plates

   n.2 ( two ) vertical heavy supports
