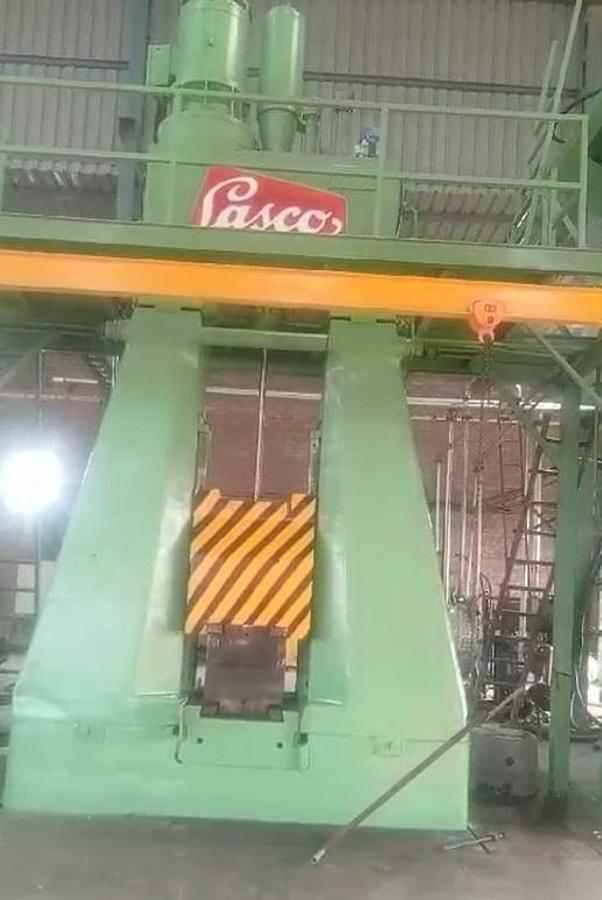

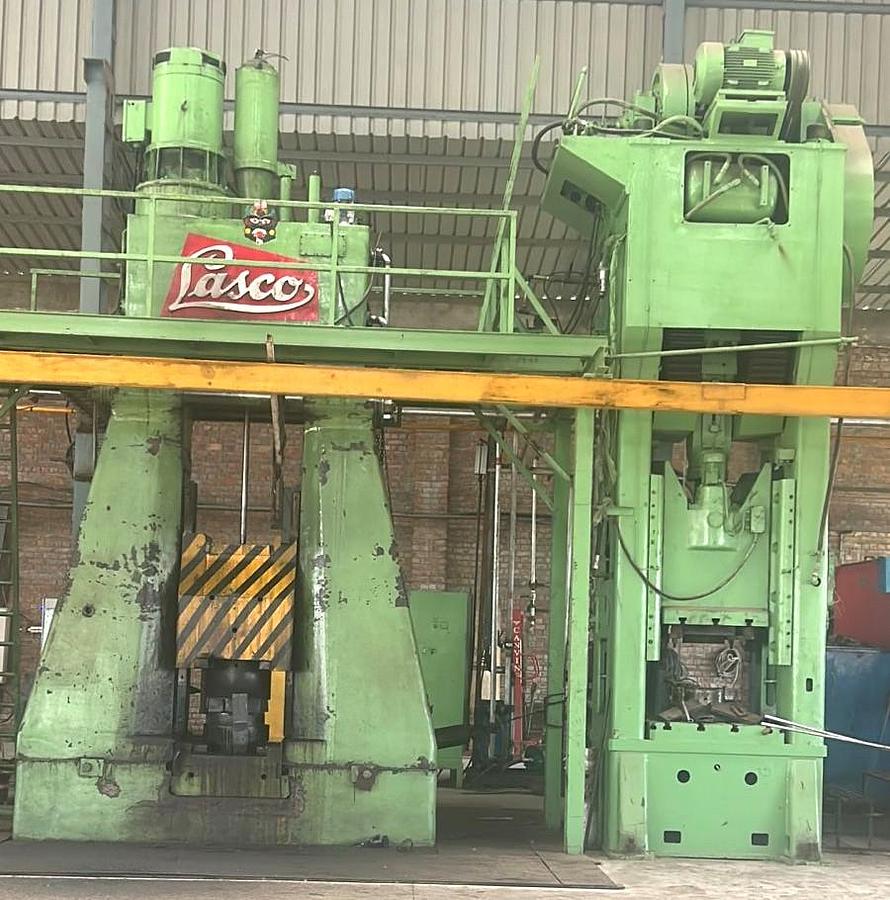

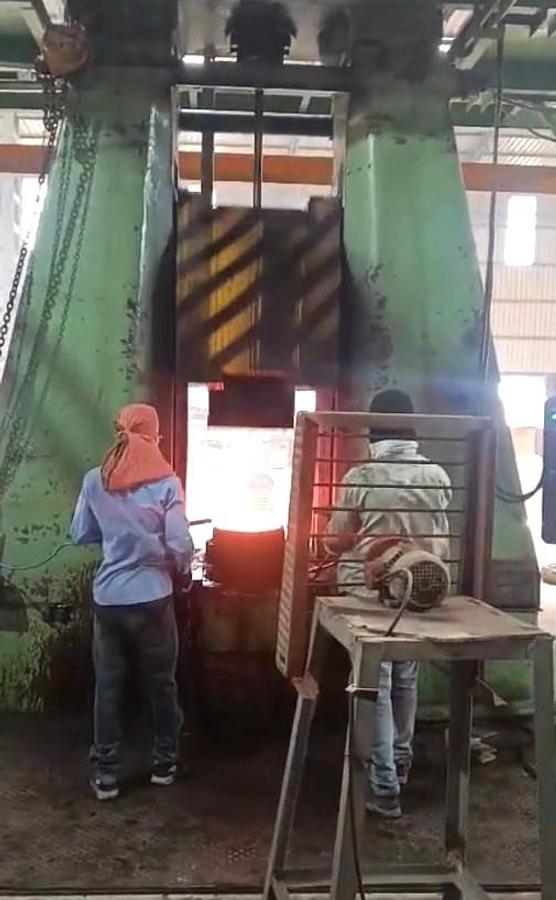

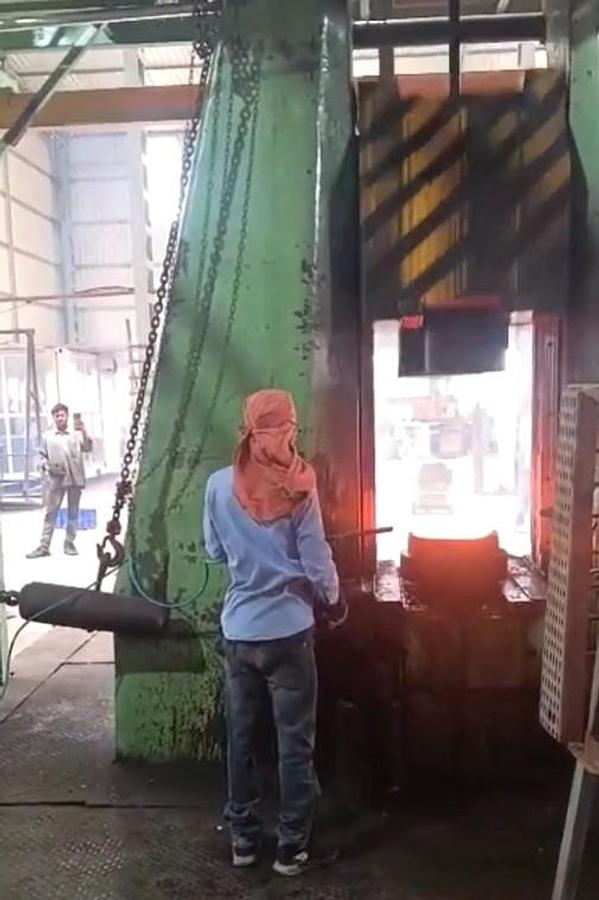

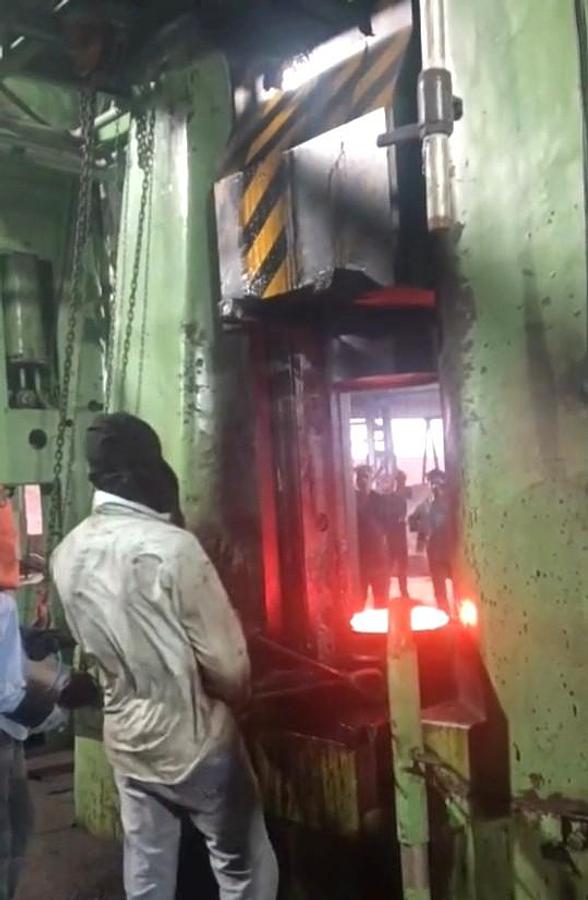

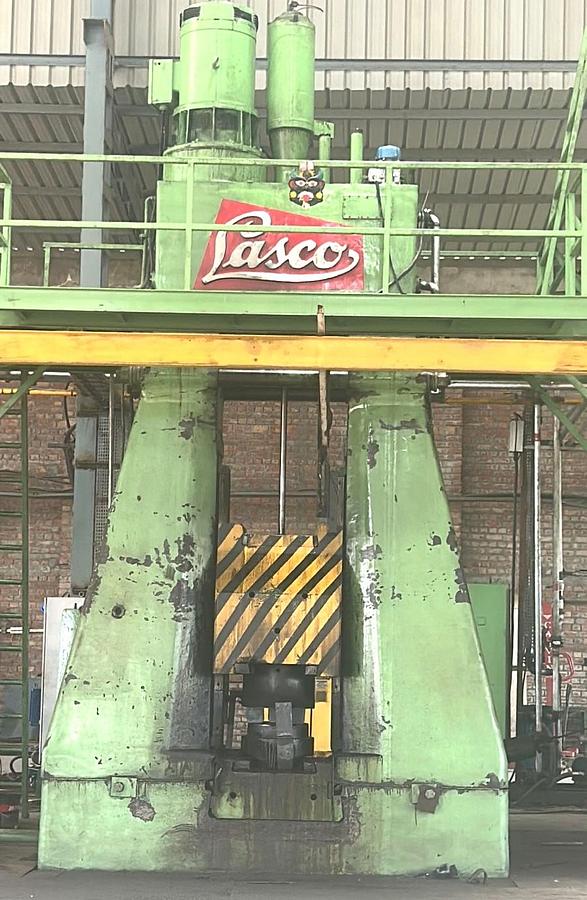

Hammer Forging Hydraulic Lasco KH630

Impact work : 63 kj,

Drop height : 1300 mm,

Clear width : 825 mm,

Ram weight: 4850 kg,

Max. die weight : 1050 kg

Ram depth : 870 mm,

Standard die height without swing E: 400 mm,

Installation height above ground at standard working F : 6300 mm,

Total hammer height: 8160 mm

Anvil length : 3440 mm,

Anvil width : 1800 mm,

Anvil height : 2250 mm

Anvil above ground : 1700 mm,

Drop height between bottom of zwi, UK and inset: 7200 mm,

Drive weight : 700 kg

Usable blow : 2500 rate/h,

Cylinder diameter : 190 mm,

Piston rod diameter: 65 mm,

Effective piston area : 2503 cm2,

Holding pressure without die : 210 bar

Holding pressure with max. die bar : 252

Pump type SNOW : 3600,

Pump Q : 3350 dm3/min,

Stroke speed V : 132 m/min,

Slowly to : 56 cm/min,

Impact speed : 505 m/sec,

Motor power : 90 KW

Anival weight : 70 tons,

Total hammer weight : 110 tons.
