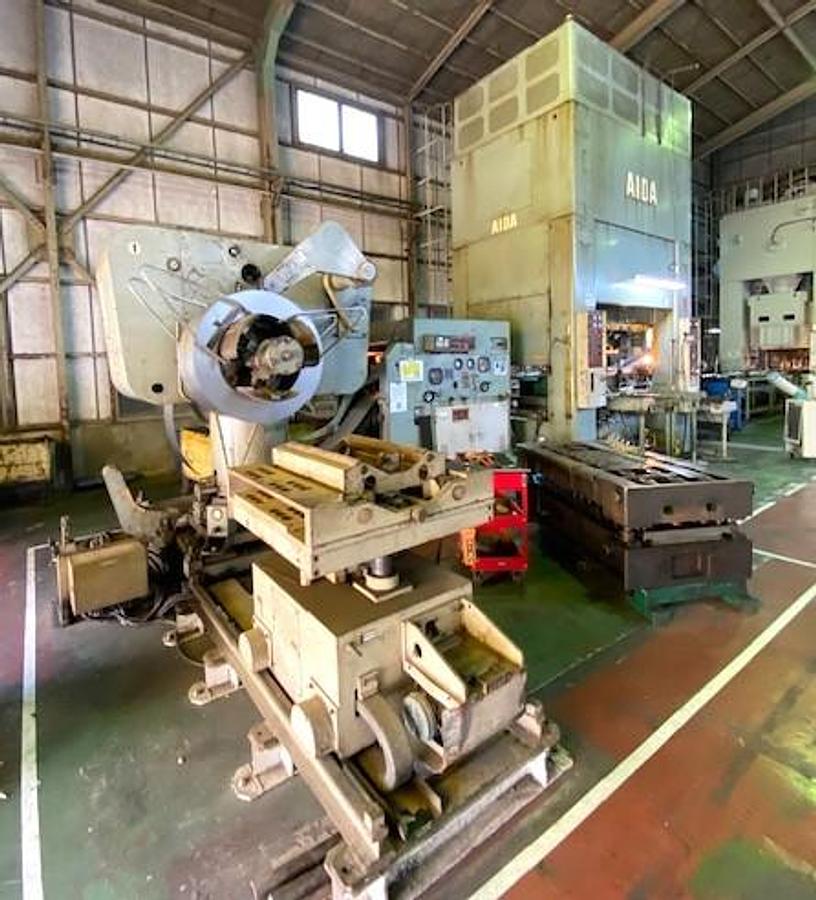

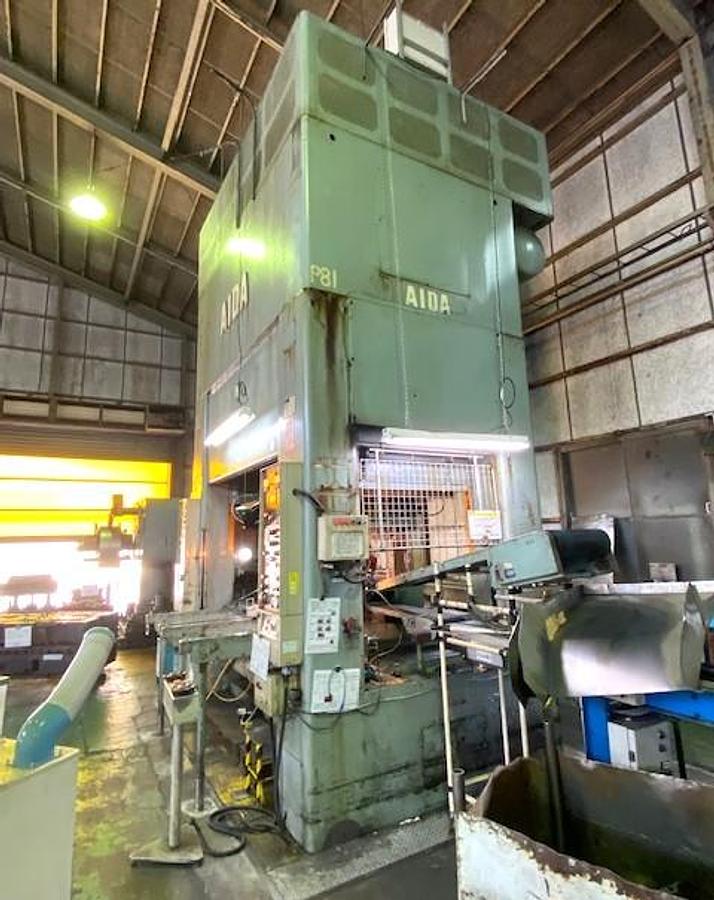

300 tons Press Sheet Stamping Mechanical Aida SMX-L2-300(2)

Link Motion press

Capacity : 300 tons,

Stroke : 360 mm,

Stroke per minutes : 20 - 40,

Slide : 2150 x 1250 mm,

Bolster : 2150 x 1400 mm,

Die Height : 705 mm,

Slide Adjust : 200 mm,

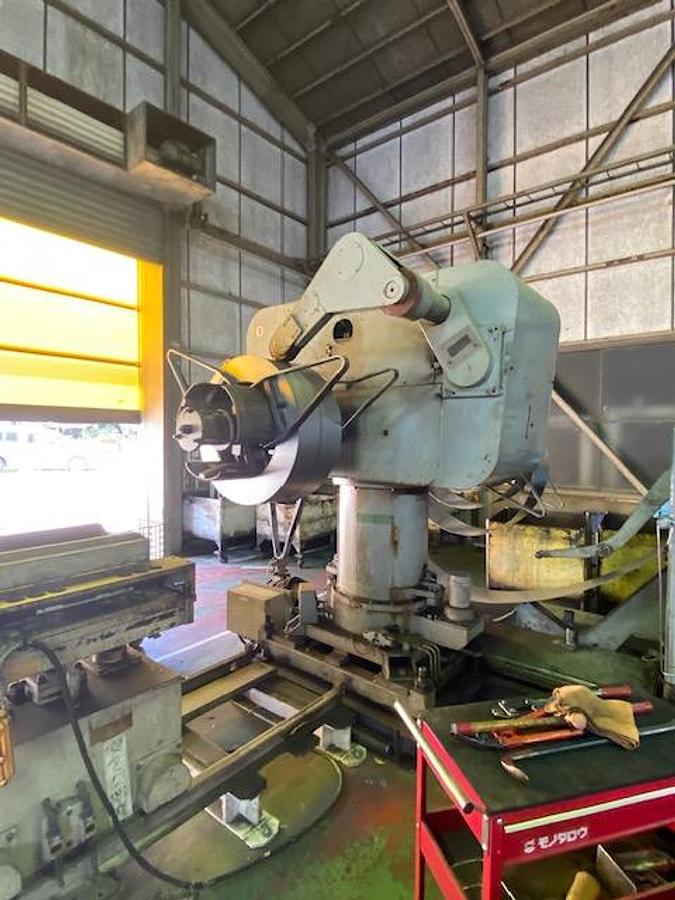

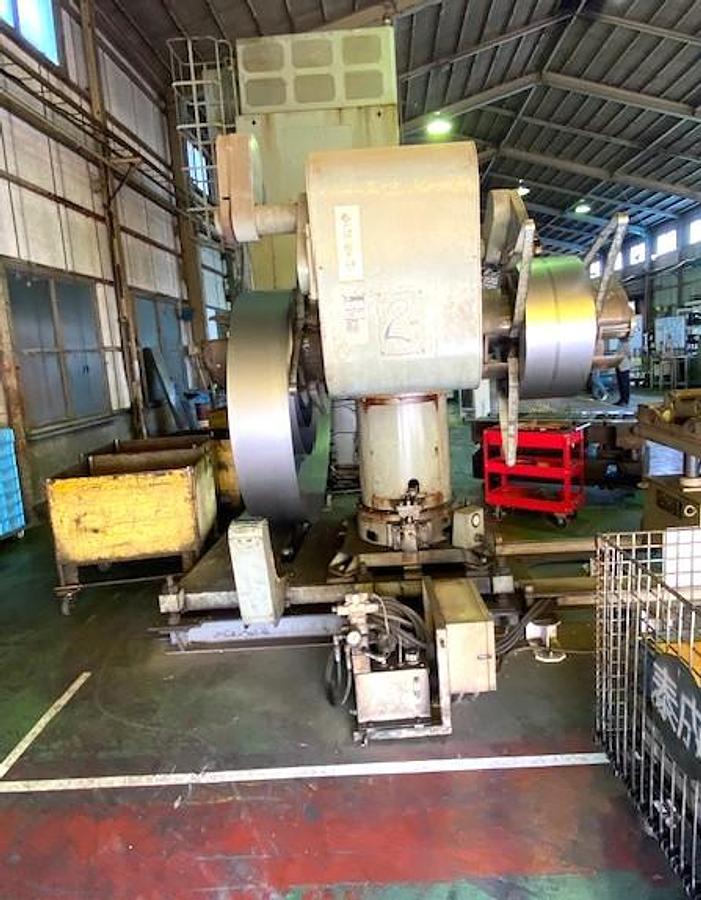

Machine Type : Uncoiler

Make : Aida,

Model : LFS-60R4,

Coil weight : 3000 kgs x 2,

Coil diameter (External) : 1500 mm,

Coil diameter (Internal) : 508 mm,

Coil width : 100 - 600 mm,

Machine Type : Leveller Feeder

Make : Aida,

Model : LFS-60R4,

Material thickness : 0.5 - 4.5 mm,

Material width : 100 - 600 mm,

Coil diameter : 1500 mm,

Feed stroke : 25 - 400 mm,

Stroke per minutes : 20 - 40.
