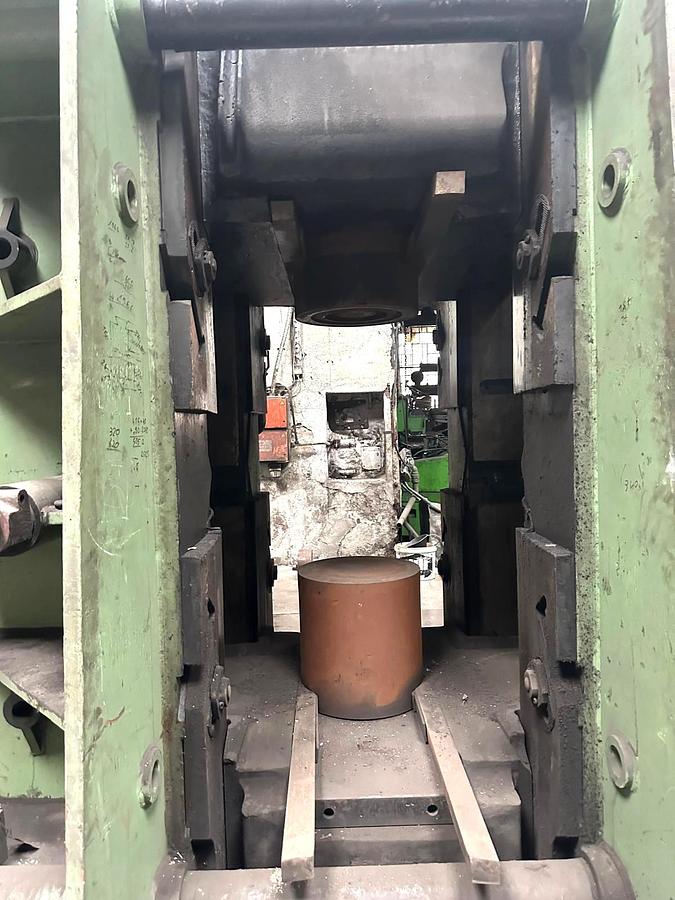

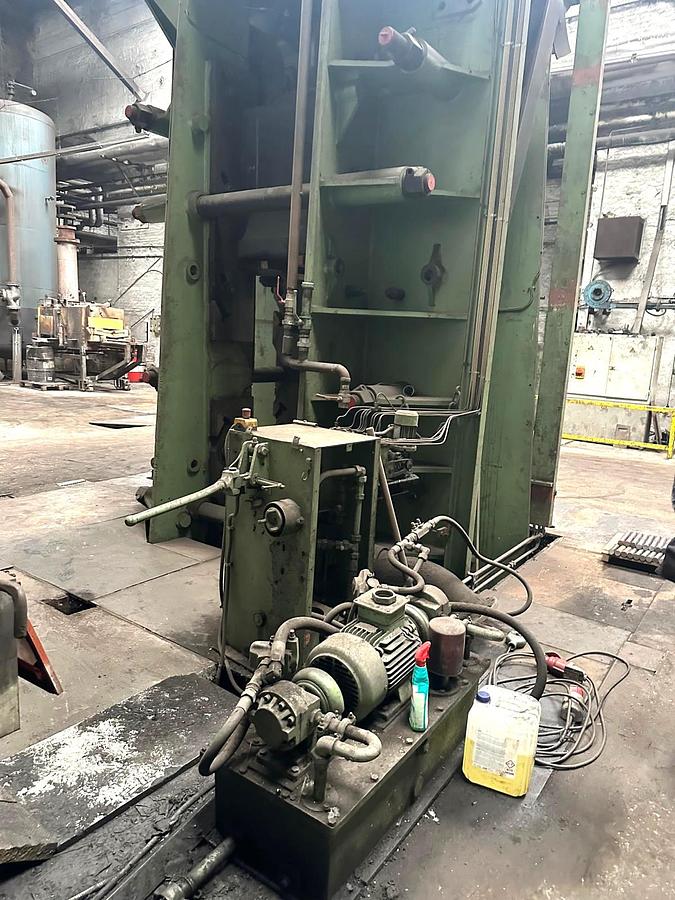

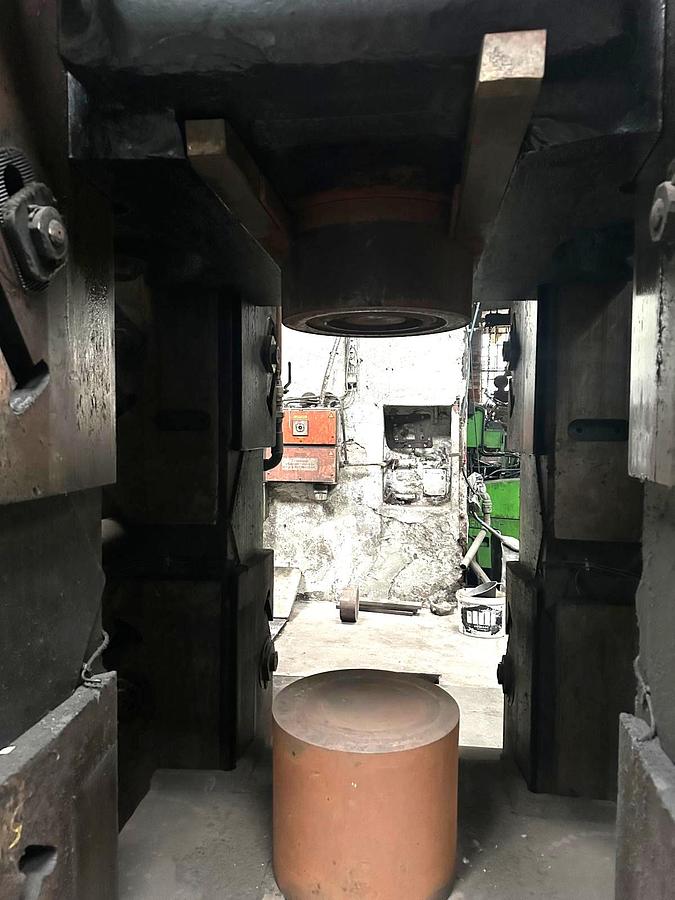

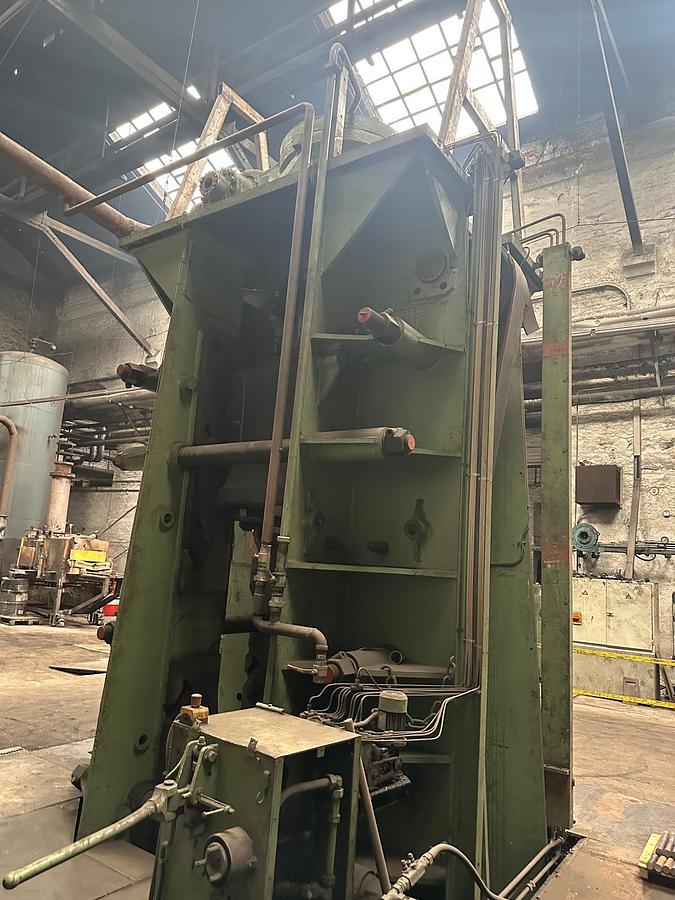

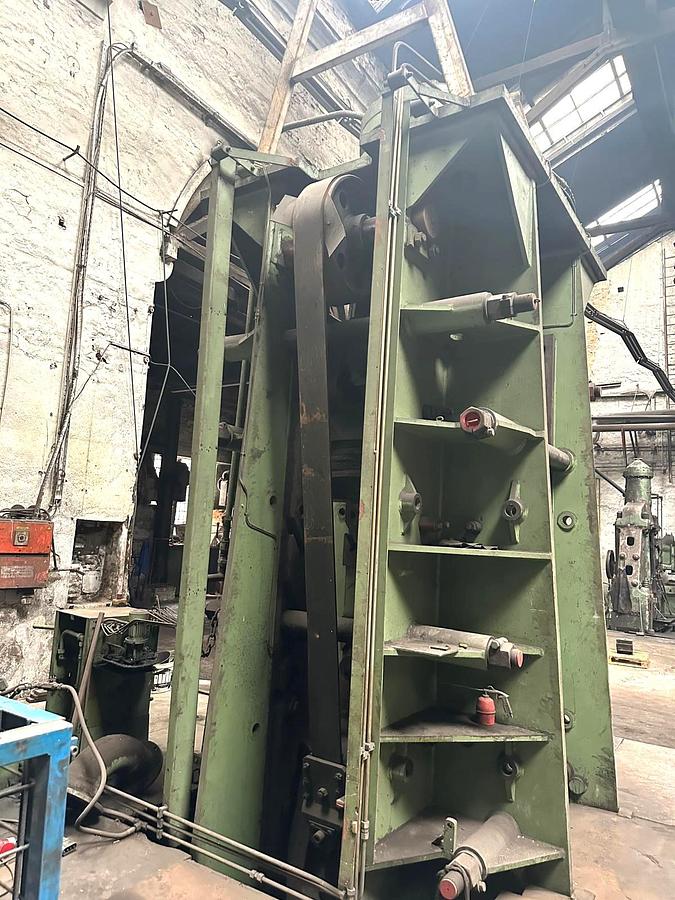

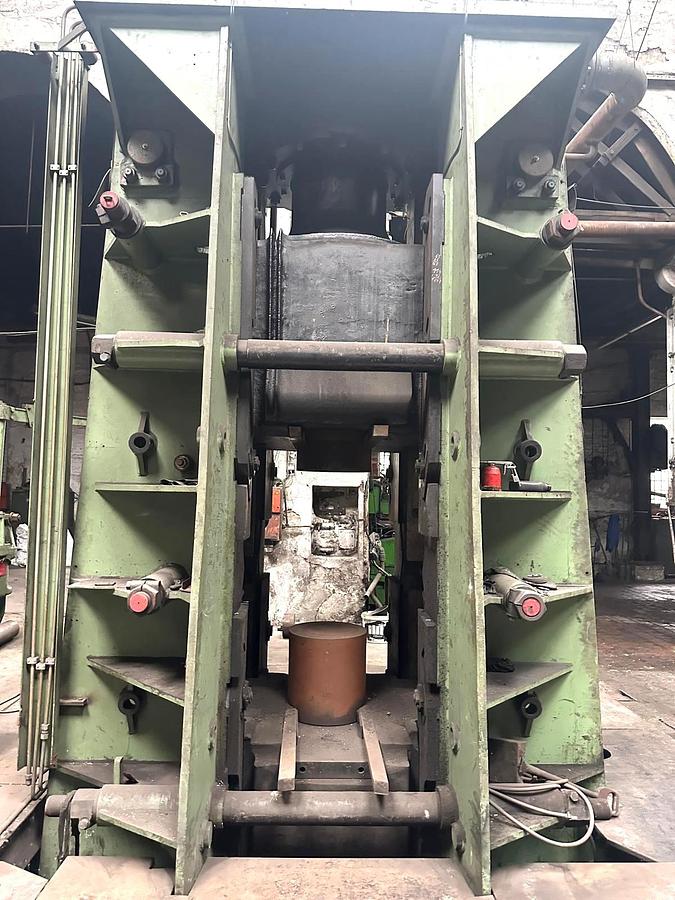

40 tons Hammer Counterblow Beche DGH40

Capacity : 40 tons,

Impact energy : 40000 mkg,

Total hammer stroke : 1250 mm,

Max. number of blows : 80 per minutes,

Average number of blows : 6 per minutes,

Air consumption per blow in m3 of delivered air at the strongest blow : 6.8,

Compressor output in m3/min delivered air pressure cold air : 41,

Hot air(160 C) : 27,

Compressor power requirement in HP cold air : 260,

Compressor power requirement in HP hot air : 185,

Steam consumption per blow at strongest blow (Samdampti) : 3.5 kg,

Steam consumption per minute (steam) : 210 kg,

Clearance between the guides : 1200 mm,

Max. die lengths : 2700 mm,

Lowest overall die height without dovetail : 575 mm,

Overall height above ground : 6200 mm,

Total weight with frame made of the sheet metal : 215,

Total weight with frame made of cast steel : 235,

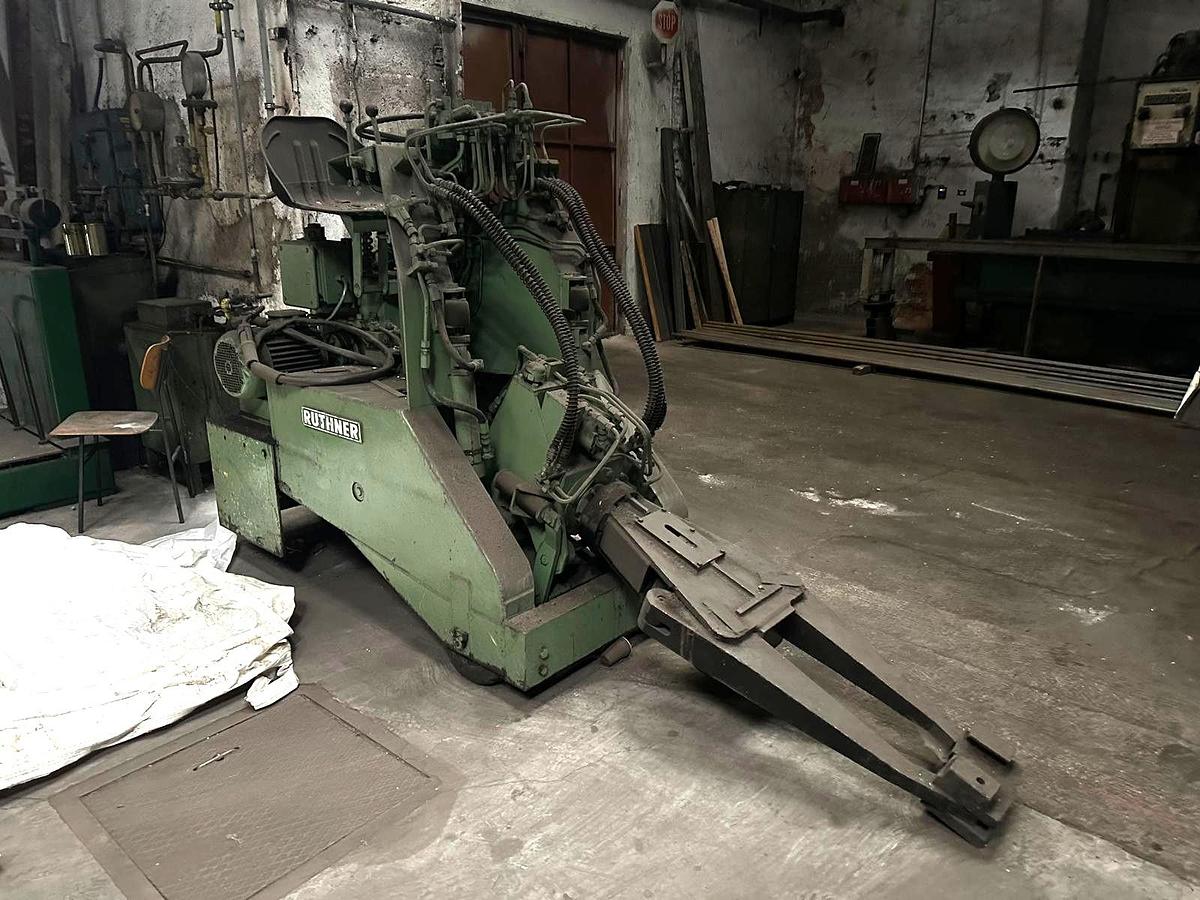

With Manipulator 1.5 tons.
