3150 Hot Forging Line Smeral LZK3150B

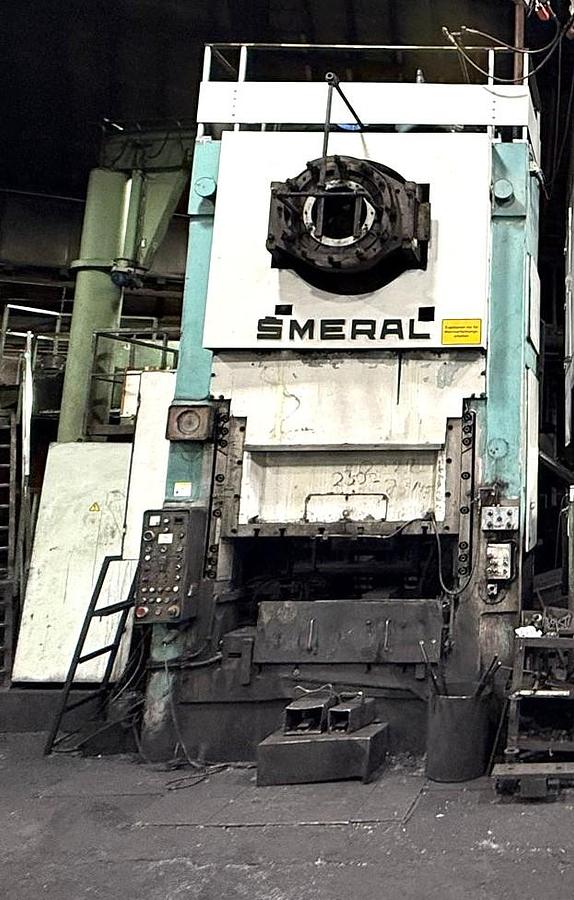

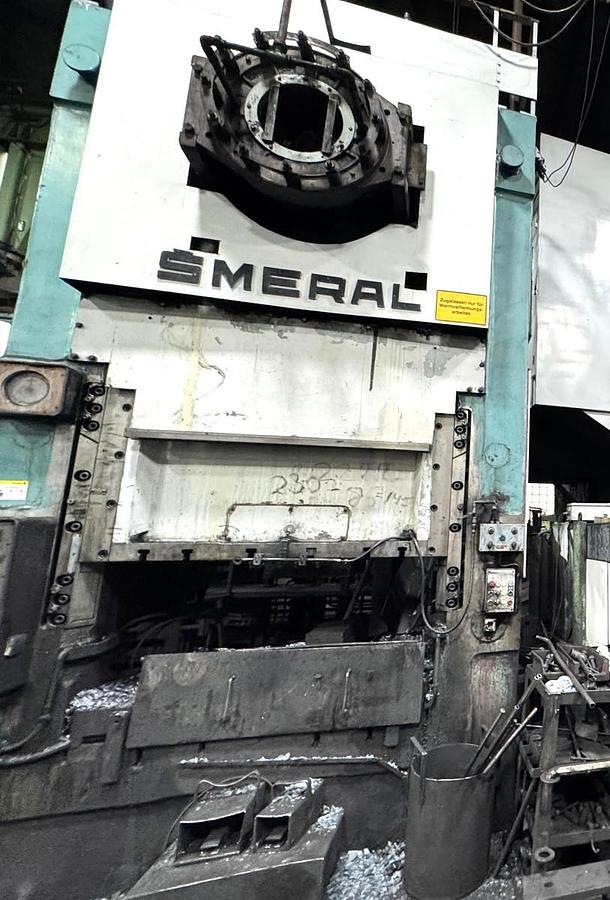

1) Hot Forging Press

1987/2020 retrofit by PRATO

Capacity : 3150 tons,

Ram stroke : 360 mm,

Number of ram strokes per min : 65,

Shut height : 1000 mm,

Ram adjustment : 20 mm,

Width between uprights : 1580 mm,

Stroke of upper ejector : 50 mm,

Ejecting force of upper ejector : 105 kN,

Stroke of lower ejector : 50 mm,

Ejecting force of lower ejector : 410 kN,

Press height above floor : 6535 mm,

Press height : 7335 mm,

Press width : 4615 mm,

Press depth : 4266 mm,

Main drive motor output : 160 kW,

Air consumption (cdm per stroke) : 640 dm3,

Water consumption : 12 dm3/min-1,

Press weight : 200 tons.

2) Trimming Press

Make Smeral

Model : LDO500 Preform Press,

YOM : 1990 / 1993,

Capacity : 500 tons,

Quantity no : 2.

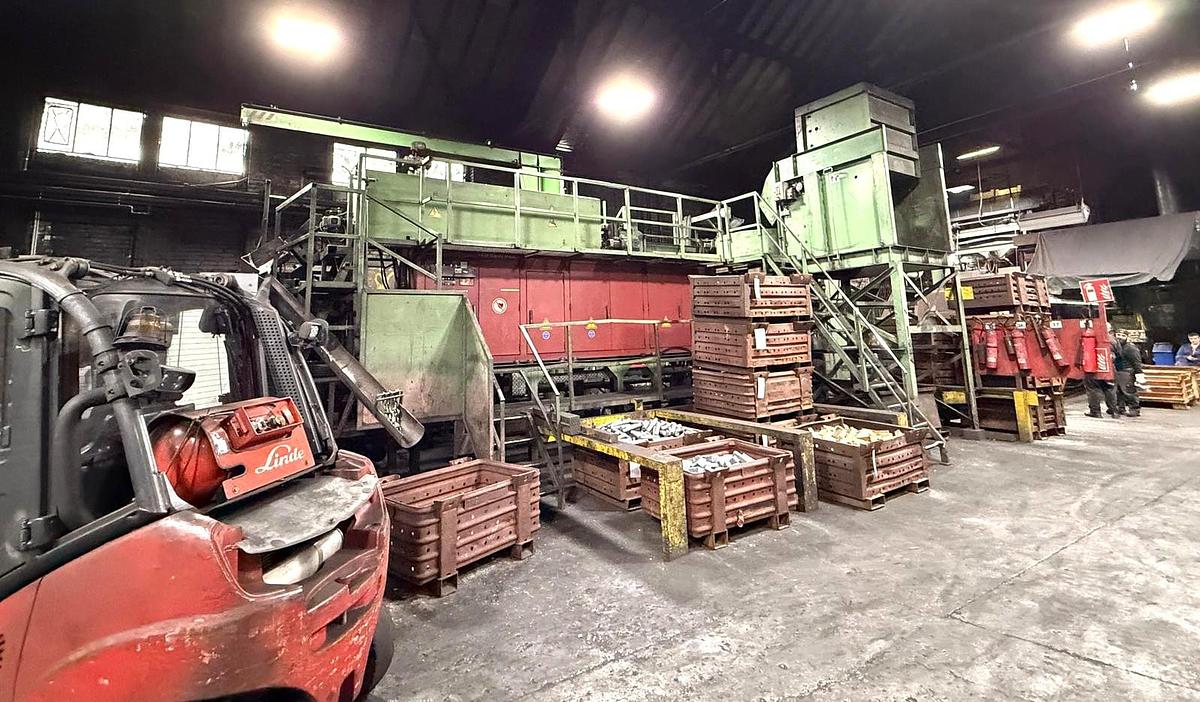

3) With Billet Conveyor, Induction Heater
