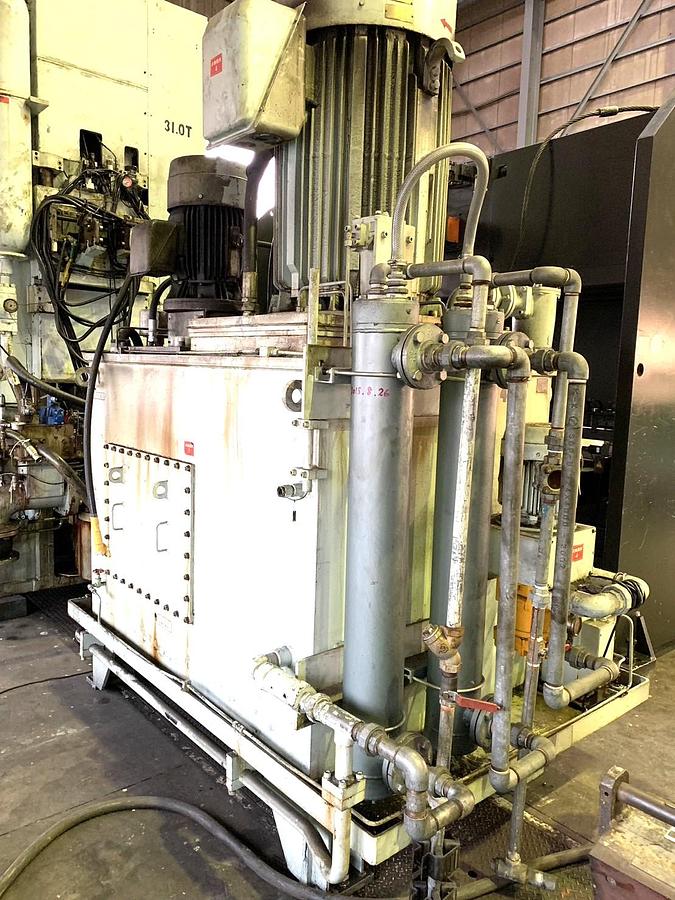

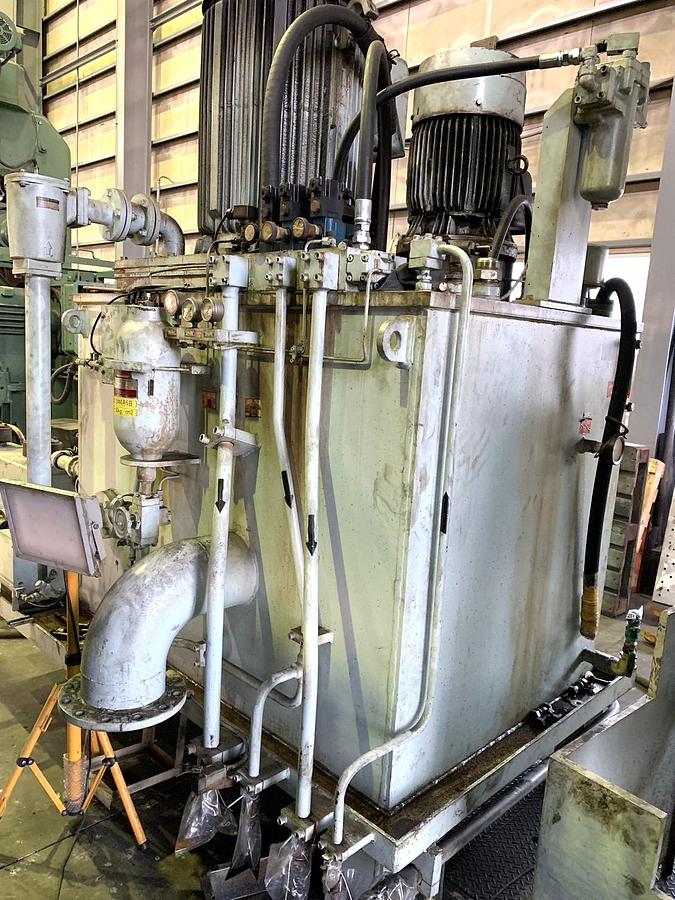

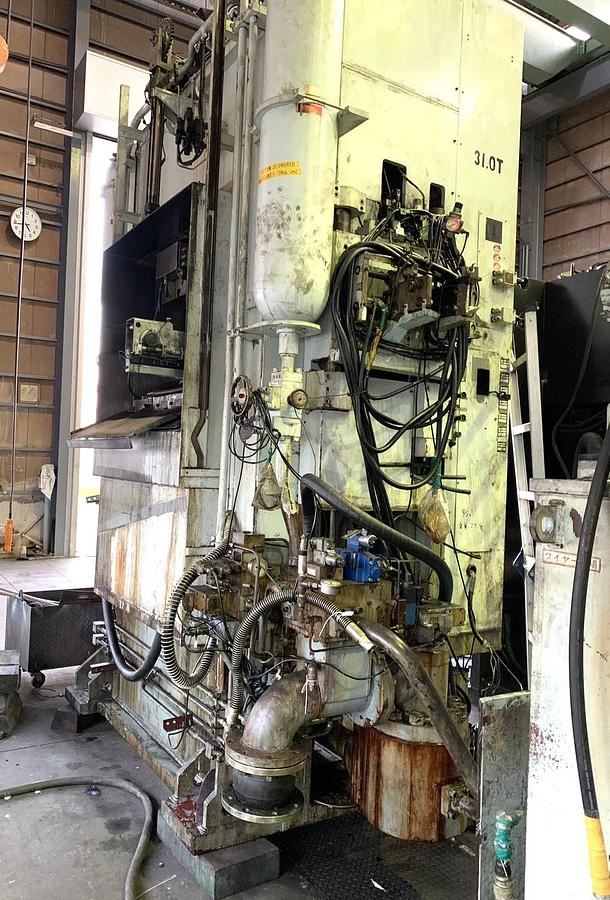

650 tons Press Fineblanking Hydraulic Mori FB-650-FDE

Capacity : 650 tons,

Stroke Length : 30–100 mm,

During operation; maximum slide stroke up to 200 mm

V-Ring Force : 3200 kN,

Counter Force : 1300 kN,

Cutter Force : 300 kN,

Speed : 30 spm,

Cutting Speed : 3–40 mm/s,

Approach Speed : 10–180 mm/s,

Shut Height : 400–520 mm,

Open Height : Up to 660 mm,

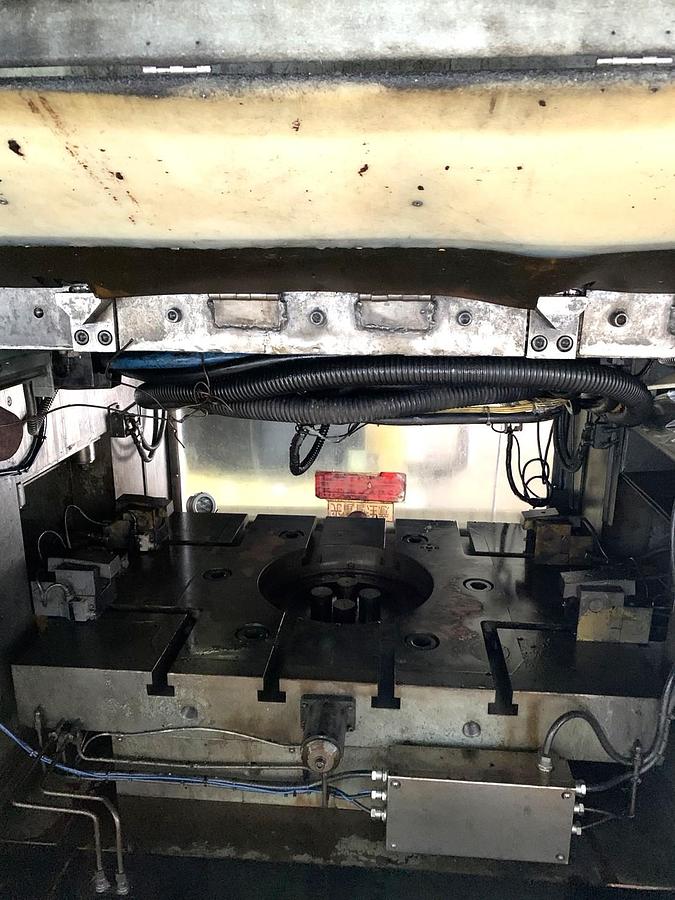

Upper Bolster Dimensions: 1000 mm (width) × 900 mm (depth),

Lower Bolster Dimensions: 1000 mm (width) × 1200 mm (depth),

Adapter Plate Size: 800 mm (width) × 950 mm (depth) × 200 mm (thickness).
