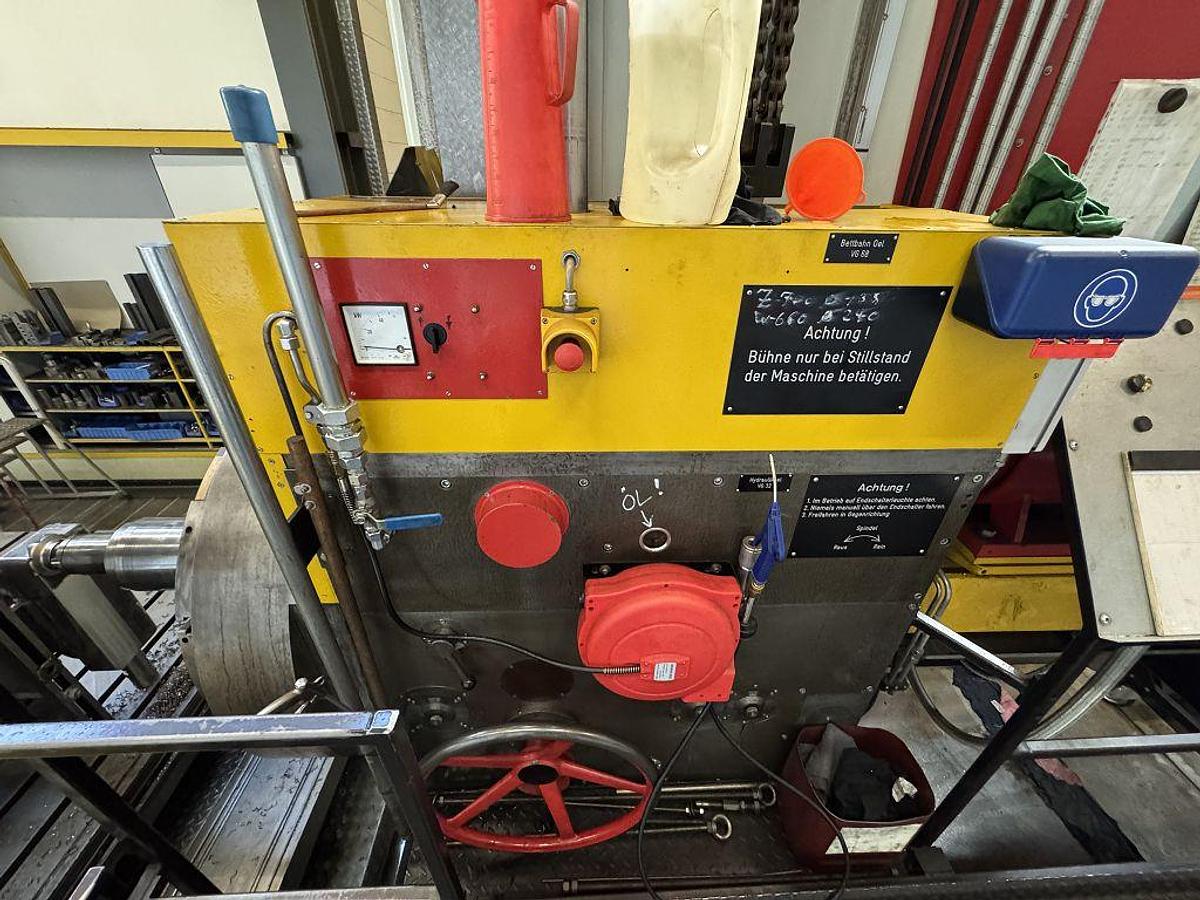

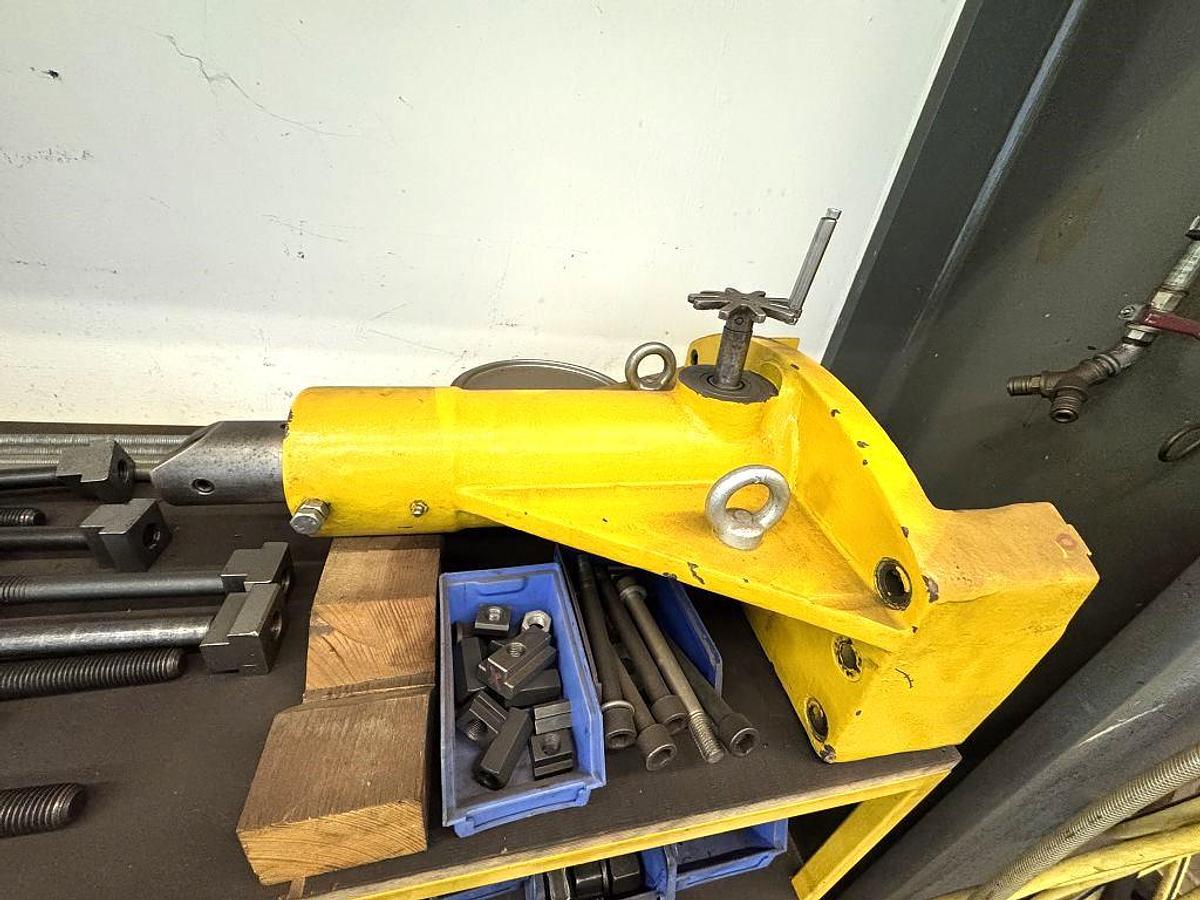

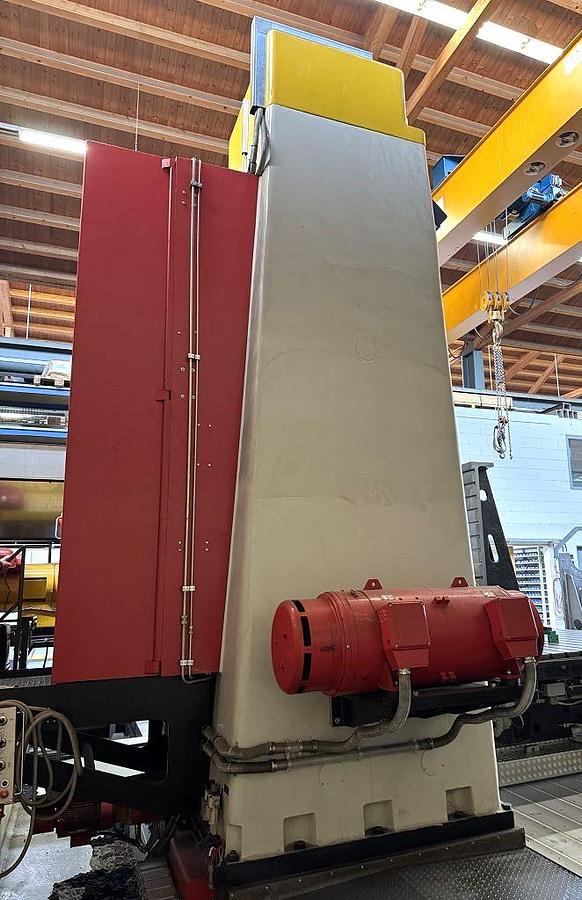

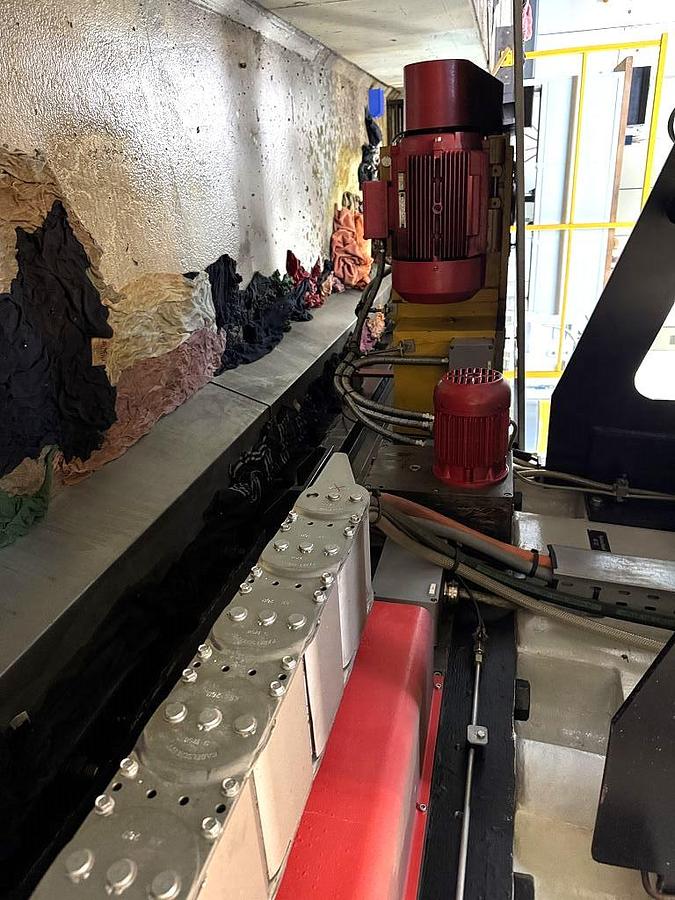

Borer Horizontal Floor Type Scharmann WF240

Spindle dia : 240 mm,

Longitudinal movement X- axis : 5500 mm,

Vertical movement Y - axis : 3200 mm,

Spindle movement Z- axis : 600 mm,

Ram movement W - axis : 600 mm,

Feeds :

X, Y, Z axis : 2800 mm/min.

Spindle Unit :

Spindle power : 37 kW,

Diameter of the working spindle : 125 mm,

Diameter of the spindle sleeve : 240 mm,

Cone of the spindle : SK50,

Number of gear stages : 4,

Speed range : 3 - 700 min-1,

Diameter of the faceplate : 1000 mm,

Speed range of the faceplate : 1 - 82 min-1,

Gearbox steps :

Step I : 3 -33 min-1,

Step II : 30 - 85 min-1

Step III : 88 - 247 min-1,

Step IV : 250 - 700 min-1

Connection Data :

Operating voltage : 3 x 400 V,

Operating frequency : 50 Hz,

Total power requirement : 80 kW,

Dimension and weight :

Machine footprint : ca. 8 x 5 m,

Total height : ca. : 5.5 m,

Machine weight : ca. 50000 kg.

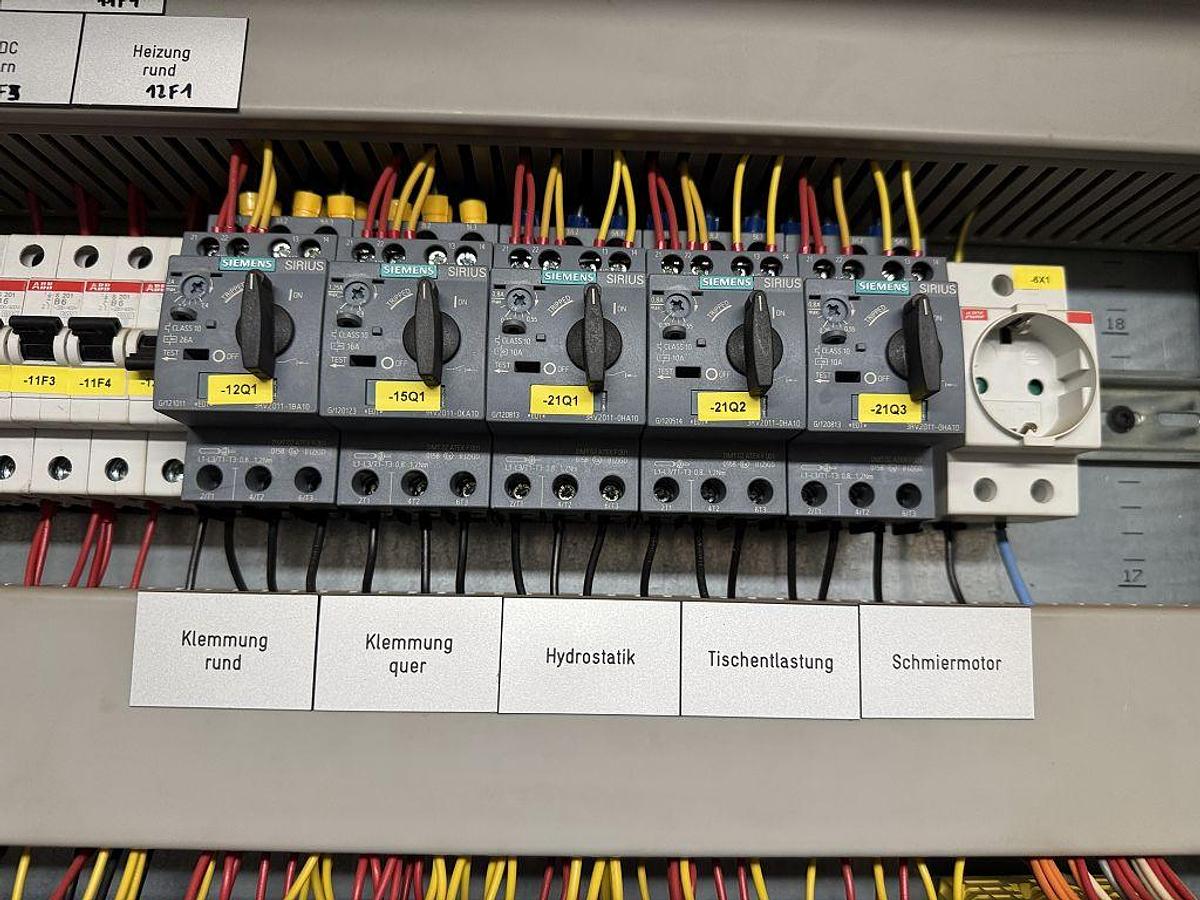

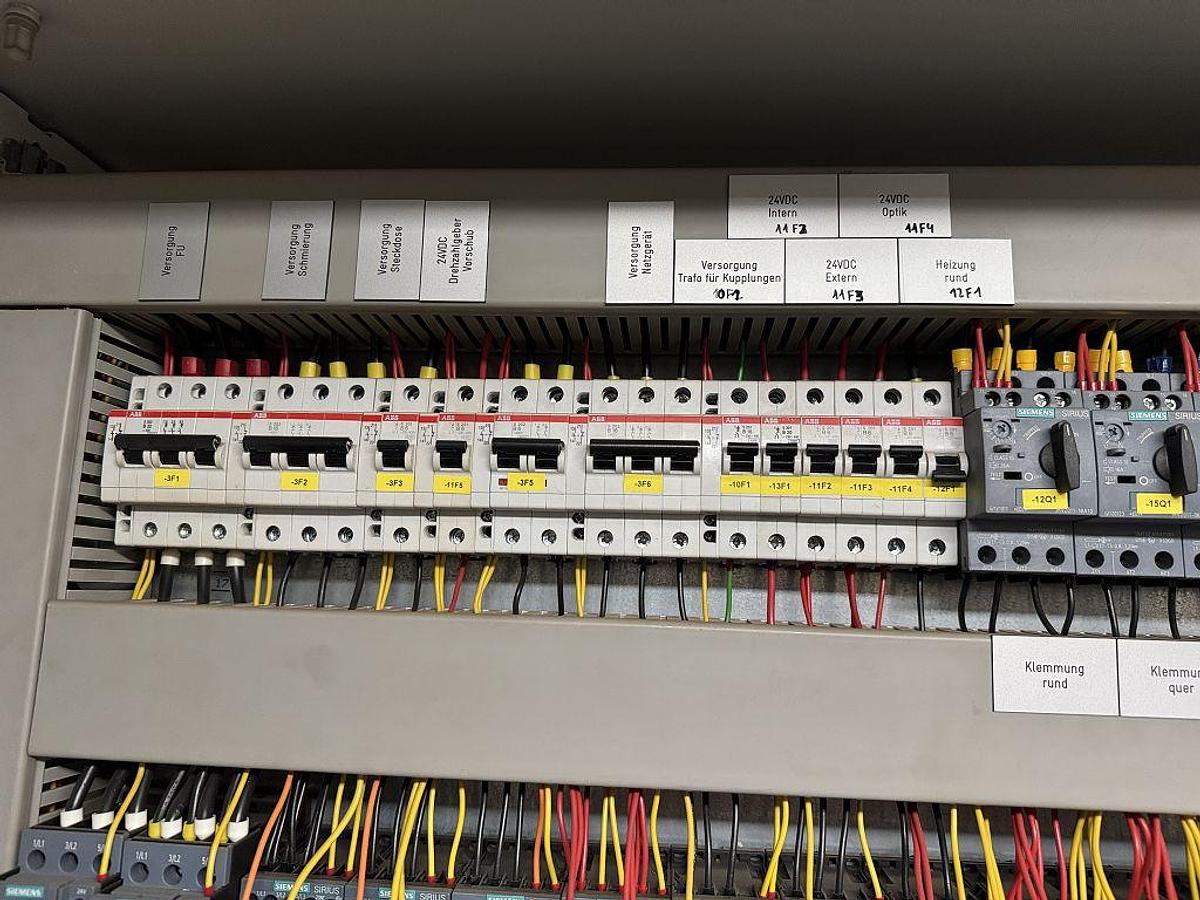

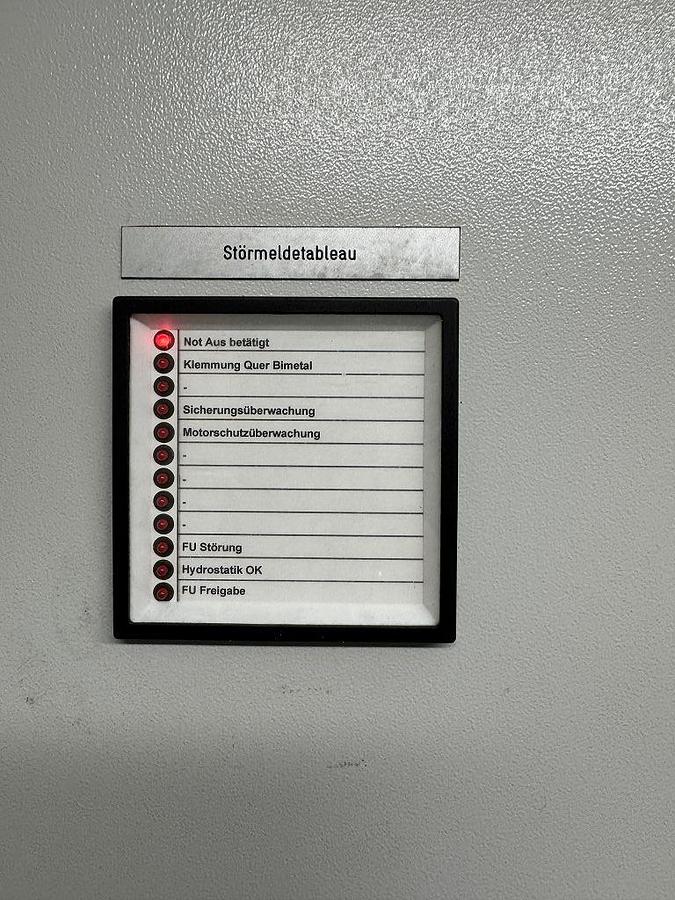

New electrical system in 2014

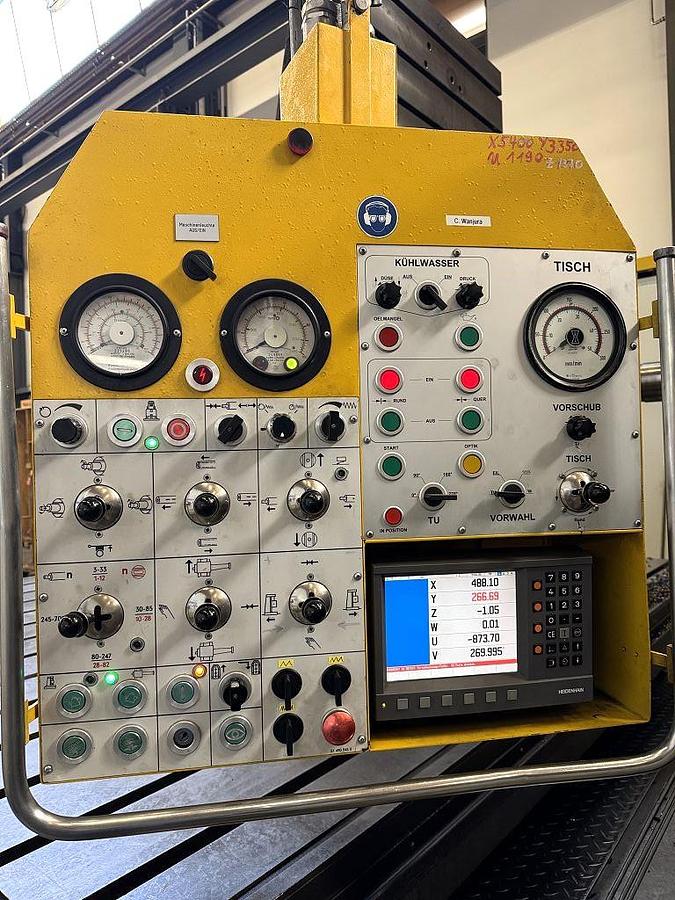

Manual control with Heidenhain digital readout

Spindle SK50, 37kW, 700 rpm

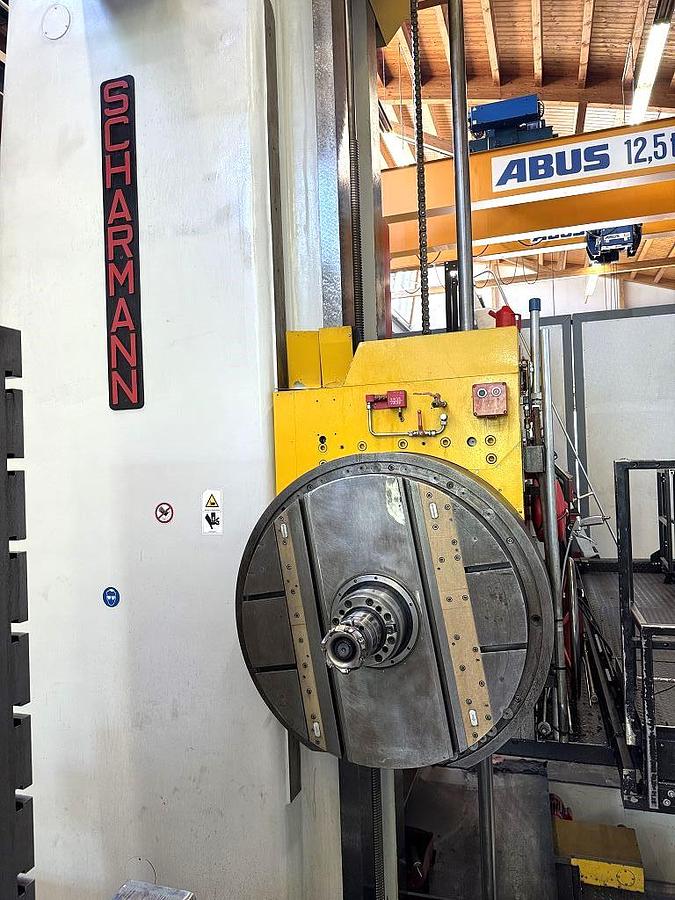

Faceplate Ø1,000mm

Internal coolant

Table, chip conveyor and floor plates remain at the factory.

Very well kept and refurbished conventional borer

Rigid and heavy machine design from the 1960's
