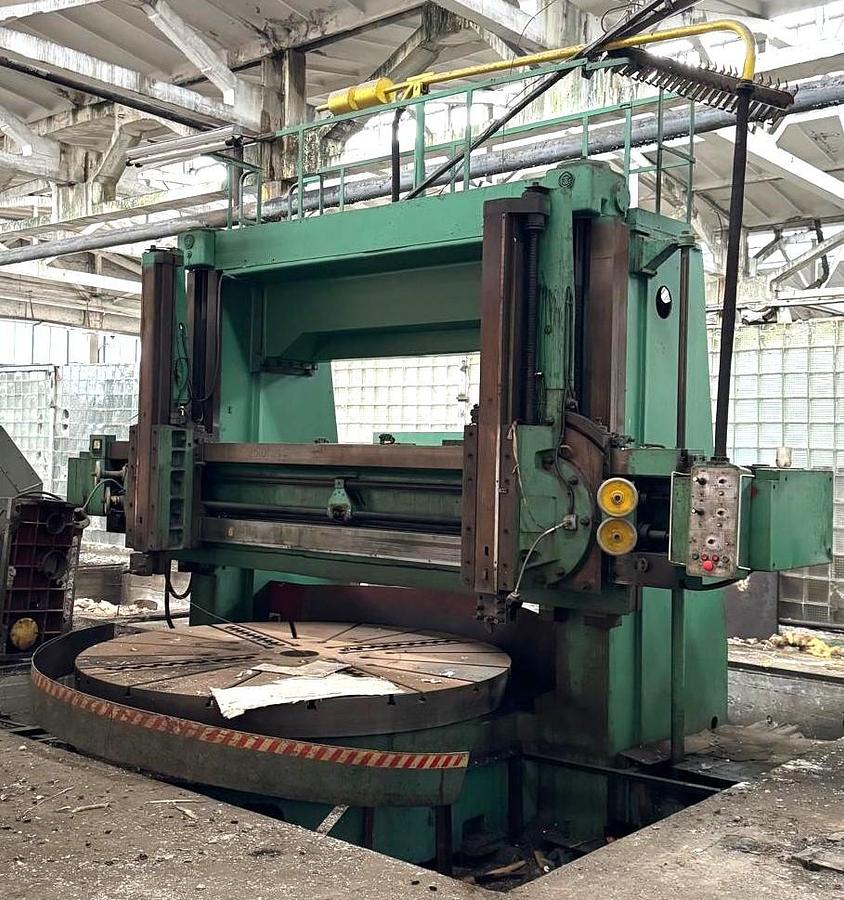

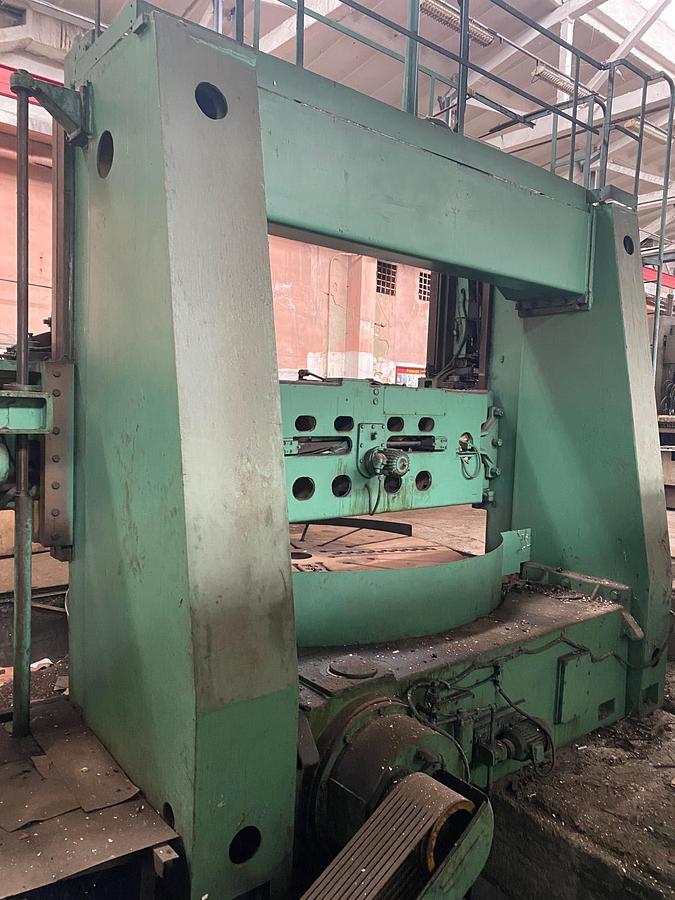

Lathe Vertical Turning Sedin 1L532

KZTS Double-Column Vertical Turning Lathe

Max. turning diameter (swing) : 3200 mm,

Faceplate / table diameter : 2800 mm,

Faceplate rotation speed : 1.25–63 rpm,

Number of speeds : 18,

Max. workpiece height : 1600 mm,

Max. workpiece weight : 16 tons,

Distance between faceplate and vertical supports : 0–1780 mm,

Distance to bottom of cross-rail : 400–1640 mm,

Max. vertical travel of the slide : 1200 mm,

Max. horizontal travel of the vertical supports : 1720 mm,

Tilt angle of vertical supports (without turret head) : ±30°,

Feed range : 0.04–16 mm/rev,

Main drive motor power : 55 kW,

Overall dimensions (L x W x H) : 5490 x 6540 x 5100 mm,

Machine weight : 43 tons.
