Spiral Bevel Gear Grinder CNC Gleason Phoenix 275G

Ratio transmission : 10:1,

Minimum number of teeth : 3,

Maximum number of teeth : 200,

Range of tooth size : 20 mm,

Tooth width maximum : 58 mm,

Spindle speed : 6000 U/min,

Work piece spindle speed : 1200 U/min,

Diameter of tools maximum : 230 mm,

Diameter of tools minimum : 69,85 mm,

X-axis : 325 mm,

Y-axis : 350 mm,

Z-axis : 470 mm,

B-axis : + 90,1 / - 1 °

Work piece table - Ø : 212,71 mm,

Total power requirement : 75 kW,

weight of the machine ca. : 10 tons,

dimensions of the machine ca. : 2400 x 3600 mm.

Qty : 2 Nos.

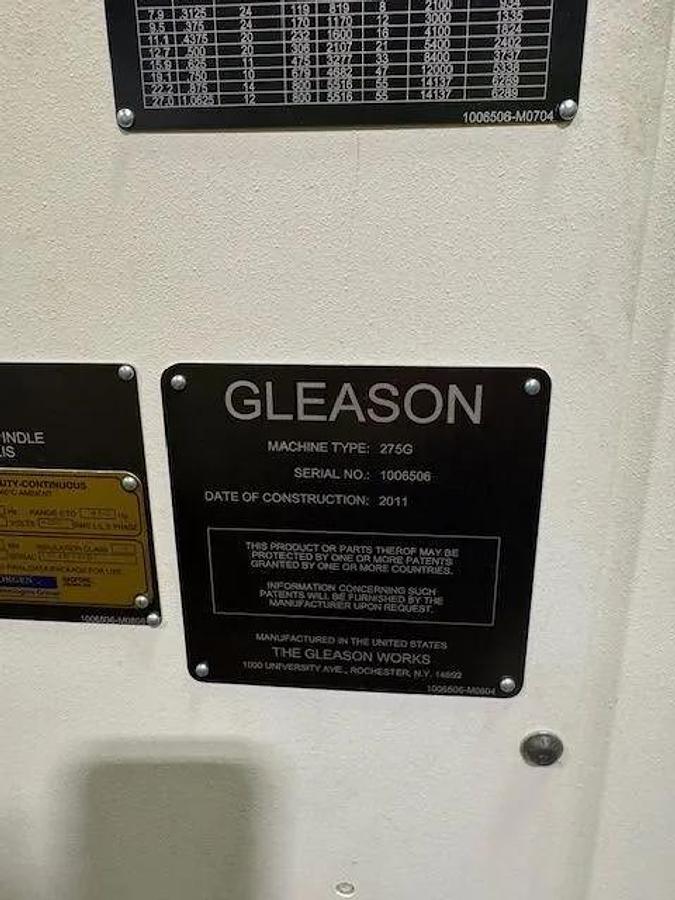

Yom : 2009 & 2011.

Machine is equipped with the following:

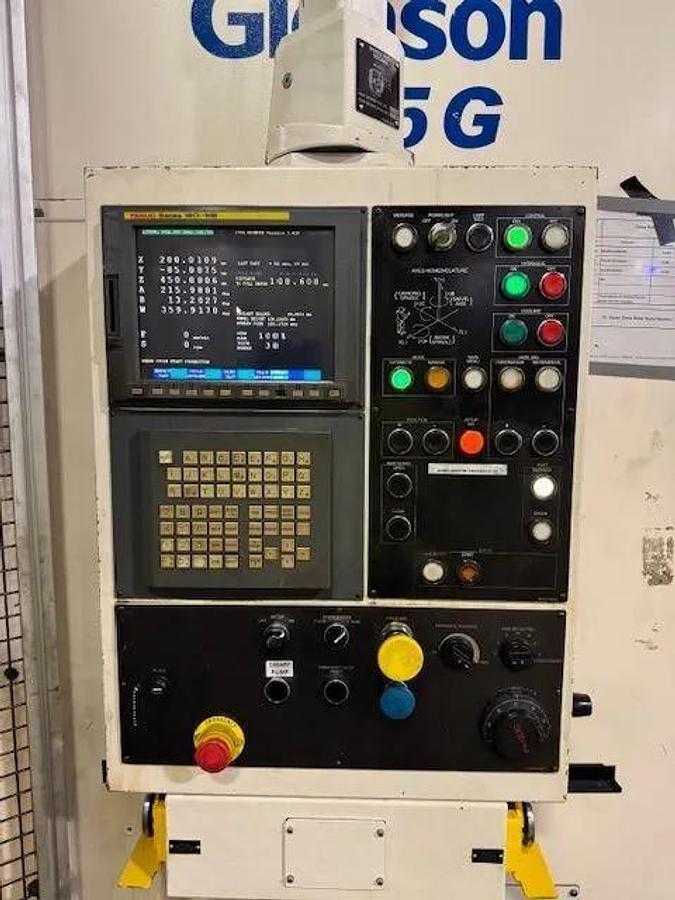

Fanuc cnc controls

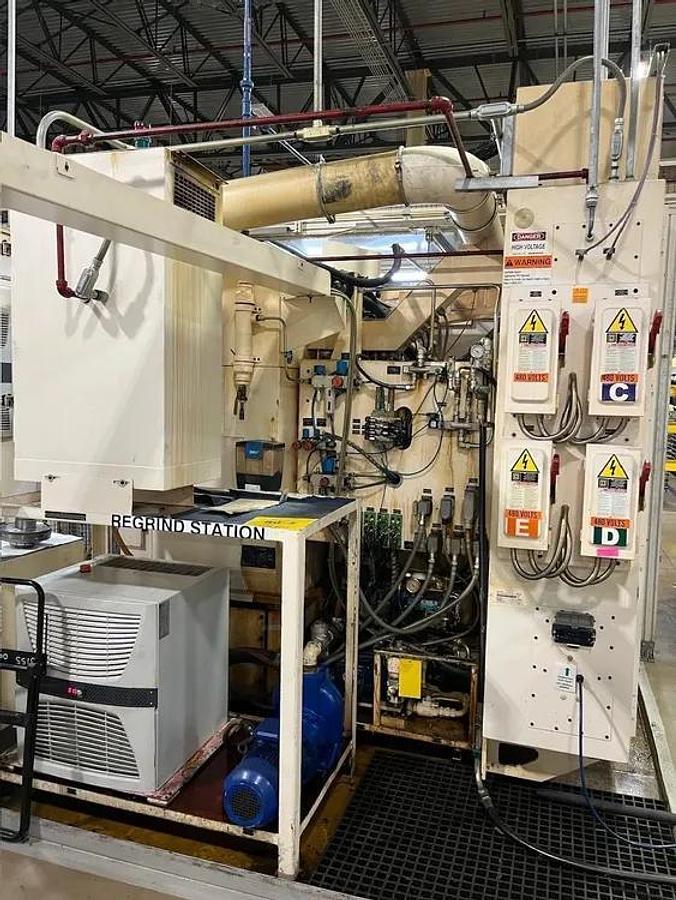

Hoffman HSF 200 SEcoolant filtration unit

Books and Manuals.
