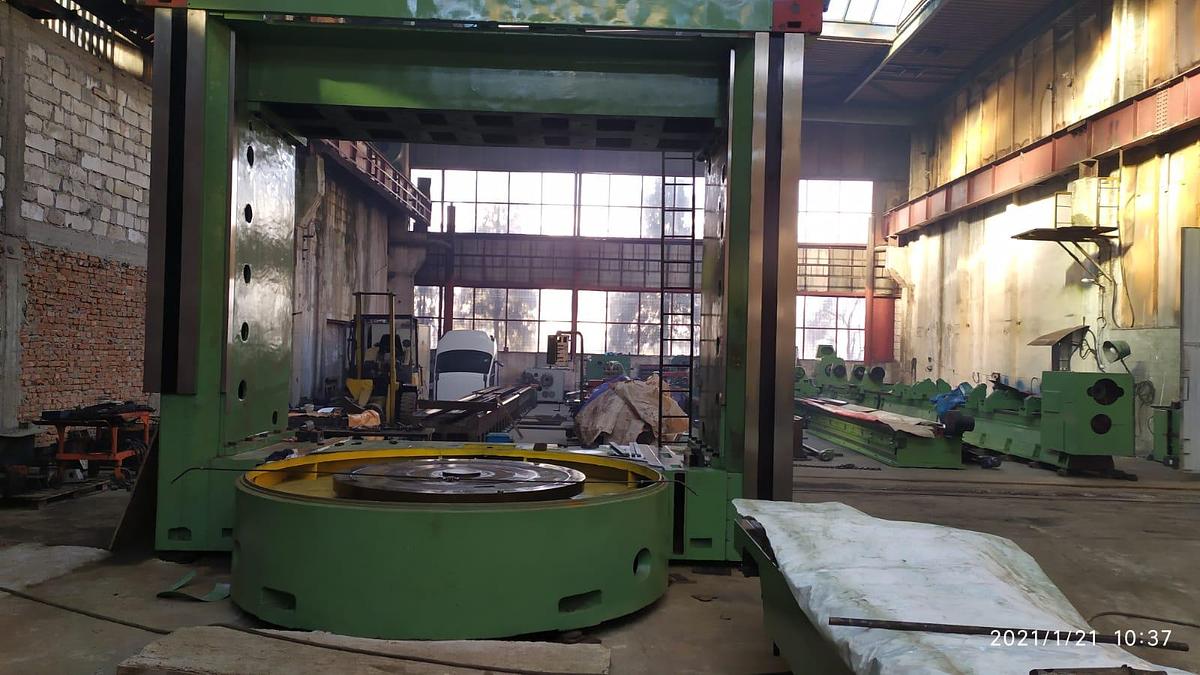

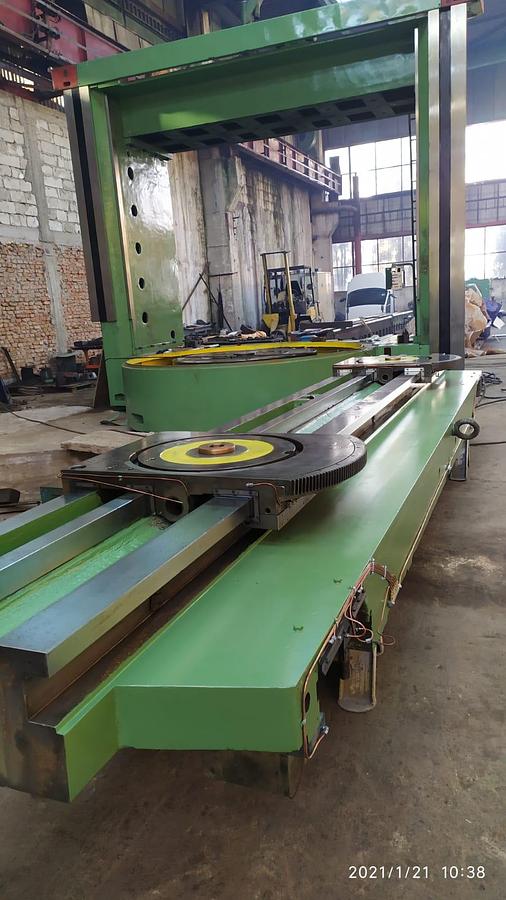

Lathe Vertical Turning CNC Titan SC43

Face plat dia : 4000 mm,

Max. swing : 4300 mm,

Max. swing height : 2060 mm,

Max. loading admitted : 18 tons,

Faceplate speed range : 1-92 RPM,

Feeds range 0.05-5 mm/rot,

Carriages rapid feeds : 2500 mm/min,

Main motor power : 100 kW,

Machine weight : 63 tons.

The machine is equipped with one vertical rail head (usually with CNC only one head is used).

The gear box was also revised and all worn parts were replaced.

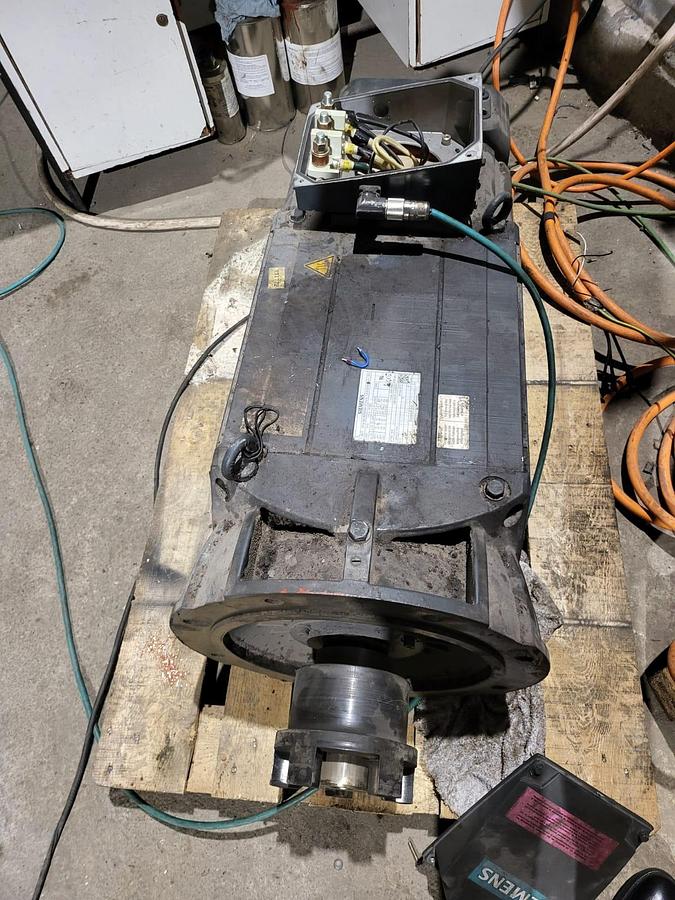

The machine is delivered with one used DC main motor Siemens 100KW.
