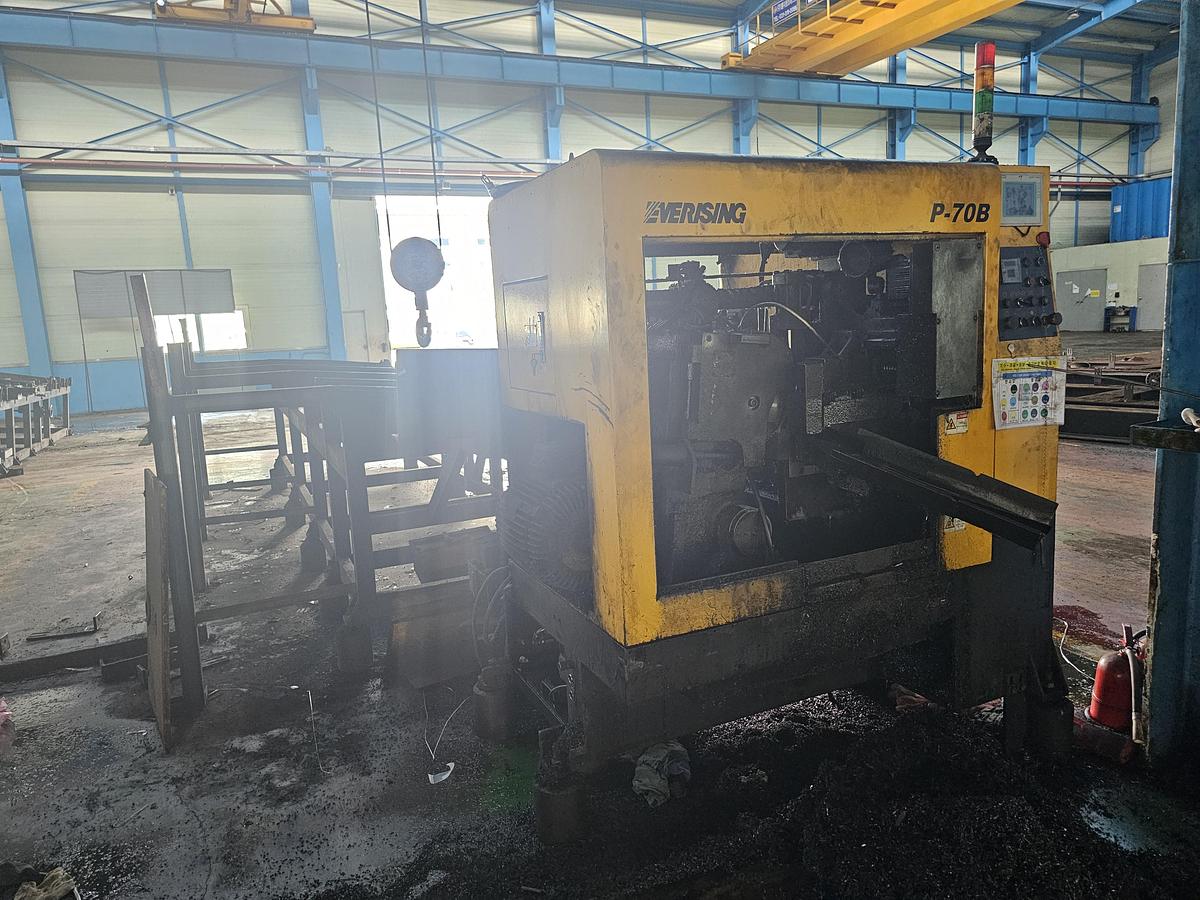

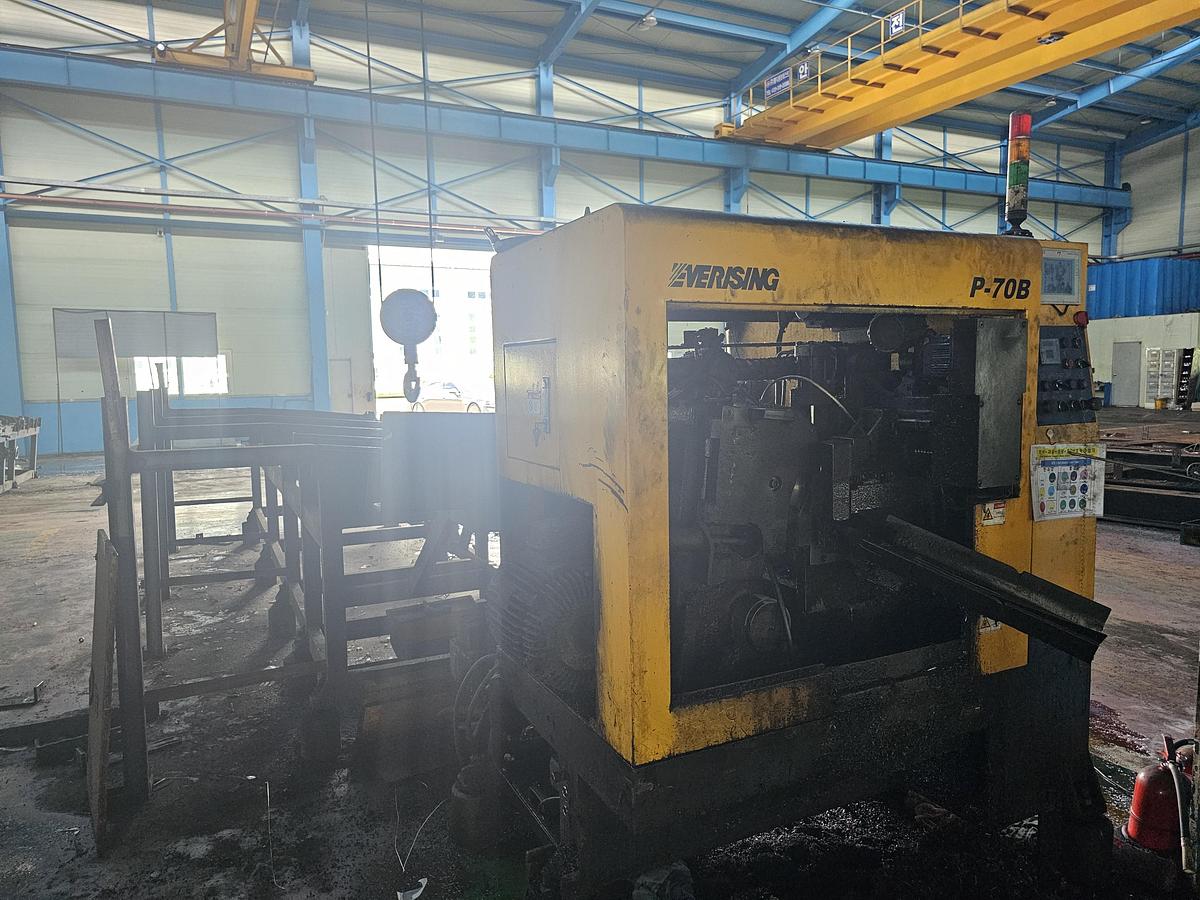

Circular Saw Everising P-70B

Capacity circle : 10~70 mm,

Capacity square : 10~54 mm,

Motor blade drive : 10 HP x 4P,

Motor hydraulic pump : 2 HP x 4P,

Saw head : 1.5 KW (servo),

Feeding : 1 KW (servo),

Chip conveyor : 1/4 HP,

Inverter : 10 HP,

Saw blade : ⌀ 285 x K 2.0 x T 1.75 mm,

Blade speed : 30~150 RPM,

Cutting feed : Servo motor with ball screw,

Load table : 1200 x 5200 mm,

Bar feed : Servo motor with ball screw,

Automatic feed length single : 8~600 mm,

Automatic feed length multiple : ~3000 mm,

Remnant material length : 80,

Loading table capacity : max. diameter 6M x 10 pcs,

Automatic chip conveyor : Scraper, chain type,

Cooling : Air compressed oil mist,

Tank capacity hydraulic : 110 L,

Tank capacity mist oil : 4 L,

Tank capacity gear box : 3.5 L,

Total weight : 3200 kg,

Weight table/machine : 800 / 2400 kg,

Floor space machine (W x L) : 2700 x 1900 mm,

Floor space with loading table (W x L) : 2700 x 6835 mm,

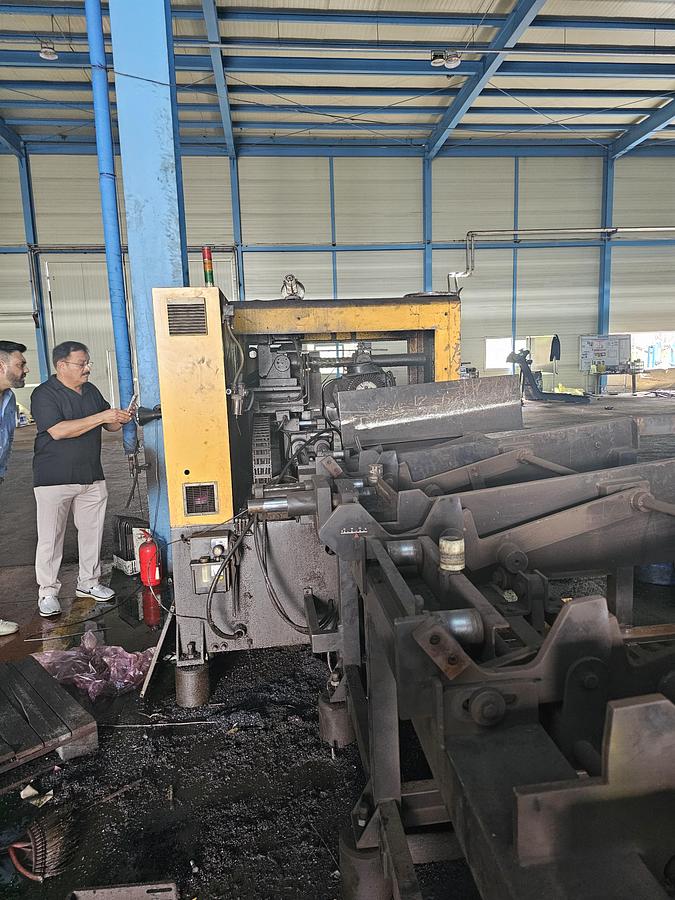

With Bar Rack Table
