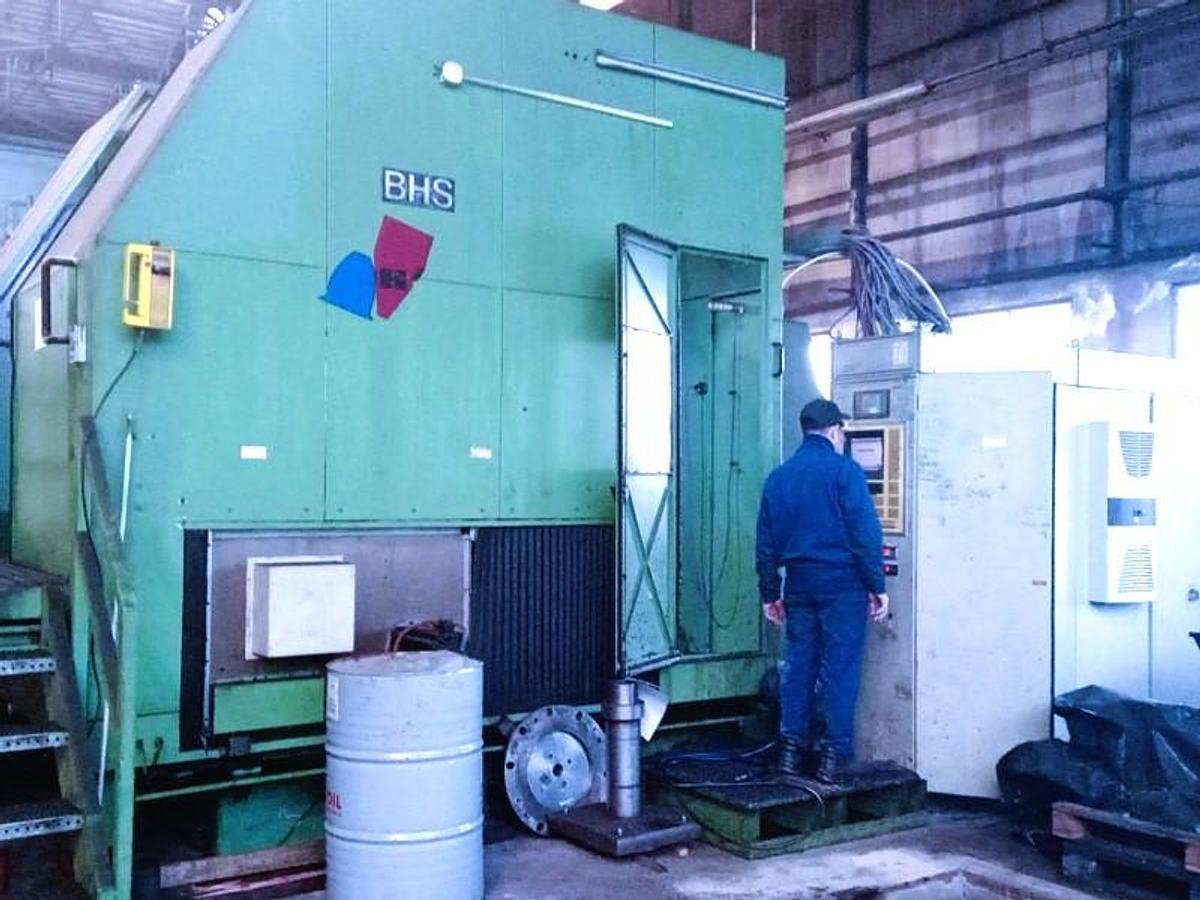

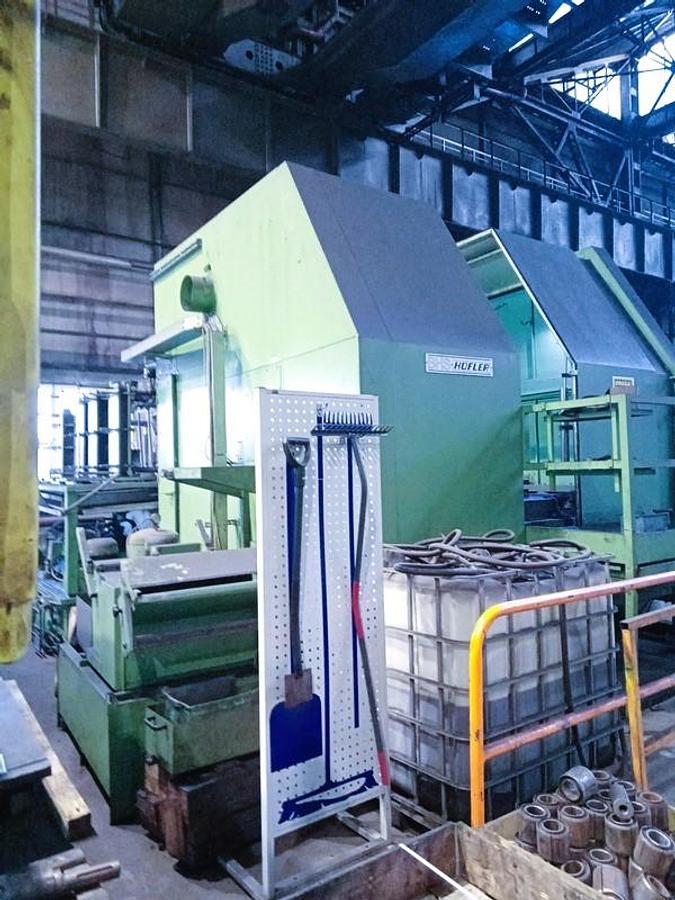

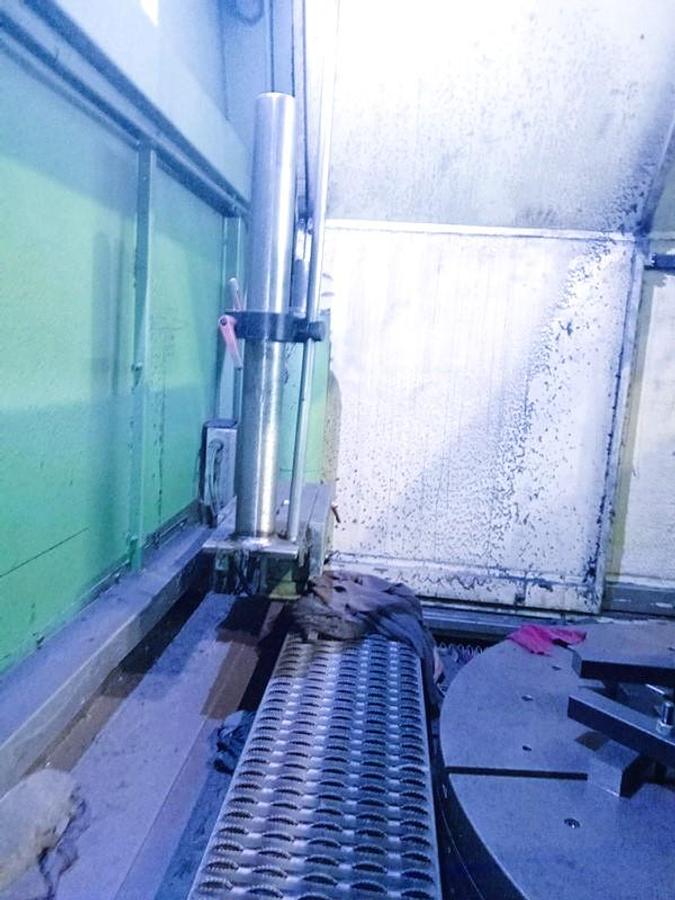

Gear Grinder Hofler HOFLER1600

(Cylindrical) gear outer diameter (max.) Ø : 1600 mm,

Center distance above table (min. – max.) : 650 – 1650 mm,

Profile height (max.) : 100 mm,

Work area over table (min. – max.) : 500 – 1500 mm,

Module (min. – max.) : 1 – 45***,

Swivel angle : 45°/+120°

Grinding wheel diameter (max.) : Ø 450 mm,

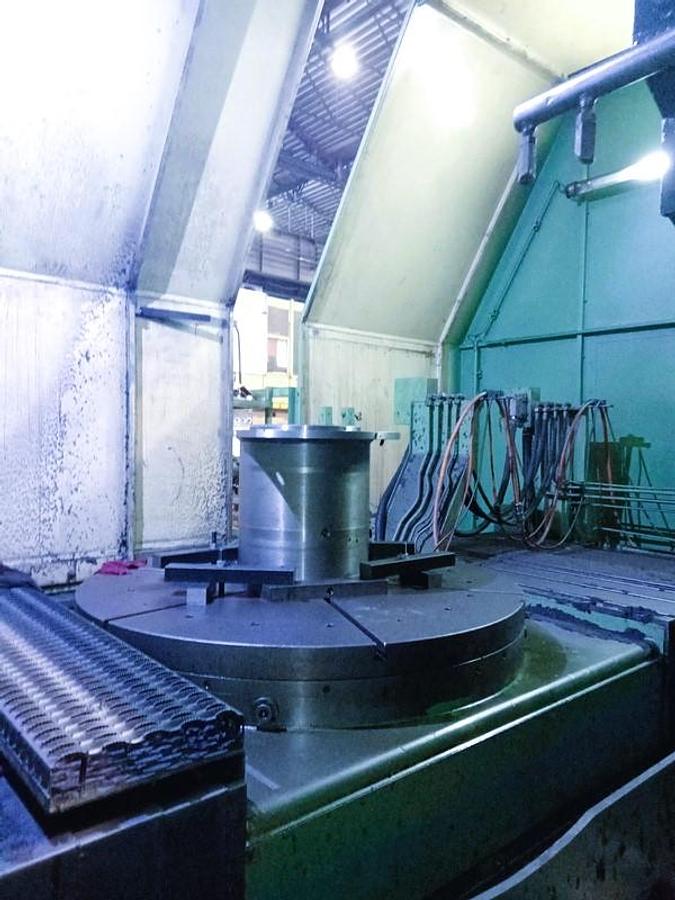

Table diameter : Ø 1250 mm,

Table load (max.) : 14000 kg,

Table hole (diameter x depth) : Ø 370 x 400 mm,

Table rotation speed : (max.) 0 – 25 rpm.
