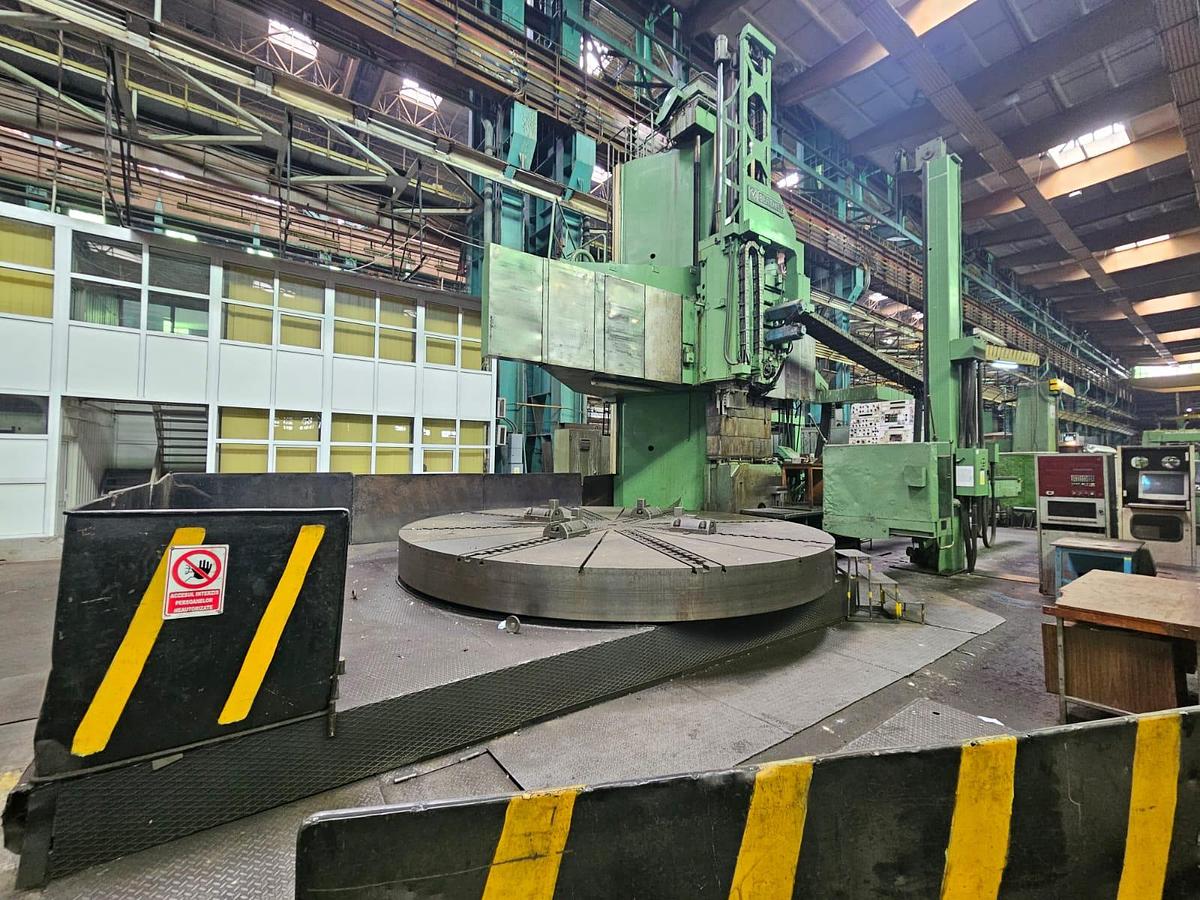

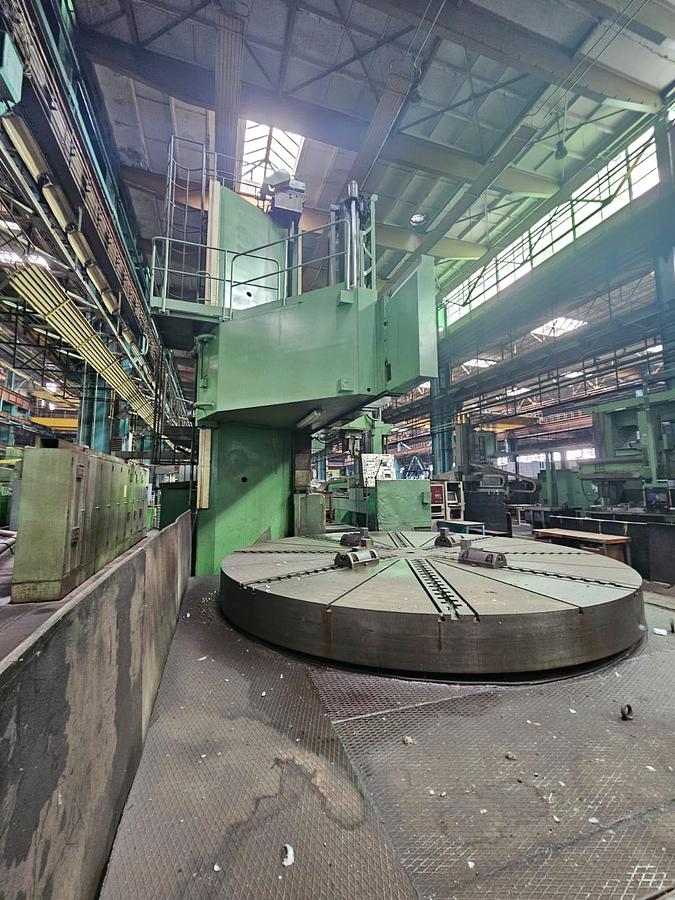

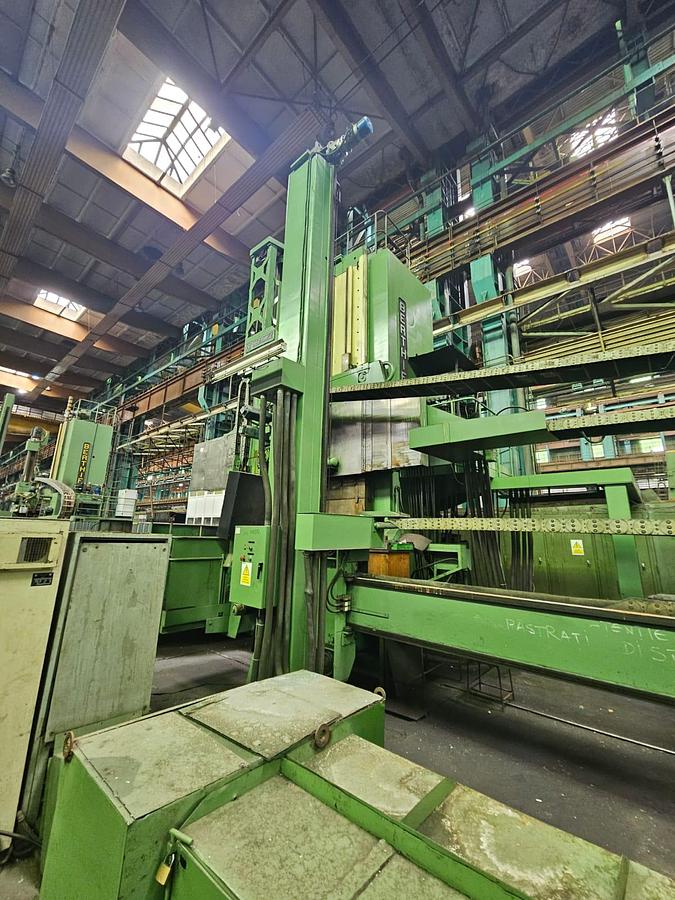

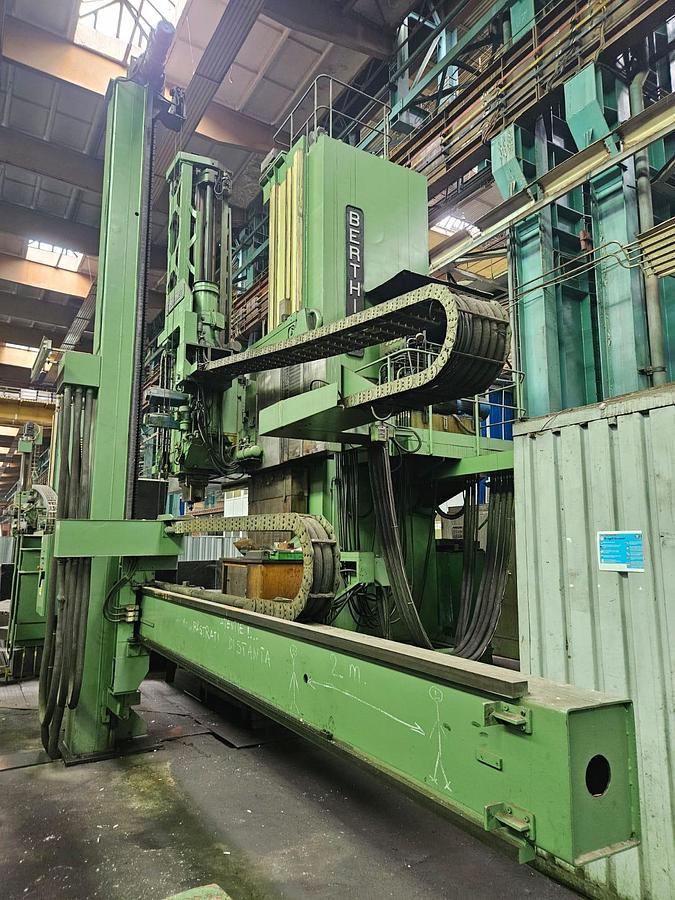

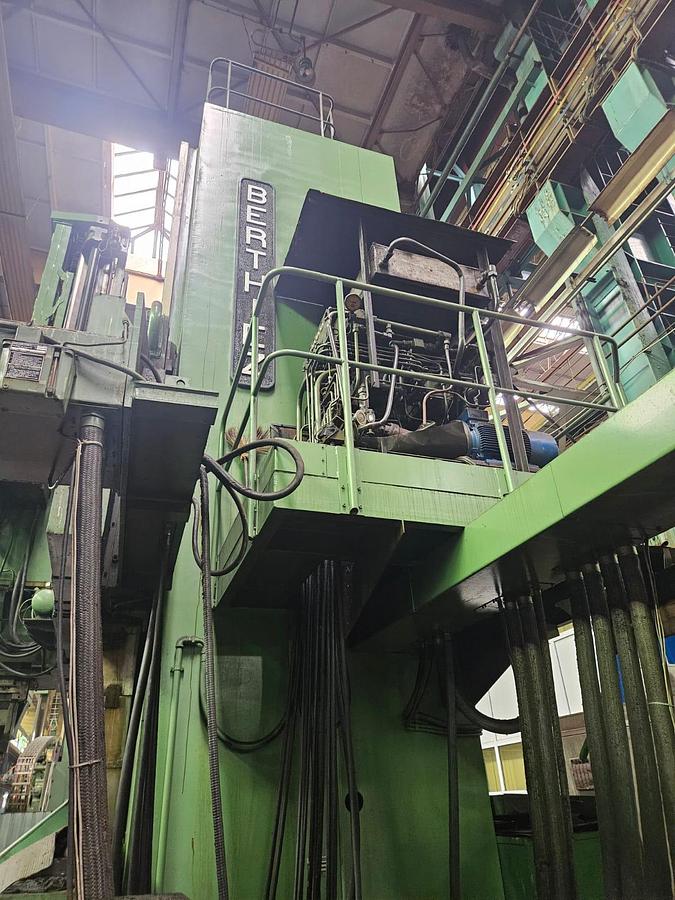

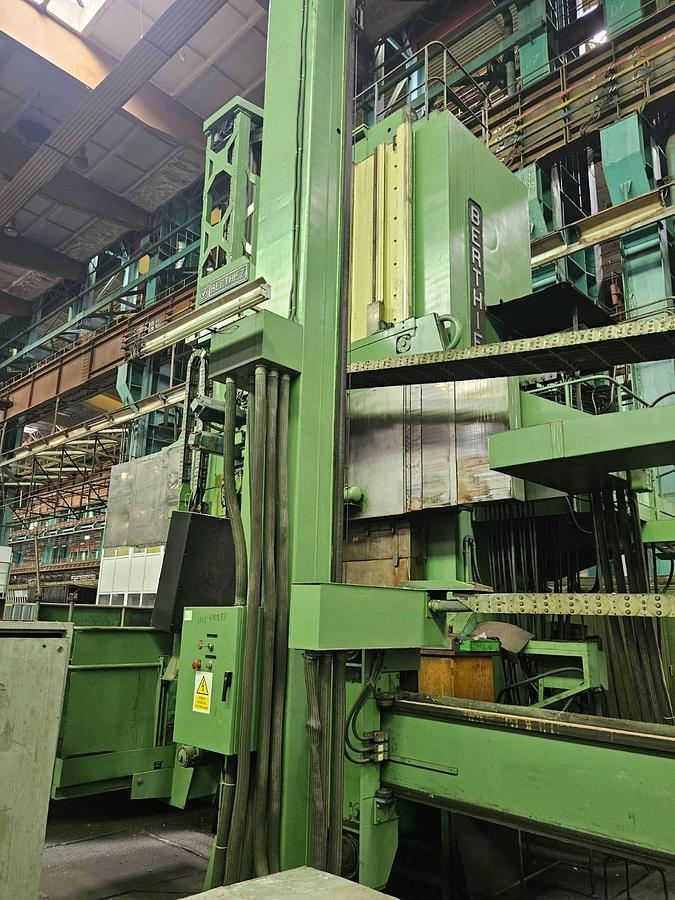

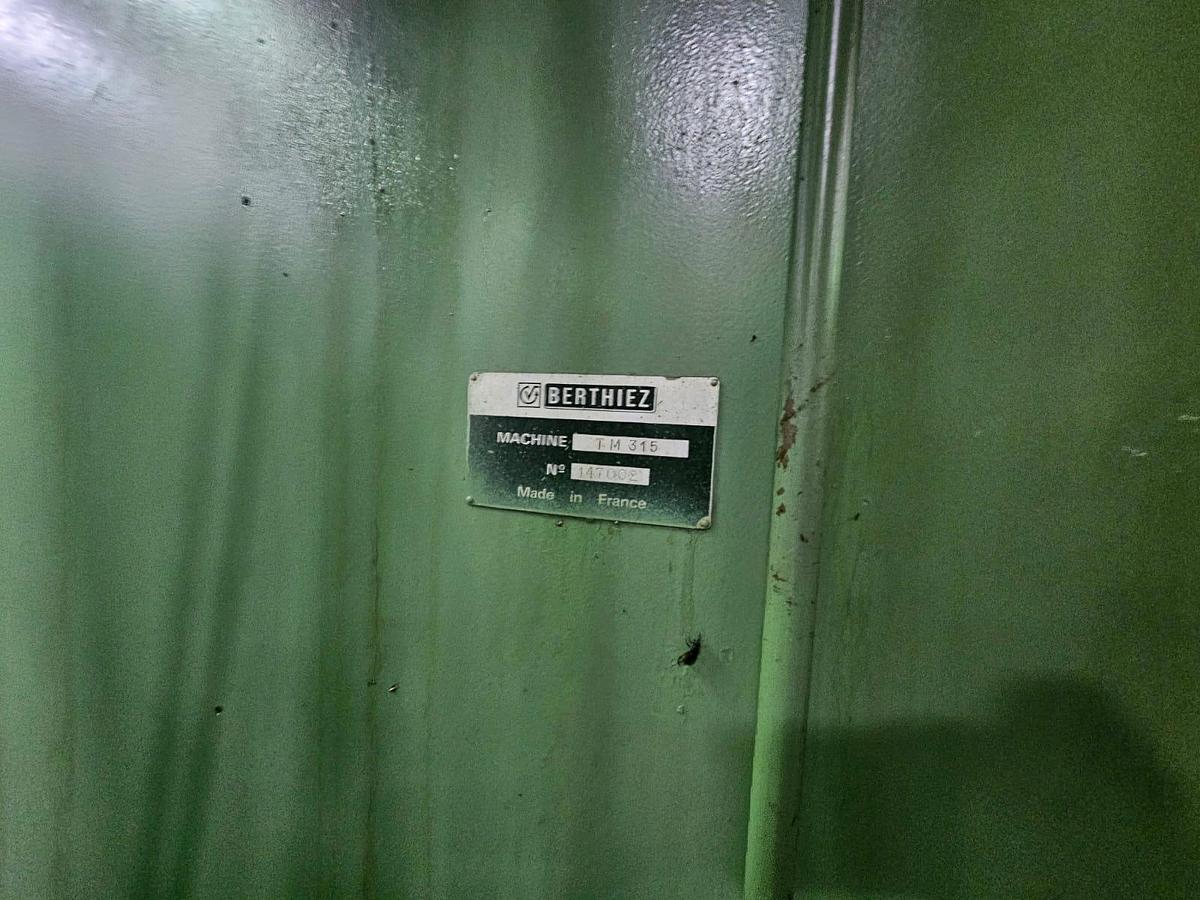

Lathe Vertical Turning CNC Berthiez

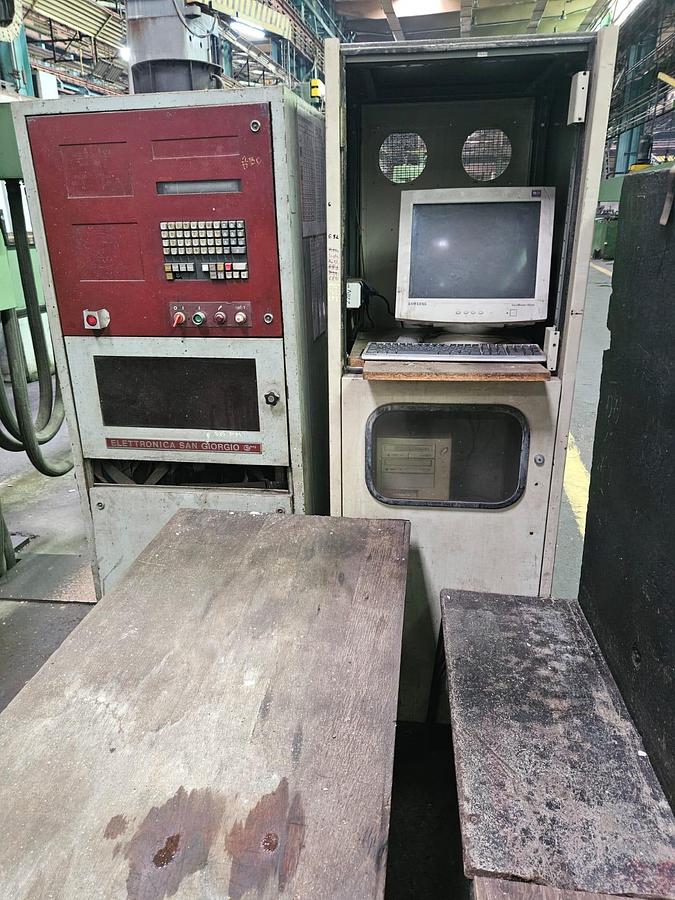

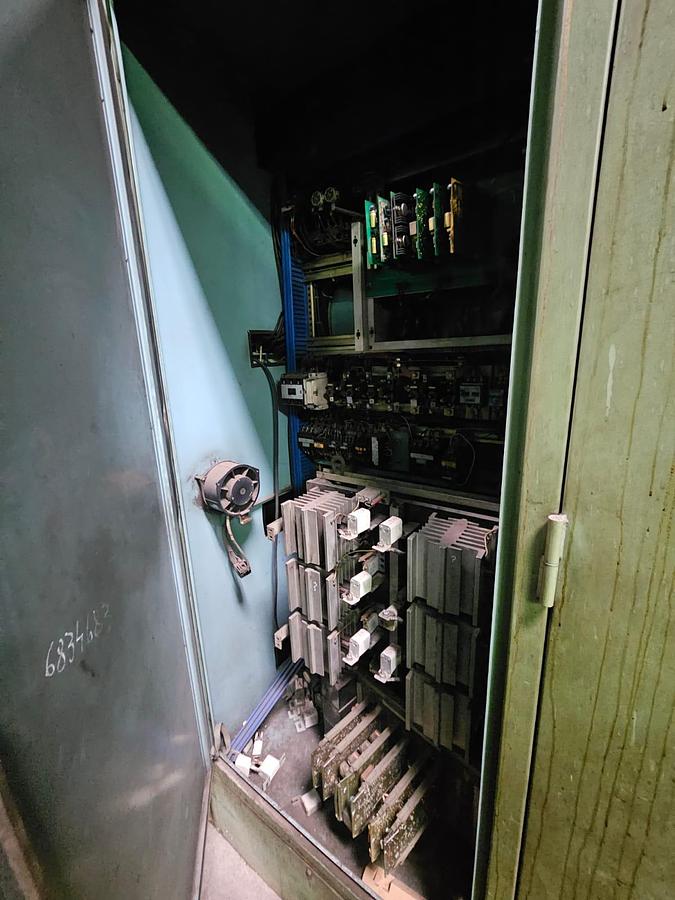

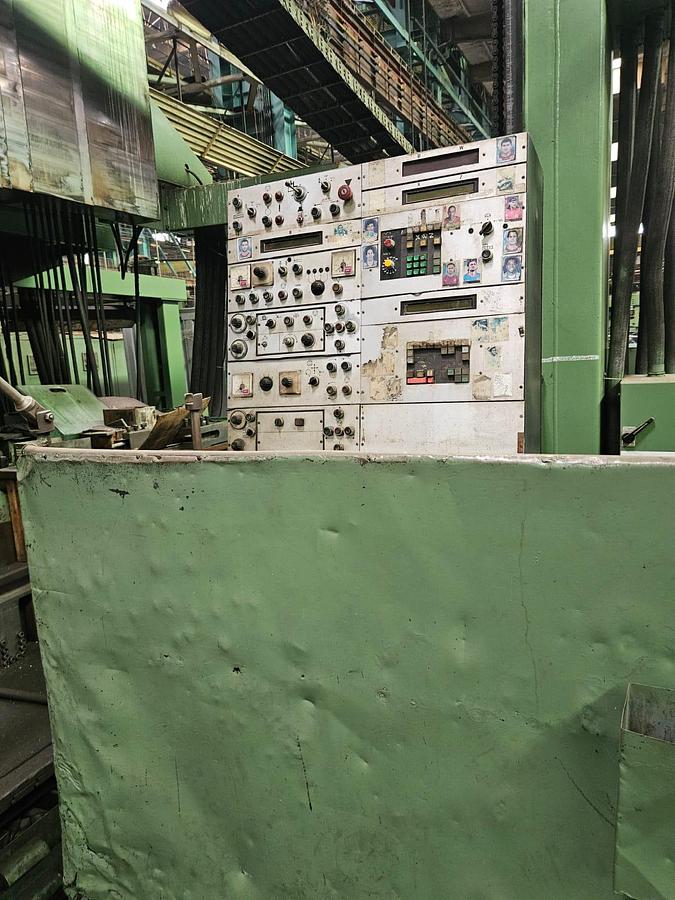

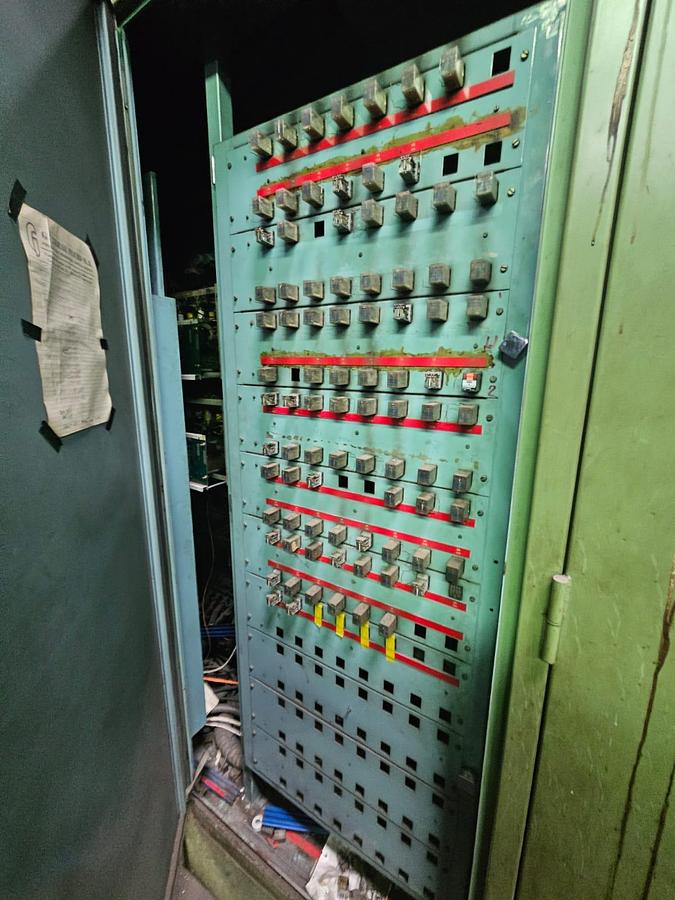

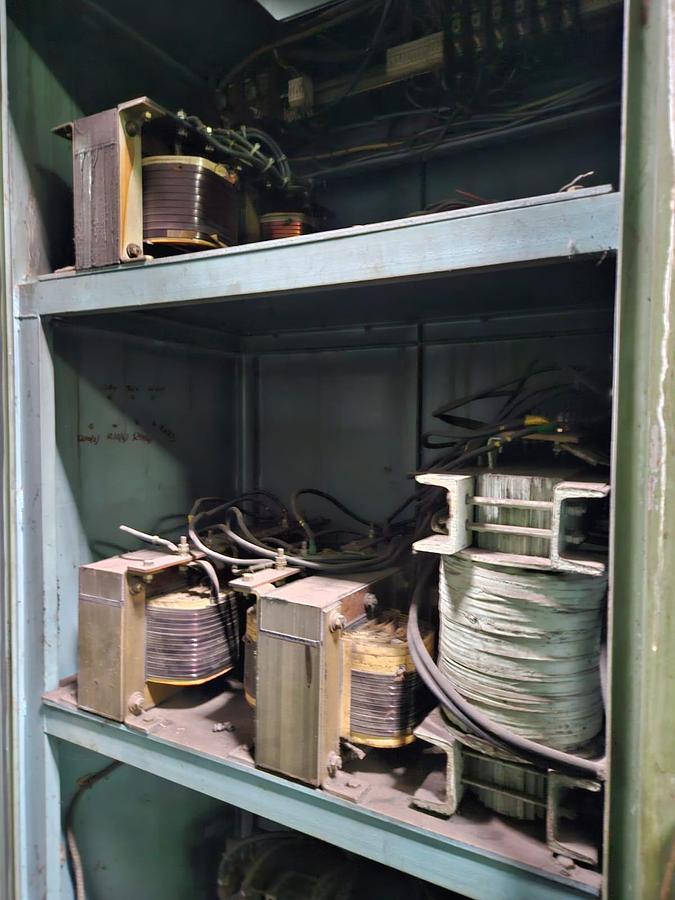

NC AXES CNC OLD SYSTEM

CAPACITIES AND CHARACTERISTICS

( YOM – 1982 )

*BASE

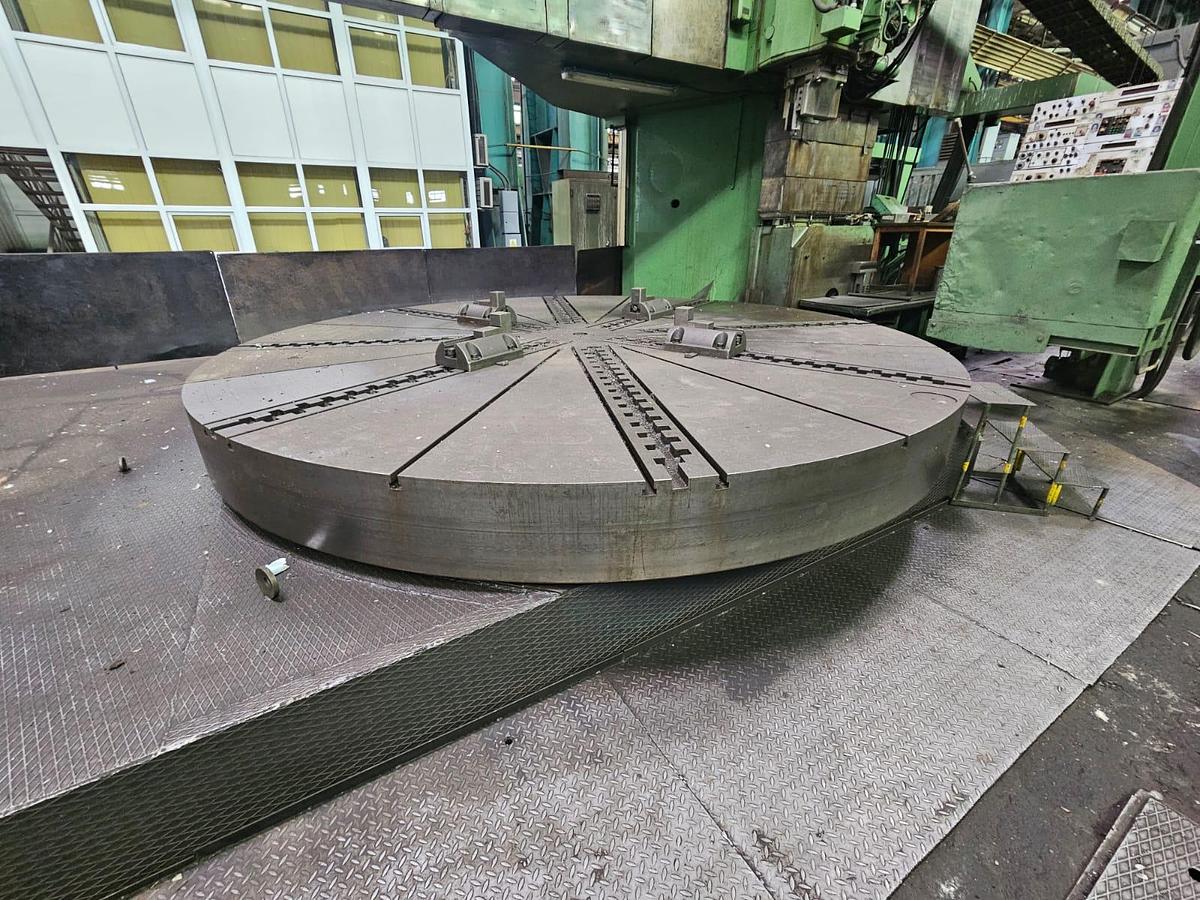

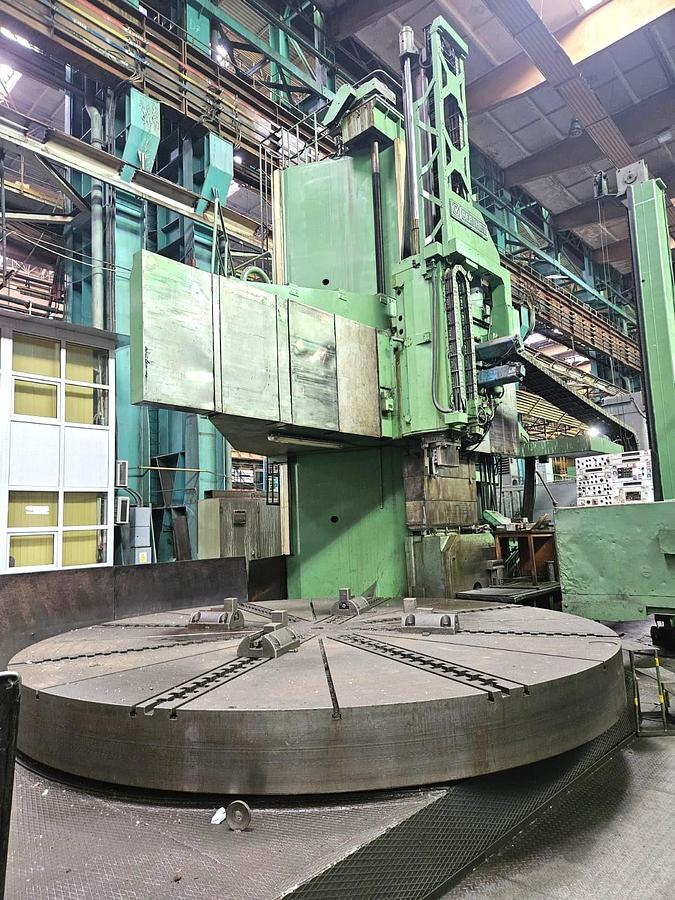

Table diameter : 5000 mm

Maximum turning diameter: 8000 mm

Maximum turning diameter at the center: 5000 mm

H - Maximum usable height: 4000 mm

T - Arm travel: 3600 mm

TA - Saddle travel: 650 mm

Continuous range of table speeds: 0.60 to 60 rpm

Table motor power (2xJ0): 140 kW

Maximum allowable load: 160 t/ hydraulic sustentation

Arm travel speed: 400 mm/min

Saddle travel speed: 2500 mm/min

Slow rotation speed:

Milling: 0.01 to 0.50 rpm

For positioning: 0.001 to 0.50 rpm

*TOOL CARRIAGE ON ARM

Coulant section: 360 x 360 mm

CA - Axial travel of the coulant: 2500 mm

CB - Horizontal travel of the carriage: 3400 mm

E-F - Tilting range: 15 - 45°

 *LATERAL TOOL CARRIAGE

Coulant section: 360 x 360 mm

BA - Axial travel of the coulant: 1600 mm

BB - Vertical travel of the carriage: 3450 mm

*FEED AND POSITIONING SPEED

(Common to both carriages)

Continuous feed range:

In manual control: 0.05 to 25 mm/rev

In numerical control: 0.2 to 360 mm/rev

Positioning speed: 1 to 3600 mm/min

Note: For feed rates below 800 mm/min, use the first feed range.
