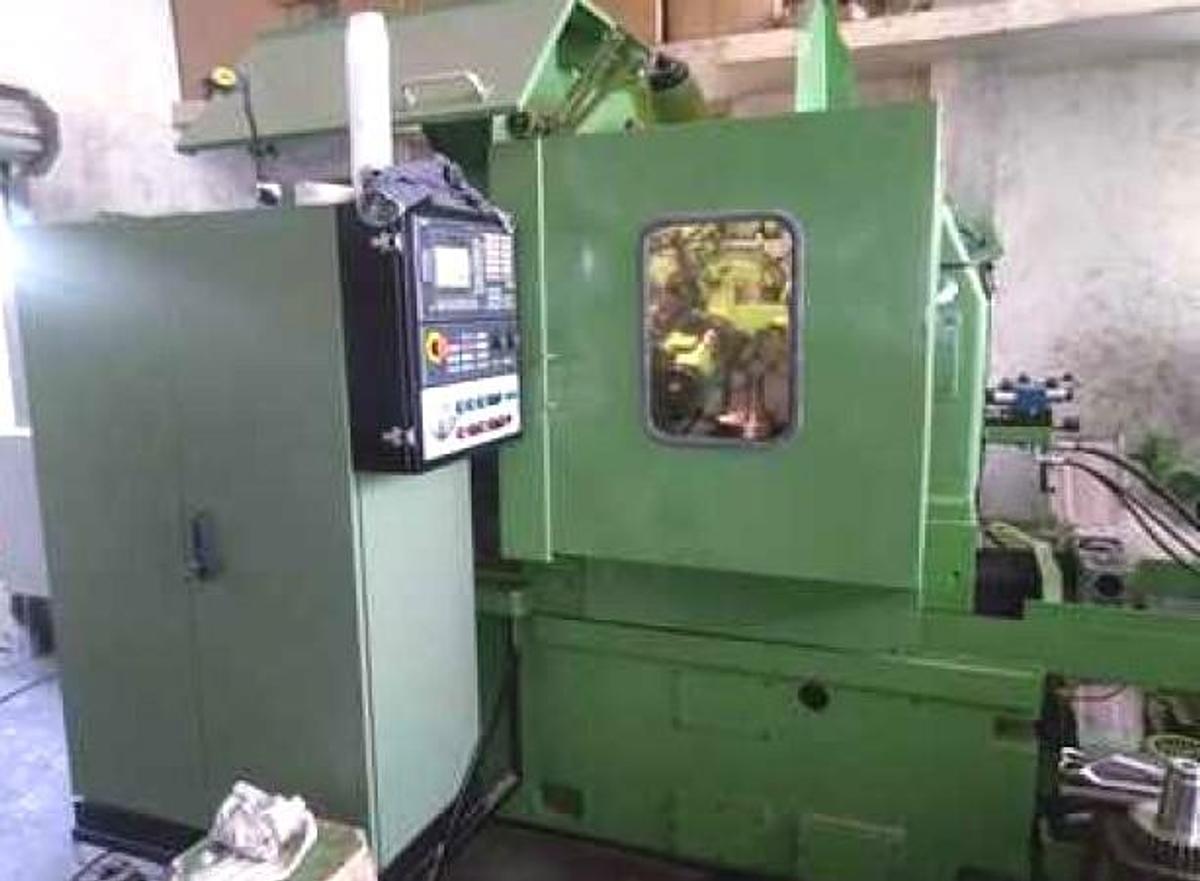

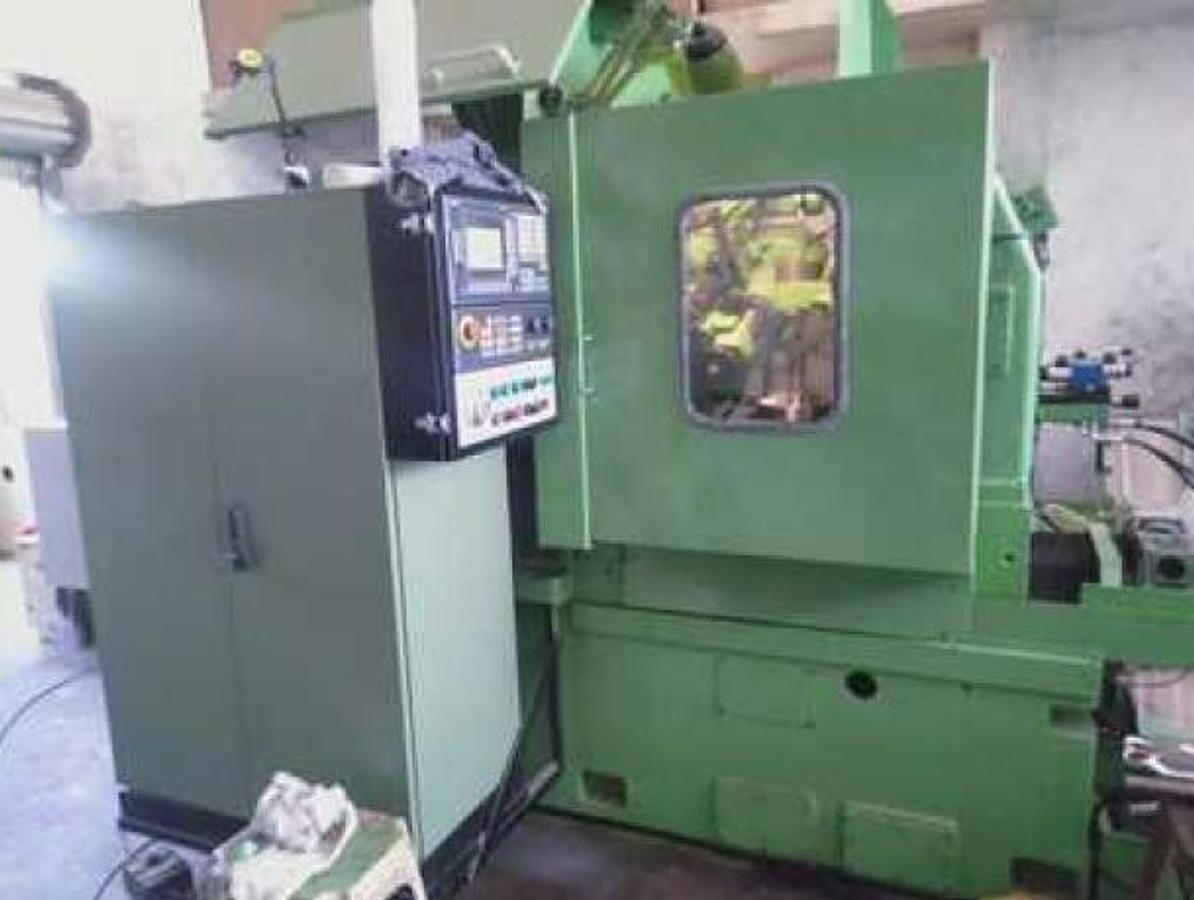

Gear Hobbing Machine CNC WMW Modul ZFWZ250-4 CNC

3 Axis Gear Hobbing Machine - Vertical

With Siemens 808,

Max. wheel diameter : 250 mm,

Gear width : 275 mm,

Max. module 6 to 10 (depending on hob dia),

Max. angle of teeth : 45 Degree,

Feeds axial : 275 mm,

Min. number of teeth 8 ,

Diameter of hob : 145 x 170 mm,

Clamping table diameter : 275 / 350 mm,

Additional information

Complete with change gears, etc,

Complete, handbooks and machine manuals etc.

Full rebuilt with Brand New 2023,

Siemens 808, Digital drives and AC servo motors,

CNC Controlled Axis X and Z + hob shifting,

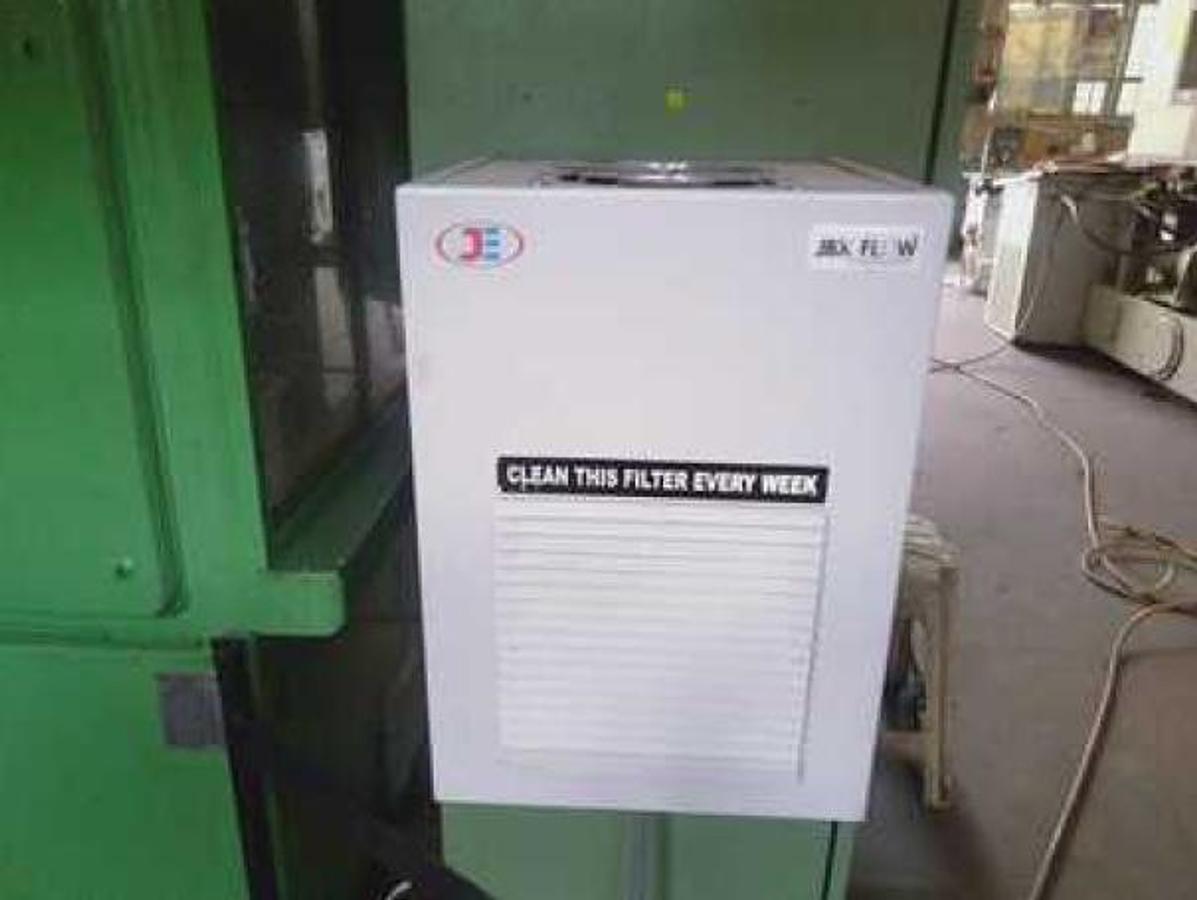

Free standing Electrical Cabinet fitted,

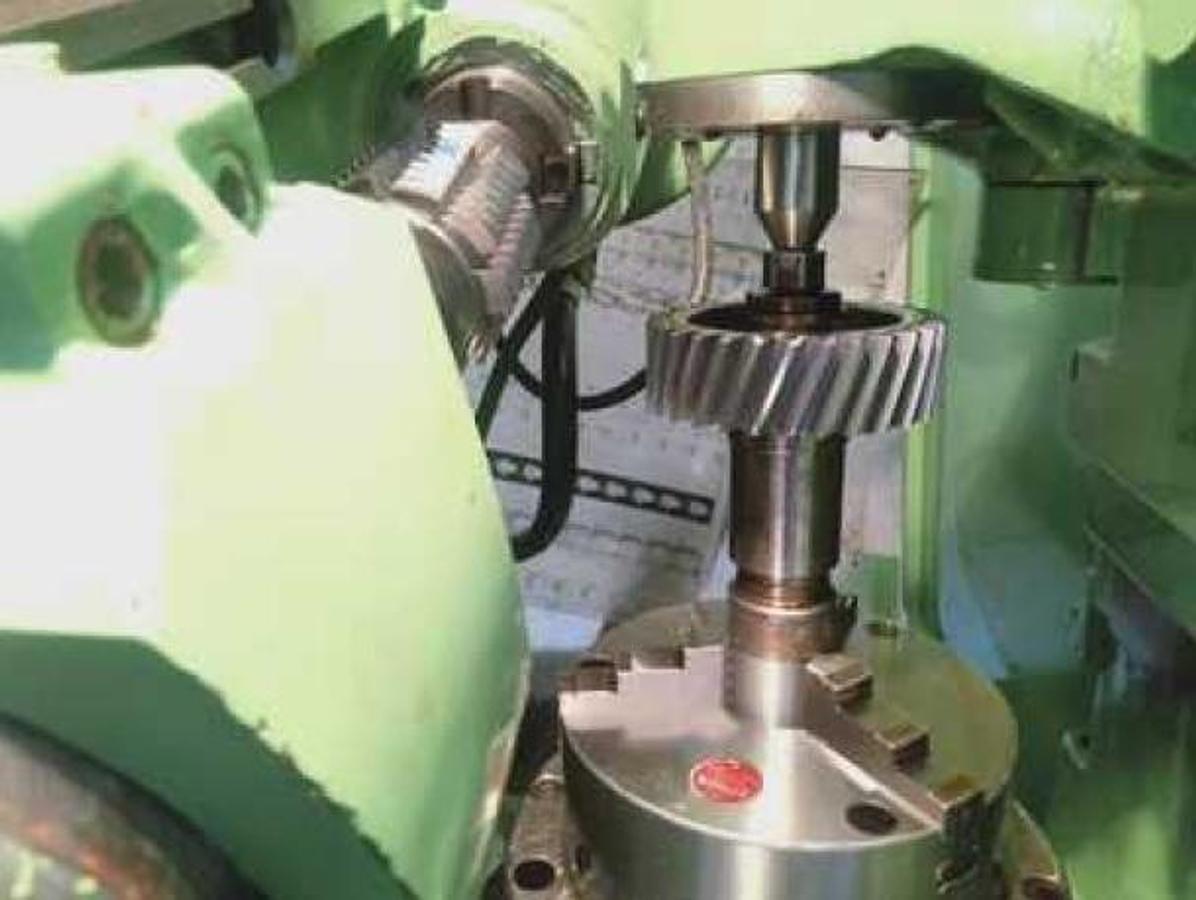

Suitable for Spur, Helical, Crowning & Slightly tapered gears both for batch and heavy production of components,

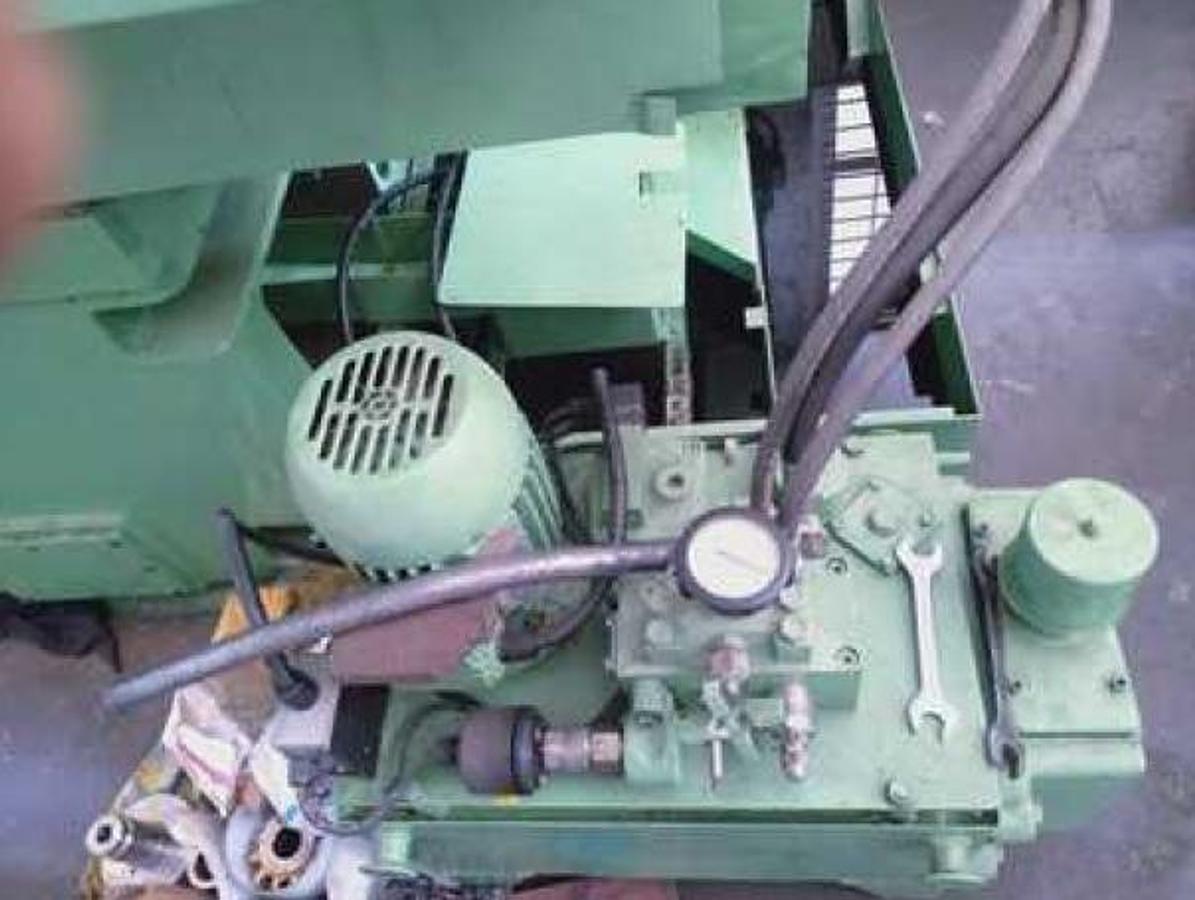

Hydraulic Clamping & Tailstock,

Automatic Hob Shift,

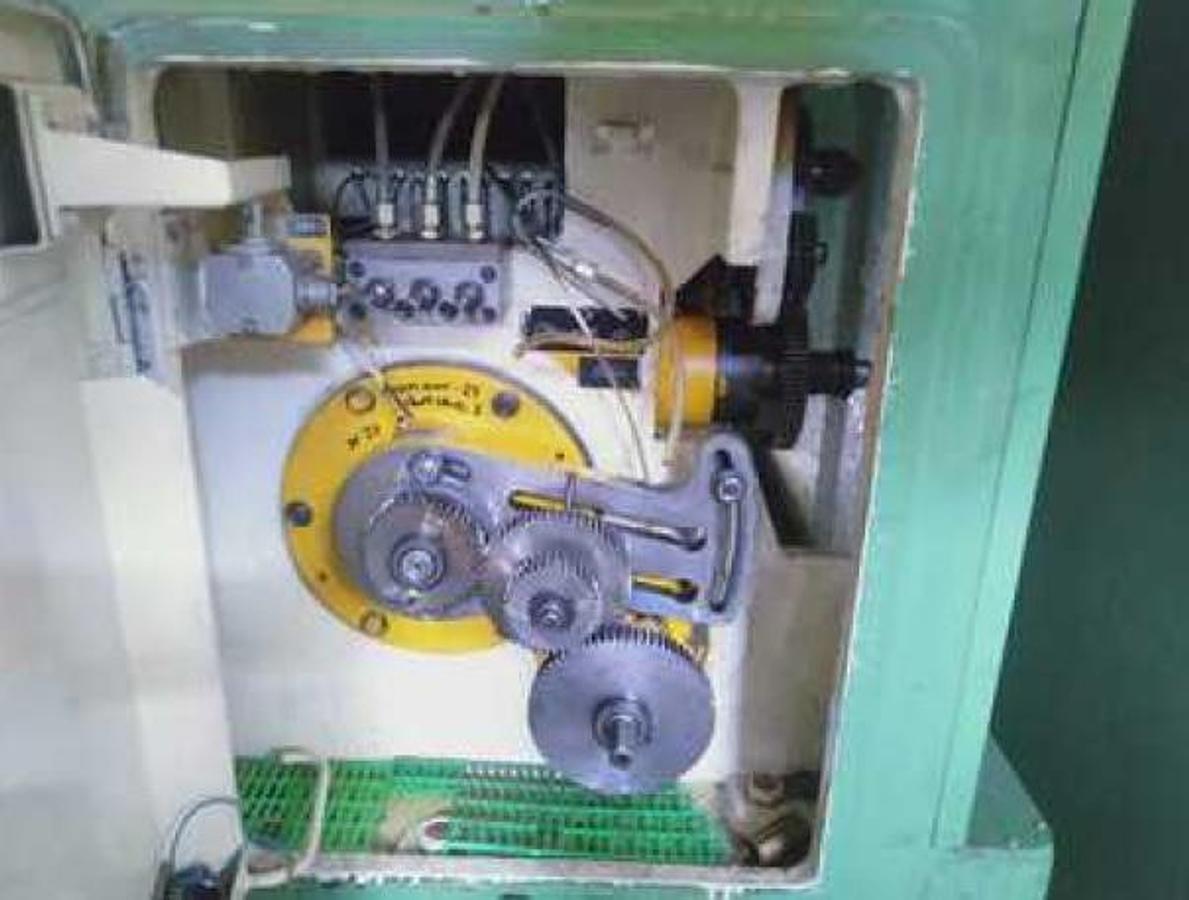

Full change gear set,

One 1.25' hob arbor, outboard bearing, arbor wrench

Two copies of the machine operators manual,

Two copies of all electrical and mechanical prints.
