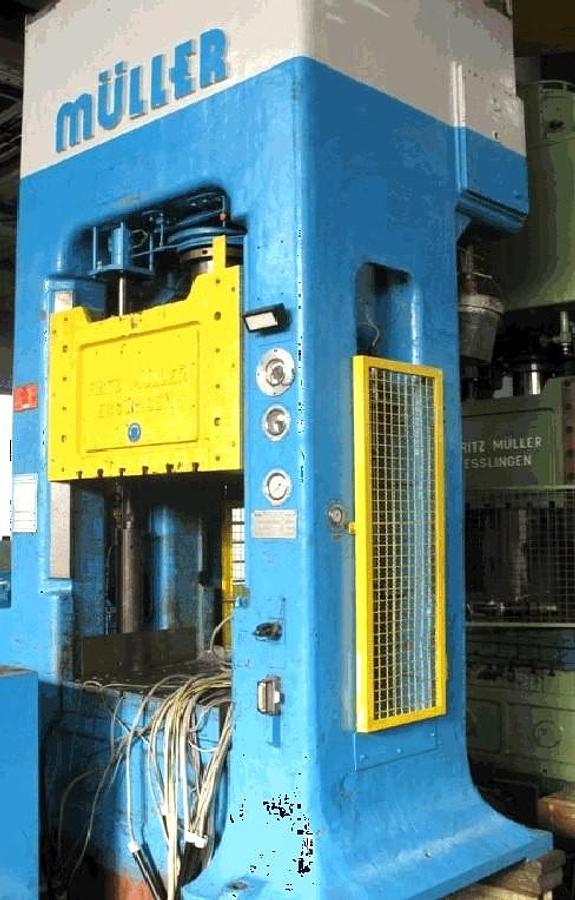

200 tons Press Forging Hydraulic Muller ZE160/200-10.1.7-U

Hydraulic Double-Column Press

Capacity : 200 tons,

Stroke : 600 mm,

Distance between Columns : 1100 mm,

Daylight Table - Ram (Stroke up) : 1100 mm,

Surface of Table : 1000 x 1000 mm,

Press Force of Die Cushion in Table : 63 tons,

Stroke of Die Cushion in Table : 250 mm,

Surface of Die Cushion in Table : 800 x 750 mm,

Table Height above Floor : 800 mm,

Surface of Ram : 1000 x 1000 mm,

Speed Down : 400 mm/s,

Speed Up : 250 mm/s,

Working Speed : 22 - 56 mm/s,

Power Requirement : 45 kW,

Dimensions (W x D x H) : 2400 x 1500 x 5900 mm,

Weight : 24 tons,

Yom : 1966 / 91

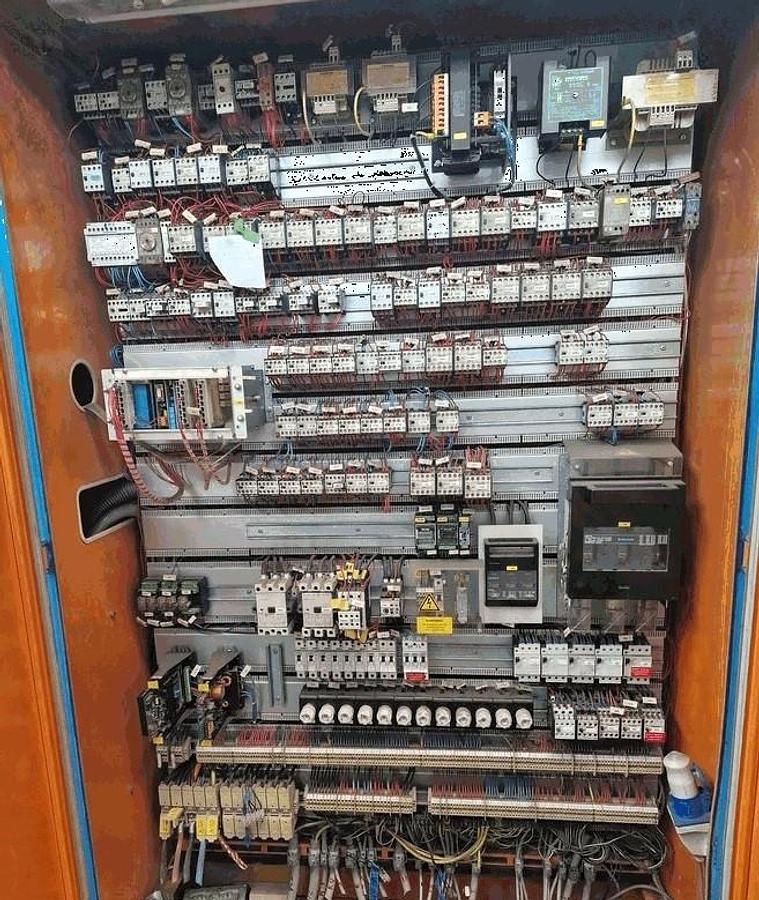

Control konventionell
