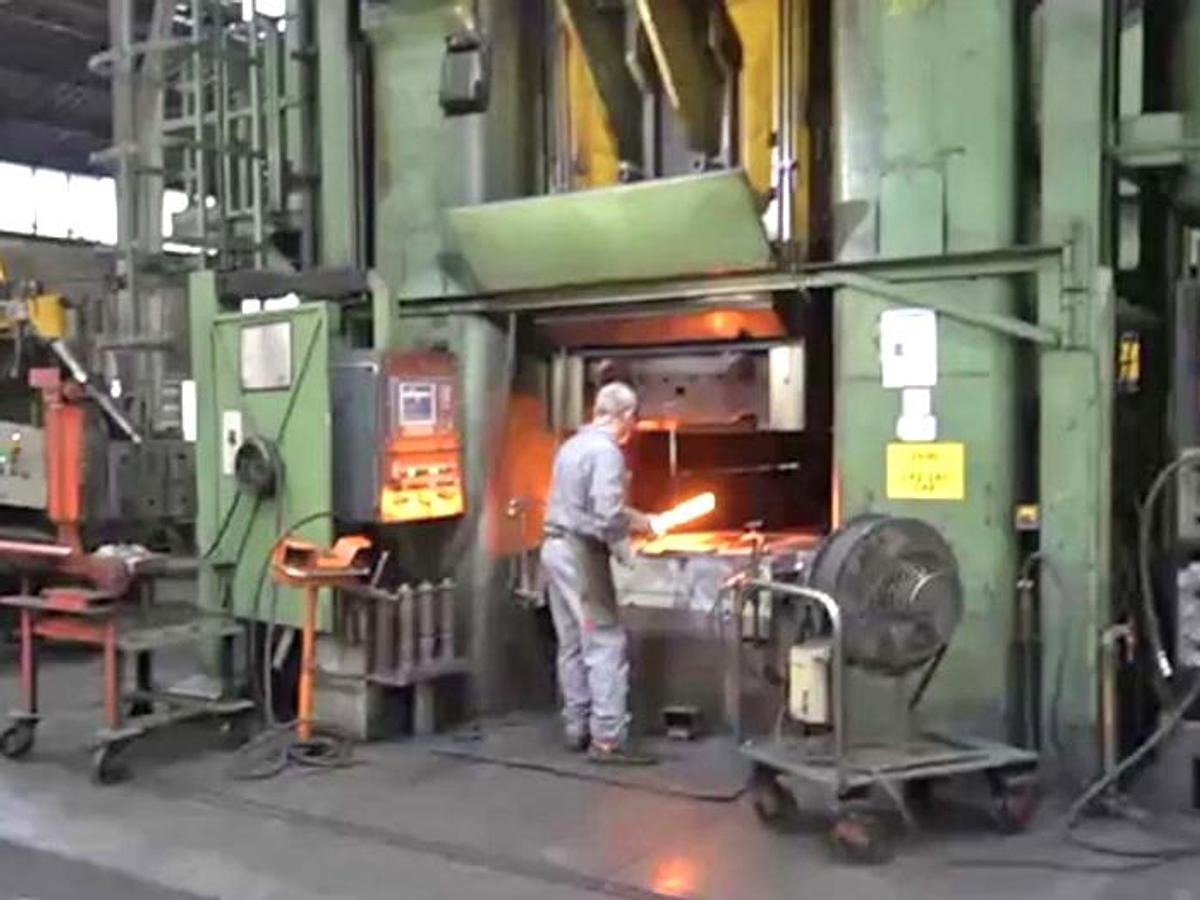

6300 tons Press Friction Screw Weingarten PSH4.560f

Capacity : max. 6300 tons,

Nom force : 5300 tons,

Screw dia : 560 mm,

Stroke : 600 mm,

Stroke per minutes : 35,

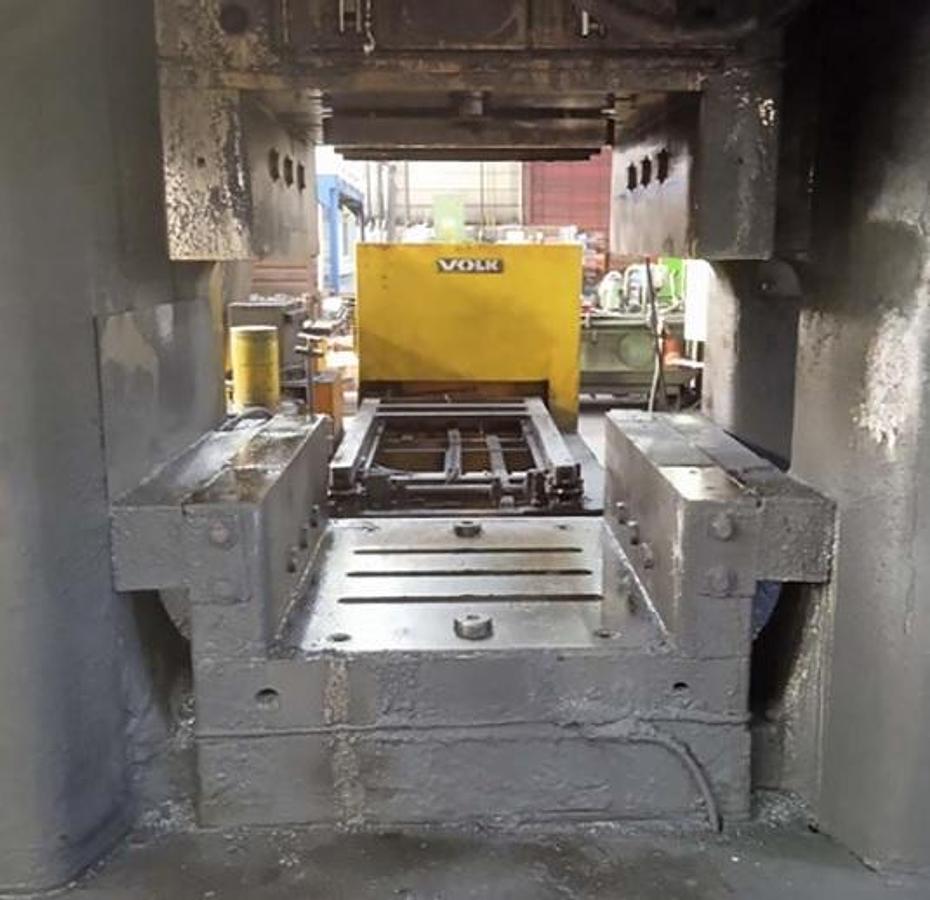

Table L-to-R : 1300 mm,

Table F-to-B : 1400 mm,

Distance between the uprights : 1500 mm,

Shut height : 1250 mm,

Daylight : 1850 mm,

Usable table width : 1600 mm,

Press height from the ground : 7500 mm (24.6 FT.)

Press weight : 230 tons,

Screw Press 63,000 m.kg energy, large table, small footprint, quiet action. up to 7000 tons on 10 mm finish strike.

Press includes major spares and Complete Production

 equipment set-up:

 .  Quick-Die change system

 .  Vibration-isolating Base plates

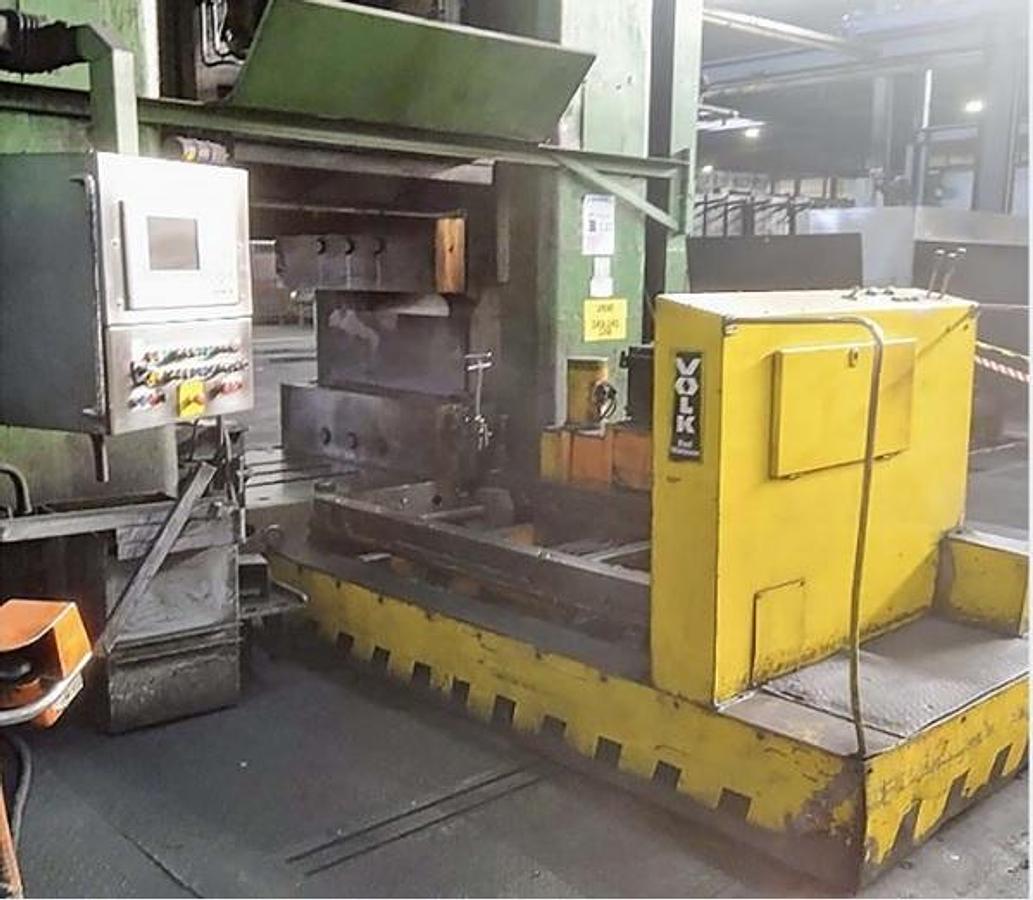

 .  Billet feeding/handling system

 .  Induction Furnace with FIVE ranges

   of billet sizes.
