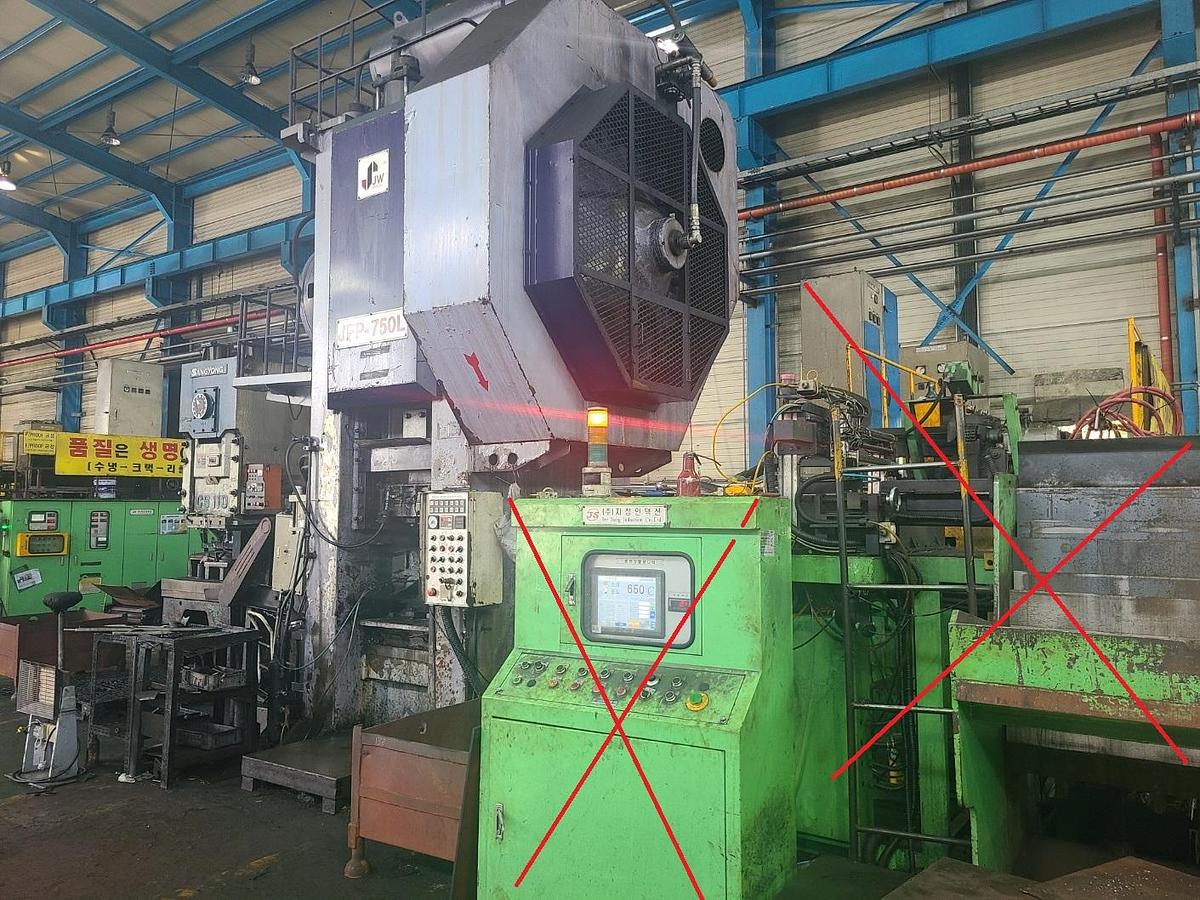

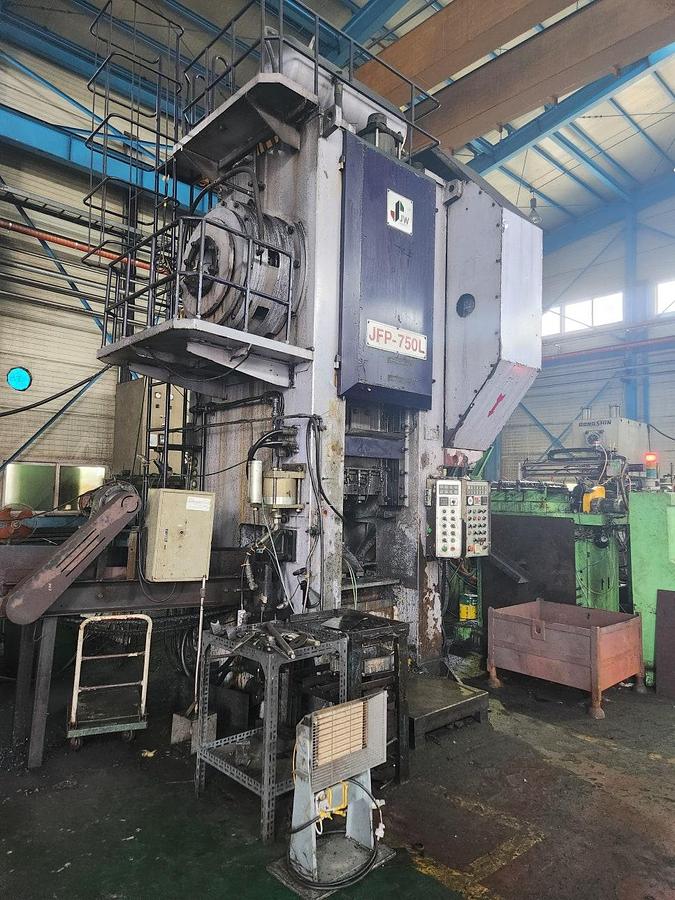

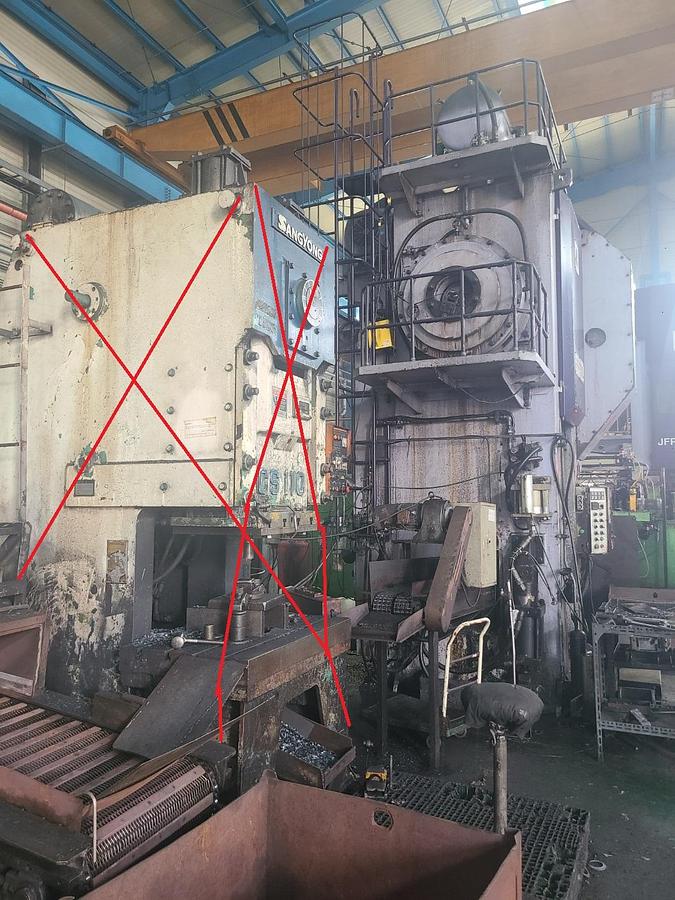

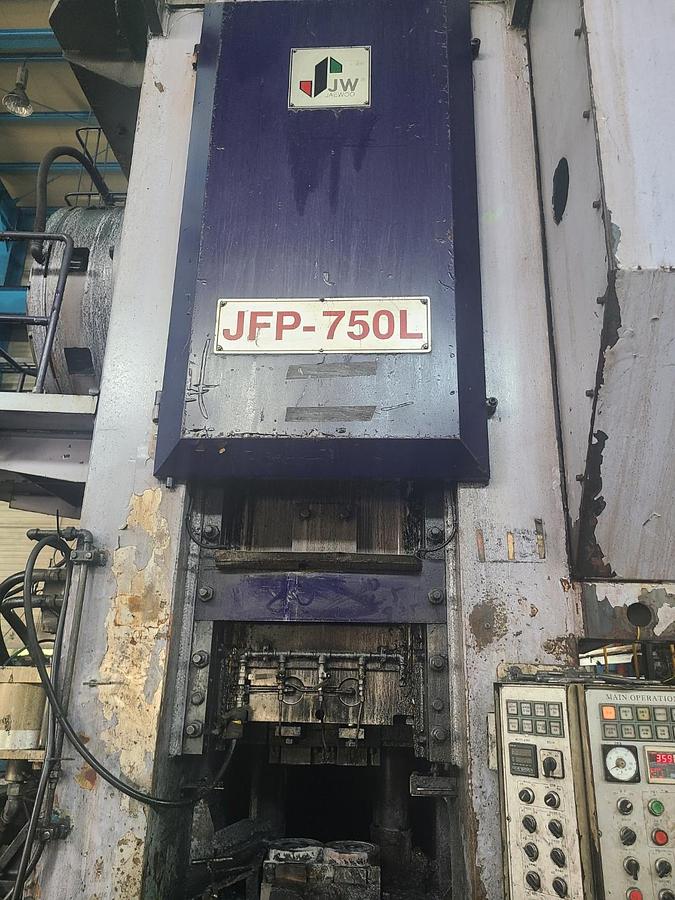

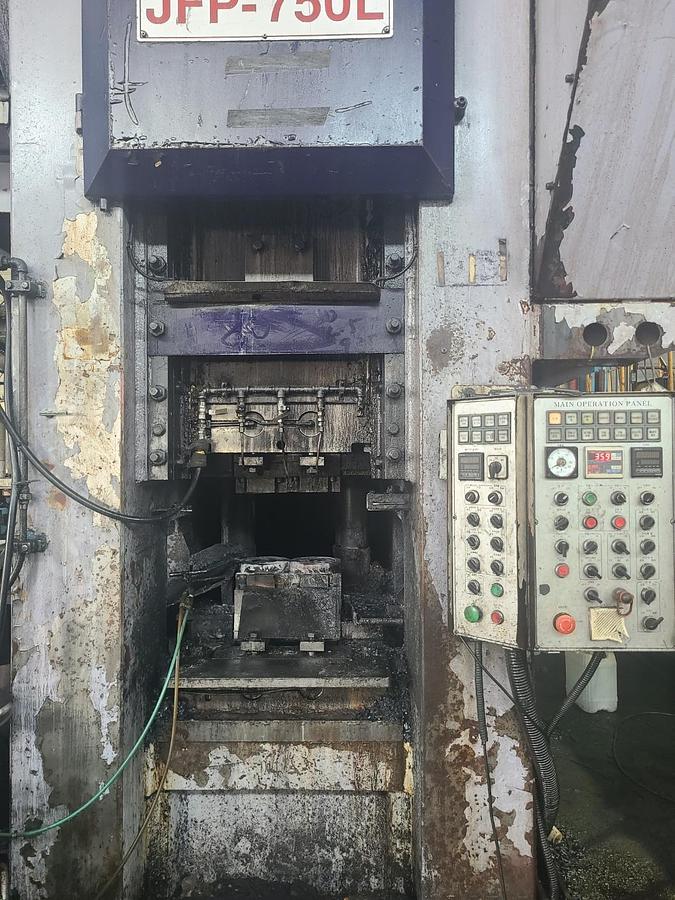

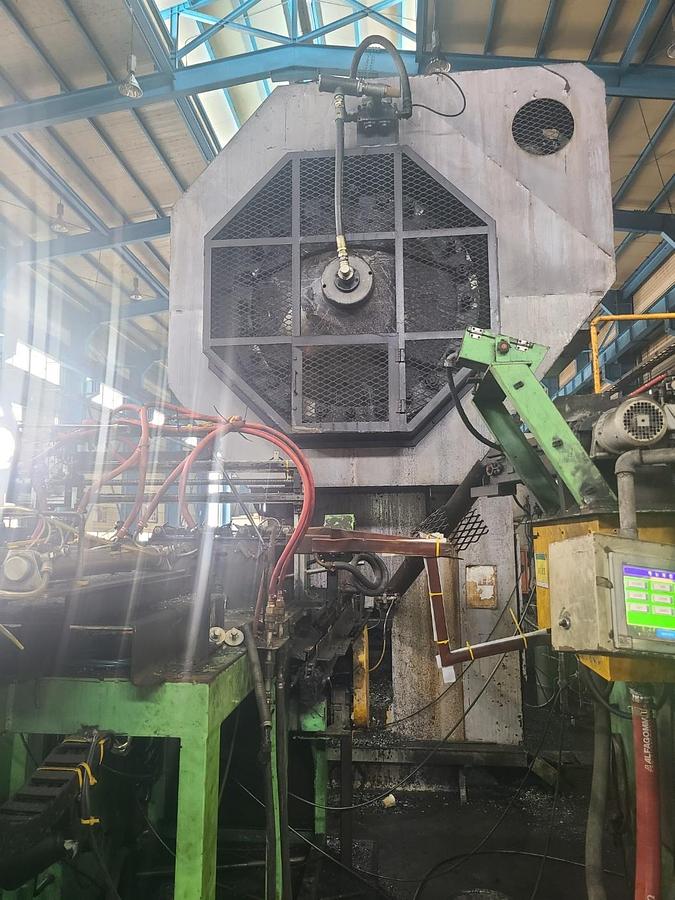

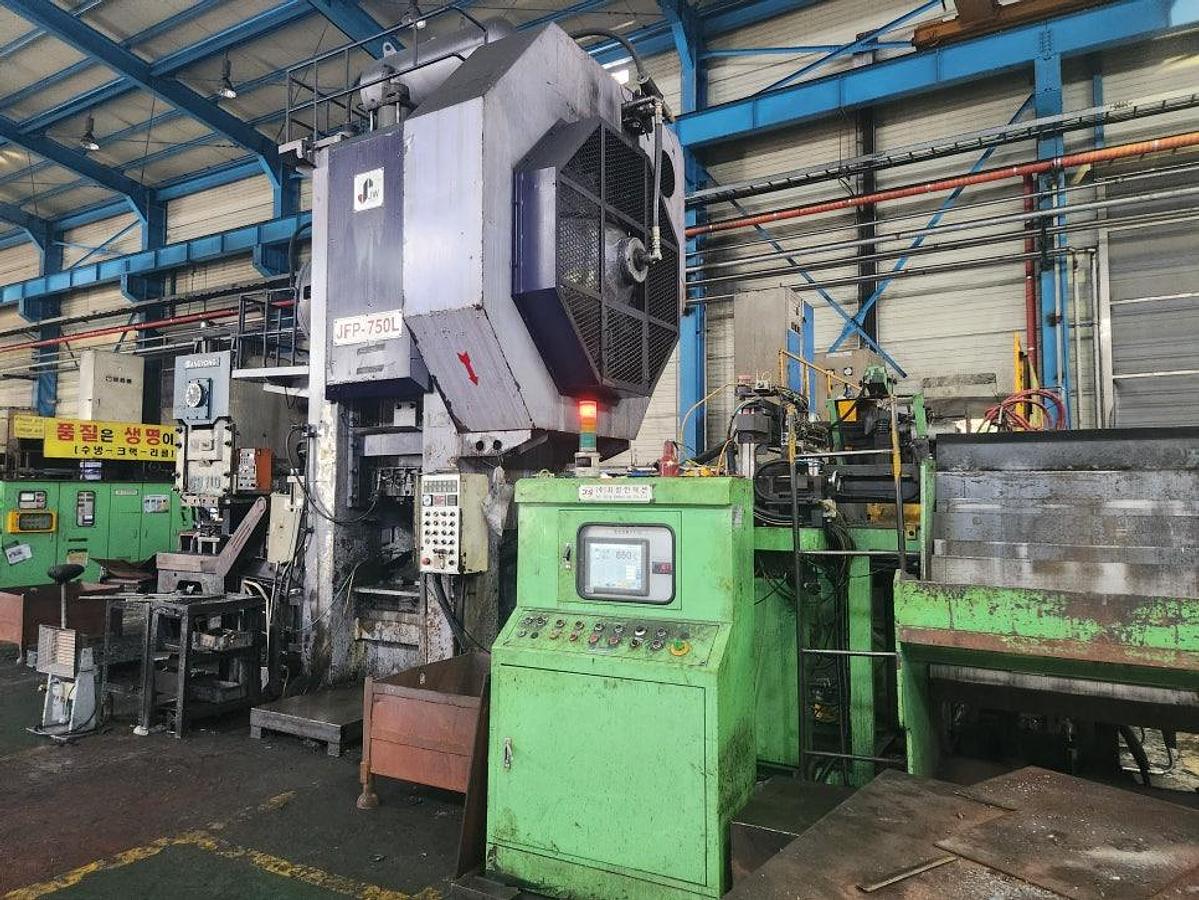

750 tons Press Hot Forging Jaewoo JFP750L
or
Call +919920651051

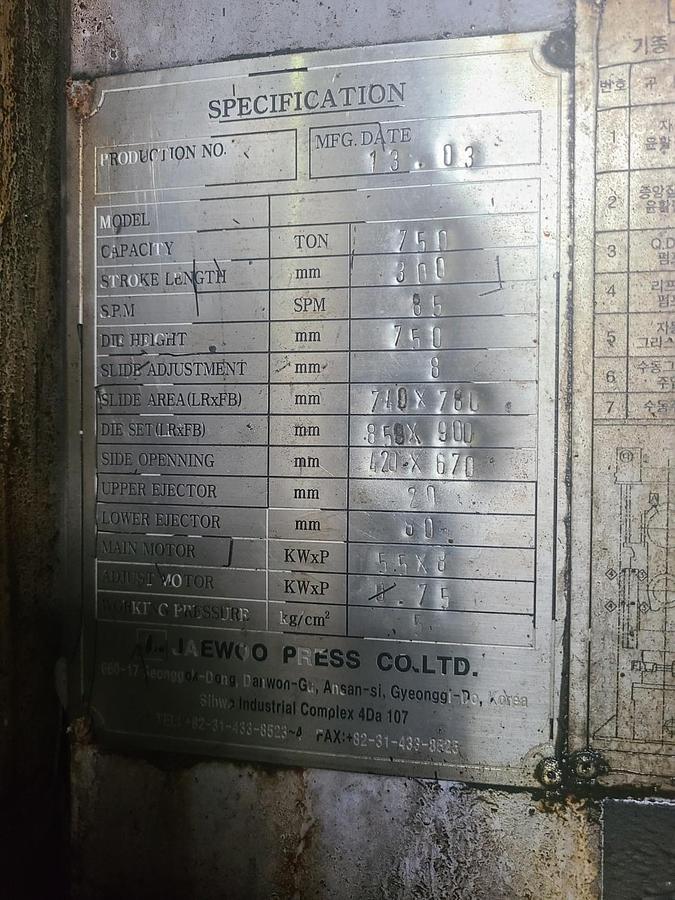

Specifications
| Manufacturer | Jaewoo (J&H) |
| Model | JFP750L |
| Year | 2013 |
| Condition | New |
| Stock Number | MA3053 |
| Item condition | Installed on foundation , not working |
| Capacity tons | 750 |
Description
Capacity : 750 tons,
Stroke : 300 mm,
Stroke per minutes : 85,
Die height : 750 mm,
Slide adjustment : 8 mm,
Side area (LR x FB) : 740 x 780 mm,
Die set (LR x FB) : 850 x 900 mm,
Side opening : 420 x 670 mm,
Upper ejector : 20 mm,
Lower ejector : 80 mm,
Main motor : 5.5 Kw x 8P,
Adjust motor : 0.75 Kw,
Working pressure : 5 kg/cm2.
with the existed accessories.
Technical manuals not available.
Installed on foundation.
