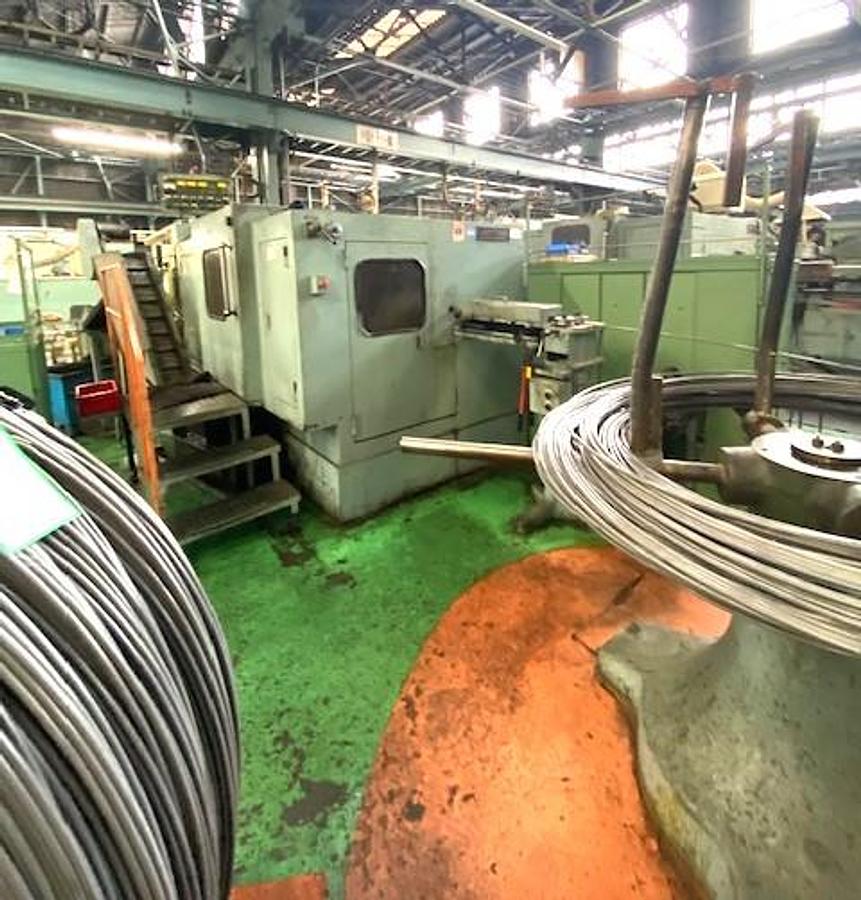

Header Progressive Bolt Makers Asahi Okuma AOT-10B

Design : 2 die, 2 blow

Bolt diameter : 10 mm

Head length : 75 mm

Forging capacity : 80 tons

Cutting wire diameter : 10 φ mm

Cutting length : 10～80 mm

Punch diameter x length : #1 65×130 φ × L (mm)             #2 65×130 φ × L (mm

Die diameter x length : #1 80×125 φ × L (mm)             #2 80×125 φ × L (mm

PKO amount : 20 mm (Max)

KO amount : 75 mm (Max)

Ram stroke : 140 mm

Production volume : 160 pcs/min

Motor output : 18.5 Kw

Machine dimensions : 2,300 × 4,600 mm

Machine weight : 9.5 tons.
