Ring Rolling Line Wuxi D51Y-250E

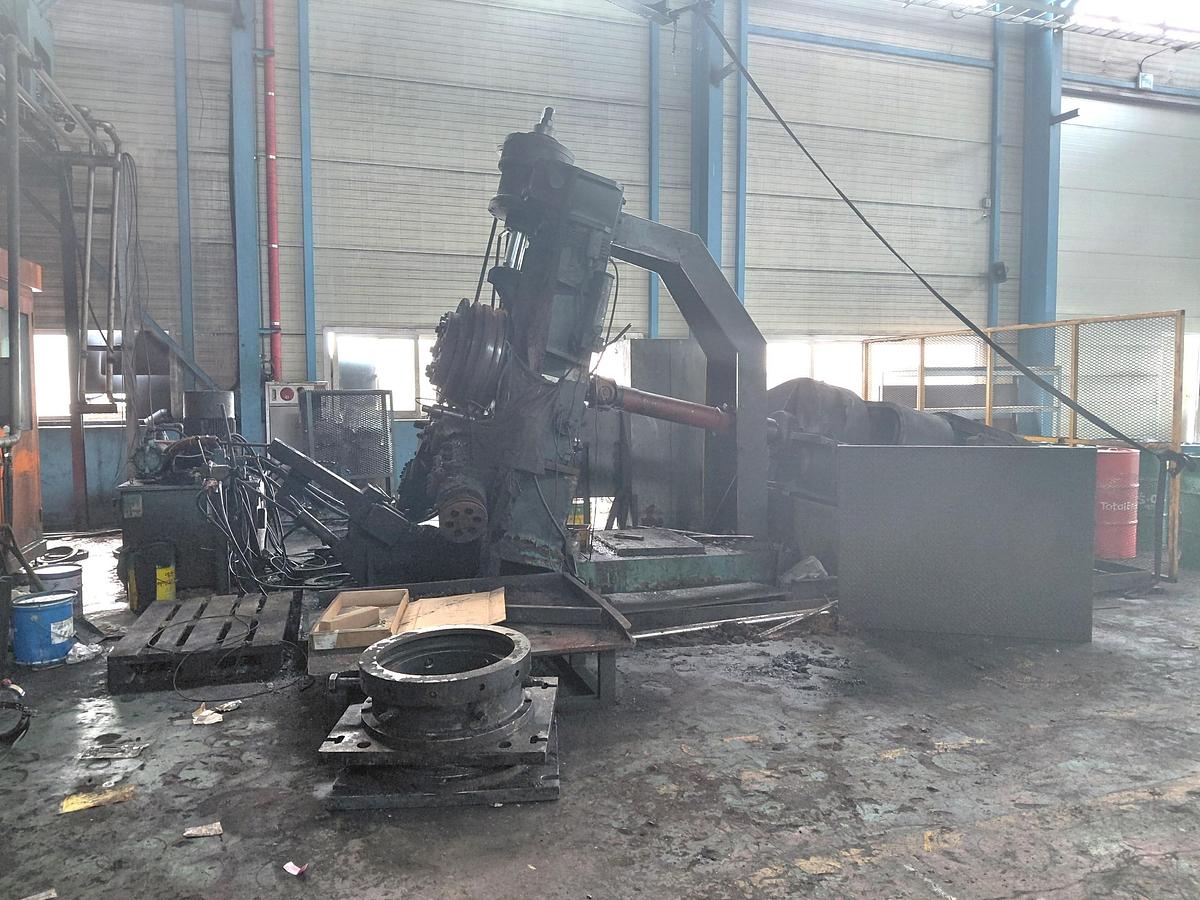

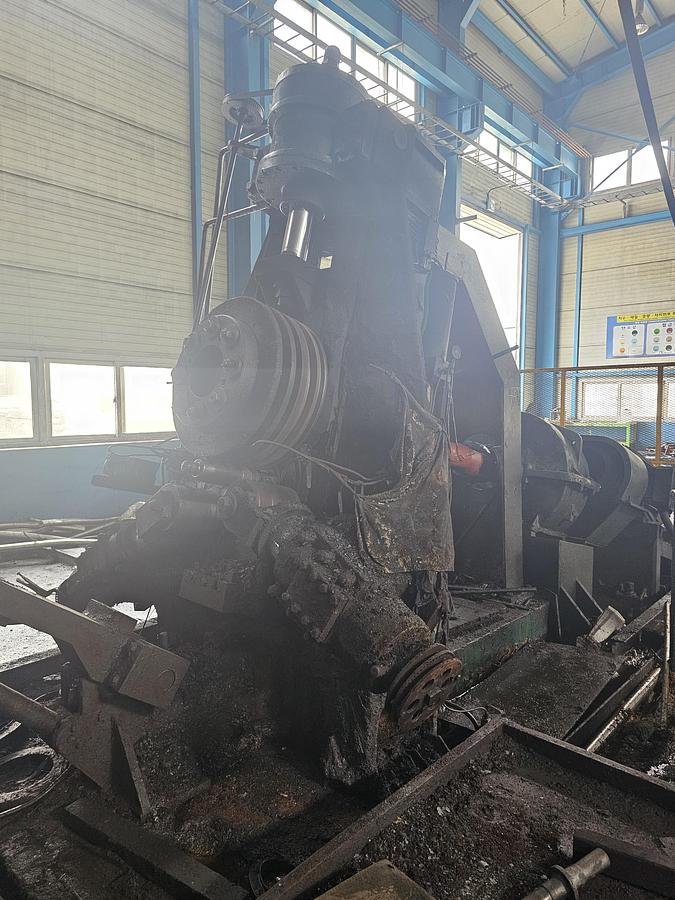

1) Wuxi OD 300A Ring Rolling Mill Model D51Y-250E, New 2013

Nominal size of ring part :

Outer diameter : 300 mm,

Width : 120 mm,

Rolling pressure : 19.6 tons,

Slide travel : 110 mm,

Maximum production rate : 240 PCS/Hour,

Speed of rolling line 1.63 M/S,

Main shaft revolution : 62.3 RPM,

Outer diameter of rolling wheel : 500-520 mm,

Nominal pressure of compressed air : 5 Kg/mm2,

Central height of supporting roller : 875 mm,

Minimum distance of center of rolling wheel to rolling roller : 265 mm,

Main Motor :

-Model : Y250M-4-B3

-Power : 55+11 W,

-Revolution : 1480 RPM,

Dimensions : (L x W x H) : 3440 x 2000 x 2700 mm,

Weight : 7.2 tons.

Manual available.

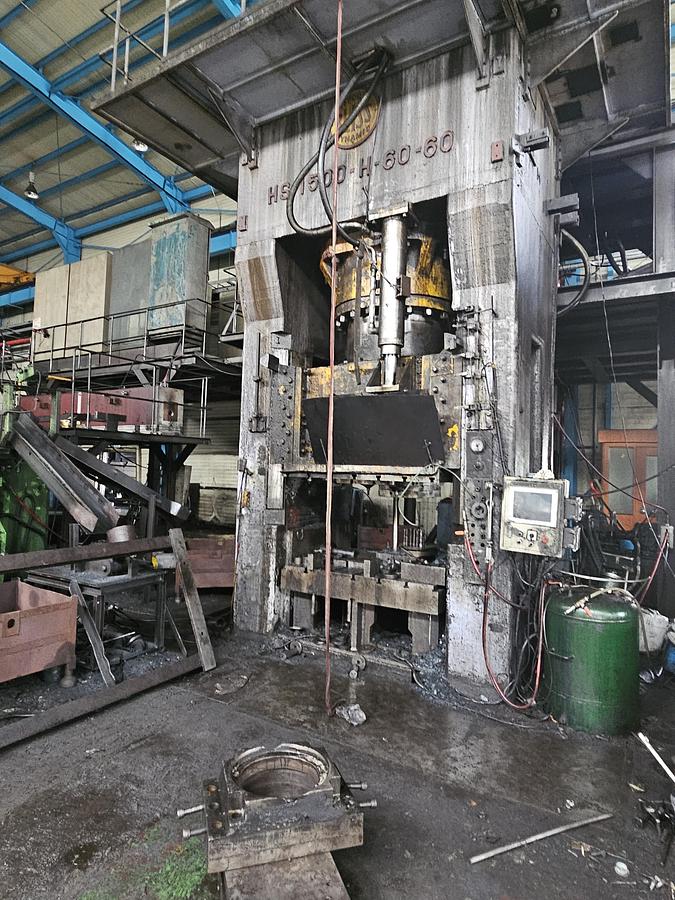

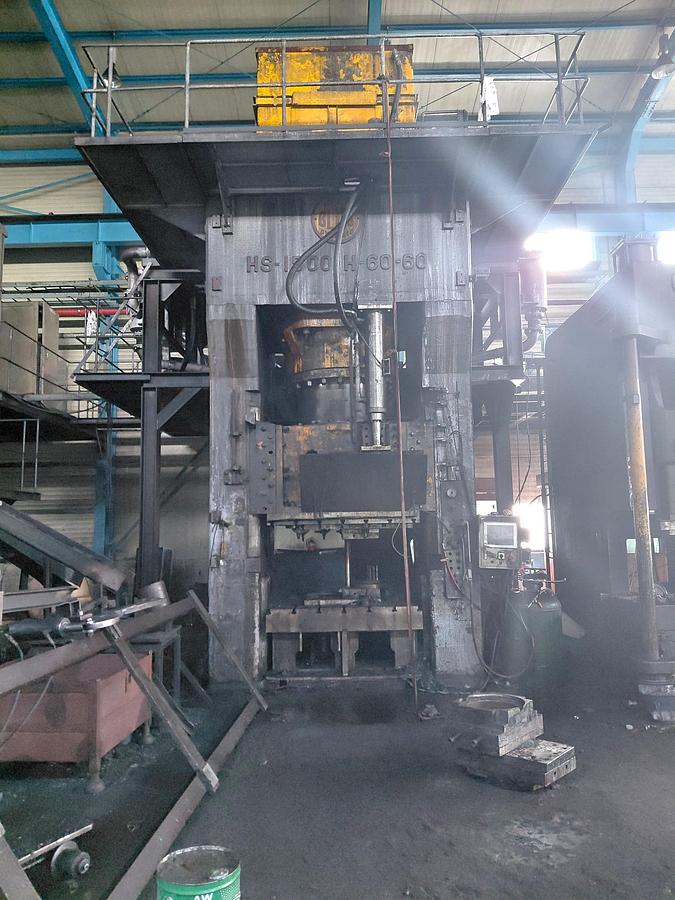

2) BLISS 1500 tons Hydraulic Forging Press

Make : Bliss

Model : HS-1500-H-60-60

Capacity : 1500 tons,

Ram stroke : 700 mm,

Daylight : 1700 mm,

Bed Area L-R : 1540 mm,

Bed Area F-B : 1540 mm,

Table length : 1540 mm,

Table width : 1540 mm,

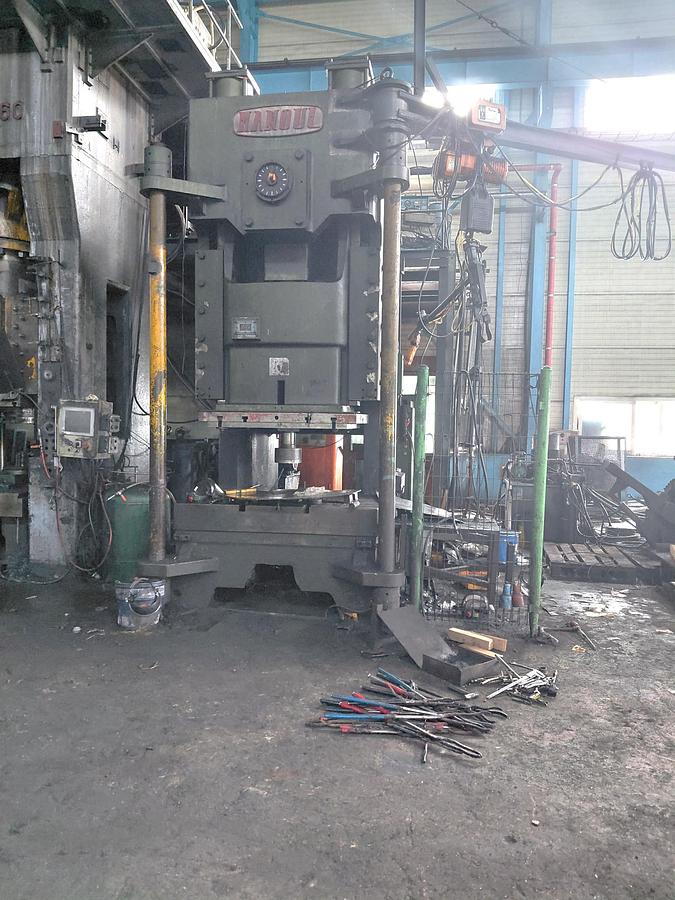

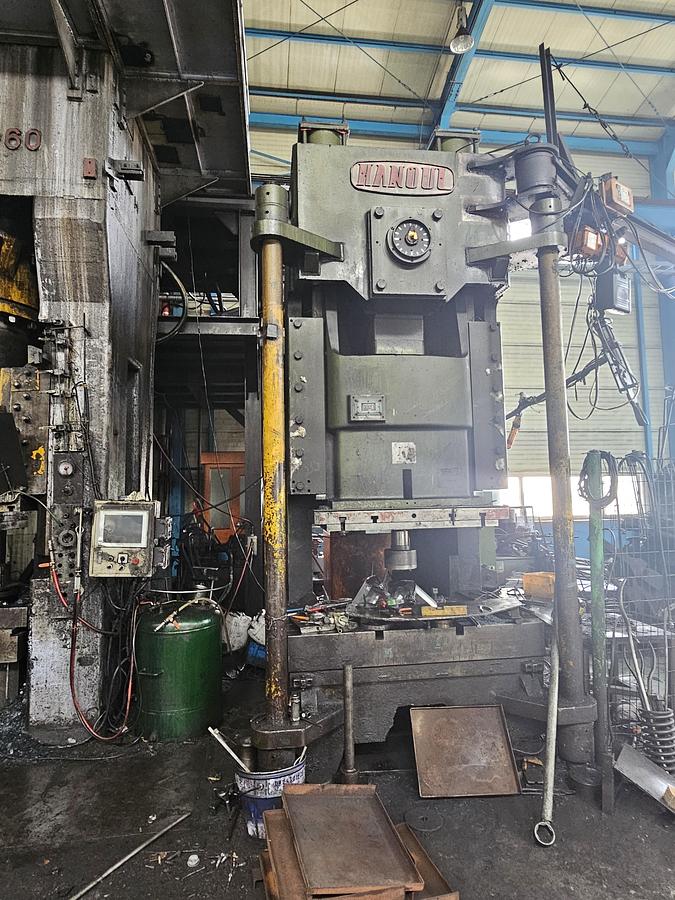

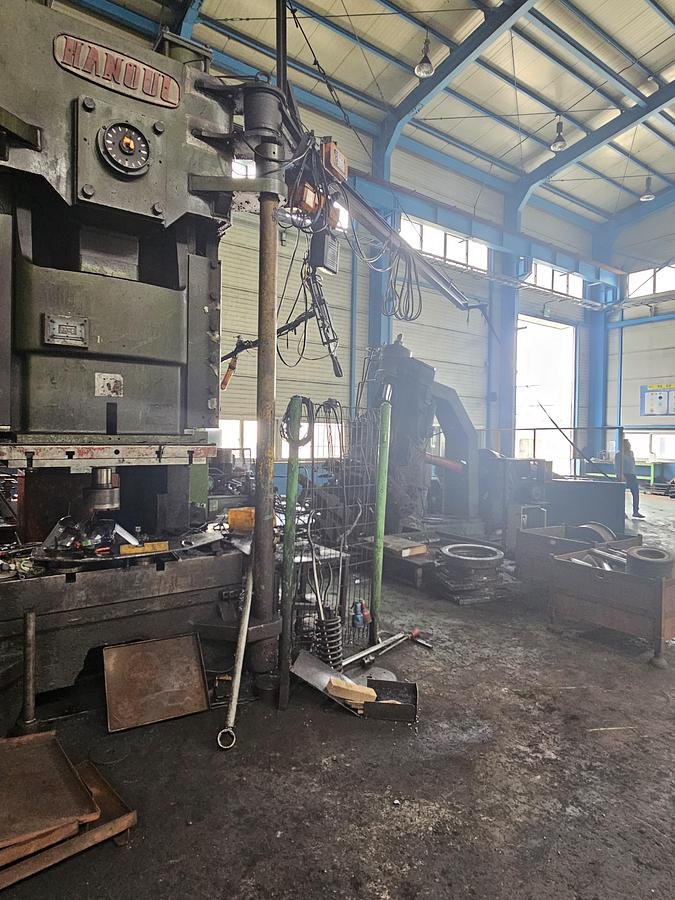

3) Hanoul - Korea 250 tons Trimming Press, new 1997

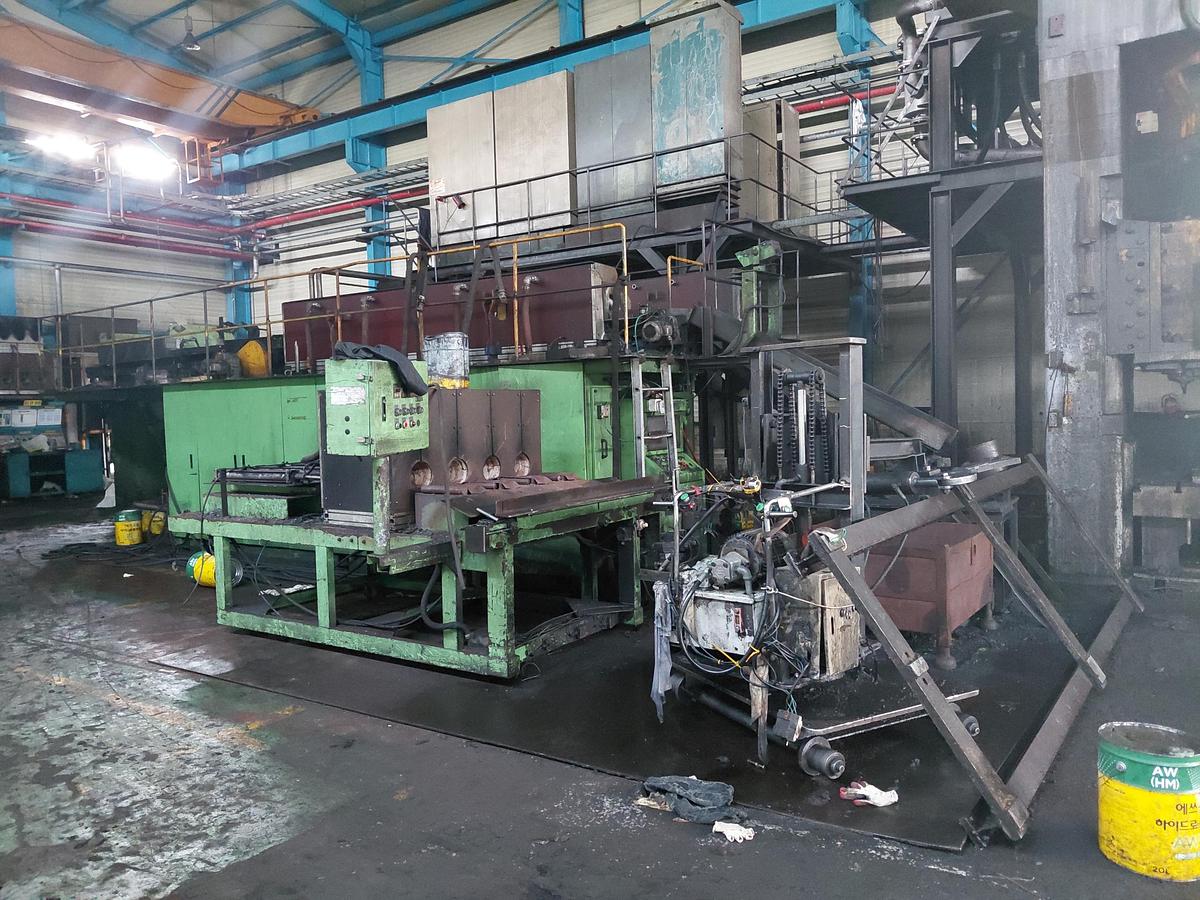

4) JEESUNG - Korea 1200 KW Induction Heater, new 2014
