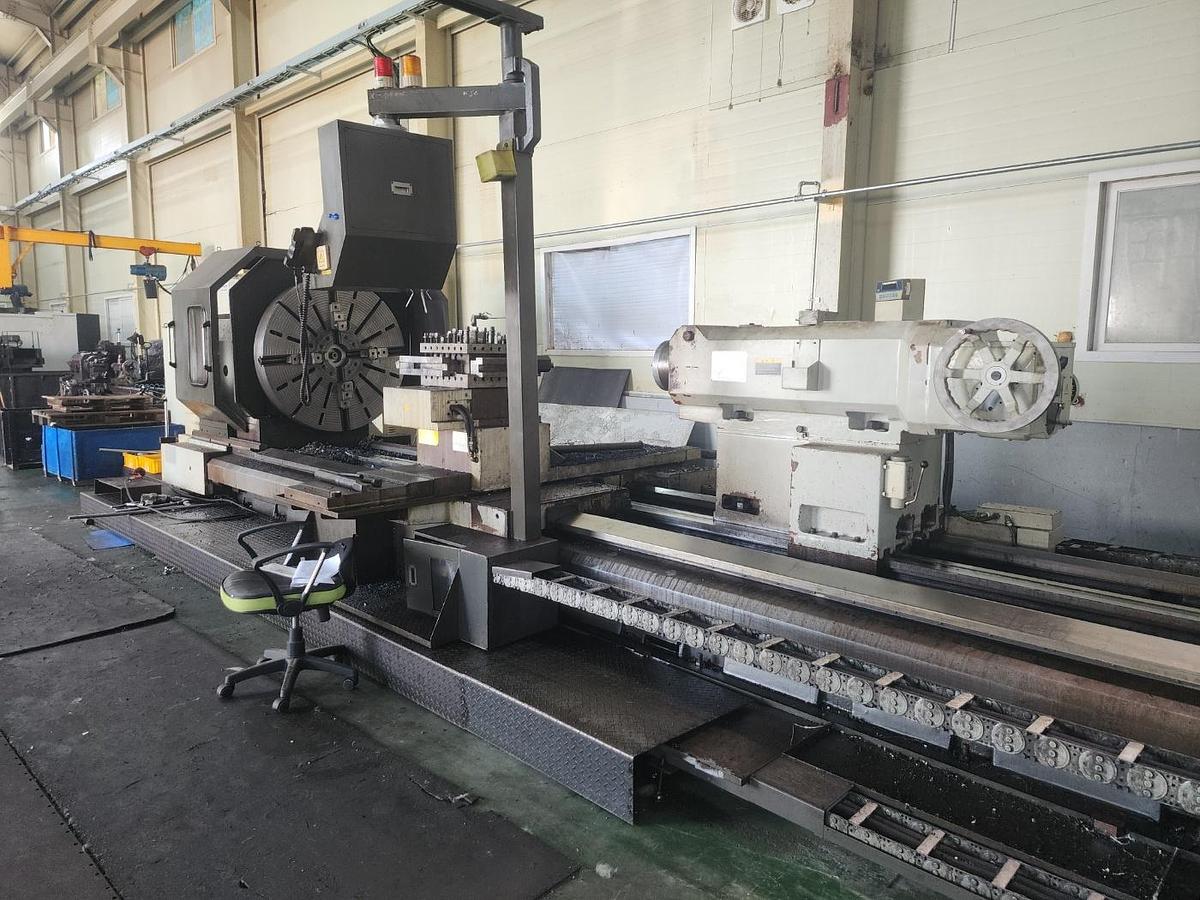

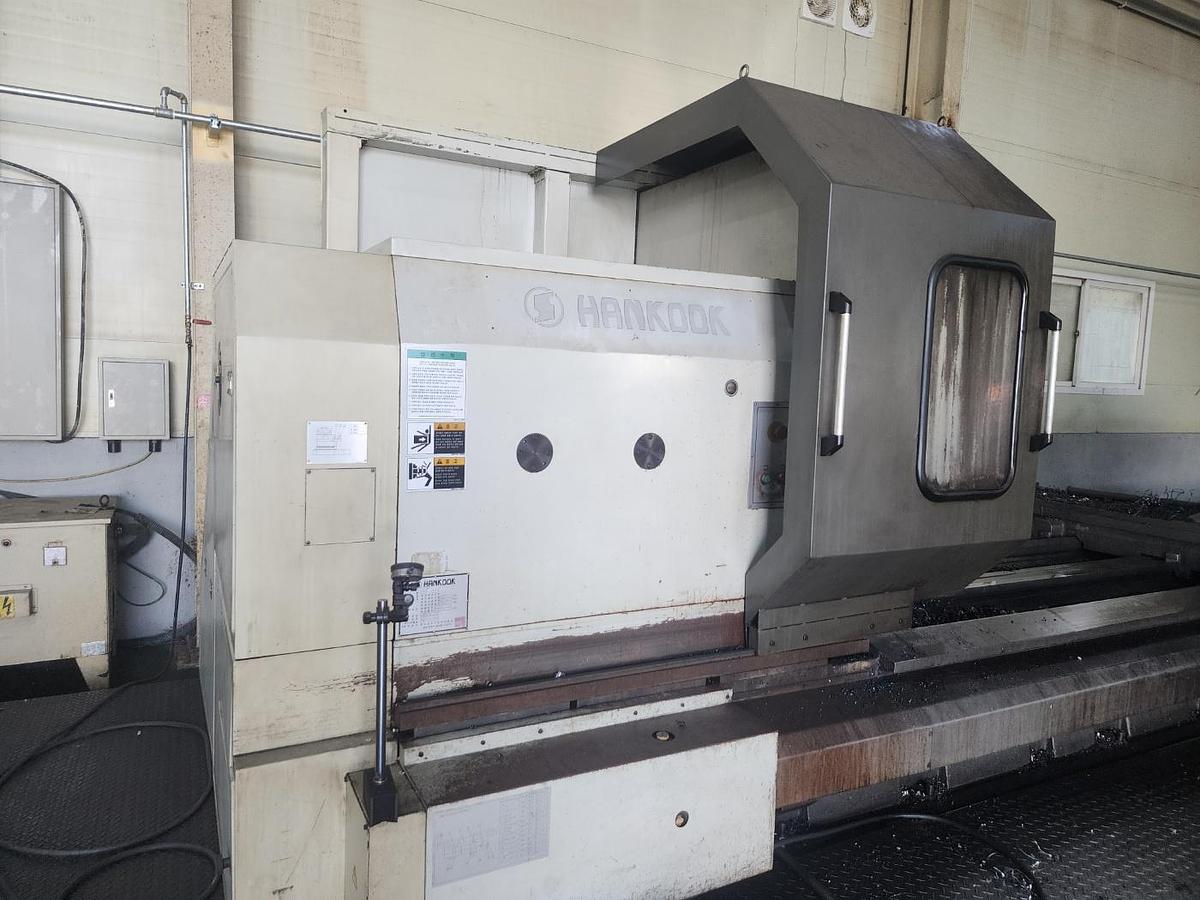

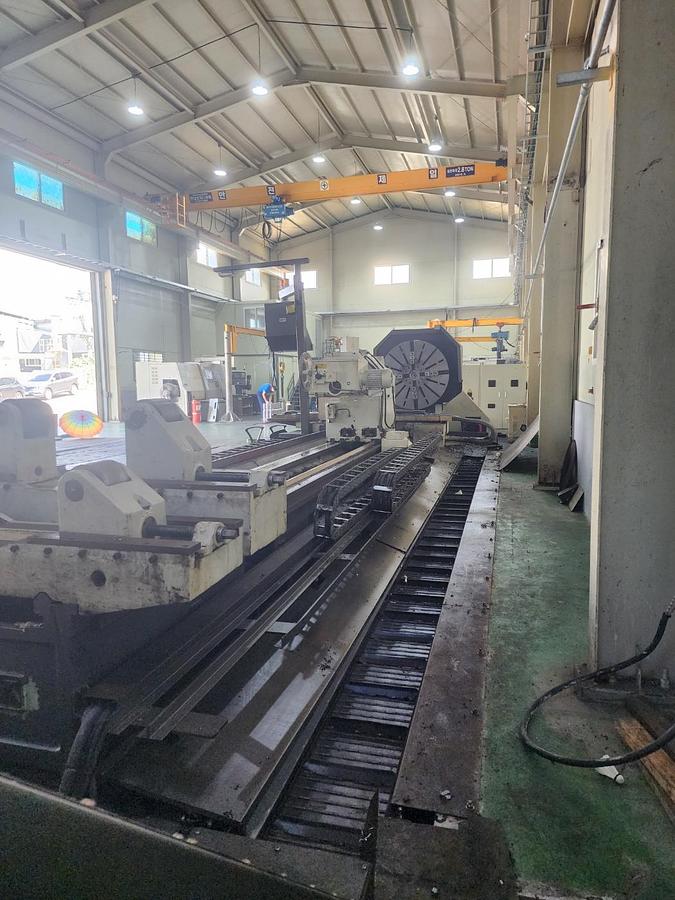

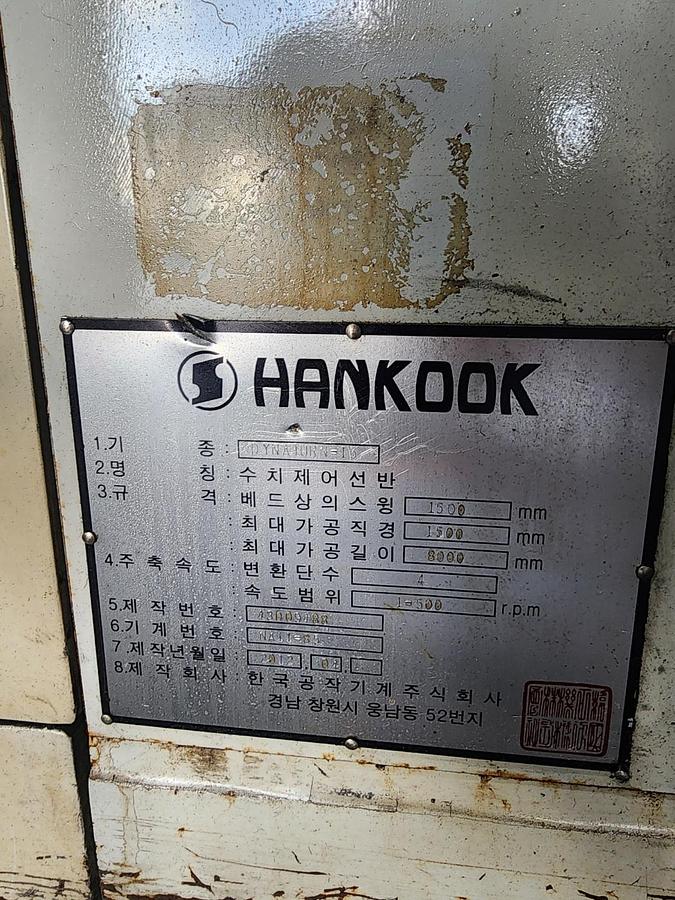

Lathe CNC Hankook Dynarturn-15

CNC Roll Lathe

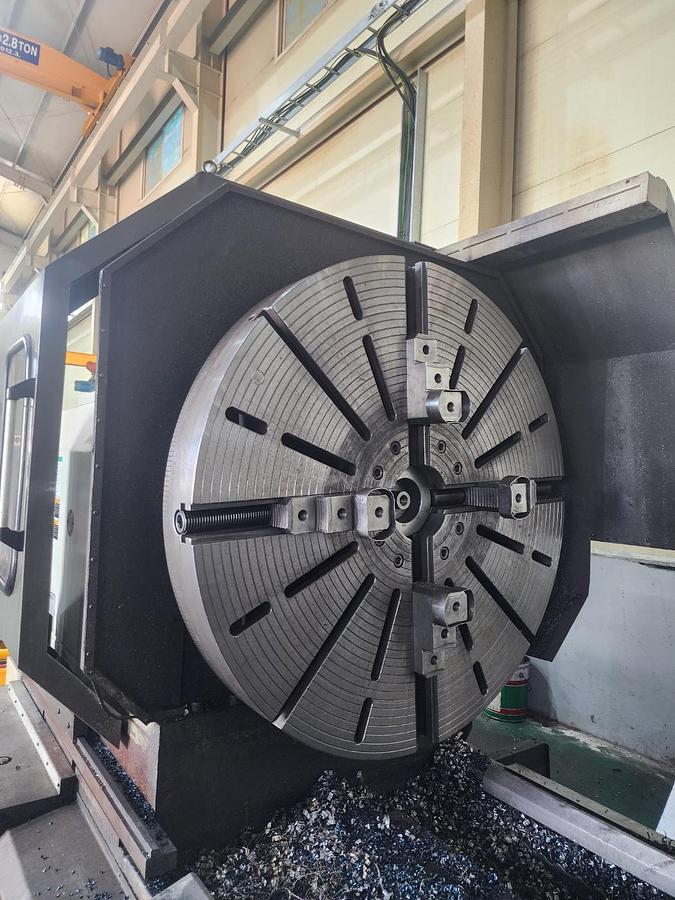

Chuck Diameter : 1250 mm,

Swing over Bed : 1500 mm,

Swing of Workpiece : 1120 mm,

Distance Between centres : 8000 mm,

Max weight Capacity with Centers only, without rest : 12 tons,

Spindle nose : A2-15 ASA,

Spindle speed : 1-500 rpm,

Spindle speed range : Auto 4 ranges,

Spindle bore diameter : 105 mm,

Spindle front bearing diameter : 200 mm,

Max. Spindle torque : 1500 kg,

Max. X-axis travel : 800 mm,

Max. Z-axis travel : Center distance +120 mm,

X-axis rapid traverse : 4 m/min,

Z-axis rapid traverse : 6 m/min,

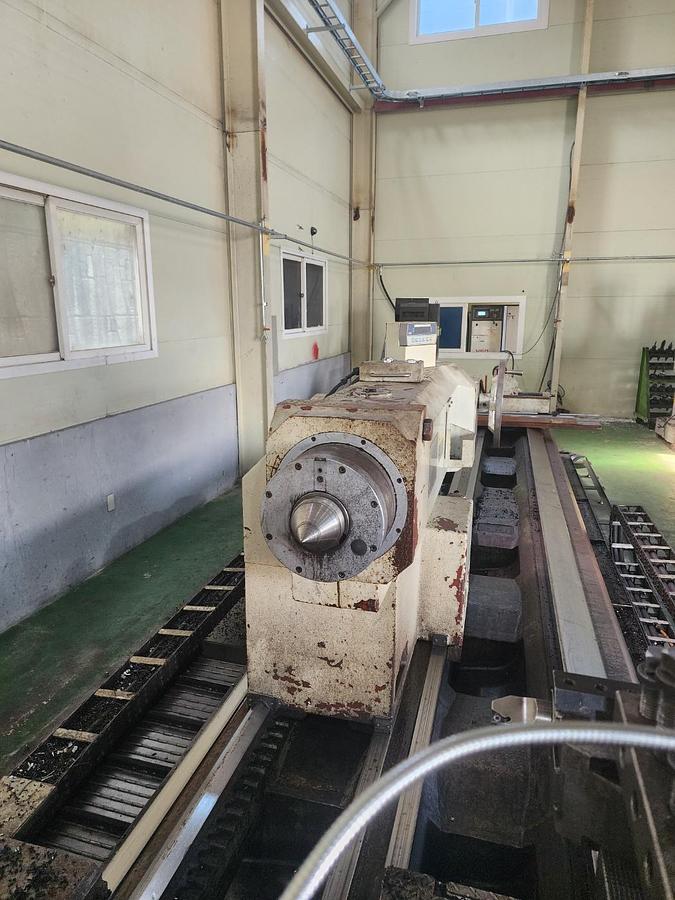

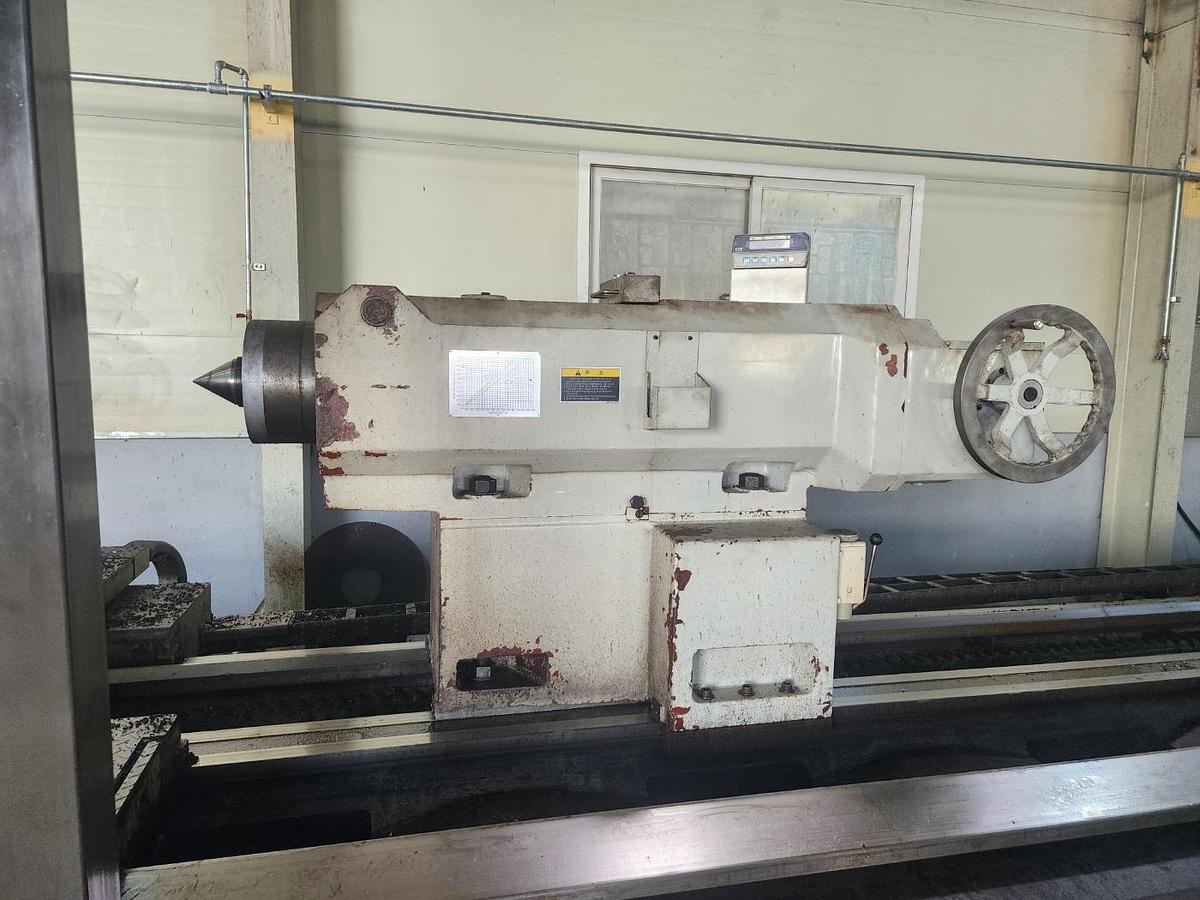

Tailstock quill dia. : 270 mm,

Tailstock quill traverse : 300 mm,

Tailstock spindle taper : 1/10 metric taper #80,

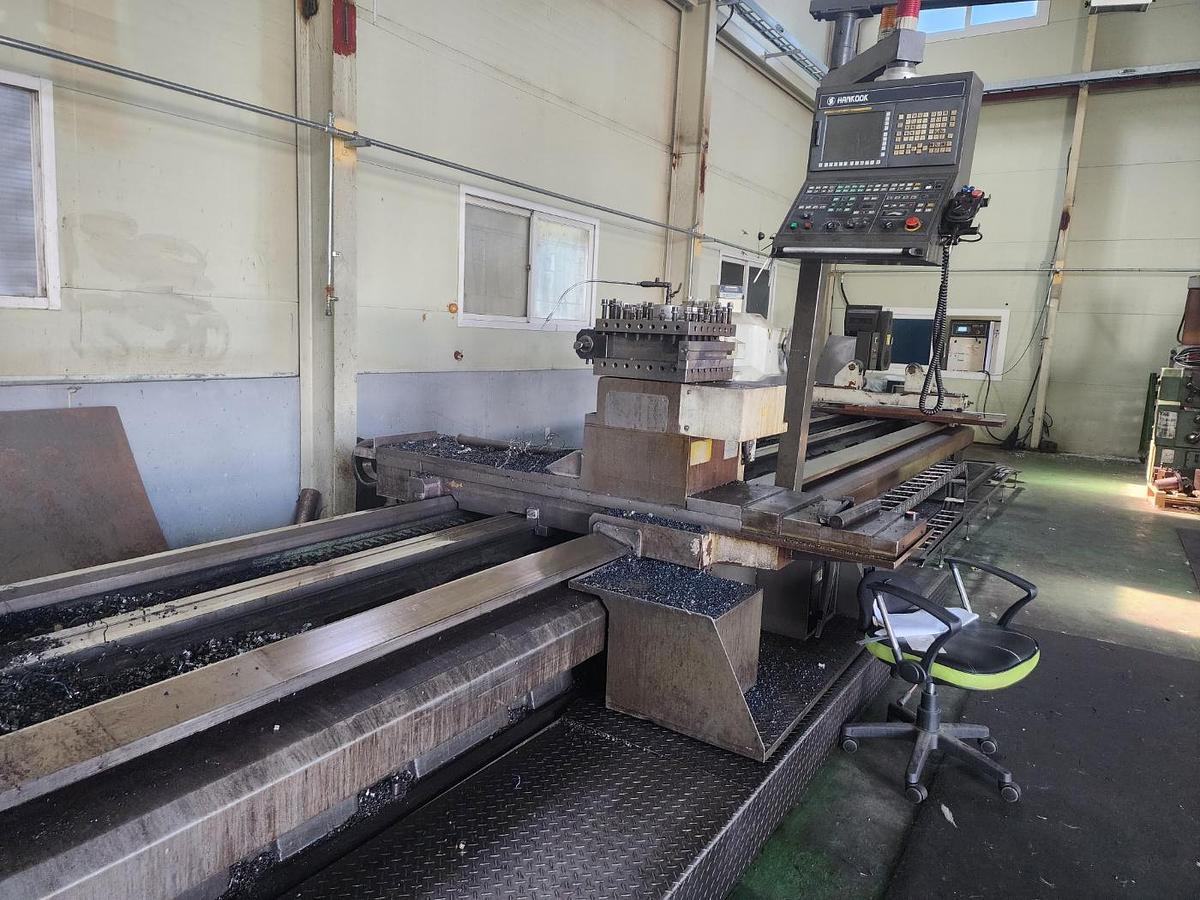

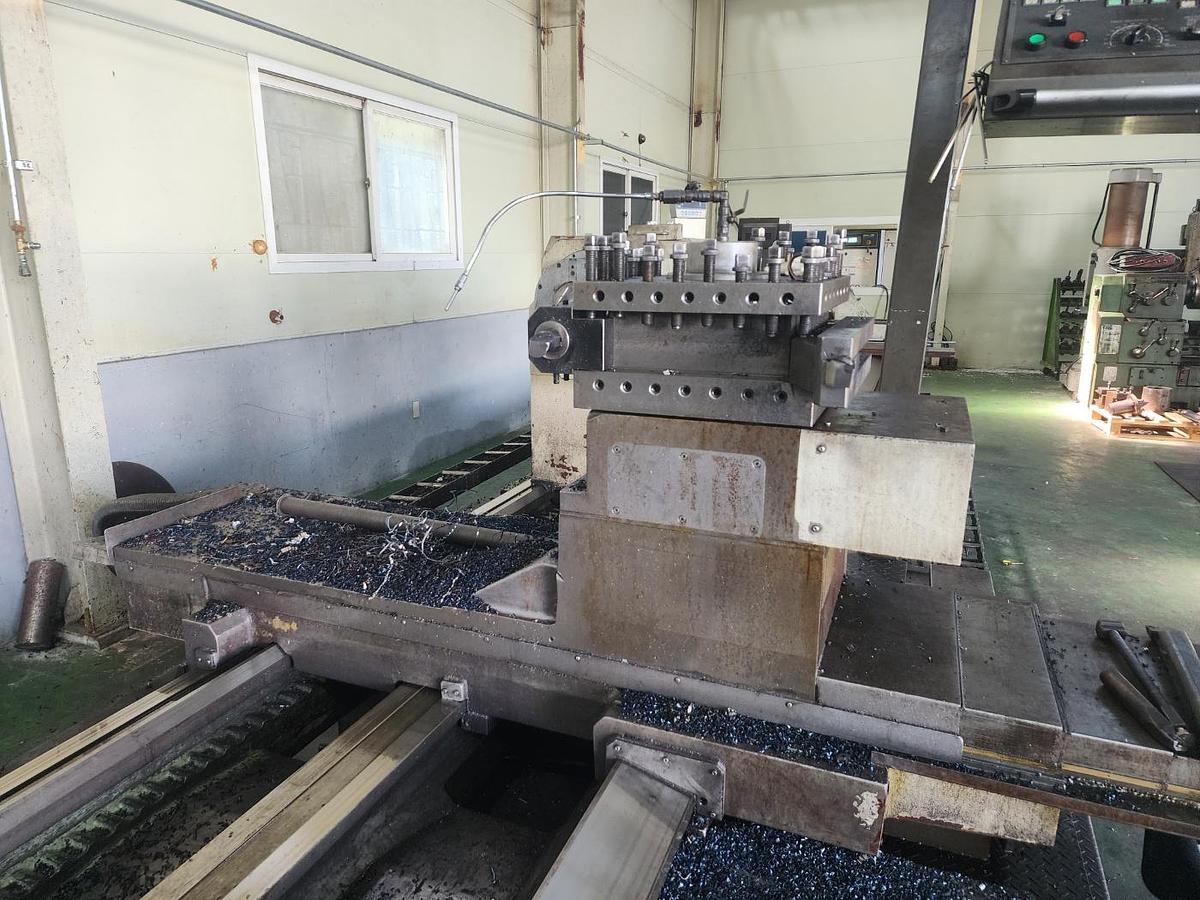

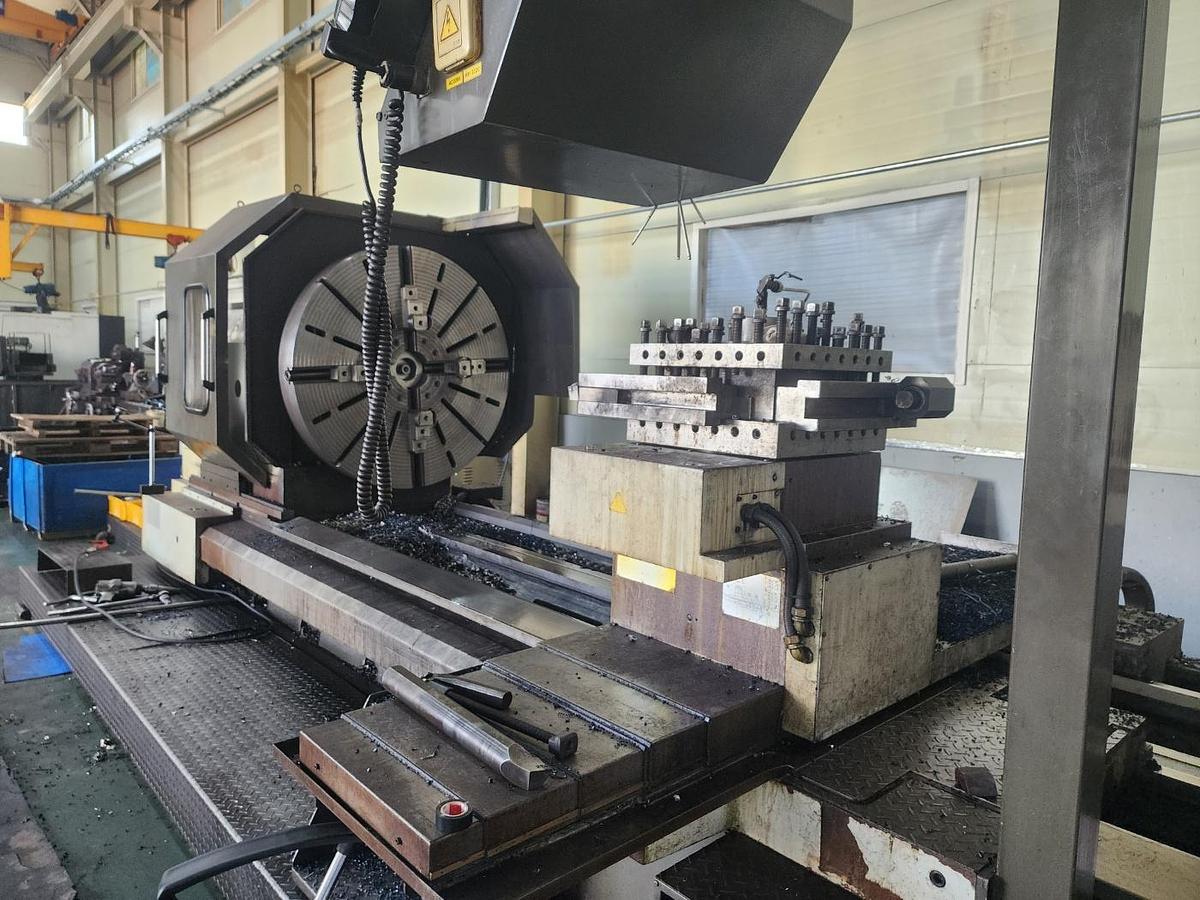

Standard turret : Automatic V-8 Turret (H-4 Turret)

Cutting tool size : 32 mm,

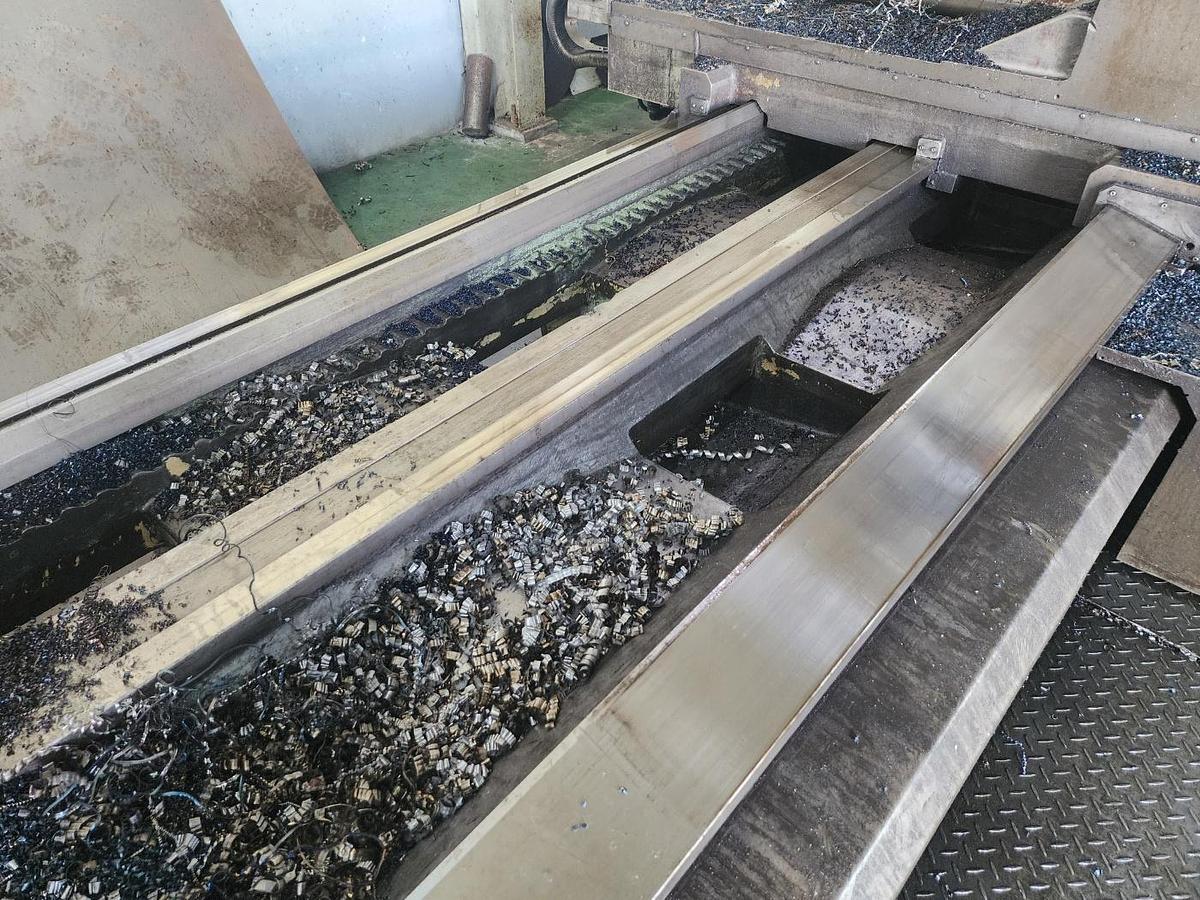

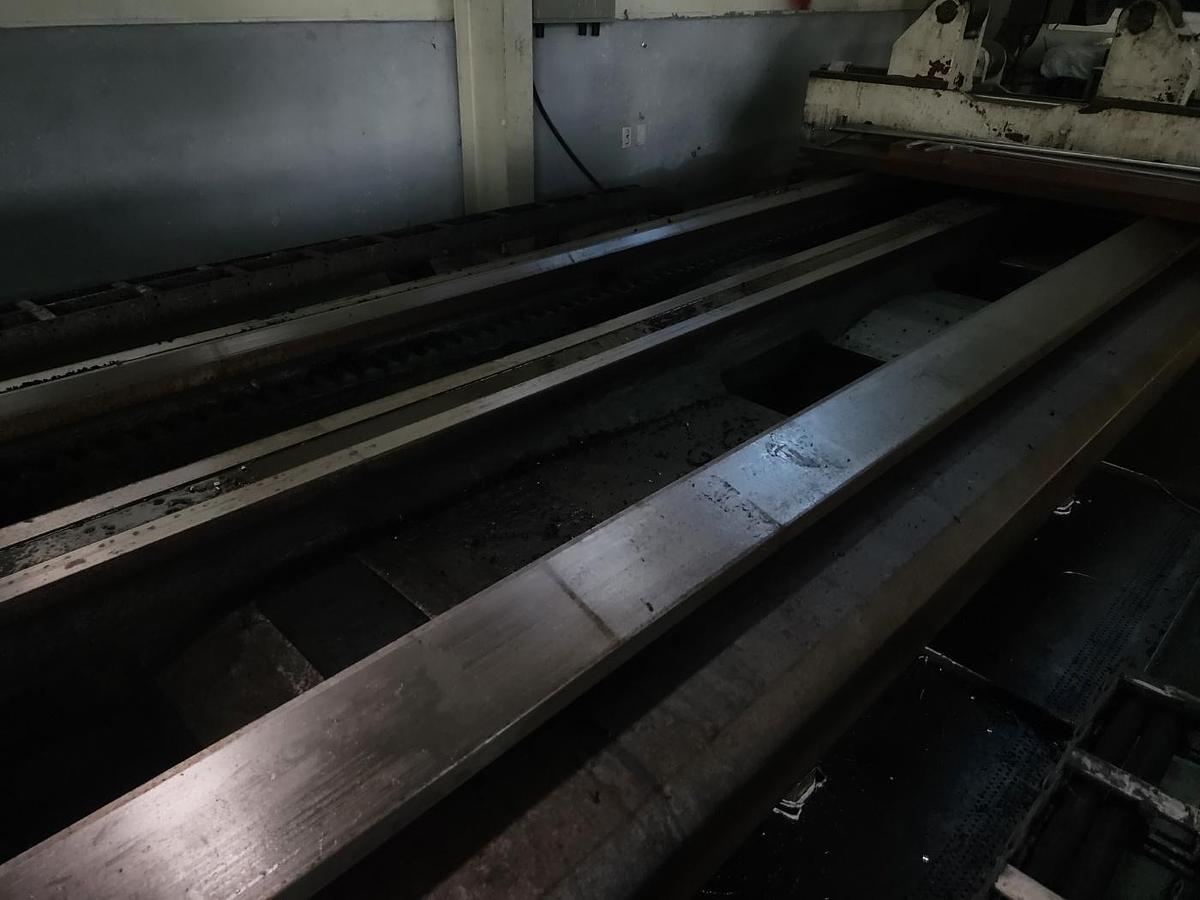

Bed type : 3-slide, 4-bearing way,

Bed width : 1150 mm,

Spindle motor (30min/cont.) : AC 45/37(60/50) kW,

X/Z-axis AC servo motor : AC 3(4)/7(9.3) kW,

Hydraulic pump motor : AC 3.7(5) kW,

Tailstock body rapid feed motor : AC 1.5 kW,

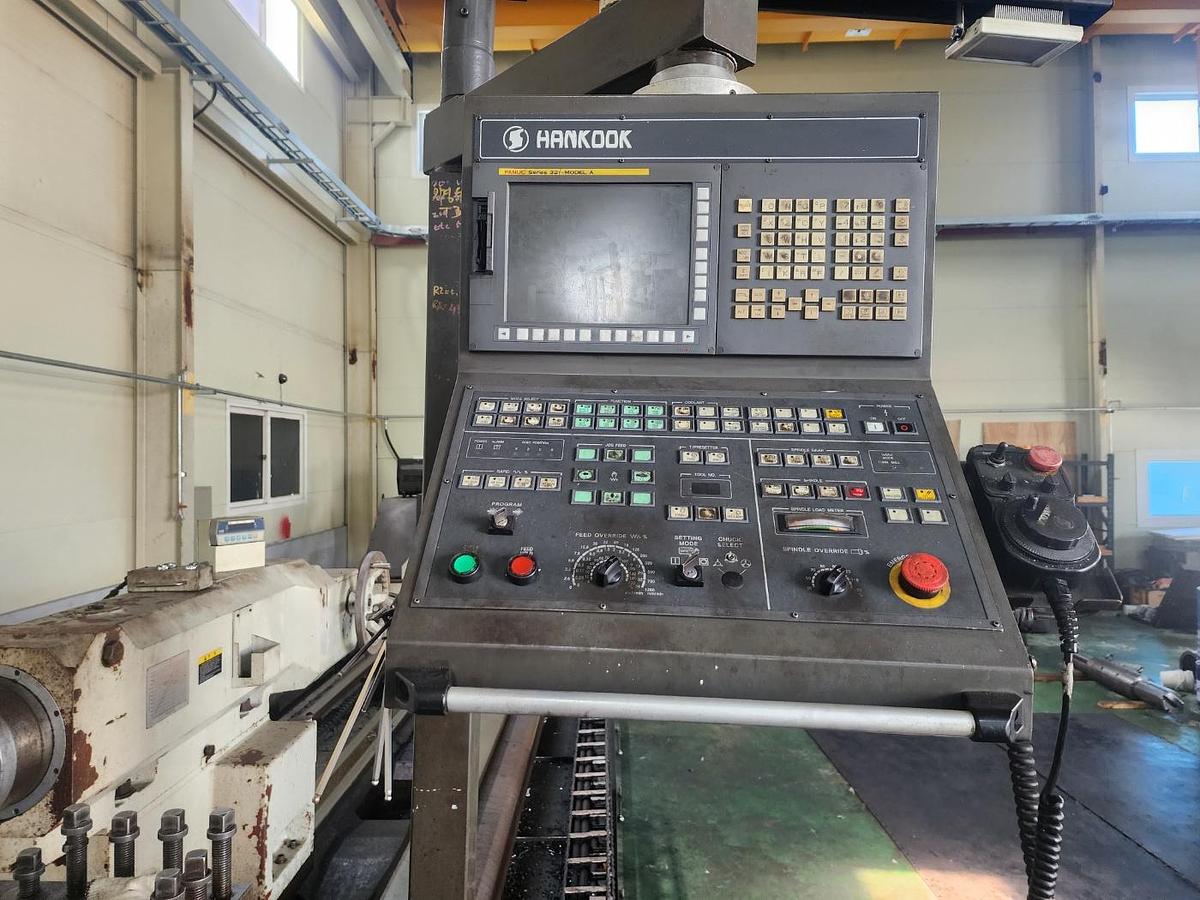

CNC controlled : Fanuac 32iA.
