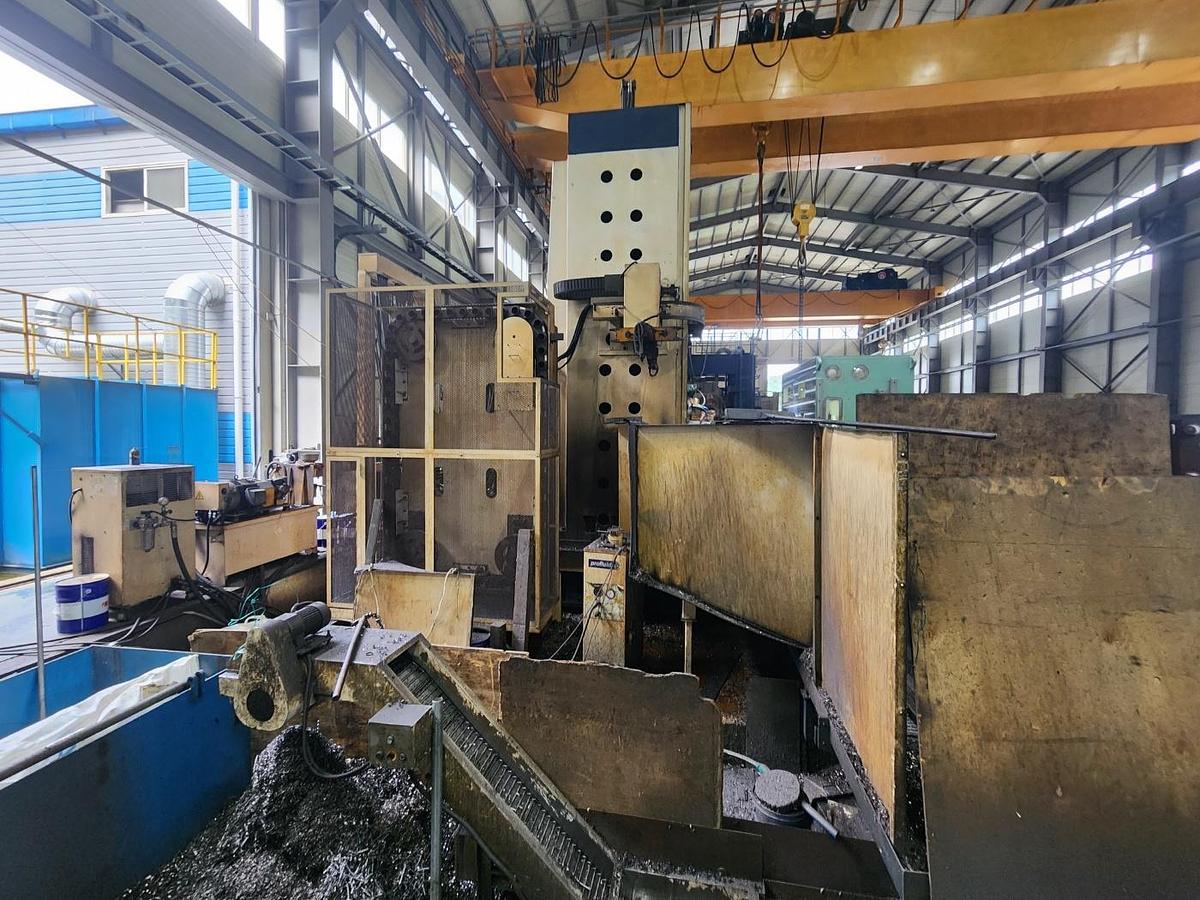

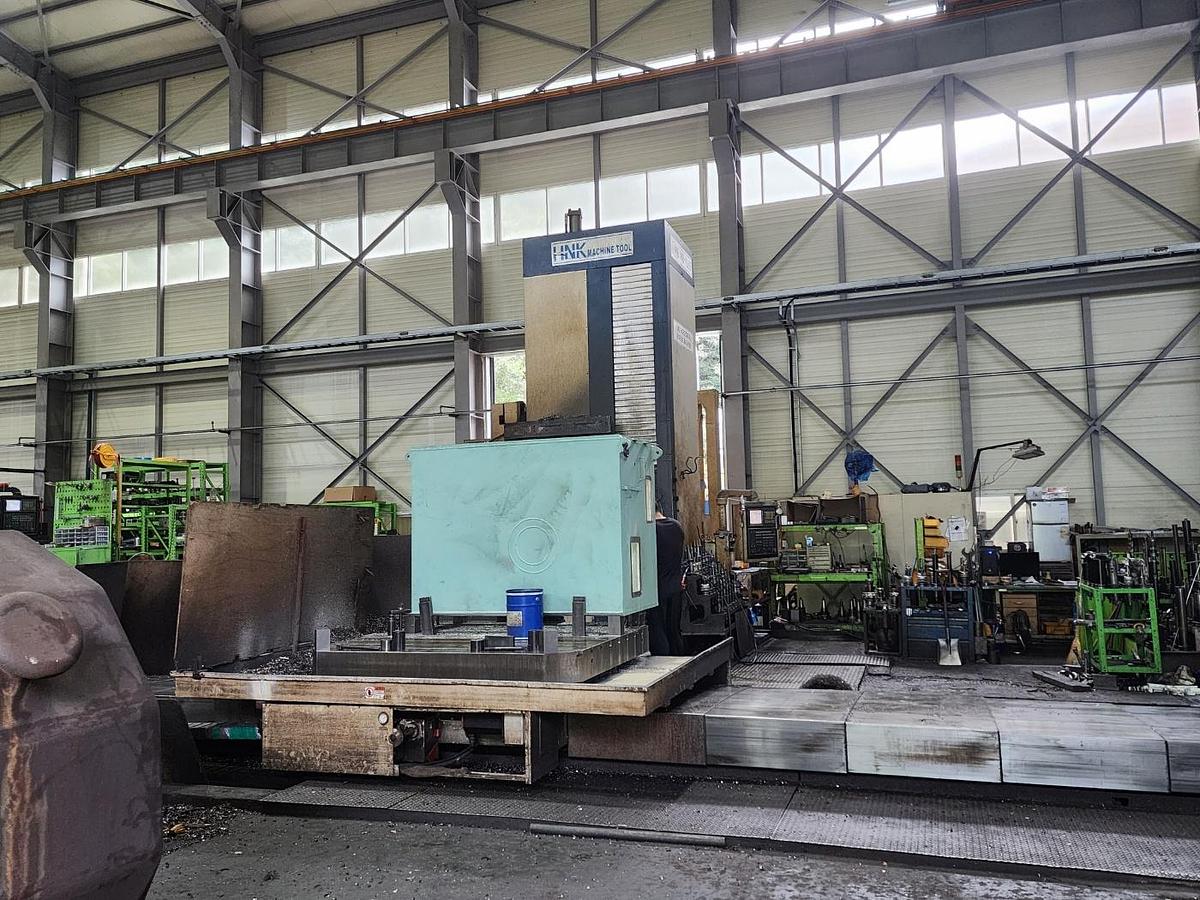

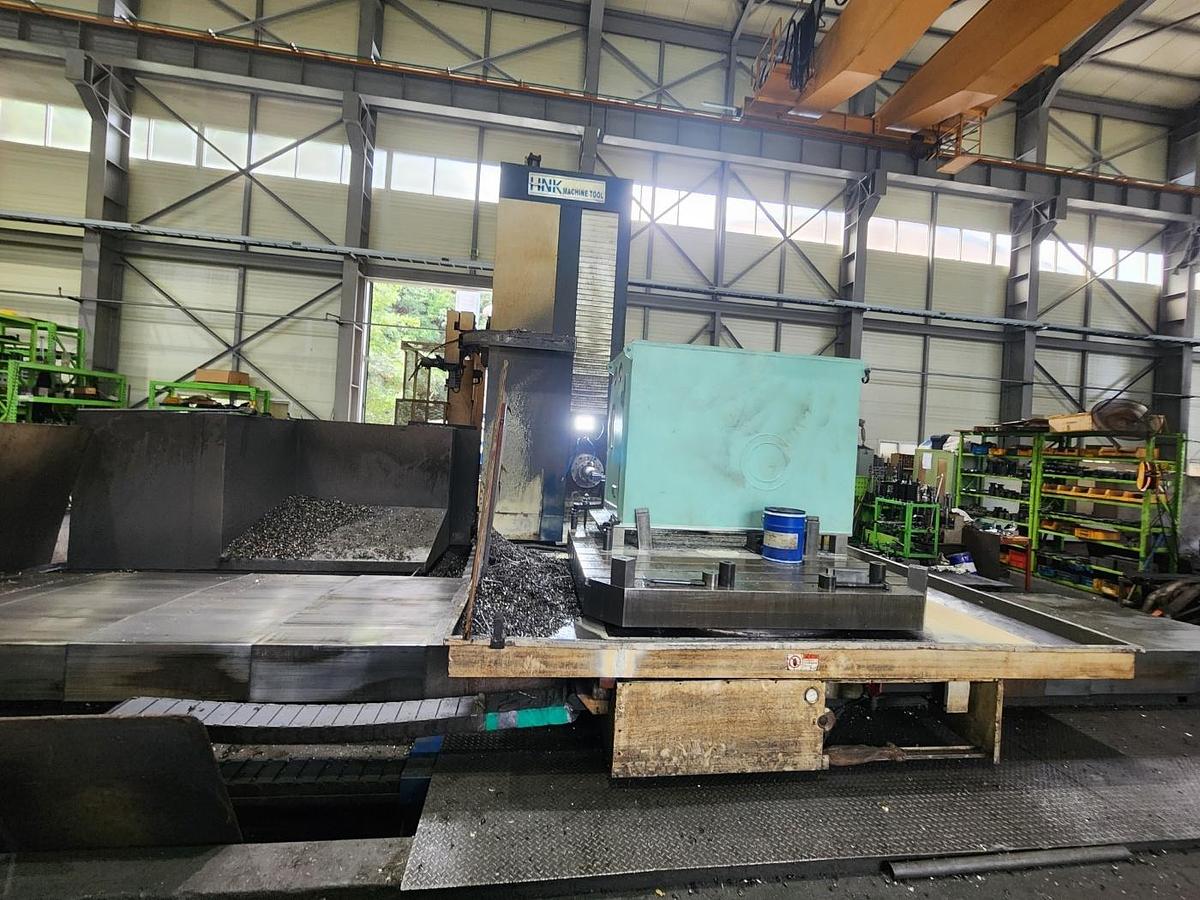

Borer Horizontal Table Type CNC HNK

Main Spindle dia : 150 mm,

Spindle Speed : 5 ~ 2000 RPM,

Travel X : 5500 mm,

Travel Y : 3000 mm,

Travel Z : 1600 mm,

Travel W : 700 mm,

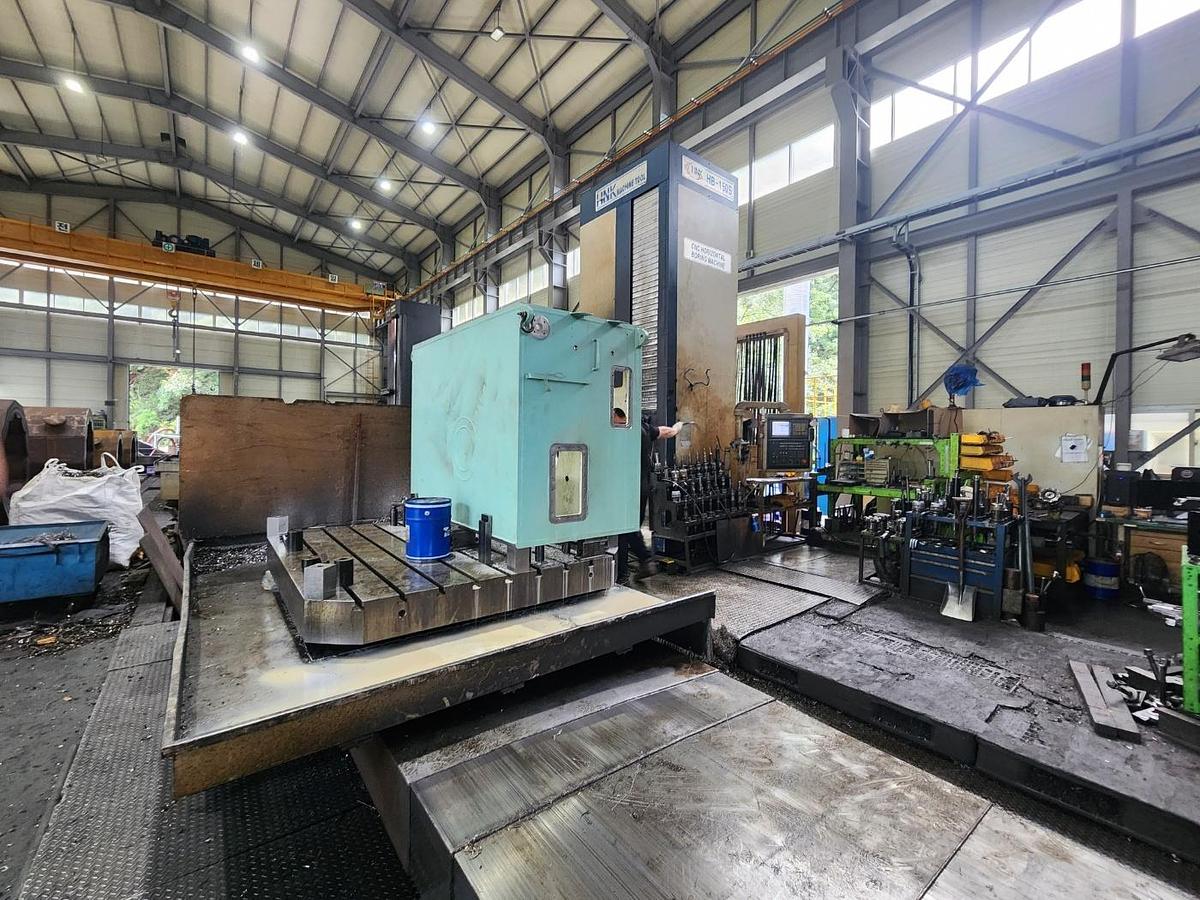

Rotary Table : Size 2000 x 2200 mm,

Loading capacity on the R/Table : 20 tons,

Indexing Degree : 1/1000° ( 90° PIN),

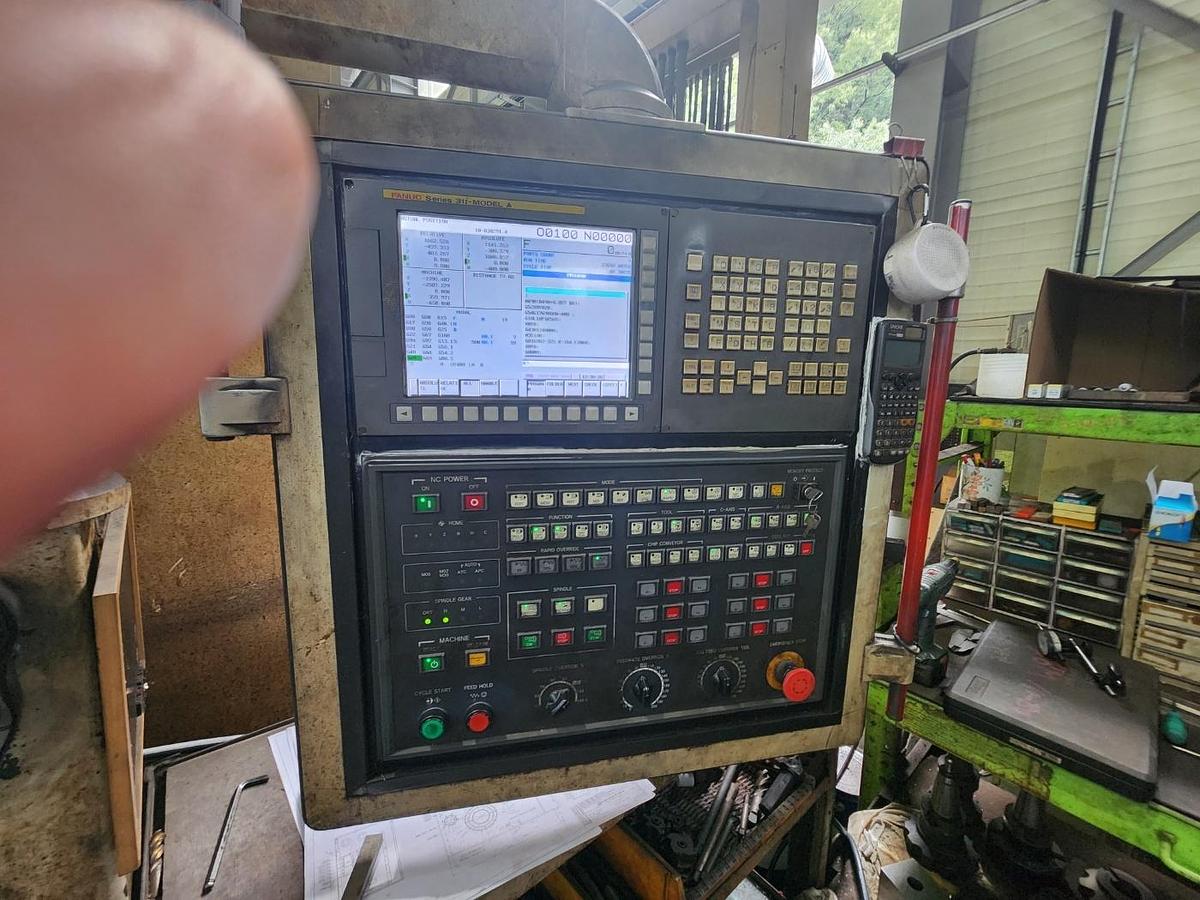

CNC- Controller : Fanuc 31i Model A,

with ATC and Coolant thru Spindle & scale for all axis.
