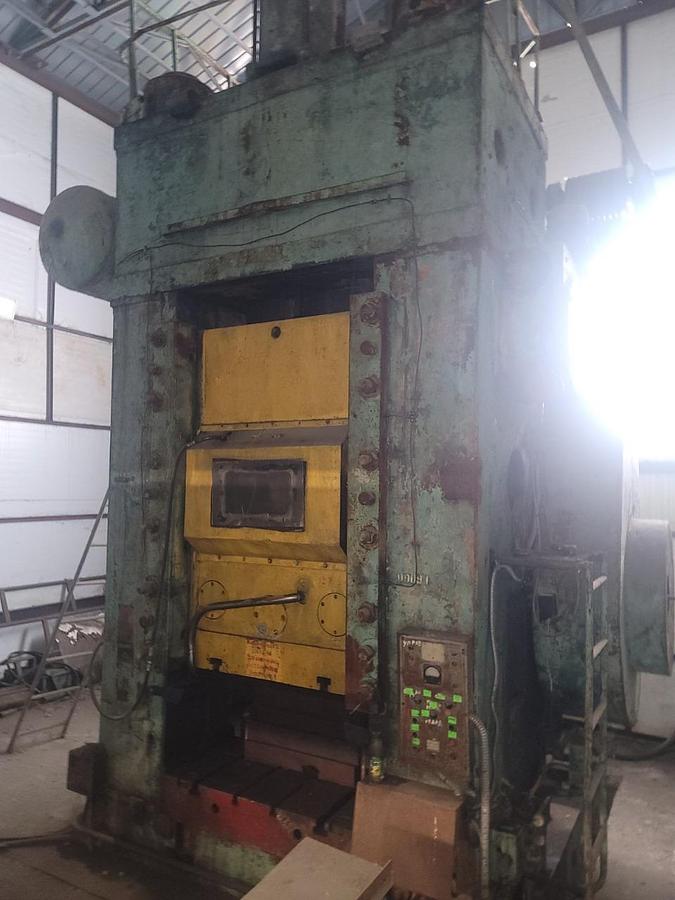

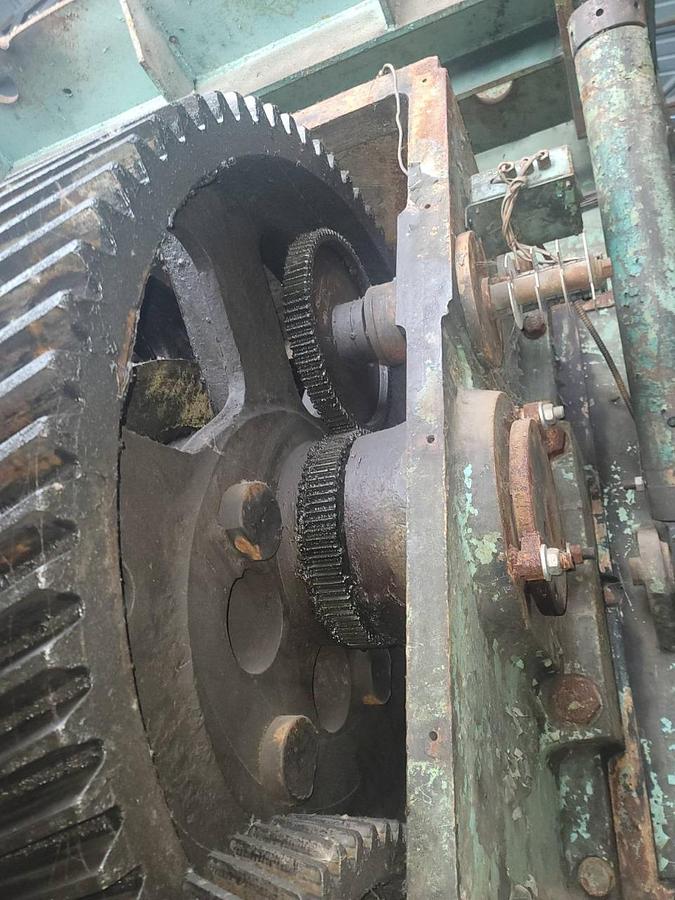

2500 tons Press Knuckle Joint Coining TMP Voronezh Russia K8336

Capacity : 2500 tons

Ram stroke : 190 mm,

Number of strokes in 1 minute : 14-20,

Shut height : 800 mm,

Bolster plate-to-ram adjustable stroke : 20,

Ram course in bottom position with max. power : 4,5,

Table size : 1250 x 1400 mm,

Ram size:

-Front-to-back : 900 mm,

-Left-to-right : 1250 mm,

Lower knockout:

-Stroke : 50 mm,

-Force : 100 kN,

Upper knockout:

-Stroke : 40 mm,

-Force : 100 kN,

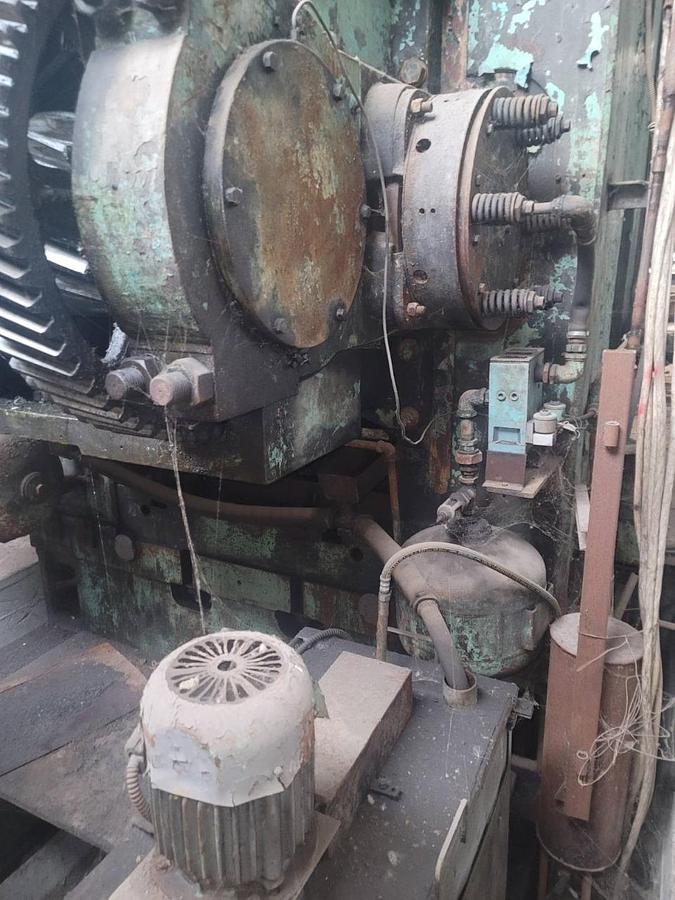

Main motor : 77 kW, 380 V,

Overall dimensions : 4770 x 3050 x 5890 mm,

Weight : 97 tons.
