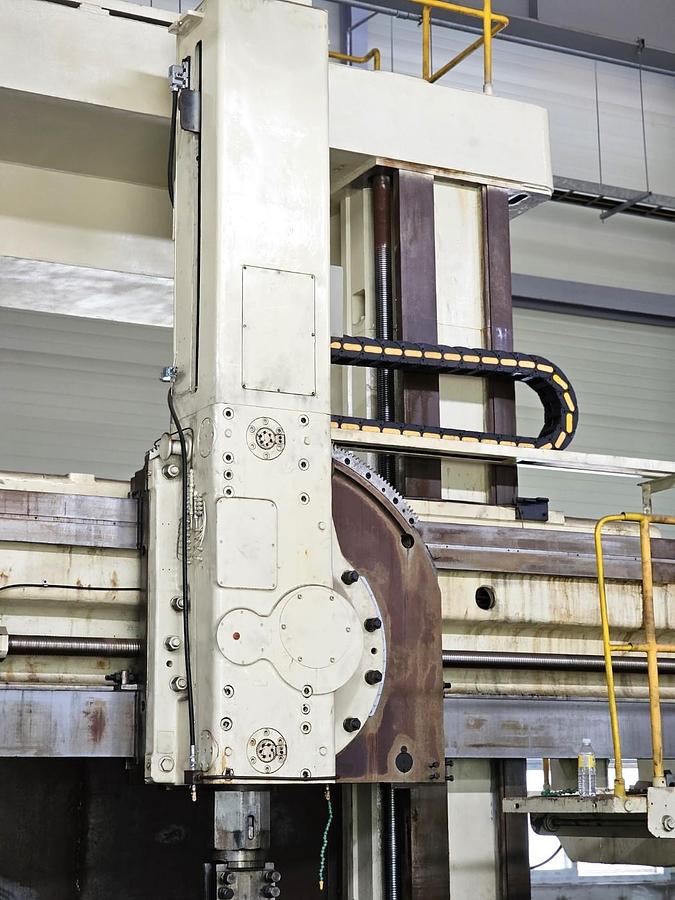

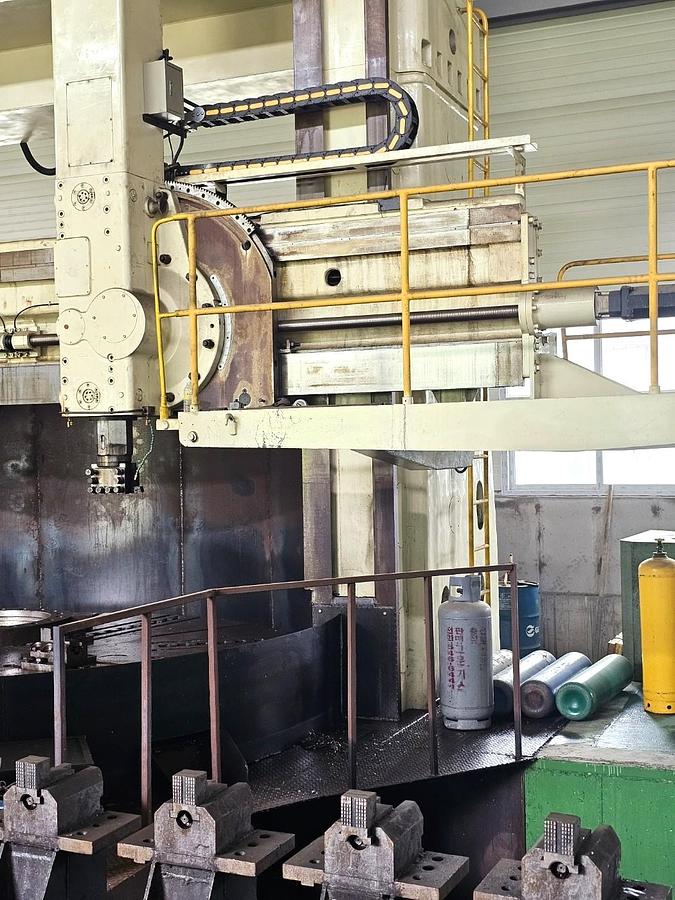

Lathe Vertical Turning CNC Kolomna 1540NC

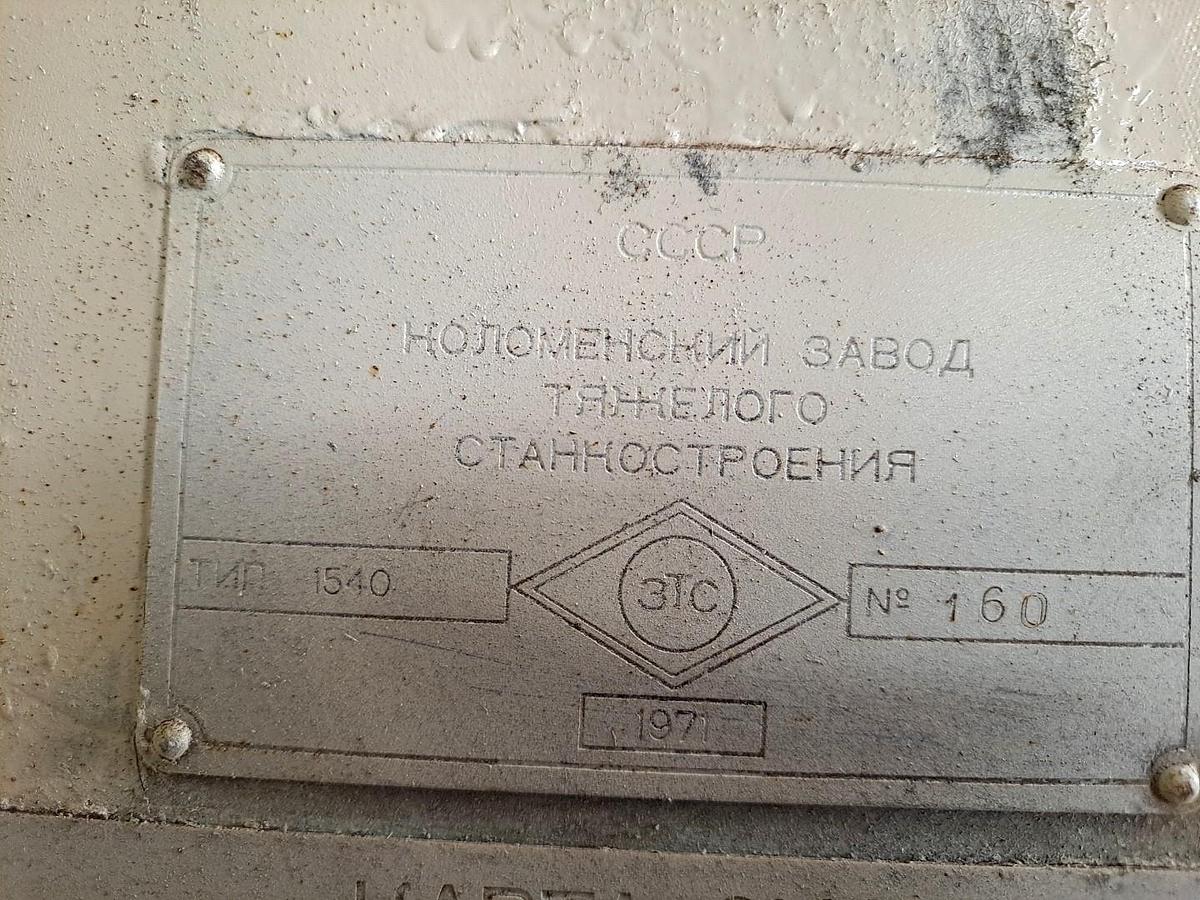

New 1971 , Retrofitted & modernized in 2015

Diameter of workpiece: 4000 mm,

Height of workpiece: 2500 mm ( modified ),

Diameter of a faceplate: 4000 mm,

Max. slider stroke : 1250 mm,

Right slider type: turning,

Corner of supports turn: -15 +40,

Weight of the workpiece on a faceplate: 50000 kg,

Effort of cutting to a right support: 63 kH,

Effort of cutting to the left support: 50 kH,

The max total effort of cutting by two supports: 100 kH,

Table speeds: 0.52 - 48.7 rpm,

Feeding: 0,059 - 470 mm/min,

Rapid feeding: 2715 mm/min,

Capacity of the main drive: 63 kW,

Height above a level of a floor: 6000 mm,

Dimensions ( L x W x H): 5900 x 10100 x 7200 mm,

Machine weight: 100 tons.

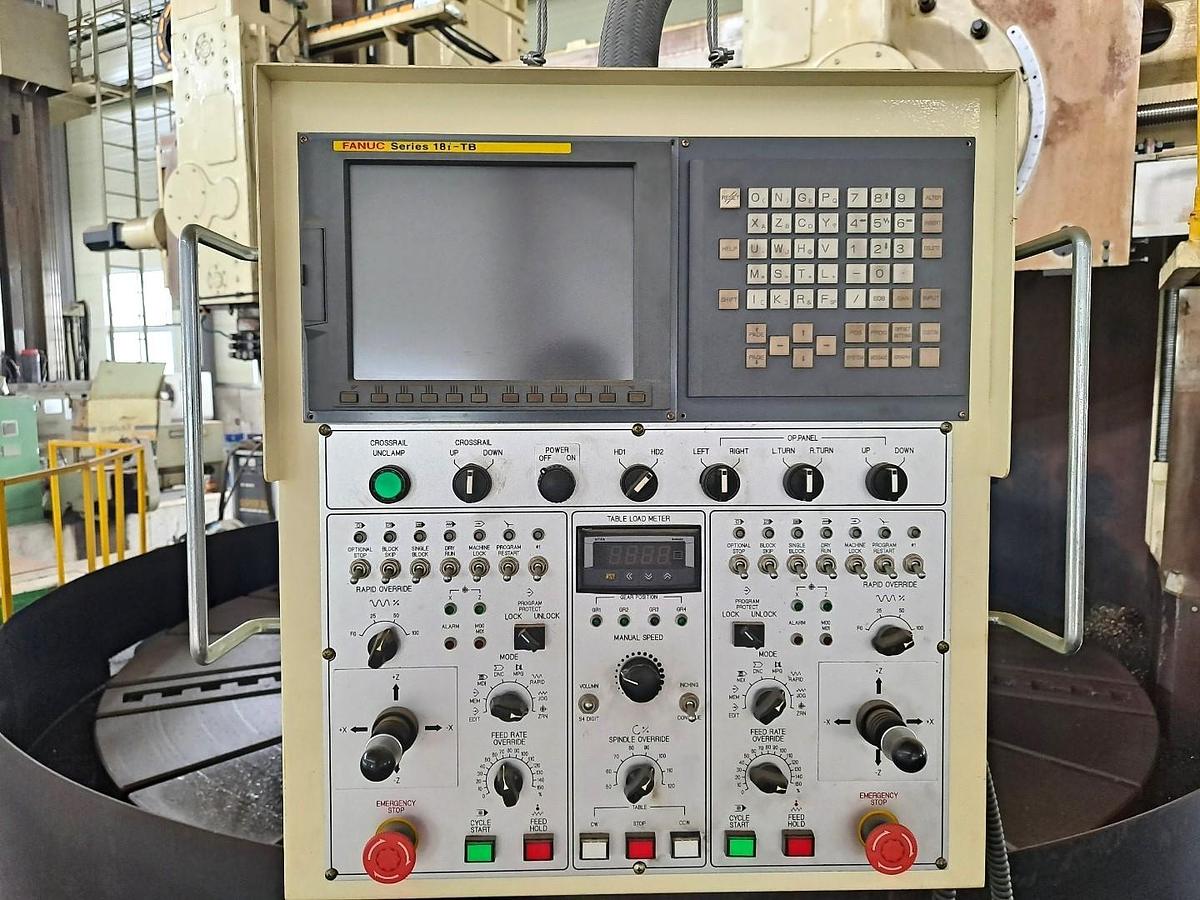

Controller System : Fanuc 18i-TB.
