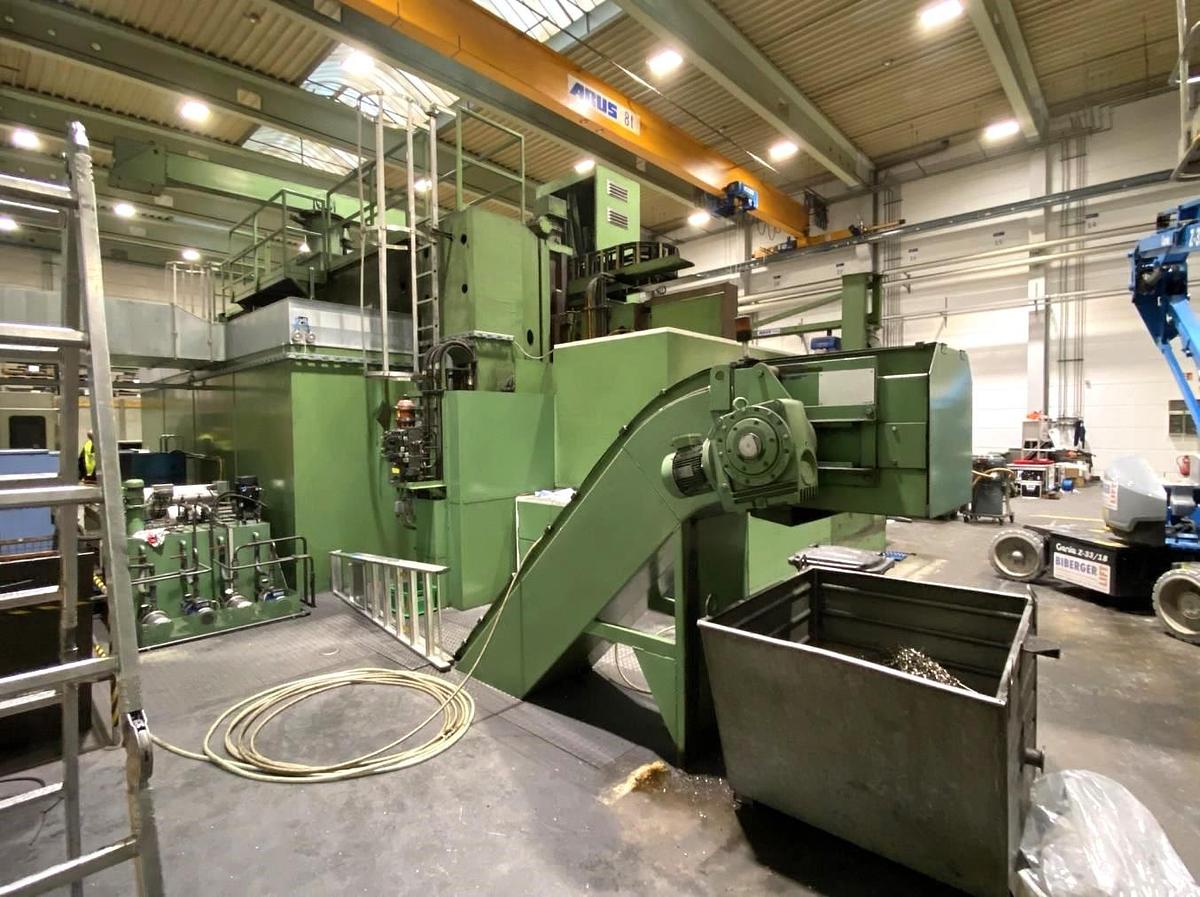

Lathe Vertical Turning CNC Doerries VC6500600

CNC Vertical Lathe with C-axis

CNC-Control SIEMENS Sinumerik 880T

Faceplate diameter : 6000 mm,

Turning height : 3200 mm,

Turning diameter : 6500 mm,

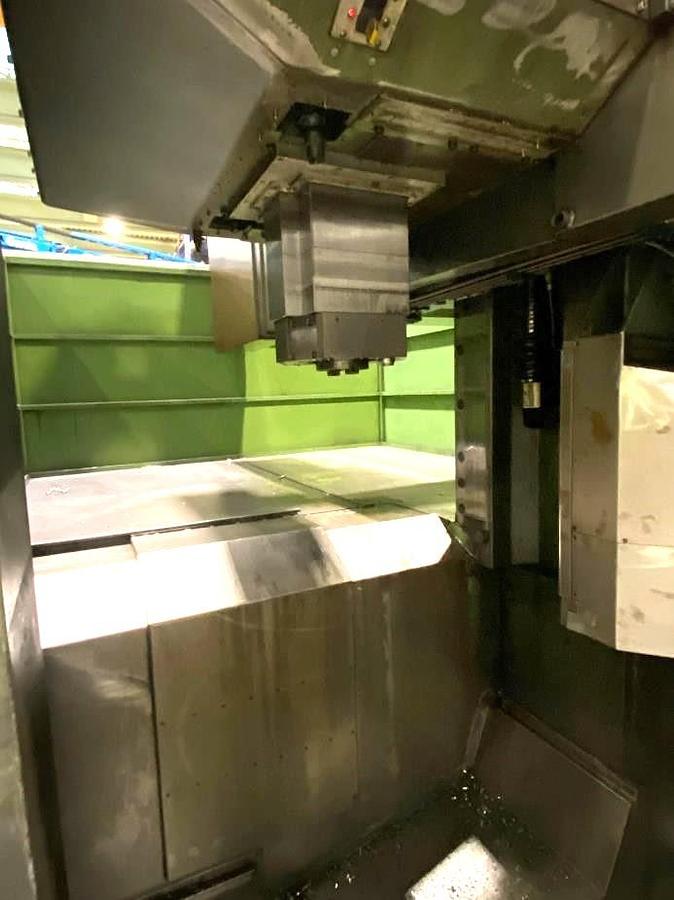

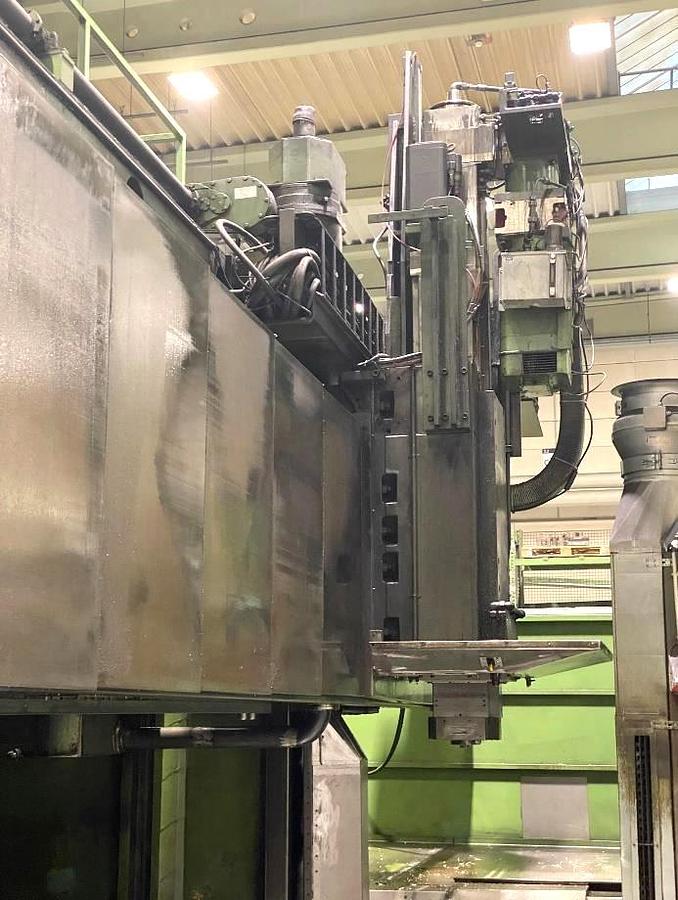

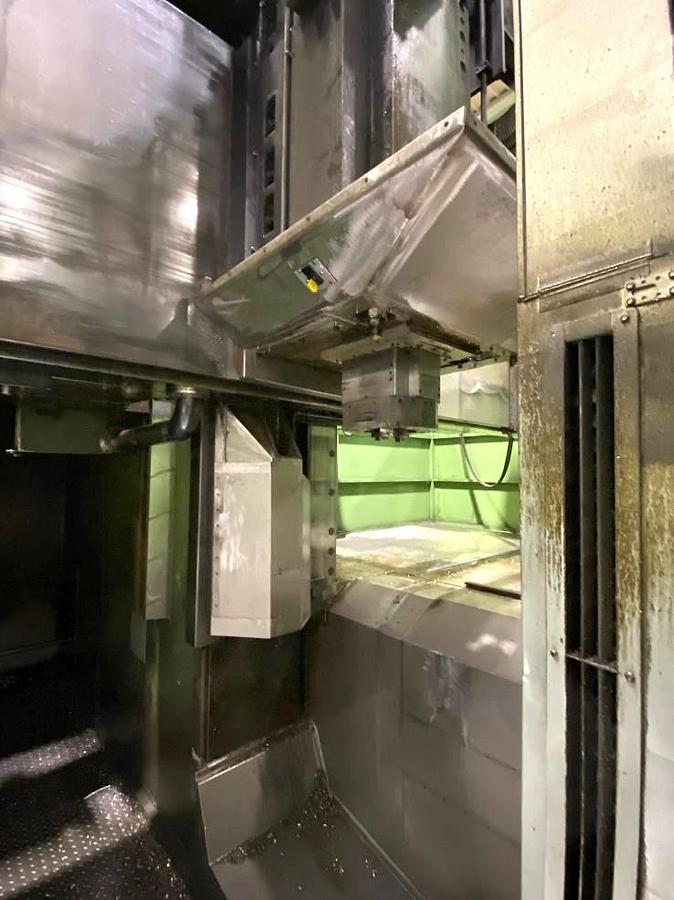

Ram 2 pieces

Ram travel : 1200 mm,

Cross beam adjustment : 1600 mm,

Max. table load : 130 to,

Speed faceplate : 0,56 – 63 rpm,

Machine weight : 180 to,

Power main motor : 105 kW,

Dimensons L/W/H : 16500 x 10600 x 5500 mm.

Accessories:

- 2 supports with live spindle 30 KW, 2160 rpm, with 2 gear stage.

- Chip conveyer

- cooling lubrication system

- 2 tool changer
