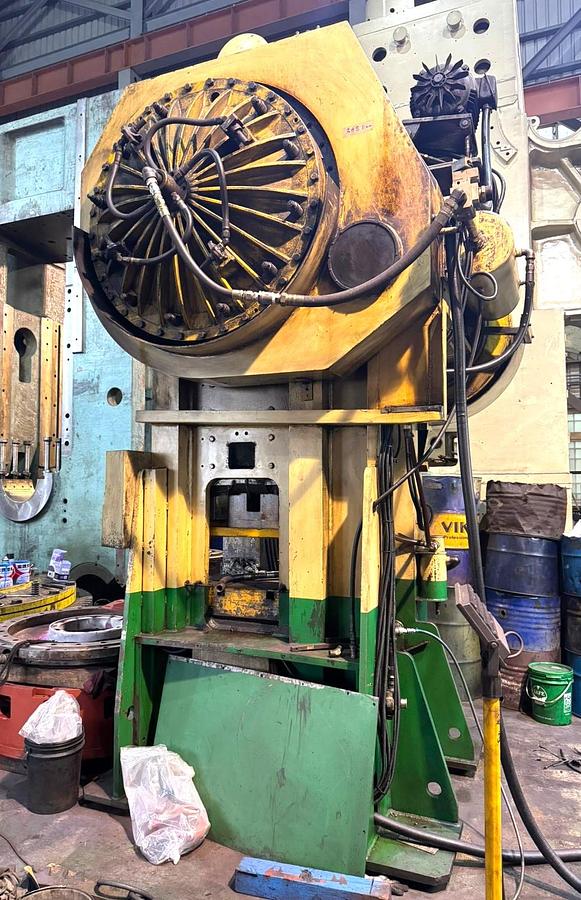

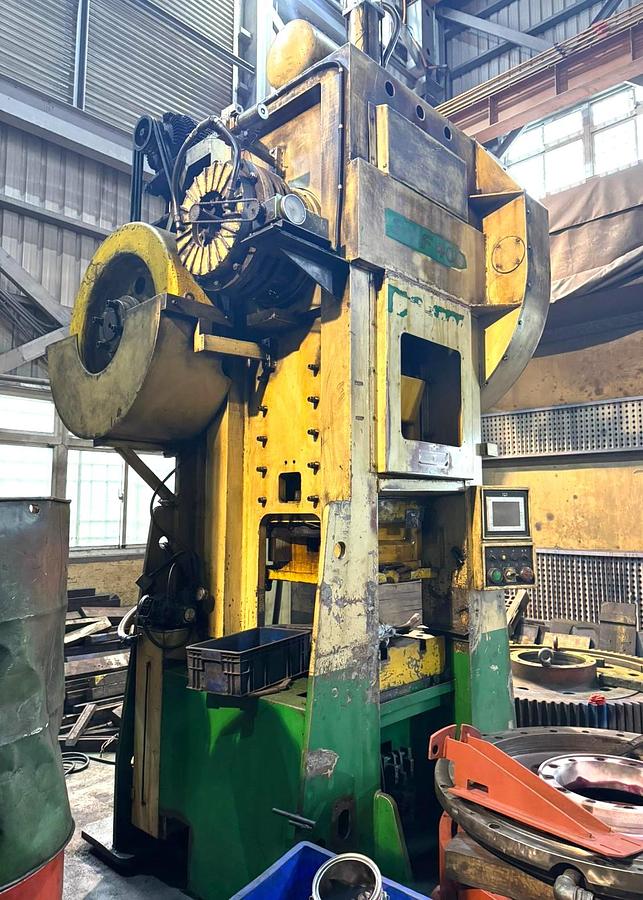

400 tons Press Hot Forging Sanes SHF-400

Capacity : 400 tons.

Stroke : 180 mm,

Stroke per minutes : 85,

Die height : 550 mm,

Slide adjustment : 50 mm,

Slide area : 520 x 500 mm,

Bolster area : 720 x 720 mm,

Main motor : 40HP x 4P,

Required air pressure : 5 kg/cm2,

Upper K/O Hydraulic Spesification :

Capacity : 1.5 tons,

Stroke : 25 mm,

Lower K/O Hydraulic Spesification :

Capacity : 6 tons,

Stroke : 60 mm.
