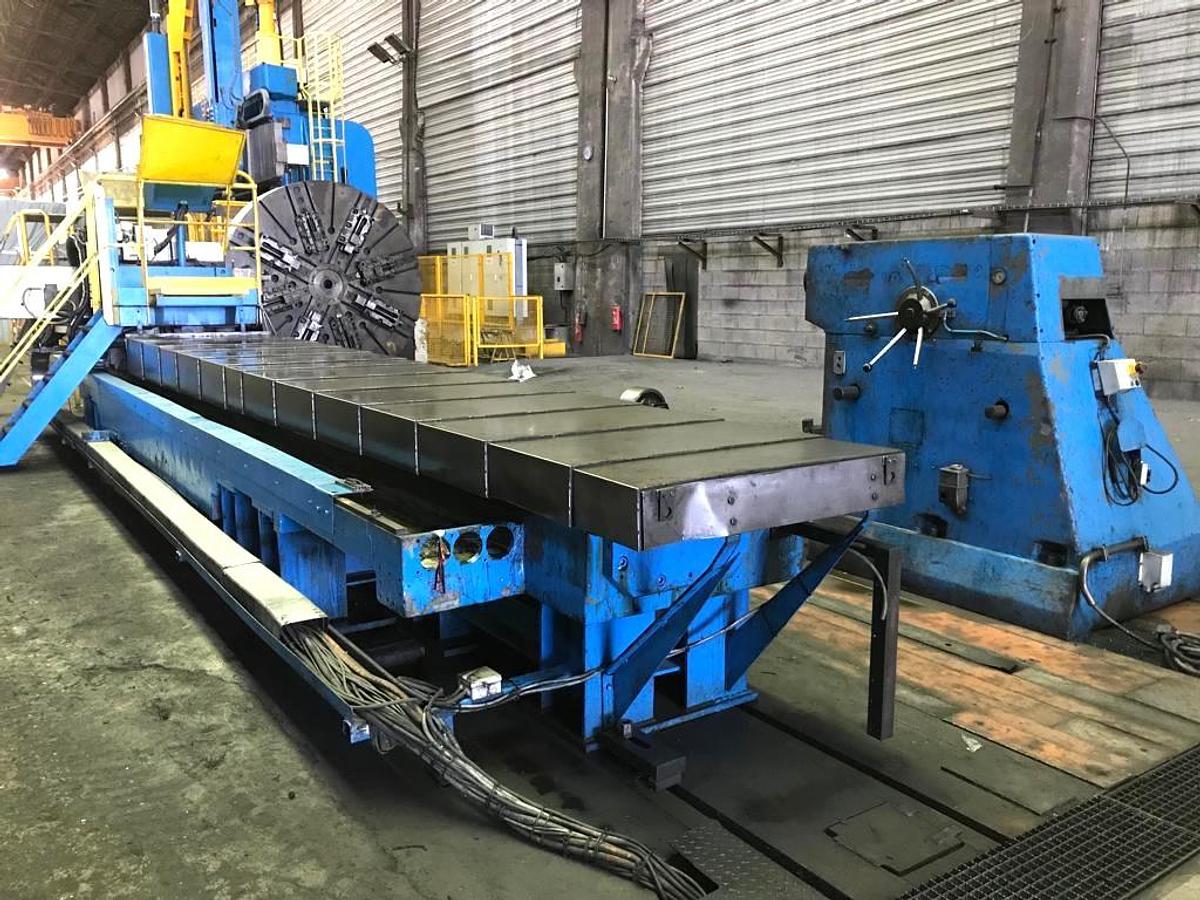

Lathe Heavy Duty CNC Ravensburger

Table die : 3200 x 10000 mm,

Faceplate diameter : 2650 mm,

Top slide travel : 250 mm,

Long slide travel of cross slide : horizontal : 1500 mm,

Cross travel of main slide on middle section : 700 mm,

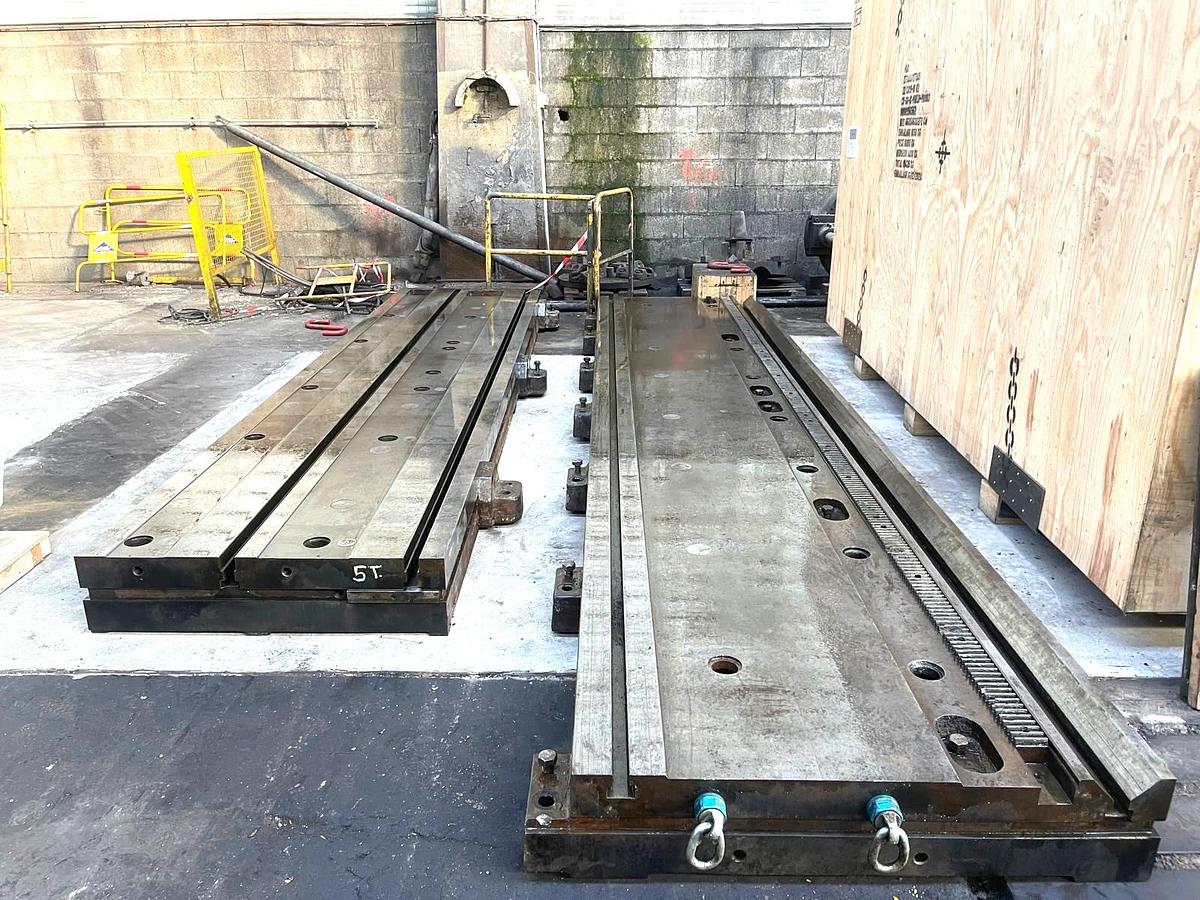

Longitude V-ways in bed section for travel of carriage (resetting motorized) : 10000 mm,

Front bearing : 400 mm,

Spindlespeeds (18) : 1,2-56 rpm,

Spindlespeeds slow (12) : 0,35-1,12rpm,

Feeds : 0,05-18 mm/re,

Max. load on faceplate without steady : 9000 kos,

Ma. load on faceplate : 5000 kgm,

Main motor 380/50/3 : 60 kW

Total weight : 93 tons.

60 kw on spindle.

+ workpiece supports.
