Lathe Vertical Turning CNC Berthiez 9370

Single column

Faceplate dia. : 4200 mm,

Faceplate movable Max. RPM : 60 v/min,

Spindle motor (Siemens) : 60 kW,

Max turning diameter with side support : 8000 mm,

Swing max : 8200 mm,

Height to tool support : 2200 mm,

Height to cross rail : 2770 mm,

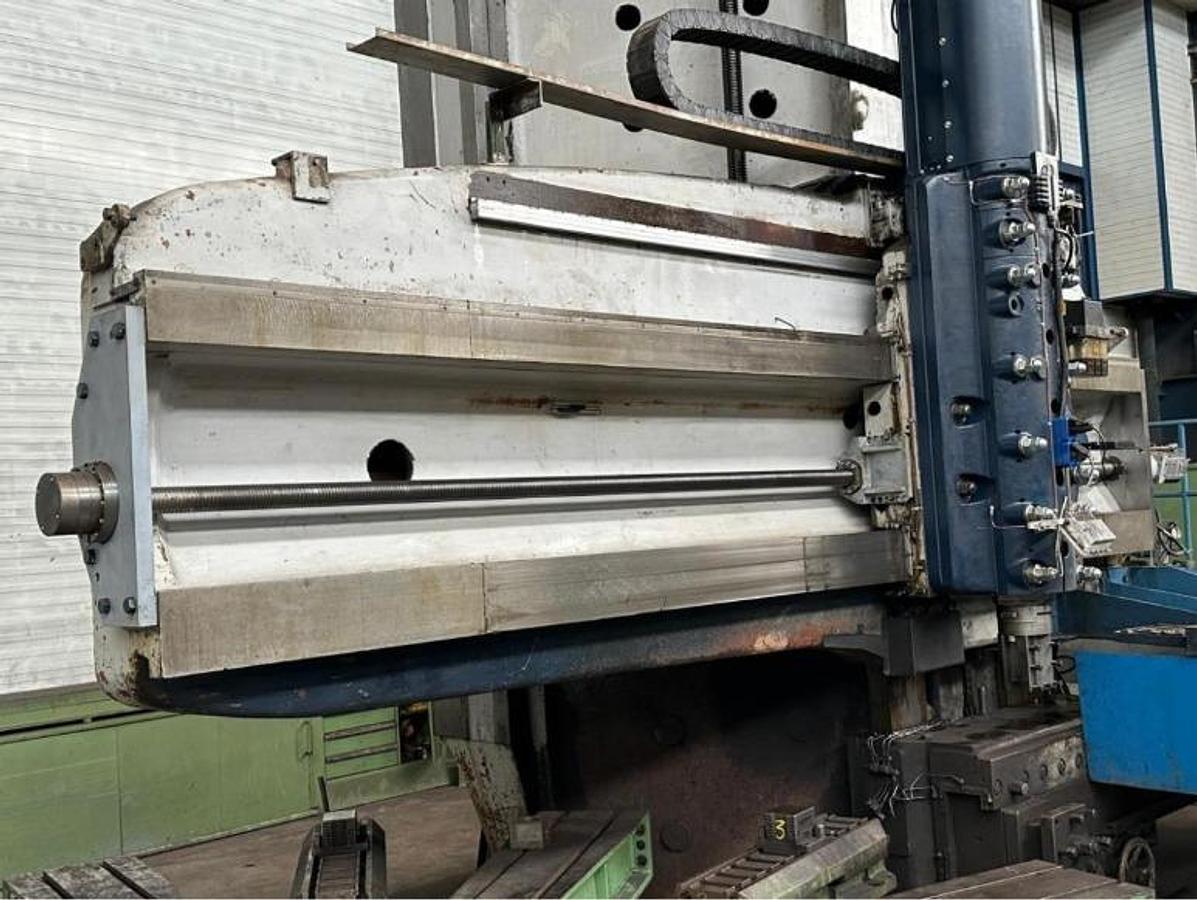

Movable cross rail max : 2000 mm,

Ram-slide, working area : 1060 mm,

Max. Table load : 40 to.

Tool Clamping : SANDVIK BLOCK-TOOL nr 40,

Side support working range : 1200 mm,

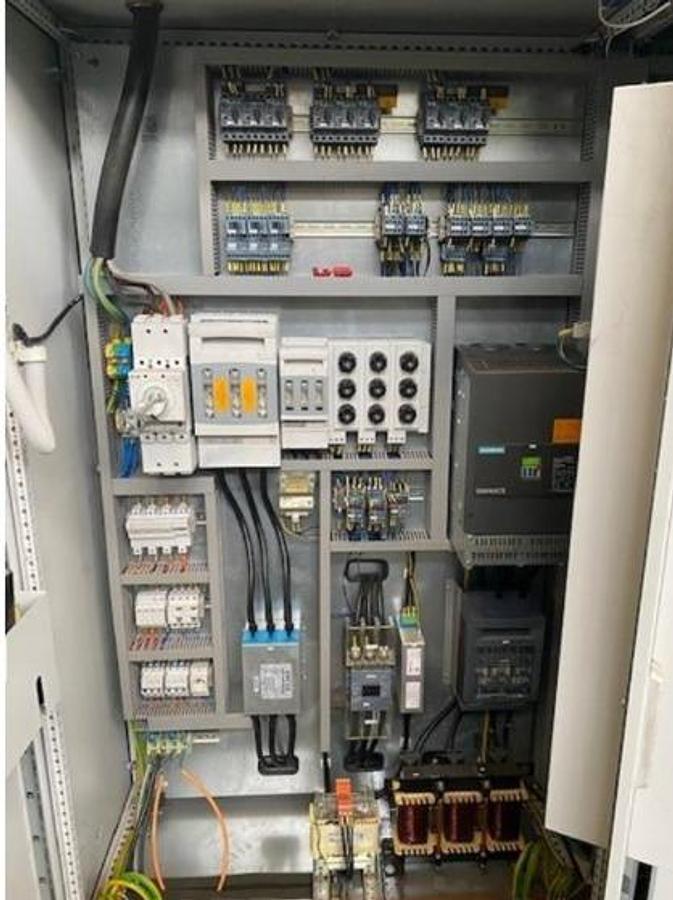

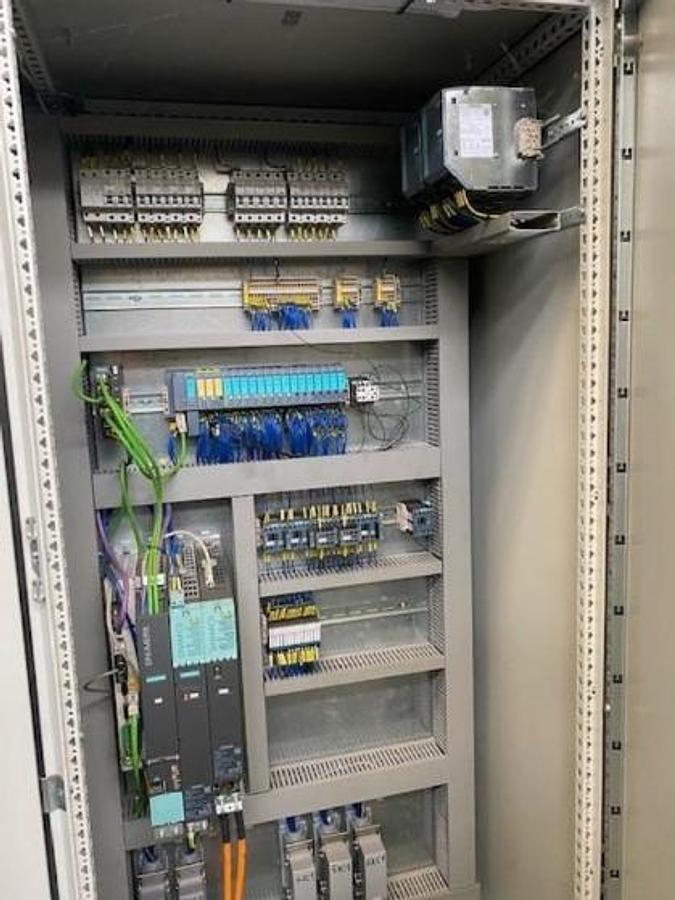

Control : SIEMENS Numeric 840DSL.

New reengineered vertical Support.
