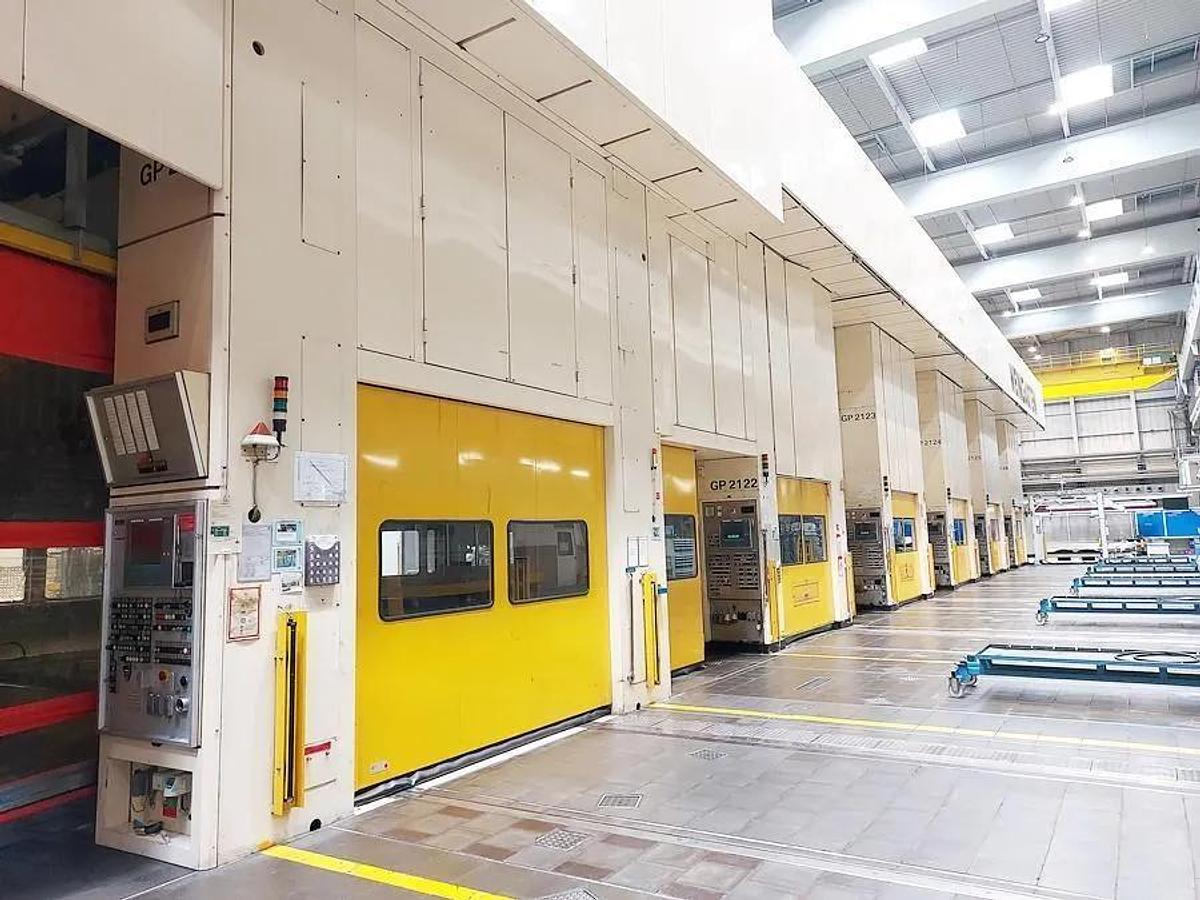

1000 tons Press Sheet Stamping Mechanical Weingarten VK1000-40-80

Straight Side, Double Crank (Single Action) Link Drive press

Capacity : 1000 tons,

Press force Slide @ 20mm before BDC 10000 KN,

Working capacity Slide at 8 strokes/min 350 kj,

Slide stroke : 900 mm,

MAX. Draw Depth Slide : 200 mm,

Slide Adjustment : 250 mm,

Air Cushion in Slide/Cushion force @ 8.5 bar 1000 KN,

Cushion stroke : 200 mm,

Die Space Bolster – Slide in BDC and Adjustment on top 1400 mm,

Bolster Height : 544 mm,

Strokes per minute, adjustable 8 – 20,

Strokes per minute in Setting mode 3,

Dimensions Bolster Plate : 4600 x 2200 mm,

Dimensions Slide Plate : 4600 x 2200 mm,

Dimensions Slide Adapter Plate : 4000 x 2200 mm,

Air Cushion in Press bed/Cushion Force @ 9 bar Max. 2000 KN

Adjustable Cushion Stroke 0 – 200 mm,

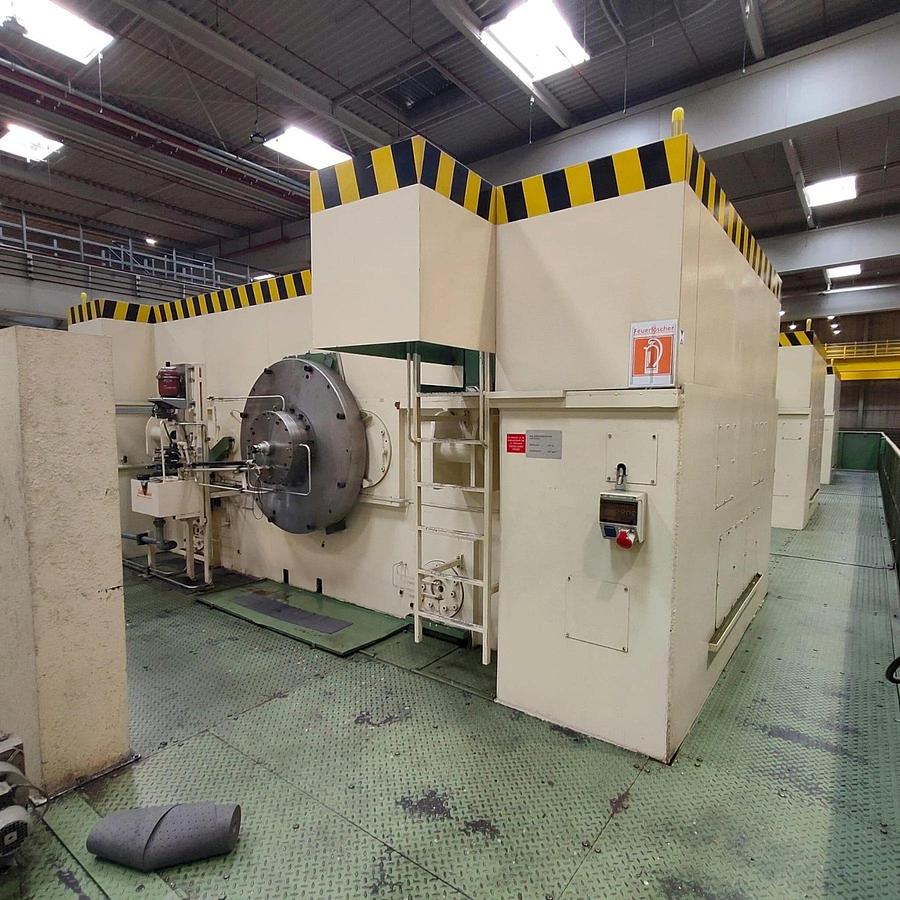

Main Drive Motor Power 90 – 225 kW,

RPM 720 – 1800 U/min,

Equipped with side to side moving bolsters, no lower cushion.

Qty Press : 5 Nos.
