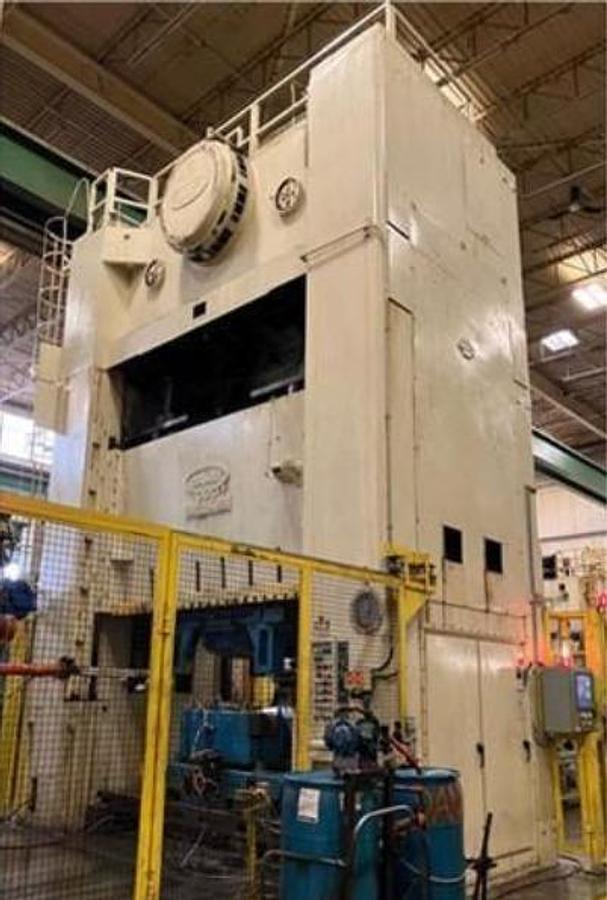

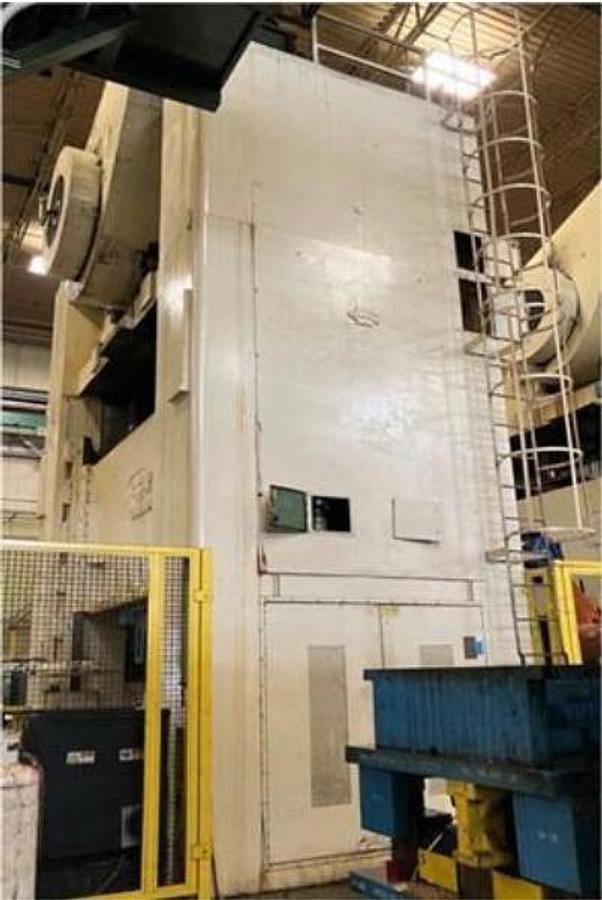

1000 tons Press Sheet Stamping Mechanical Danly S4-100-144-84

Straight Side Double Crank (Single Action)

Capacity : 1000 tons,

Stroke : 838 mm,

Stroke per minutes : 18 - 22 spm,

Shut height over Bolster : 1828 mm,

Adjustment : 762 mm,

Slide Plate : 150 mm Distant T-slotted,

Slide area (L-R xF-B) : 3657 x 2133 mm,

Capacity of main motor : 200 HP, 1200 RPM,

Press overall size : 5969 x 3759 mm,

Press width at the base feet : 4724 mm,

Height : 12,192 mm,

Height above floor : 9296 mm,

Bolster area (L-R x F-B) : 3657 x 2133 mm,

Uni-Directional Rolling Bolster

Front-Back movement,

432 mm thickness / height,

Top Plate 150 mm distant T-slotted.

Features :

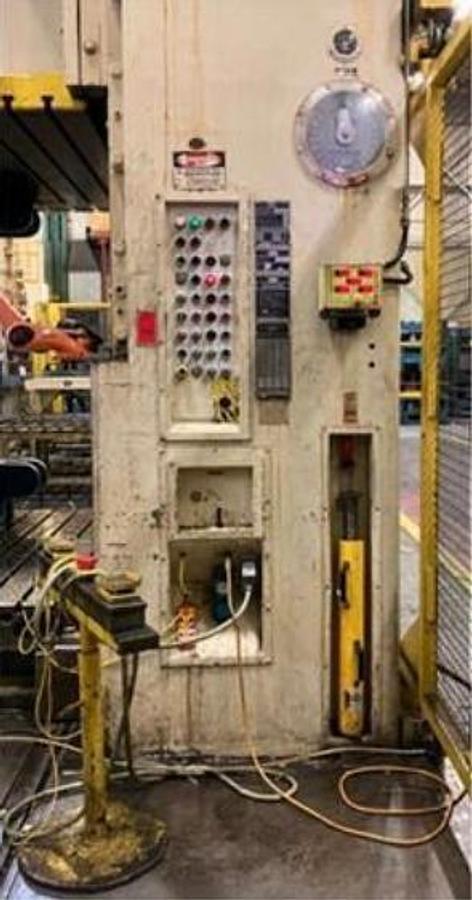

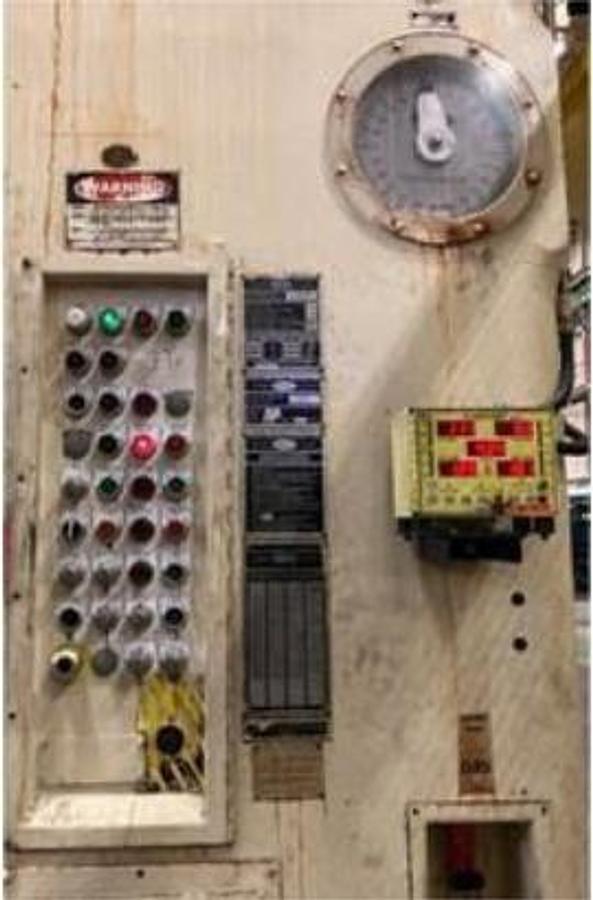

Operator's controls panel at the press column

Palm-button stand

Illuminated shut height indicator

Stroke indicator

Standard press safety stop-buttons

Safety blocks
