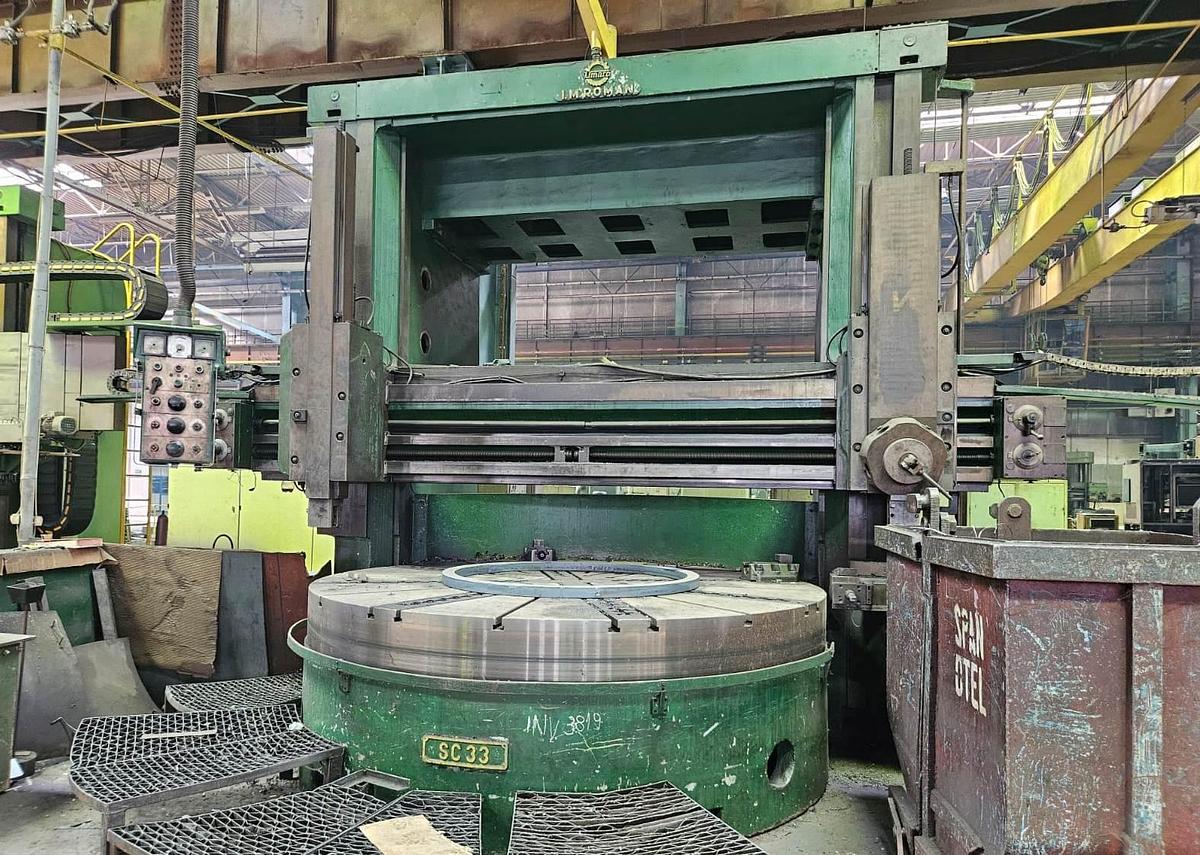

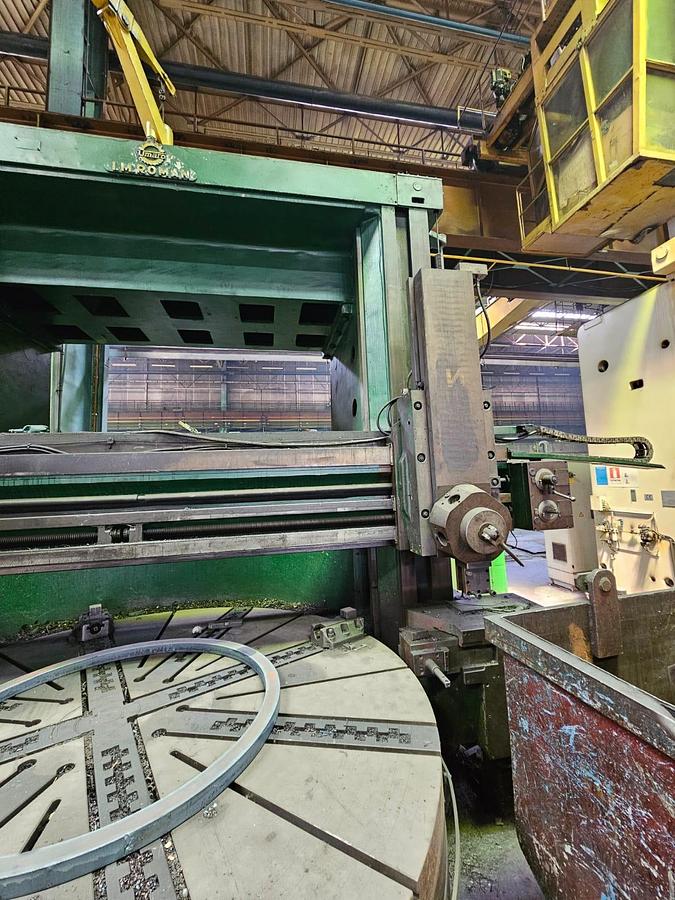

Lathe Vertical Turning Titan, Romania SC33

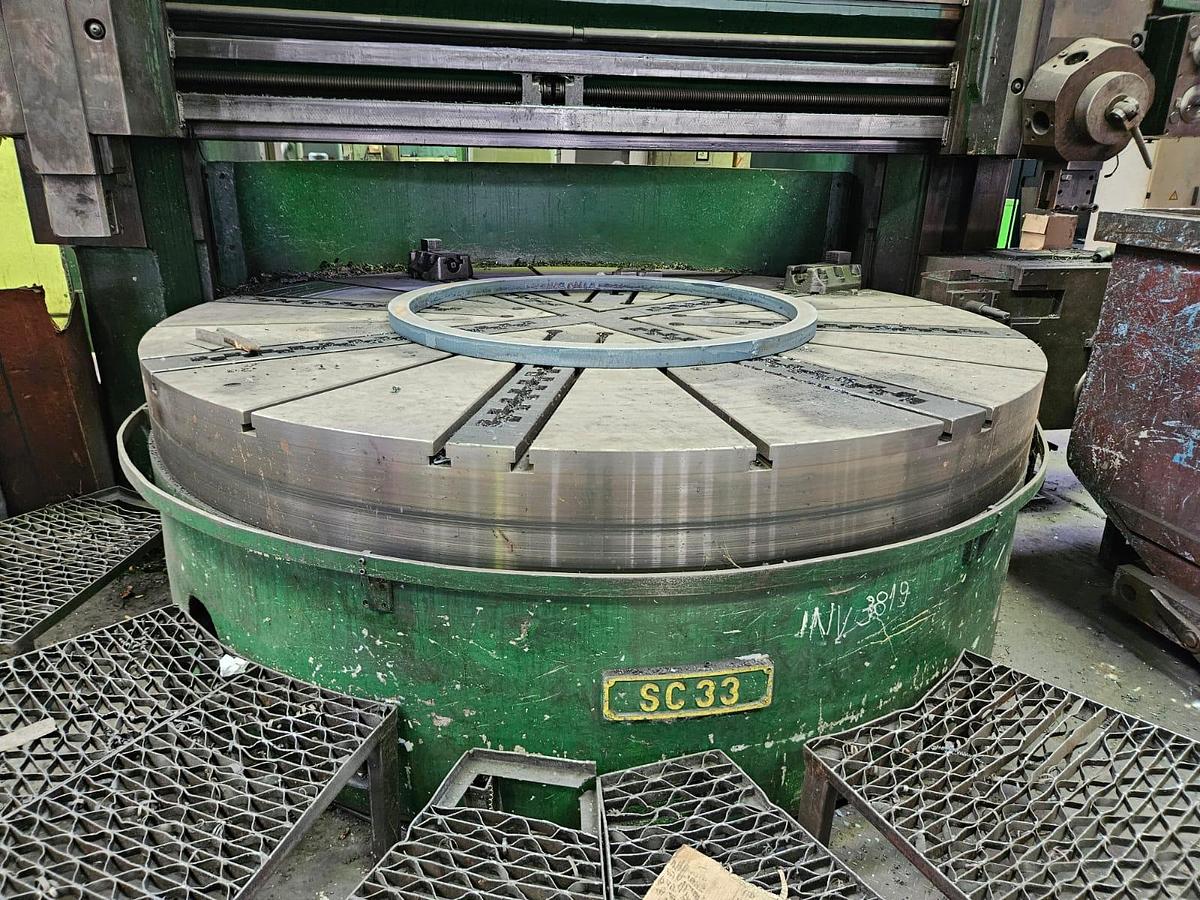

Faceplate diameter : 3000 mm,

Max swing diameter : 3300 mm,

Turning height  : 2300 mm,

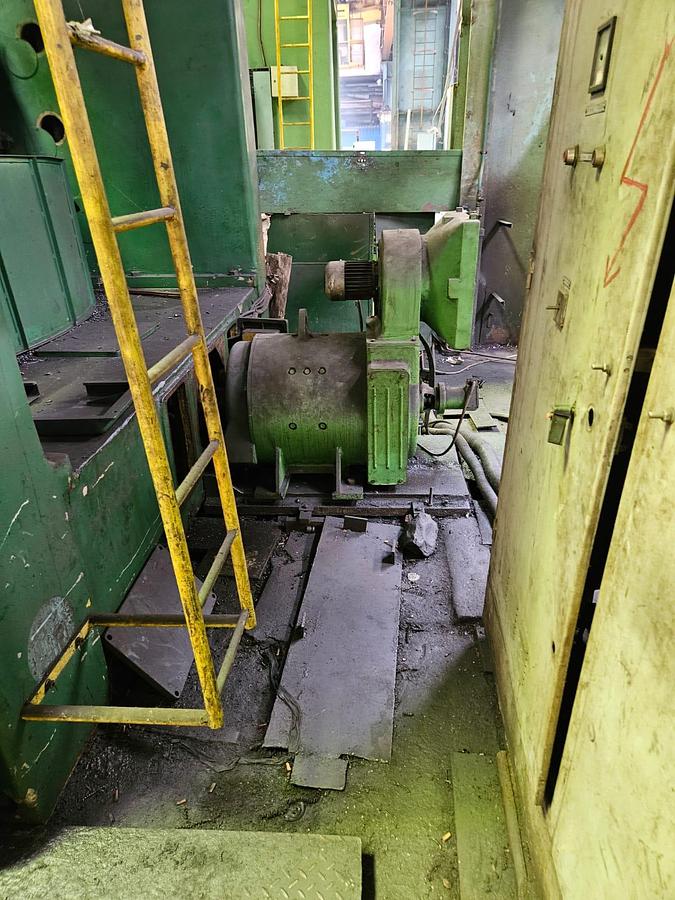

Main drive motor : 55 kW,

Faceplate turning speed range : 1,02 – 92 U/min,

Workpiece weight : 18000 kg,

Number of feeds  : 16,

Feed per workpiece revolution : 0,05 – 5 mm/WU,

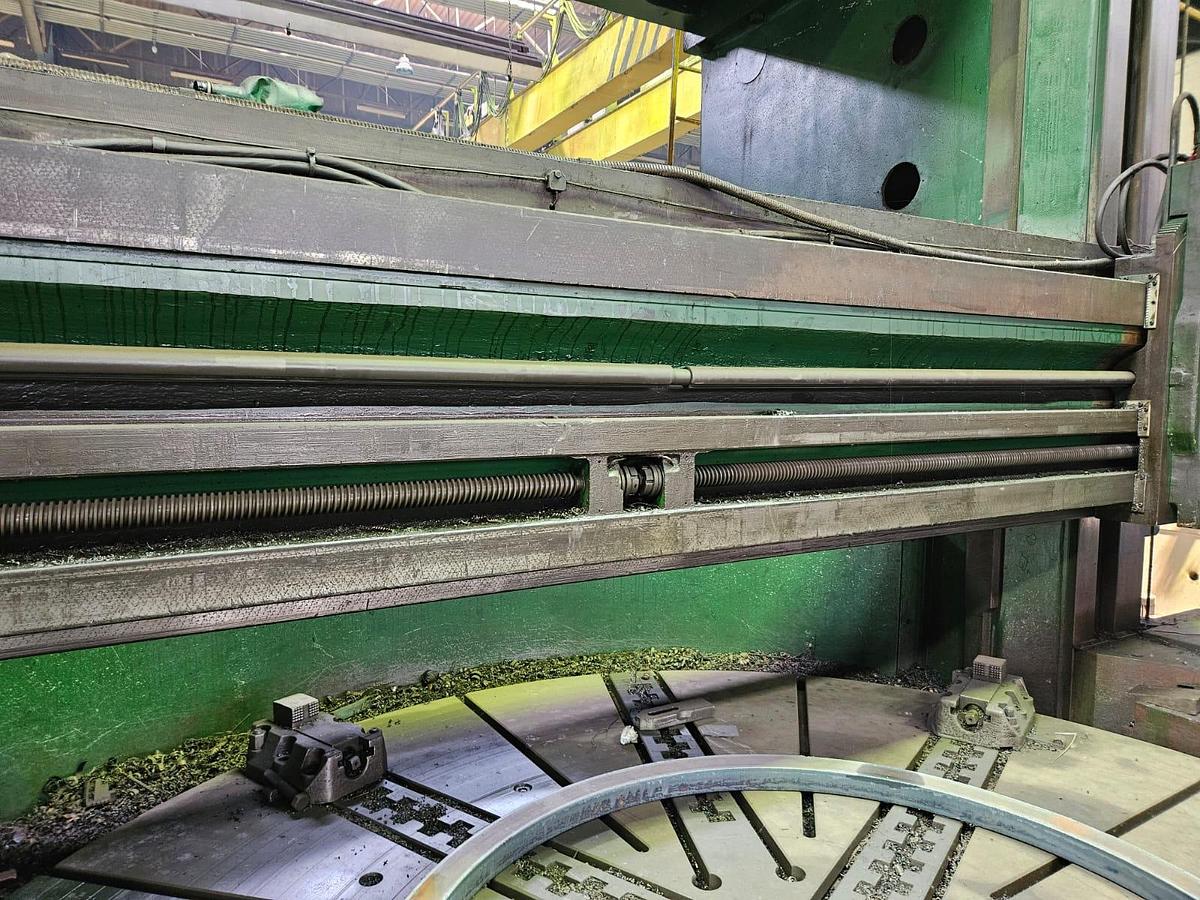

Cross rail – adjustment : 1800 mm,

Crossrail -rapid travel : 400 mm/min,

Swivel range of slides – vertical :+/-35 °

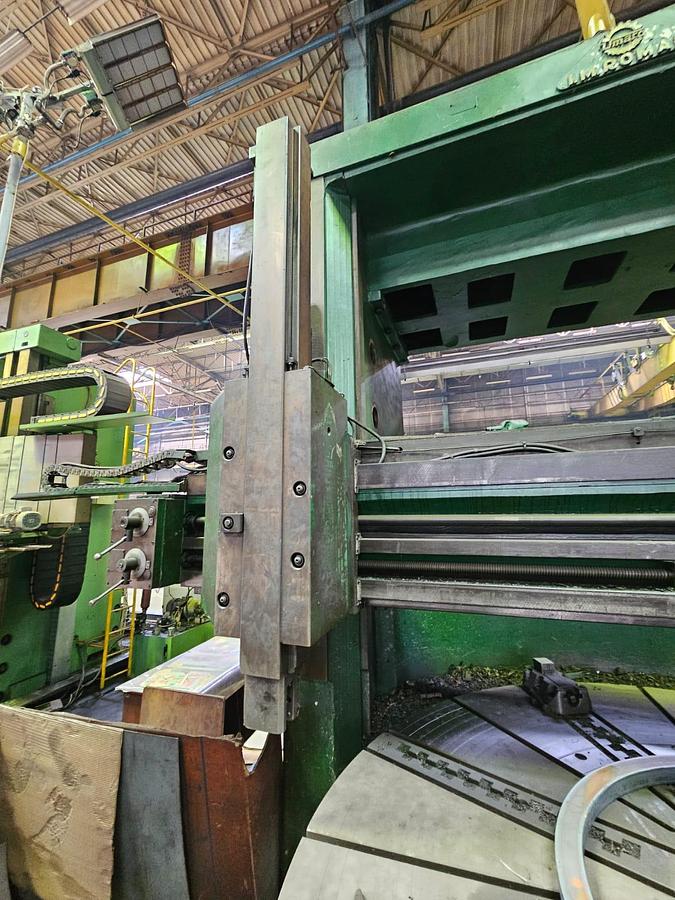

Max. ram stroke : 1200 (linker Support) mm,

Max. ram stroke : 760 (Revolverkopf) mm,

Horizontal travel of vertical support : 1900 mm,

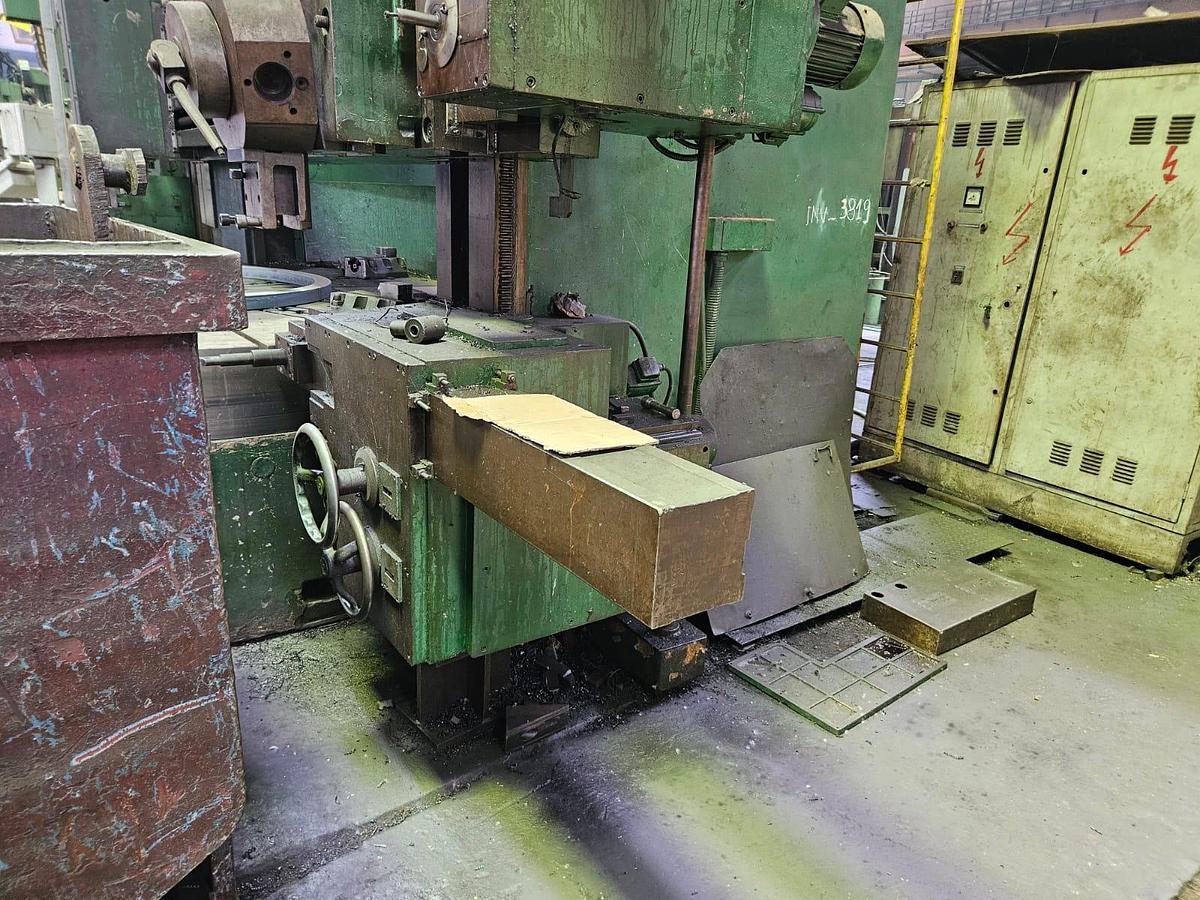

Side head – cross travel : 1000 mm,

Side head – vertical travel : 2000 mm,

Turning diameter with side head : 3250 mm,

Dimensions of the machine ca. : 5600 x 5300 x 5400 mm,

Weight of the machine ca. : 48 tons.
