Lathe Vertical Turning Kolomna 1540
or
Call +919920651051
Specifications
| Manufacturer | Kolomna, Russia |
| Model | 1540 |
| Condition | Used |
| Stock Number | MA3140 |
| Item condition | Good condition |
| Capacity tons | 4000 |
Description

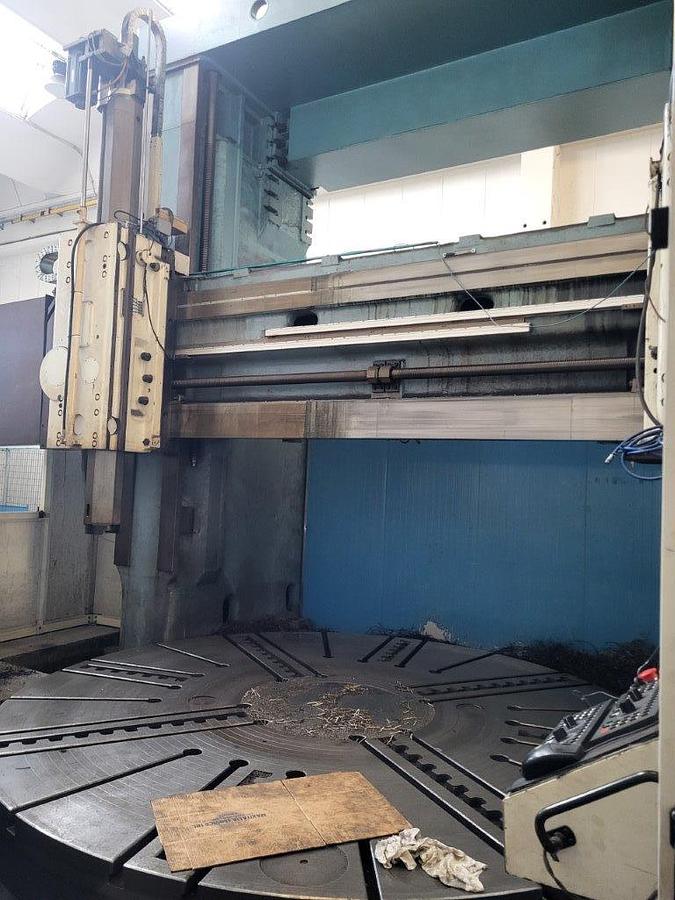

Platform diameter : 4000 mm
Maximum turning height : 2500 mm
Maximum turning diameter : 4000 mm
Permitted weight : 100 ton
Maximum vertical displacement of the crossbeam : 1600 mm
Carriage displacement angle -15/ + 40 °
Platform rotation : 0.46 - 42.5 rpm
Crossbeam screw feed range : 240
Carriage rapid feed : 3125 rpm

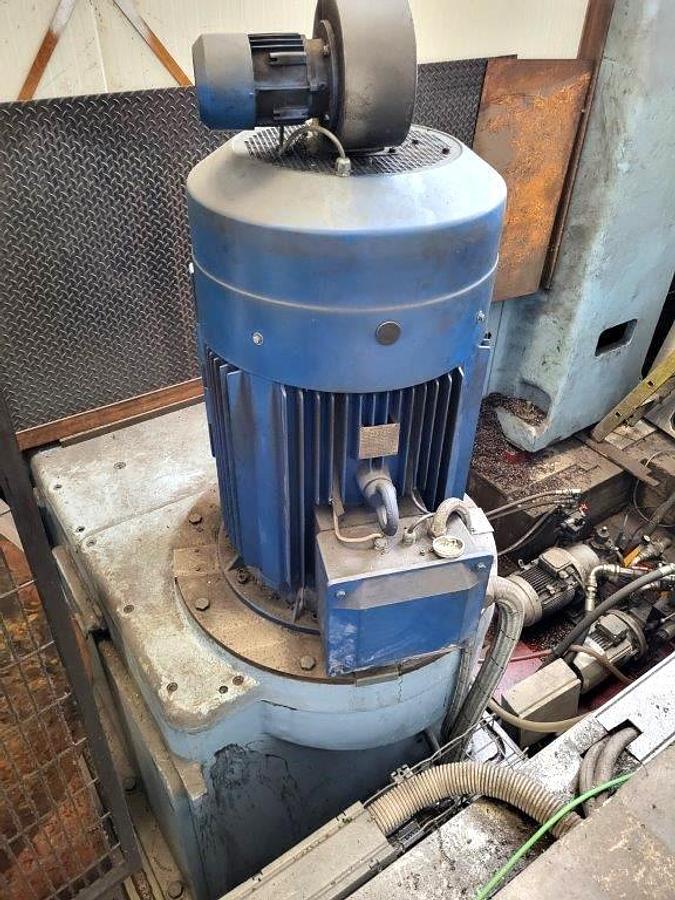

Main motor power : 60 kw

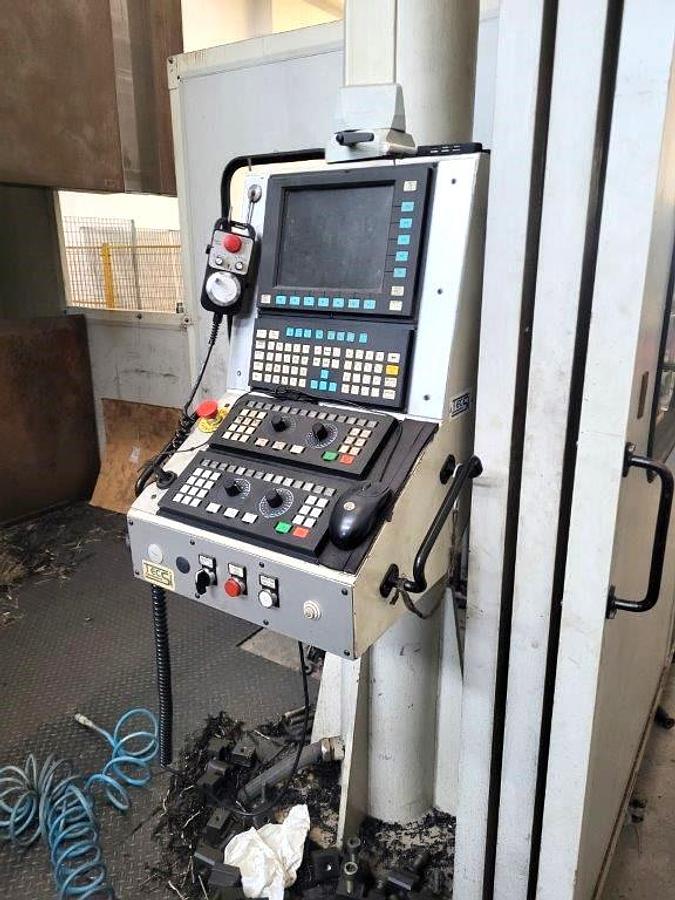

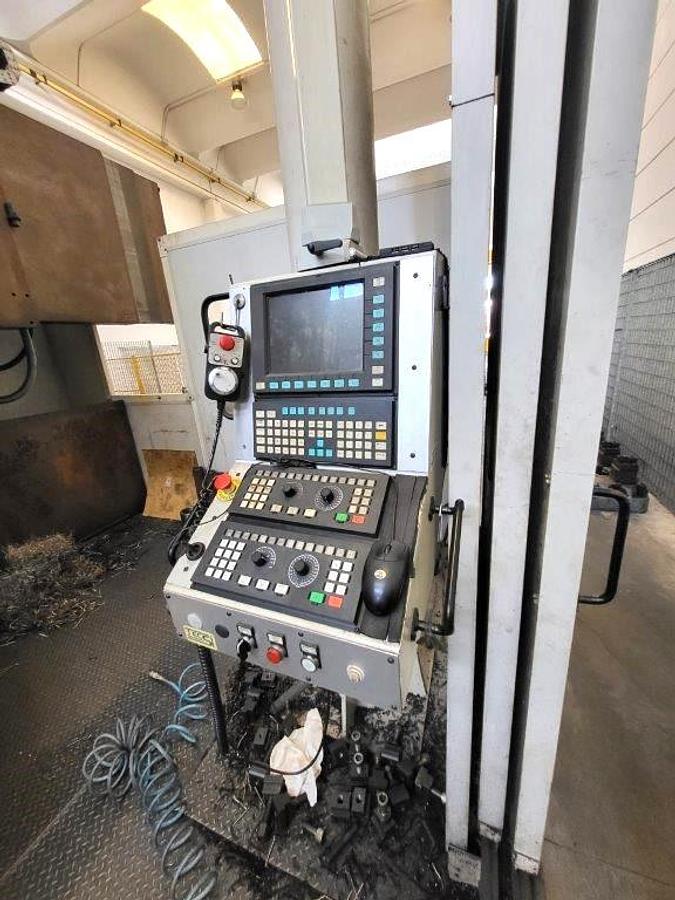

Cnc fagor : 8070

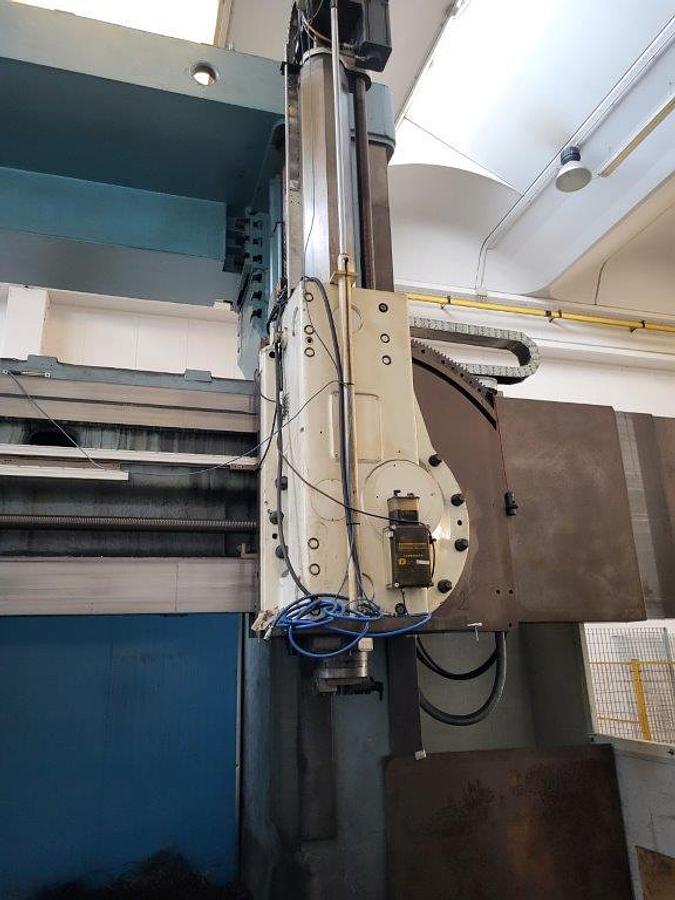

Nr 02 turning carriages
Overall dimensions : 6100 x 10400 h 8400 mm
Weight : 134 tons.
