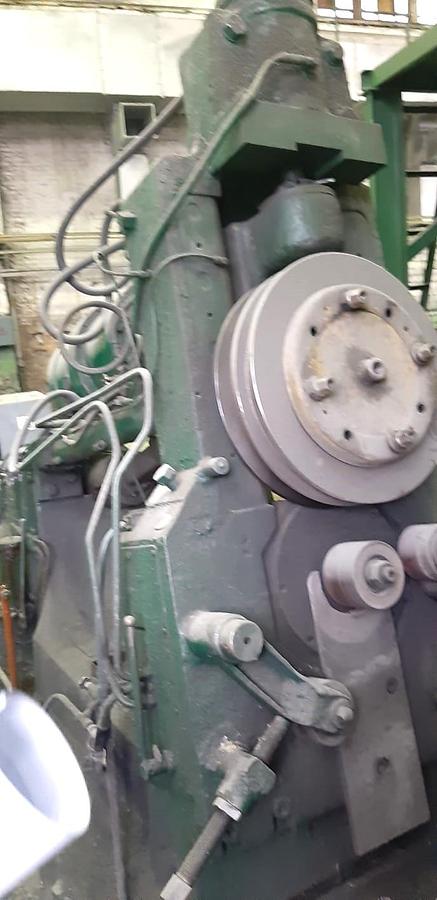

Ring Rolling Machine Stanko PM-300MT

Nominal ring compression force

at 0.4 : 200000 MPa, N. (KGS)

Diameters of workpieces : up to 600 mm,

Workpiece height : up to 120 mm,

Machine productivity, pcs/hour (depending on the ring) : 50 - 100,

Working spindle speed : 92 rpm,

Upper headstock stroke : 150 mm,

Power of installed electric motor : 75 kW,

Overall dimensions :

Length : 6900 mm,

Width : 2700 mm,

Height : 2850 mm,

Machine weight : 13 tons,

Technical characteristics of electrical equipment

Number of electric motor : pcs : 1,

Motor type : 4A250 4Y3

Power : 75 kw,

Rotation speed : 1500 rpm.
