3200 tons Hot Forging Line Jaewoo (J&H) JFP3200W

1) JAEWOO 3200Ton Forging press Model JFP-3200 , new : 2011

Capacity : 3200 tons,

Stroke : 340 mm,

Stroke per min. : 64 spm,

Die height : 1160 mm,

Slide adjustment : 10 mm,

Slide area (LR x FB) : 1600 x 1400 mm,

Die seat (LR x FB) : 1700 x 1500 mm,

Side opening (W x H) : 1020 x 1200 mm,

Upper Ejector : 30, 60, 65 mm,

Lower Ejector : 45 mm,

Main Motor : 220 Kw x 10P,

Adjust motor : Hyd. 150 kg/cm2,

Working pressure : 6 kg/cm2

Technical manuals available

2) AKANGTECH  TRANSFER  as a Trimming Press.

    ( 5 working steps = 3 steps of Forging + 2 steps of Trimming , 6 axis transfer system )

Type : AC Servo transfer,

No. of process : 5 process,

Advance stroke : 270 mm,

Lifte stroke : 60 mm,

Clamp stroke : 100 m,

Servo motor :

Advance : 7 kw,

Lift : 5Kw

Clamp : 3.5Kw.

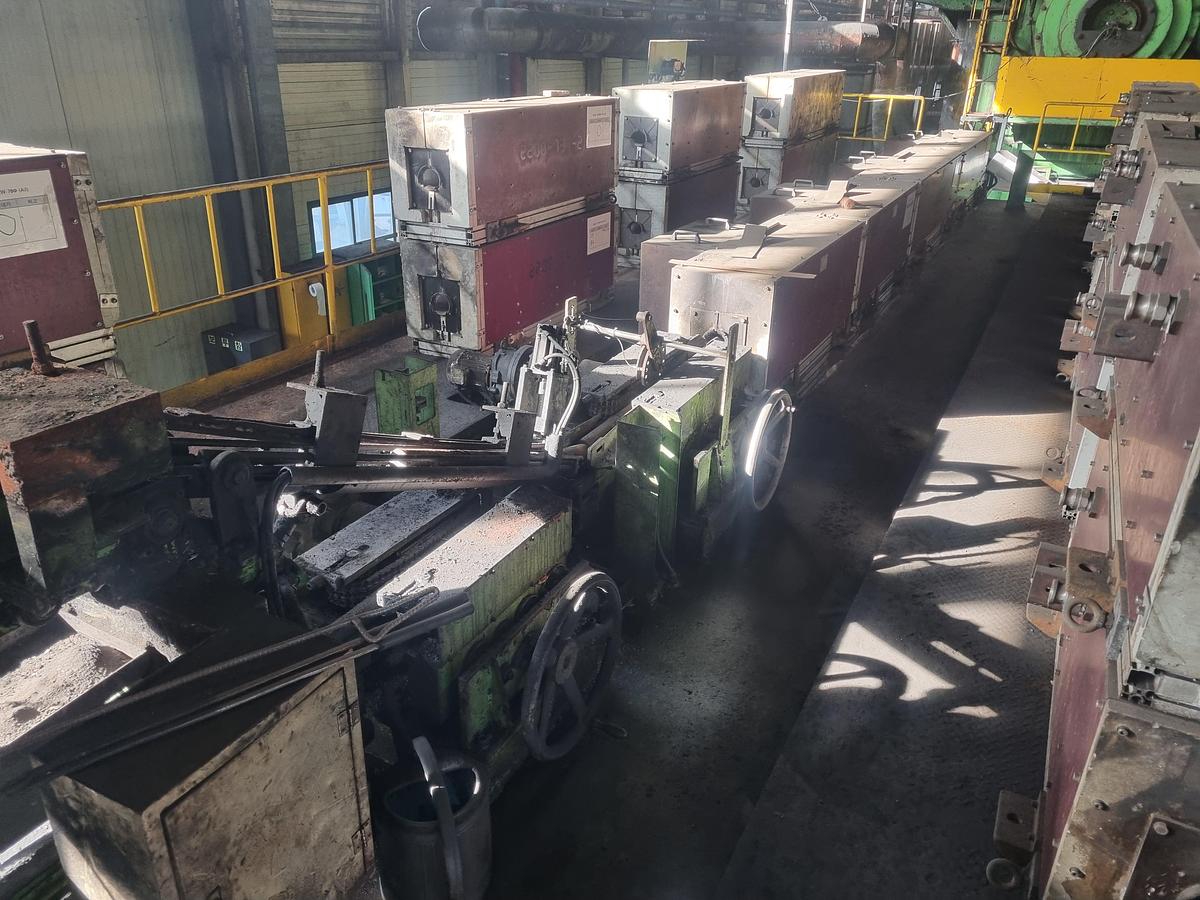

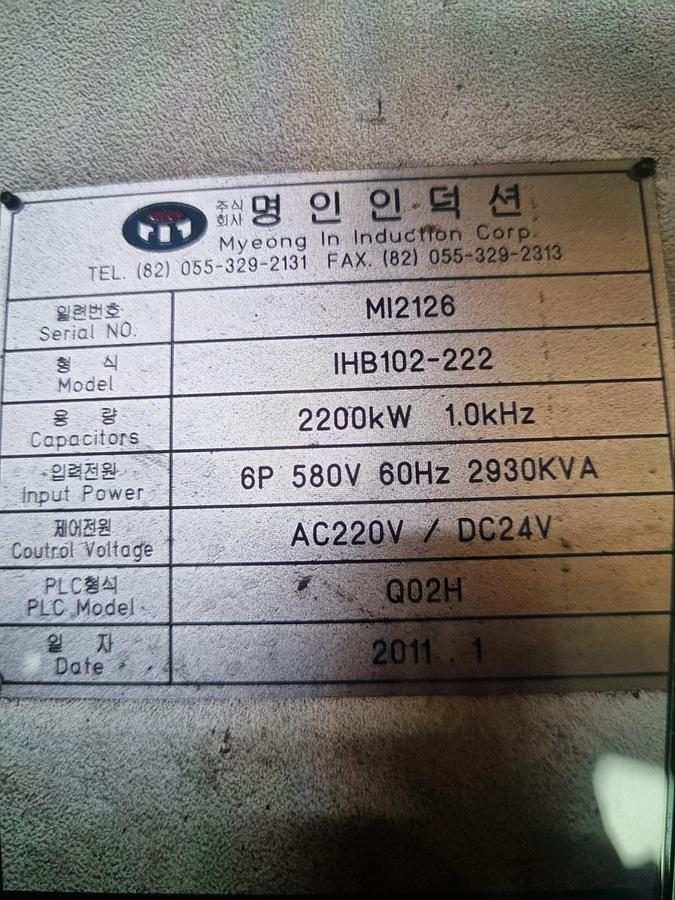

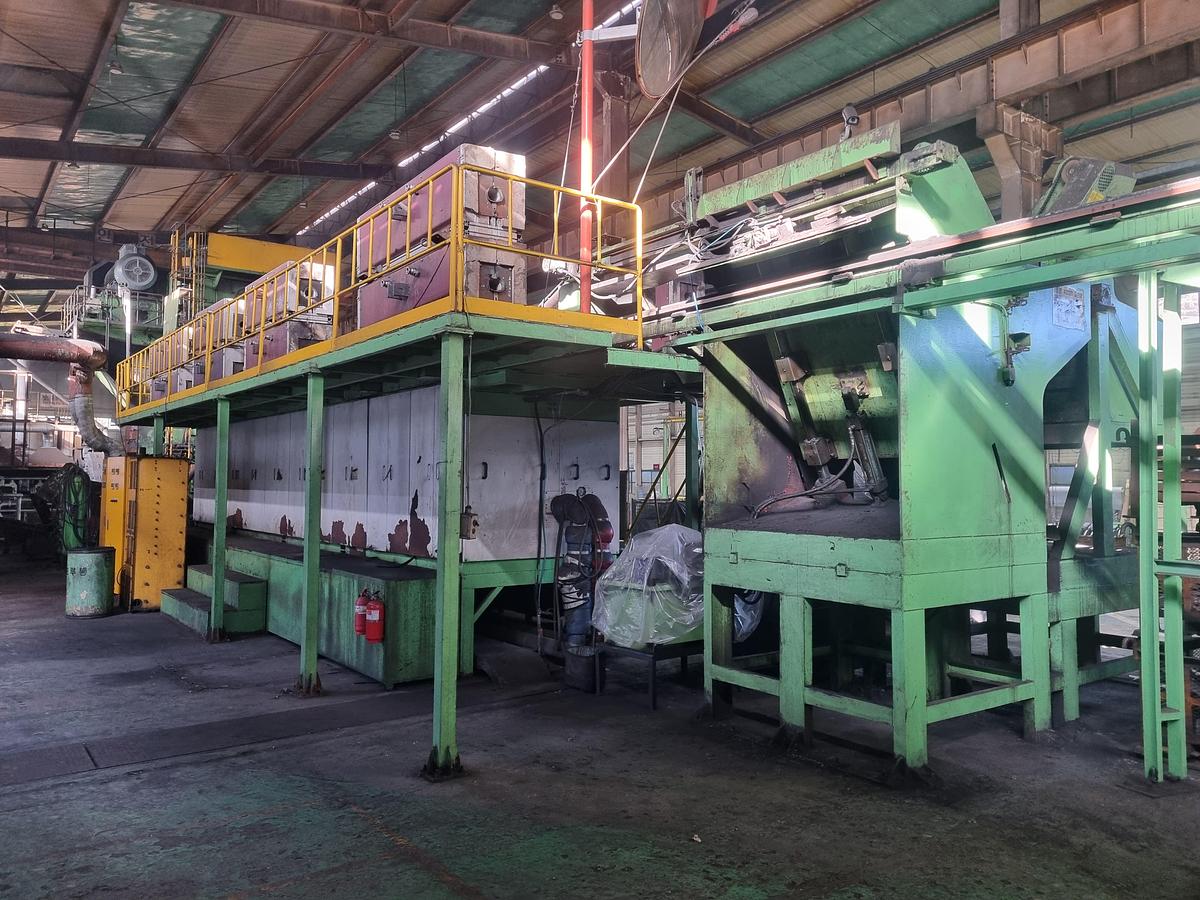

3) Myeongin 220KW INDUCTION Heater , 2011
